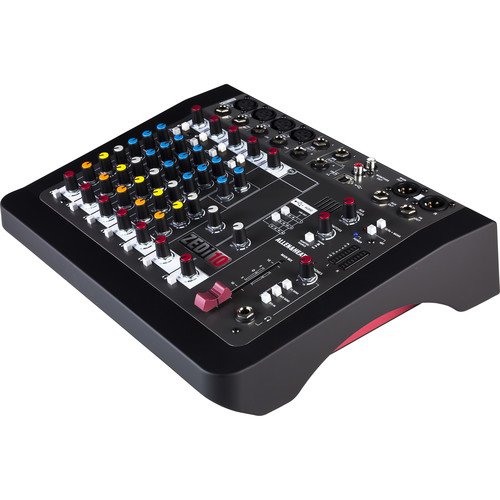

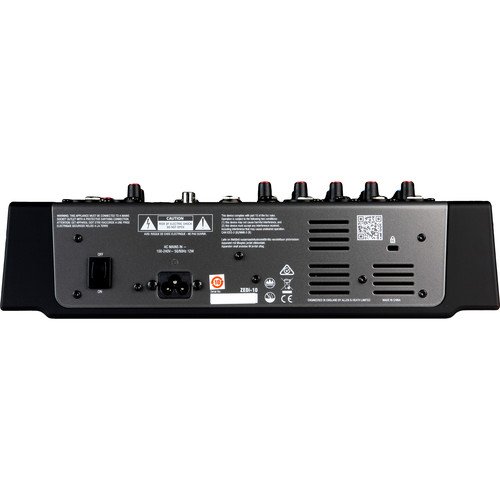

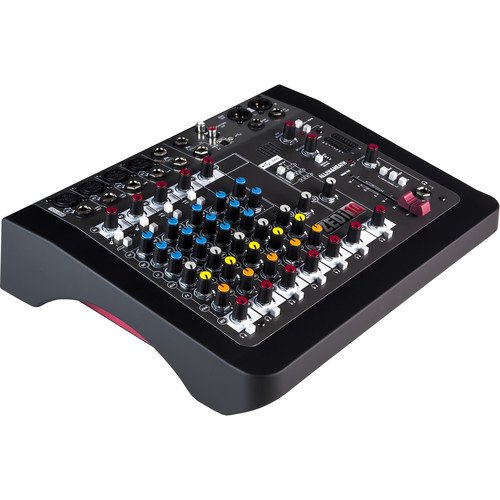

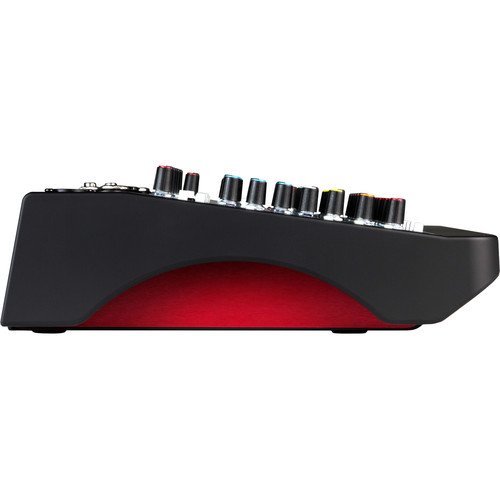

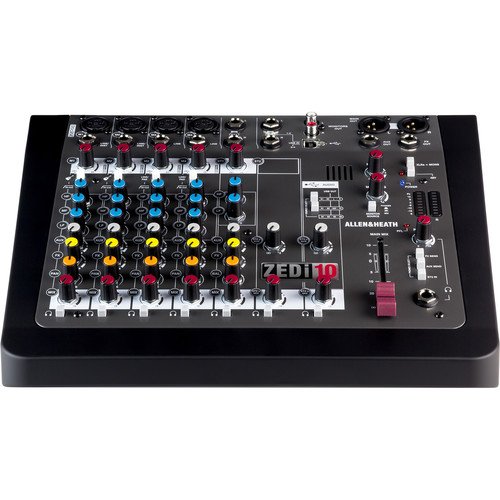

Allen & Heath ZEDi-10 Hybrid Compact Mixer and USB Interface

The Allen & Heath ZEDi-10 combines the functionality of a professional analogue mixer with a high-quality USB audio interface, providing a versatile solution for musicians, recording enthusiasts, and live performers. Designed for both stage and studio applications, the mixer delivers the renowned Allen & Heath sound quality in a compact and portable format.

The mixer features four microphone inputs, four line inputs, two dedicated instrument inputs, and stereo input channels, offering extensive connectivity for microphones, instruments, keyboards, and playback devices. Its microphone preamps are derived from the acclaimed GS2-R24 recording console and deliver exceptionally low noise, wide headroom, and the warm analogue sound that Allen & Heath mixers are known for.

For guitarists and bass players, the ZEDi-10 includes two high-impedance instrument inputs that eliminate the need for external DI boxes. The mono channels incorporate responsive 3-band EQ and high-pass filters for precise tonal shaping and removal of unwanted low-frequency noise. Stereo channels also include dedicated EQ controls, providing additional flexibility for managing multiple audio sources.

The integrated USB audio interface supports high-resolution 24-bit/96kHz recording and playback with four channels of USB conversion. Flexible USB routing enables users to determine how audio signals are sent to and received from a computer, making the ZEDi-10 equally capable as a live mixer and recording interface. Included Cubase LE and Cubasis LE software further enhance its recording capabilities.

With balanced XLR main outputs, monitor outputs, dedicated auxiliary and effects sends, and durable construction, the Allen & Heath ZEDi-10 provides a complete solution for musicians and creators seeking professional sound quality and recording flexibility.

Features of ZEDi-10

• Hybrid analogue mixer and USB audio interface
• High-resolution 24-bit/96kHz audio conversion
• Four-channel USB recording and playback
• Four premium GS2-R24-derived microphone preamps
• Two dedicated Hi-Z instrument inputs
• Direct guitar and bass connection without DI boxes
• Four mic/line input channels
• Two stereo input channels

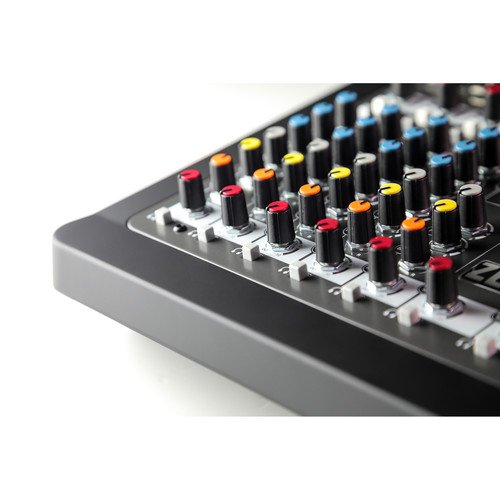

• 3-band EQ on mono channels
• 2-band EQ on stereo channels
• High-pass filters on channels 1 through 4

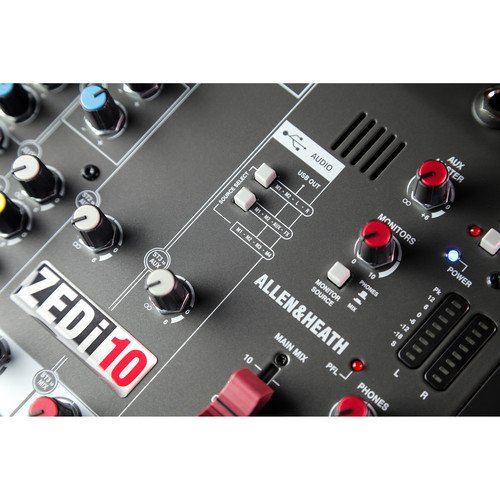

• Flexible USB signal routing

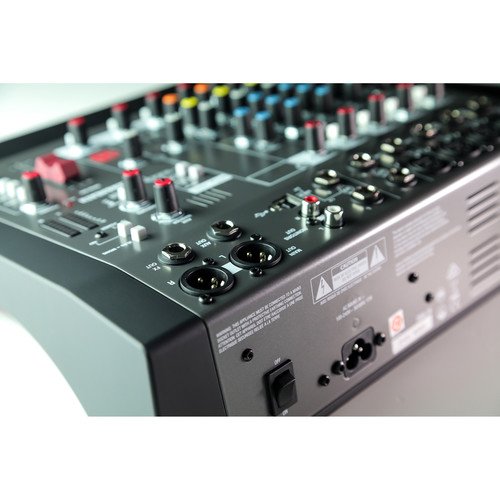

• Balanced XLR main outputs
• Stereo RCA monitor outputs
• Dedicated auxiliary and FX sends
• Eight-segment LED metering
• 48V phantom power for condenser microphones
• Includes Cubase LE and Cubasis LE software
• Internal universal power supply
• Compact and portable design

Specifications of ZEDi-10
