BIXOLON XT5-40S/MEA Label Printer

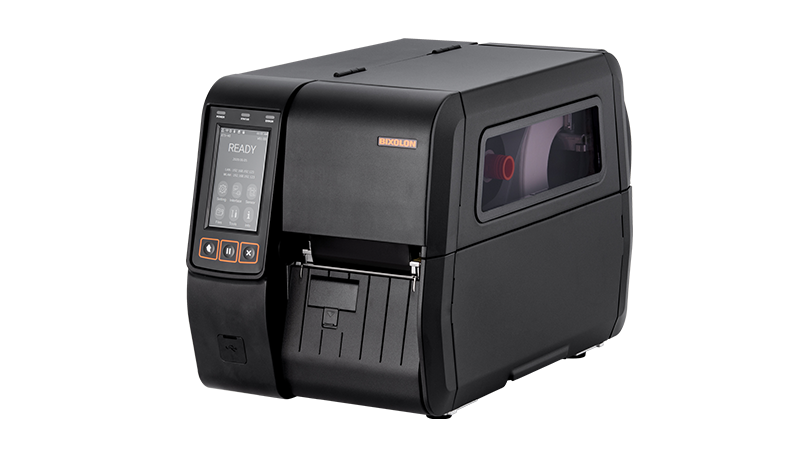

BIXOLON XT5-40 4-Inch Thermal Transfer Industrial Label Printer

The XT5-40 is a premium industrial 4-inch (114 mm) thermal transfer and direct thermal label printer designed for high-volume industrial environments such as warehouses, logistics, and manufacturing. Combining speed, durability, and advanced connectivity, this printer delivers reliable and efficient labeling solutions while minimizing downtime.

This industrial printer supports UHF RFID print-and-encode functionality with close-spaced inlay encoding (minimum 16 mm pitch). It offers high-speed printing up to 14 ips (356 mm/sec at 203 dpi) and selectable print resolutions of 203 dpi, 300 dpi, or 600 dpi for high-definition output. The XT5-40 accommodates wide-ranging media rolls up to 203 mm in diameter and ribbons up to 450 m, with optional features such as auto-cutter, peeler, and rewinder for enhanced flexibility.

Connectivity options are comprehensive, including USB Host, Ethernet 1Gbit/sec, serial, parallel, Bluetooth MFi-certified, and dual-band WLAN. Device management and monitoring are supported via BIXOLON Profile Manager (XPM/XCM) and SoftAP Wi-Fi setup. The intuitive 3.5-inch or 4.3-inch color touch LCD allows easy in-field operation, while toolless maintenance of the roller and print head ensures minimal service interruptions. The robust aluminum body with adhesiveless metal casing and a space-saving double folding door provides durability and ergonomic convenience.

The XT5-40 supports various emulations including SLCS, BPL-Z, BPL-E, BPL-D, ZPL, EPL, and DPL. It can generate 1D/2D barcodes, user-defined graphics, and flexible label formats. Optional accessories and software tools like Twin Function™ enable copying printer settings and data via USB, and SAP Smart Forms can be printed directly. Its combination of speed, durability, and connectivity makes XT5-40 an ideal choice for automating labeling processes efficiently.

Features of XT5-40

• Industrial 4-inch thermal transfer and direct thermal printer

• UHF RFID print-and-encode capability, close-spaced encoding (16 mm pitch)

• High-speed printing up to 356 mm/sec (14 ips)

• Print resolution: 203 dpi, 300 dpi, 600 dpi

• Print width up to 104 mm, max print length up to 4,000 mm

• Supports media rolls up to 203 mm diameter, ribbons up to 450 m

• Multiple interfaces: USB Host, Ethernet 1Gbit/sec, Serial, Parallel, Bluetooth MFi, WLAN, GPIO

• 3.5-inch or 4.3-inch full-color touch LCD display

• Toolless maintenance of rollers and print head

• Optional auto-cutter, peeler, and rewinder

• Emulation support: SLCS, BPL-Z, BPL-E, BPL-D, ZPL, EPL, DPL

• Supports 1D/2D barcodes and customizable graphics

• Durable aluminum and adhesiveless metal casing with space-saving double folding door

• SoftAP Wi-Fi setup and Twin Function™ for data transfer

• Compatible with BIXOLON Profile Manager (XPM/XCM) and MDM solutions

Specifications of XT5-40
