Bose ArenaMatch AMAPSPRD Array Spreader Bar

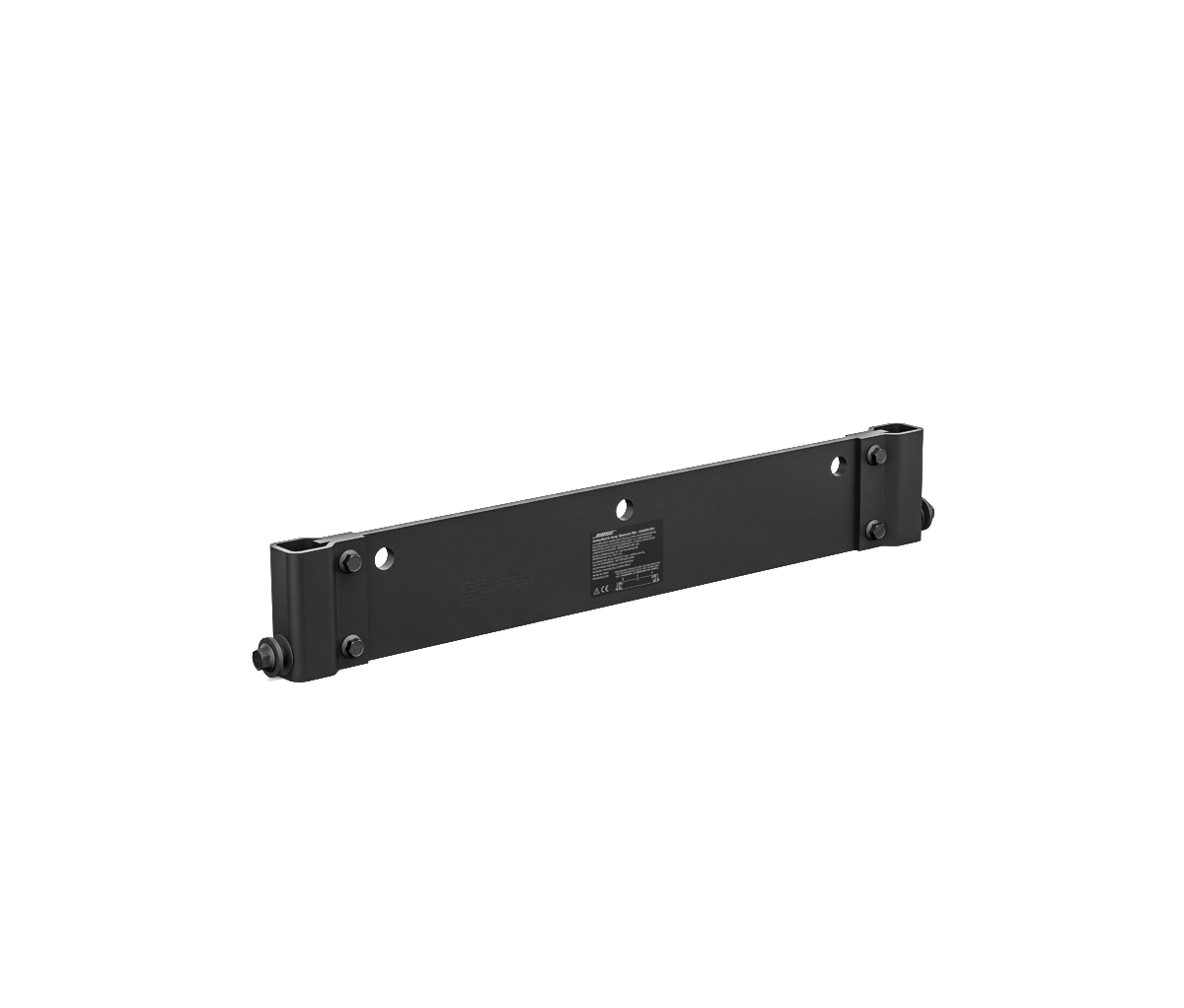

Bose ArenaMatch AMAPSPRD array spreader bar

The Bose ArenaMatch AMAPSPRD is a metal spreader bar rigging accessory designed exclusively for use with ArenaMatch DeltaQ array loudspeaker modules, specifically the AM10, AM20 and AM40. It provides alternate attachment points beyond those built into the loudspeaker modules themselves, helping riggers position an array precisely at its final installation location when the building’s structural attachment points don’t line up directly above the array.

The kit includes all fasteners required for installation: two M12 x 35mm screws, two fender washers and two spacers, along with an installation guide, letting the spreader bar be fitted without sourcing additional hardware. At 803mm in length, the AMAPSPRD spans a wide area, giving installers flexibility in how load is distributed across the rigging point.

Rated for a working load limit of 550 lb (250 kg) at each side attachment point, or up to 1,050 lb (476 kg) when loaded from its centre point, the AMAPSPRD is engineered to handle the demanding load requirements of large ArenaMatch installations in stadiums, arenas and outdoor entertainment venues. Bose recommends confirming safe working load limits for any specific array configuration using approved array design software before installation.

Finished in black to blend into rigging and truss environments, the AMAPSPRD is a precision rigging accessory intended purely for professional installation use, complementing the AMAPLONG, AMAPSHRT and AMPULL brackets as part of a complete ArenaMatch array suspension system.

Features

• Array spreader bar for positioning flexibility
• For use with AM10, AM20 and AM40 modules only
• Working Load Limit: 550 lb (250 kg) per side, 1,050 lb (476 kg) centre point
• 803mm length spans wide attachment areas
• Includes M12 x 35mm screws, fender washers, spacers
• Installation guide included
• Black finish
