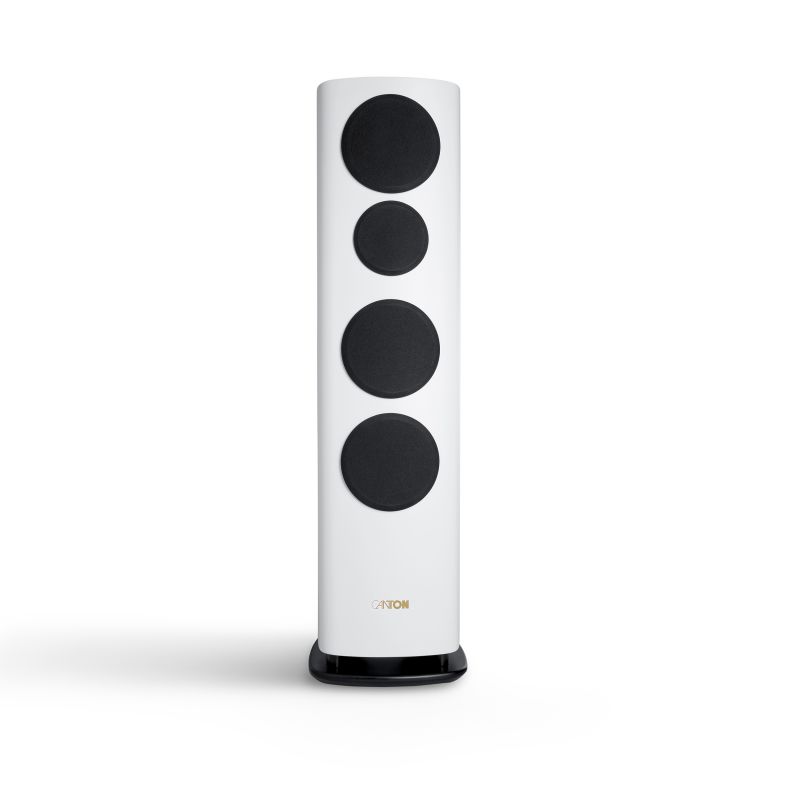

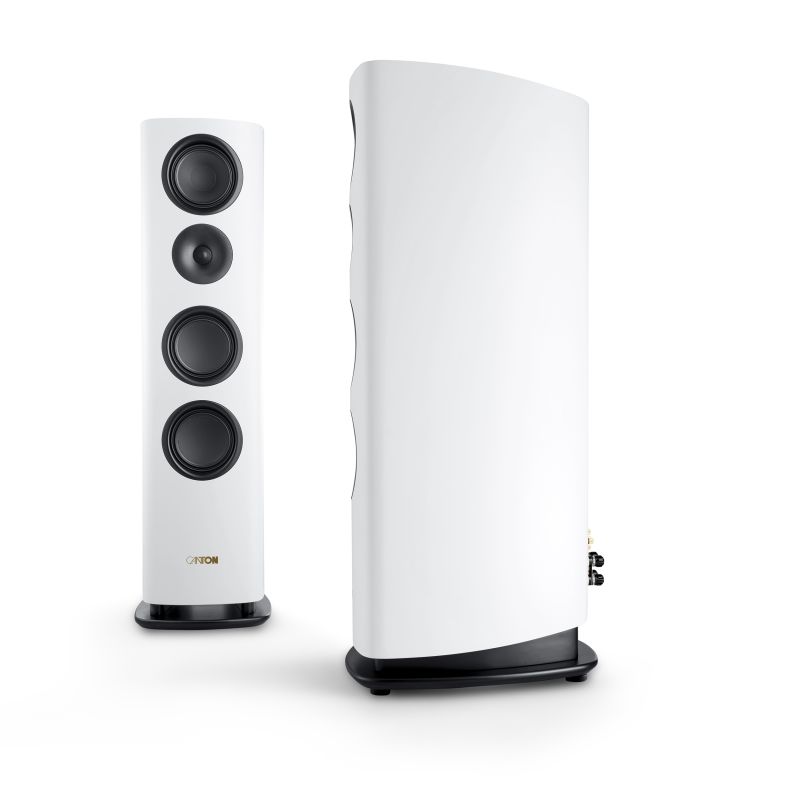

Canton Reference 7 High End Floorstanding Speaker – White Matt

Canton Reference 7 Floorstanding Speaker

The Reference 7 floorstanding speaker combines refined aesthetics with powerful acoustic performance. As the slimmest model in the Reference series, it integrates effortlessly into modern interiors while delivering high dynamics and deep bass response. Its compact proportions are supported by a precisely tuned cabinet and an integrated bass guide system that maximizes low-frequency performance without compromising clarity.

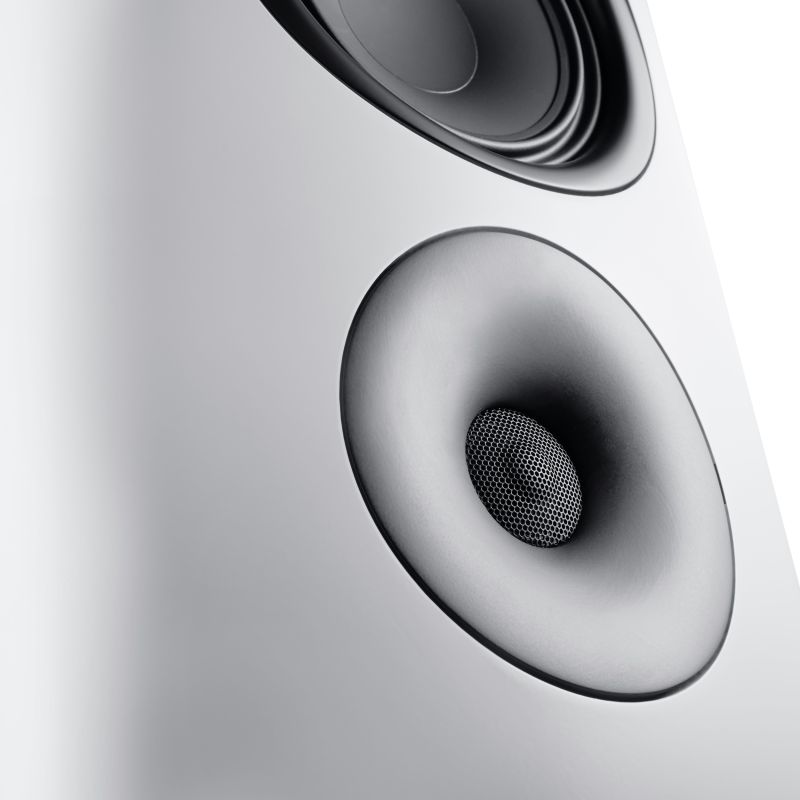

Designed as a 3-way loudspeaker system, the Reference 7 features two 154 mm woofers equipped with black ceramic tungsten diaphragms. These woofers provide fast impulse response and controlled bass reproduction. A dedicated 154 mm BCT midrange driver ensures finely resolved and natural mid frequencies, supporting accurate vocal and instrumental presentation. High frequencies are reproduced by a 25 mm BC tweeter with a black aluminum oxide ceramic cone, offering detailed, smooth, and homogeneous treble output.

All drivers are mounted on a round baffle and integrated using intricately crafted, screwless adapter rings that enhance both acoustic precision and visual refinement. Asymmetrical wave guide construction improves sound dispersion, creating a balanced listening experience across different room positions. The crossover network employs hand-selected components with minimal tolerances to ensure stable impedance behavior and precise impulse response.

The cabinet structure incorporates computer-optimized internal bracing and carefully defined damping materials to minimize resonances and prevent standing waves. Parallel cabinet surfaces are avoided to preserve acoustic accuracy. Manufactured in Germany using advanced Canton technologies and premium materials, the Reference 7 delivers long-term musical performance through precision engineering and high-quality construction.

Features of Reference 7

• Slim 3-way floorstanding speaker configuration

• Dual 154 mm BCT woofers for precise bass control

• 154 mm BCT midrange driver for natural midrange clarity

• 25 mm BC ceramic tweeter for detailed high frequencies

• Integrated bass guide system for extended low-end response

• Asymmetrical wave guides for optimized sound dispersion

• Hand-selected crossover components for accurate impulse response

• WBT nextgen™ terminals supporting bi-wiring and bi-amping

• Room Compensation controls for midrange and tweeter adjustment

• Rigid internally braced cabinet to reduce resonances

Specifications of Reference 7
