Chauvet DJ 4BARQUADILS 4BAR Quad ILS Professional LED Stage Lighting Fixture

SKU: 4BARQUADILS Category: Brand:

Chauvet DJ 4BARQUADILS professional LED bar light with ILS technology ideal for stage shows events and DJs includes quad color output fast setup portable design reliable performance versatile lighting effects

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

AED 2,068.50 Inc VAT

12 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Delivery Service

Our courier will deliver to the specified address

1-3 Days

Charges as per location

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year/ or per brand policy
  • Free 7 Days returns policy

Payment Methods:

Chauvet DJ 4BARQUADILS 4BAR Quad ILS Professional LED Stage Lighting Fixture

Description

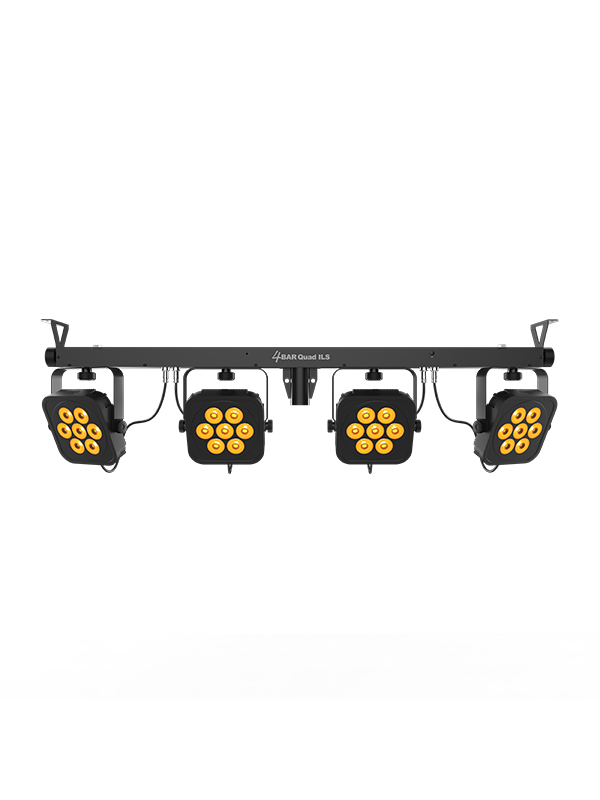

The Chauvet DJ 4BAR Quad ILS is a professional wash lighting bar with four adjustable heads, using high-intensity quad-color RGBA LEDs to deliver rich, versatile color coverage. It is designed for both mobile and installed lighting, offering wide coverage and powerful color mixing.

The heads are fully adjustable, allowing you to aim each of the four pods independently to cover different parts of a stage or room. It supports ILS (Instant Light Shows) which enables synchronized shows with other compatible fixtures easily.

Control is flexible: the kit includes a wireless footswitch, and you can use the optional IRC-6 remote or a D-Fiâ„¢ USB module (sold separately) for DMX or master/slave operation. It also features built-in mounting bolts so you can clamp it to truss securely.

Features of Chauvet DJ 4BAR Quad ILS

  • Four individually adjustable wash heads with quad-color RGBA LEDs
  • ILS compatibility for synchronized shows across fixtures
  • Wireless footswitch for hands-free scene changes
  • Optional IRC-6 remote control or D-Fi USB for DMX / master-slave
  • Wide color gamut including warm amber for natural tones
  • Tripod stand and carry bag included for quick setup and portability
  • Mounting bolts built-in for safe truss attachment

Applications of Chauvet DJ 4BAR Quad ILS

  • Stage wash for bands and theatrical performances
  • DJ and mobile lighting setups
  • Event lighting for weddings, corporate, and parties
  • Architectural uplighting and wall washes
  • Installations requiring synchronized ILS shows



Specifications of Chauvet DJ 4BAR Quad ILS

BrandChauvet DJ
Model4BAR Quad ILS
TypeLED Wash Bar
LEDs28 × quad-color (RGBA)
LED Power3.5 W per LED
DMX Channels4, 6, or 19
DMX Connector3-pin XLR
Beam Angle14°
Field Angle23°
Strobe Rate0–20 Hz
Illuminance2,353 lux @ 2 m (per pod)
Input Voltage100–240 VAC, 50/60 Hz
Power Consumption80 W @ 120 V / 78 W @ 230 V
Weight5.5 kg
Size1,186 × 50.8 × 305 mm
Operating Frequency (D-Fi)2.412–2.484 GHz
Footswitch Frequency433 MHz
Max Footswitch Distance30.5 m
Footswitch Battery9 V
Stand Height2.2 m (7 ft 4 in)
Bracket HoleM10 (1.5 mm pitch)
