Crown Audio DCi 8|600N 8-Channel Power Amplifier

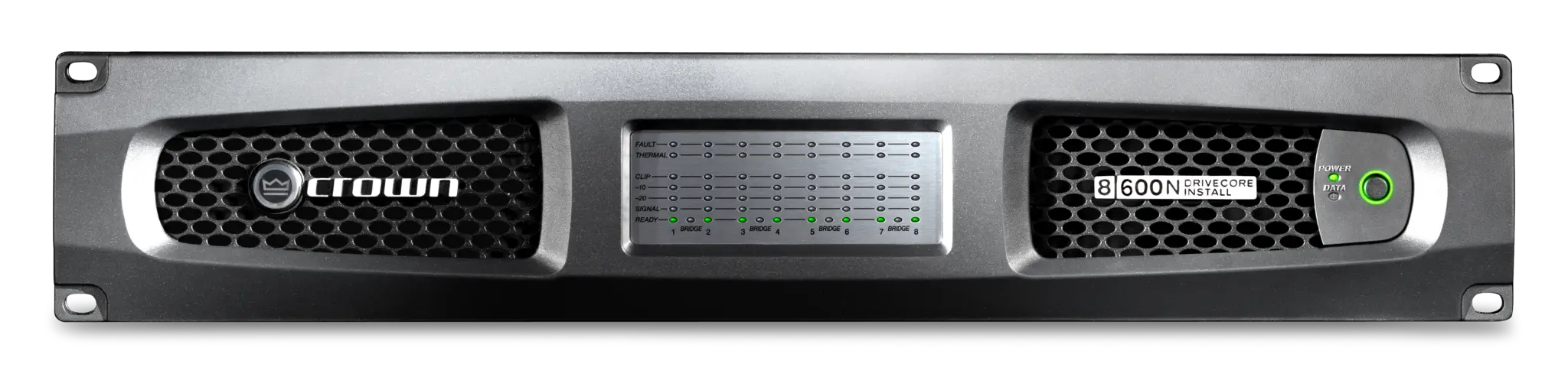

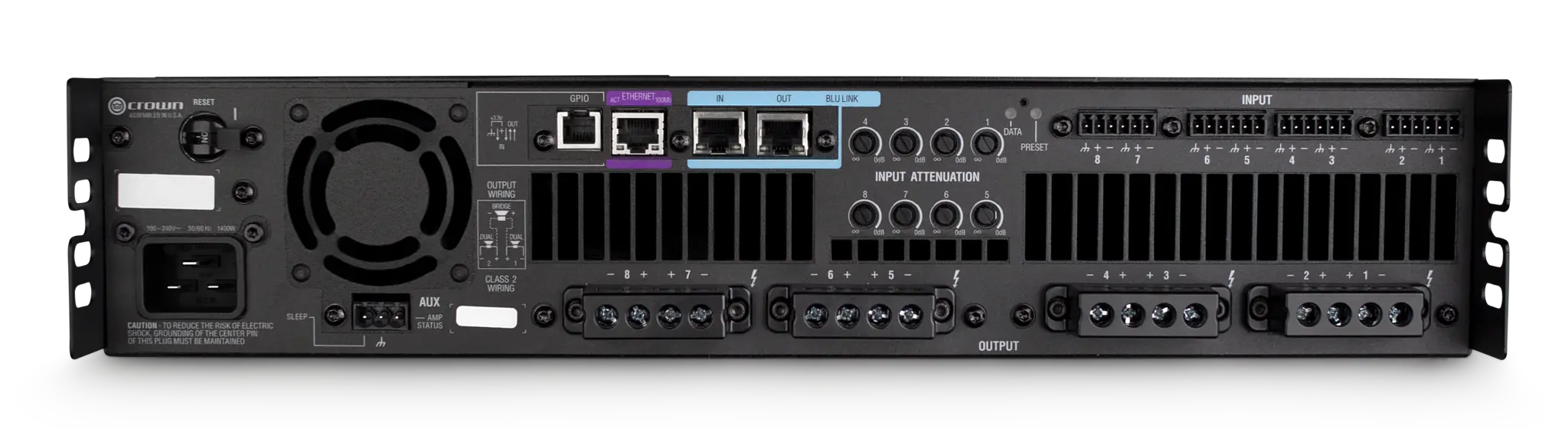

Crown DCi 8|600N

The Crown DCi 8|600N is a high-performance eight-channel power amplifier engineered for demanding commercial and professional installed sound applications. Built on Crown’s proprietary DriveCore technology, this amplifier combines exceptional power density, energy efficiency, and operational reliability in a compact 2RU chassis. Designed to meet the requirements of modern audio installations, it delivers consistent performance for multi-zone sound reinforcement systems in corporate facilities, educational institutions, hospitality venues, transportation hubs, houses of worship, and large entertainment spaces.

The amplifier integrates HARMAN’s BLU link digital audio transport alongside balanced analog inputs, providing flexible connectivity options for a wide variety of system architectures. Intelligent priority input routing allows automatic switching between primary and backup audio sources when signal interruptions occur, ensuring uninterrupted audio distribution and improved system reliability. This flexibility simplifies installation while supporting critical audio applications.

Advanced onboard DSP processing provides comprehensive audio optimization tools, including input and output equalization, crossover management, delay processing, matrix mixing, LevelMAX limiting, and speaker line monitoring. These capabilities allow system designers to precisely tune loudspeaker performance, optimize system efficiency, and protect connected audio equipment from excessive signal levels.

Network monitoring and control are available through the HiQnet protocol over standard TCP/IP infrastructure. Using Audio Architect software or the Powered by Crown application, operators can remotely configure amplifier settings, monitor performance, perform diagnostics, and manage multiple amplifiers from a centralized location. Programmable GPIO ports further enhance integration possibilities by supporting external control systems, preset recall, volume control, and fault reporting functions.

With support for 2Ω to 16Ω speaker loads as well as 70V and 100V distributed audio systems, the Crown DCi 8|600N offers exceptional versatility and reliable high-power performance for professional installation environments.

Features of DCi 8|600N

• Eight-channel 600W per channel amplifier design
• Proprietary DriveCore amplifier technology
• BLU link digital audio transport support
• Balanced analog input connectivity
• Automatic priority input switching
• Advanced DSP processing platform
• LevelMAX loudspeaker protection limiting
• Input and output EQ processing
• Integrated crossover management
• Delay and matrix mixer functionality
• Speaker line monitoring capability
• HiQnet network monitoring and control
• Audio Architect software compatibility
• Programmable GPIO control ports
• Supports 70V and 100V distributed audio
• Compatible with 2Ω to 16Ω speaker loads

Specifications of DCi 8|600N
