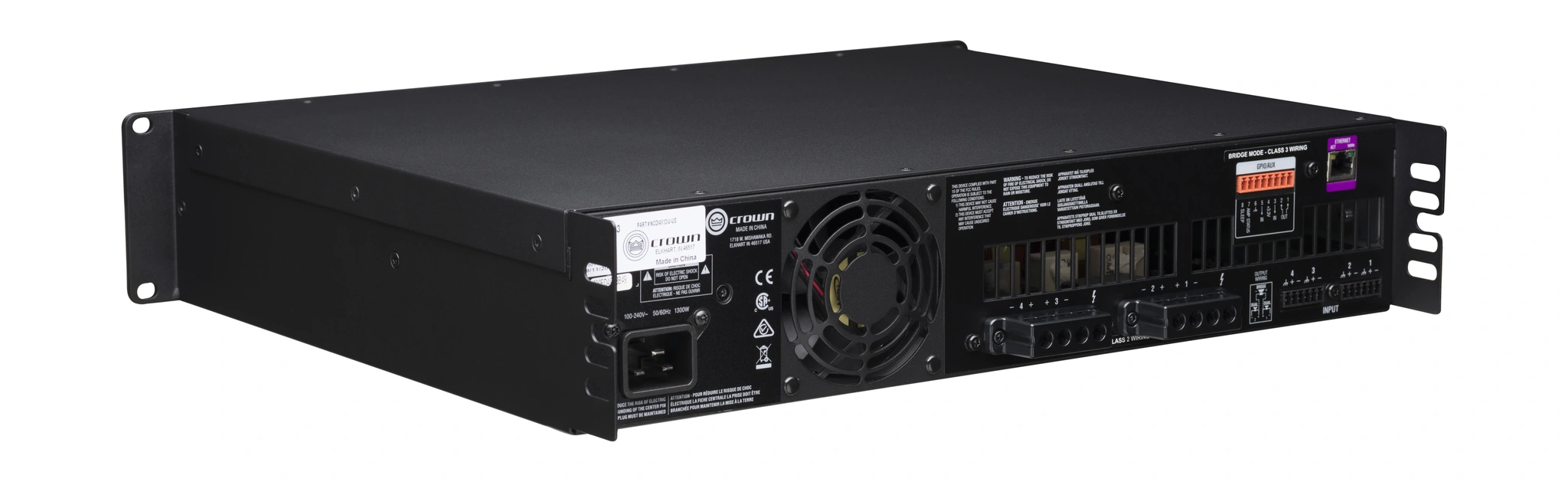

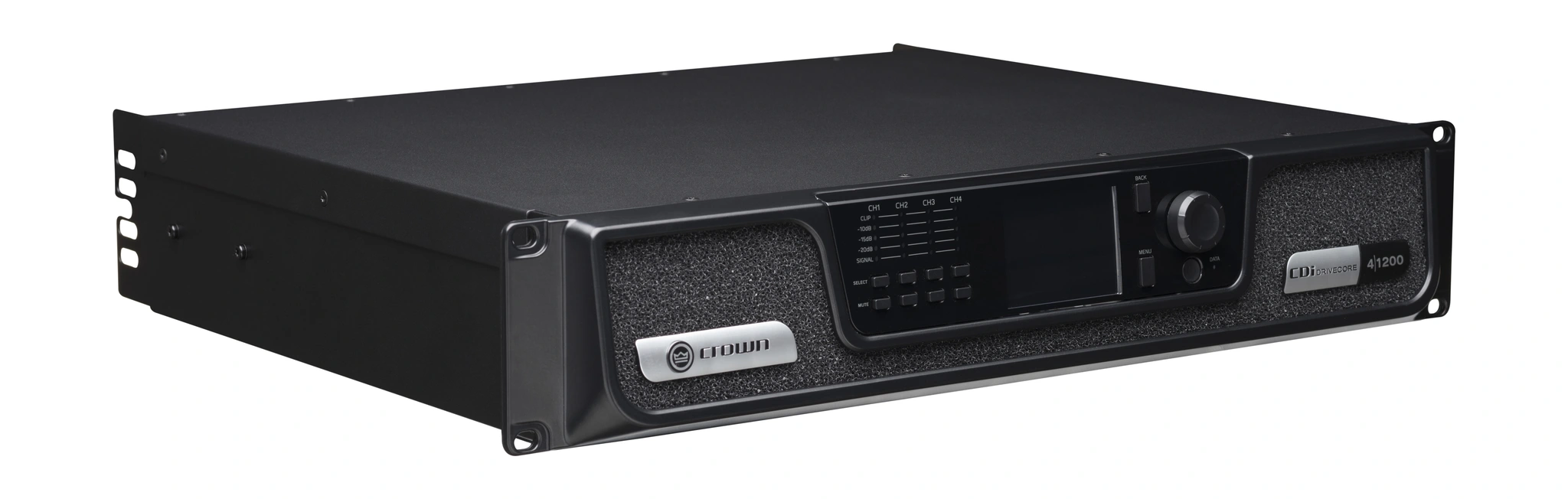

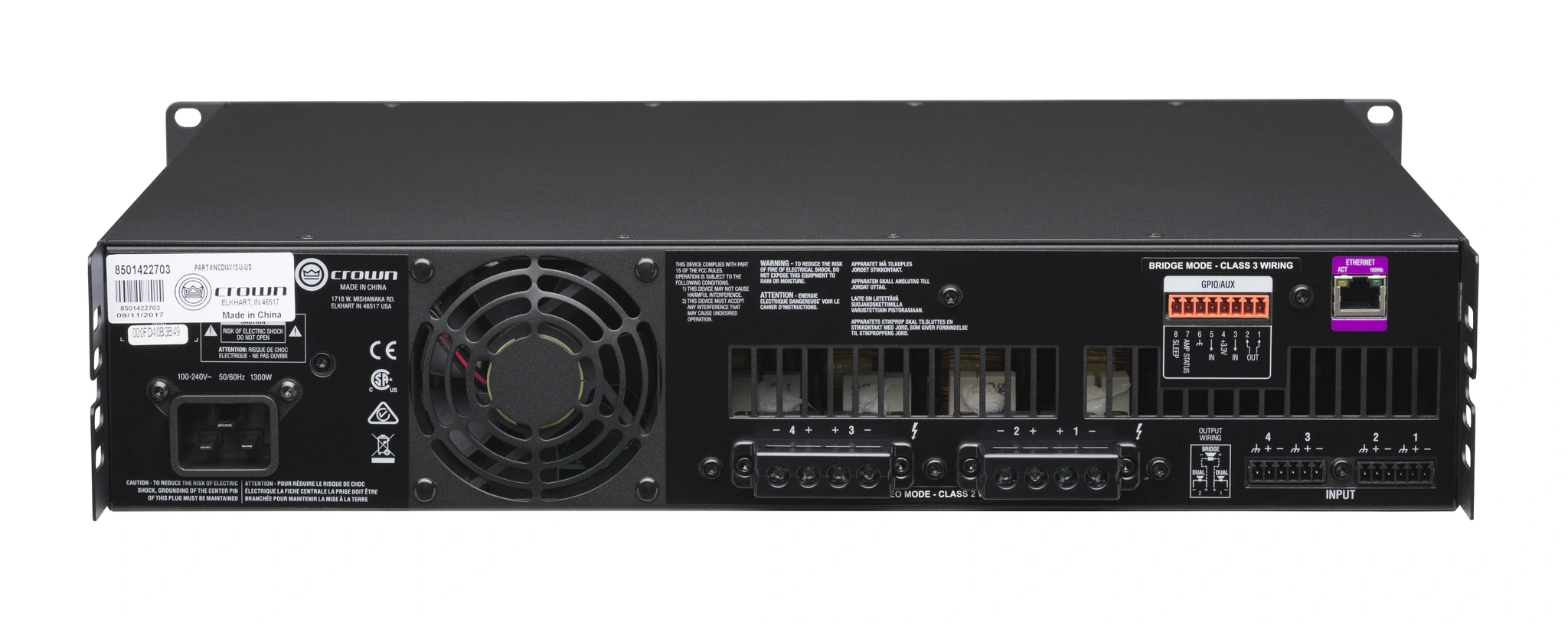

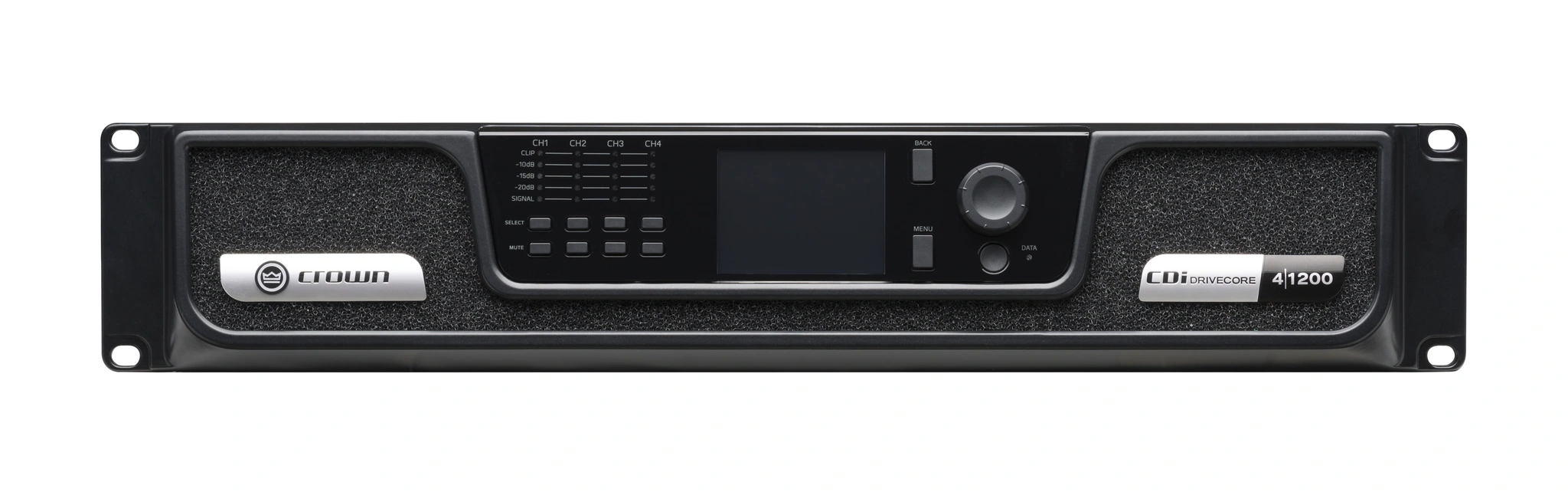

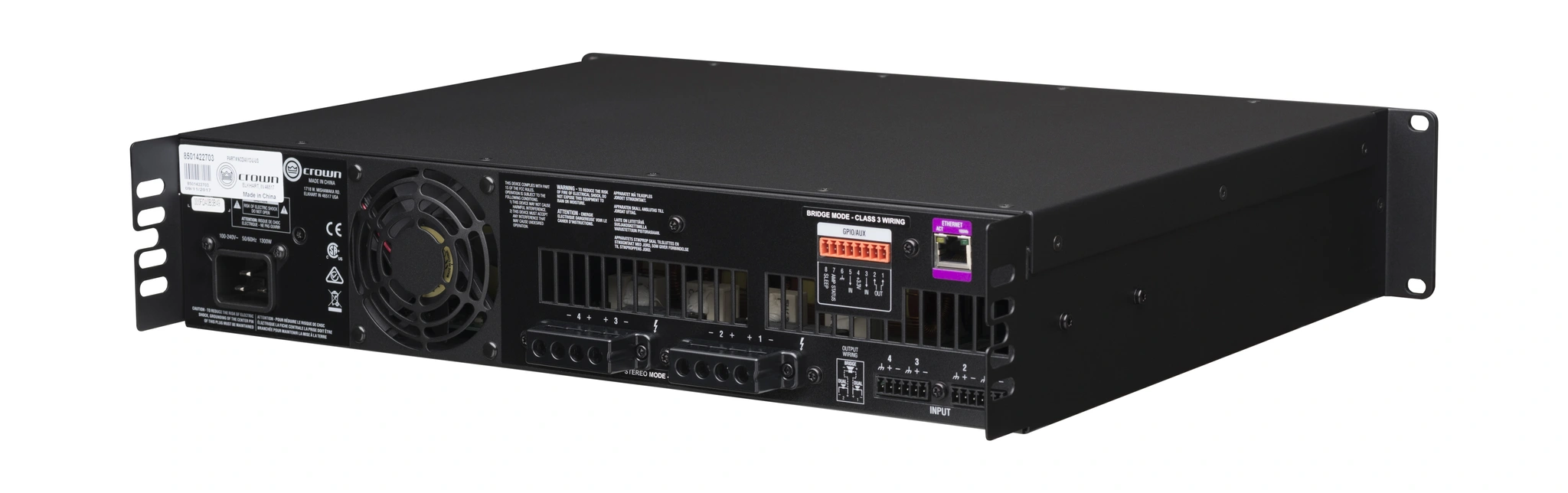

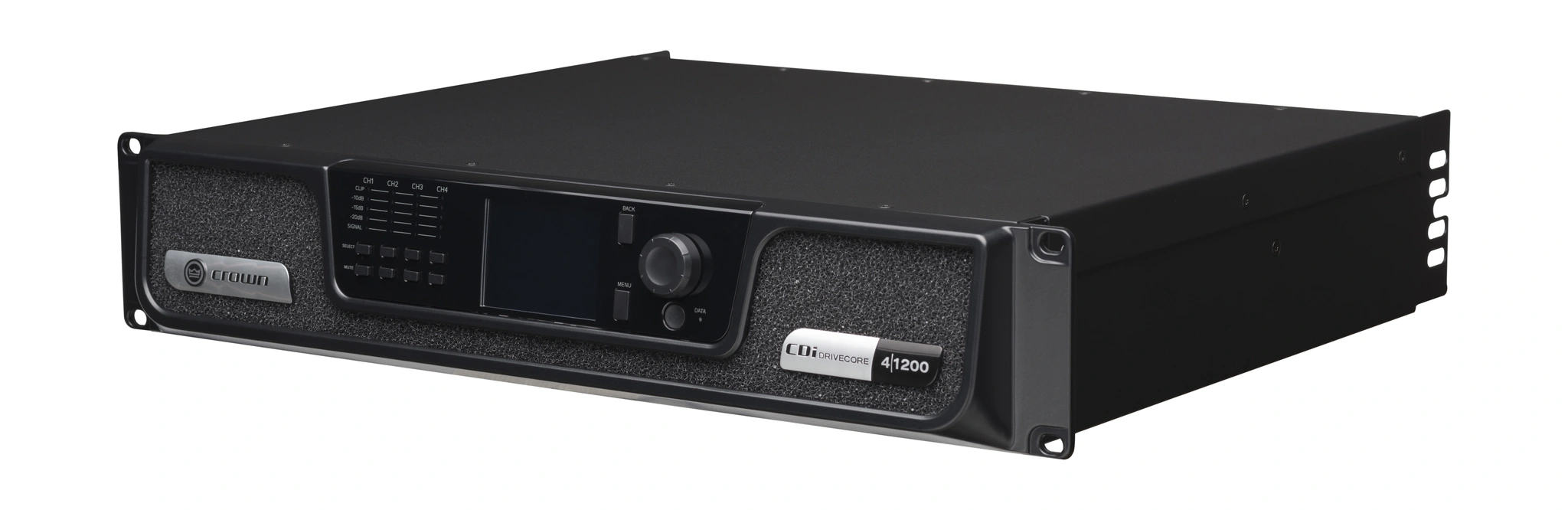

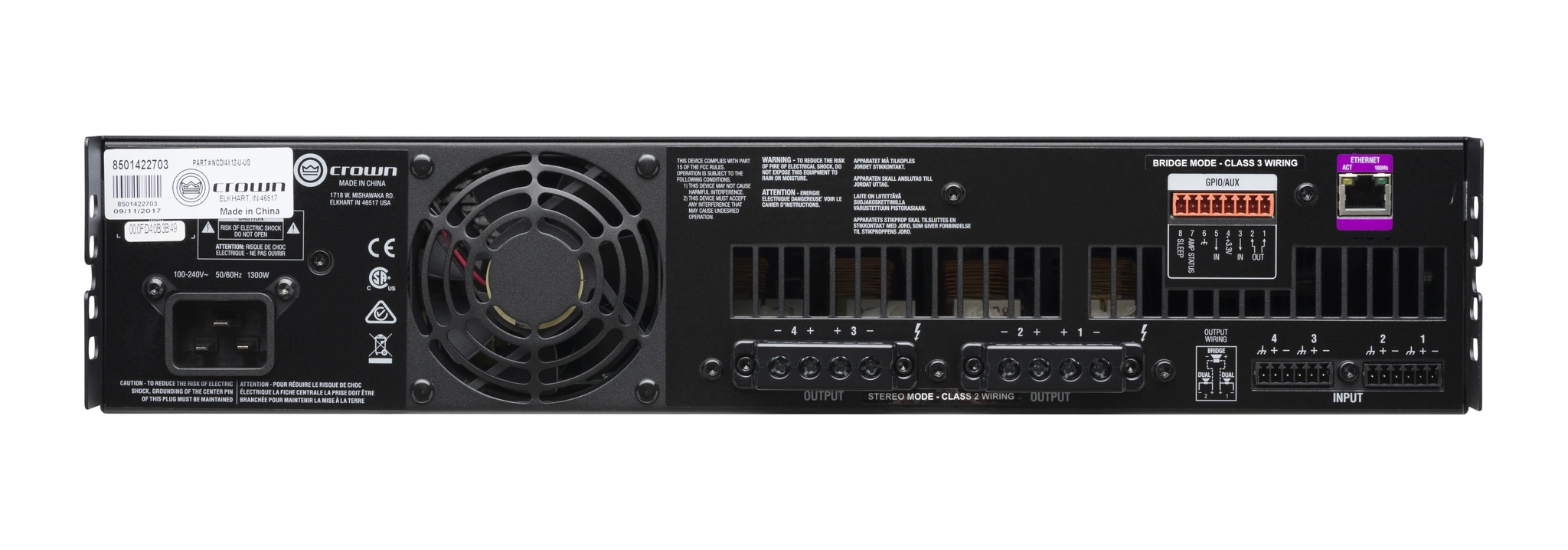

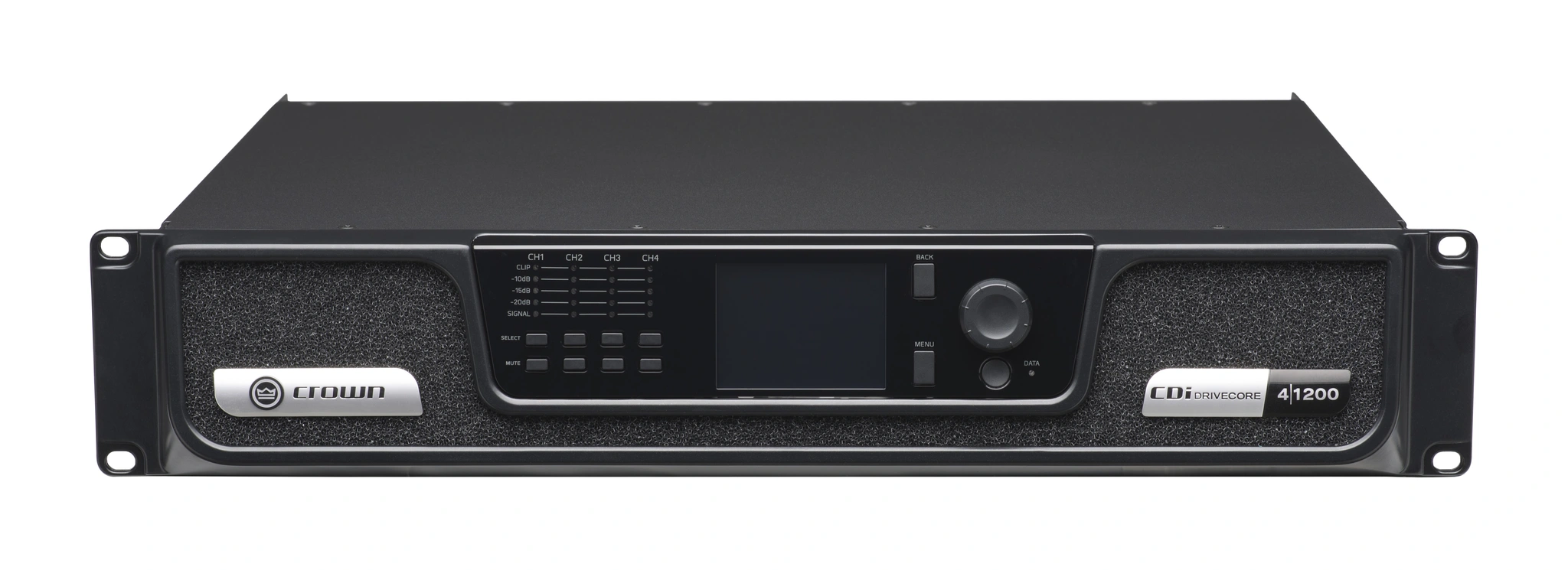

Crown NCDI4X12-U-UK CDi 4|1200 Analog input, 4 channel Amplifier

Crown CDi DriveCore 4|1200 amplifier

The Crown CDi DriveCore 4|1200 amplifier from Crown Audio is developed for high-demand installed sound applications requiring powerful multi-channel performance, advanced system processing, and efficient networked control. Utilizing Crown’s DriveCore technology, the amplifier combines reduced internal component architecture with improved efficiency, dependable operation, and consistent audio fidelity for professional commercial environments.

Configured as a 4-channel amplifier, the CDi DriveCore 4|1200 is designed for large venues such as cinemas, hotels, cruise ships, worship facilities, and distributed commercial sound systems. The multi-channel design enables centralized amplification for several speaker zones while maintaining stable output performance across complex installations.

The amplifier supports both low-impedance loudspeaker systems and high-impedance distributed audio applications with direct 70V and 100V output capability, eliminating the need for external transformers. Its integrated DSP platform allows extensive audio customization through crossover configuration, signal routing, parametric equalization, and delay processing. These tools assist system integrators in optimizing loudspeaker performance, improving speech clarity, and achieving accurate audio coverage throughout large venues.

Remote network monitoring and configuration capabilities simplify system management and allow efficient integration into professional audio infrastructures. The front-panel interface enables direct access to amplifier settings and operational adjustments during installation or maintenance. Preloaded JBL loudspeaker tuning presets further reduce configuration time and support faster deployment for compatible speaker systems.

The CDi DriveCore 4|1200 combines high-output amplification, flexible DSP control, and scalable installation capability, making it suitable for professional commercial audio systems that require reliable multi-zone sound reinforcement and long-term operational stability.

Features of CDi DriveCore 4|1200

• DriveCore amplifier technology for efficient operation
• 4-channel commercial installation amplifier
• High-output multi-zone amplification capability
• Integrated DSP audio processing system
• Network-based monitoring and configuration
• Direct 70V and 100V speaker support
• Built-in crossover and routing controls
• Parametric EQ processing for system tuning
• Delay management for speaker alignment
• Front-panel configuration and control access
• Preloaded JBL speaker tuning presets
• Optimized for distributed audio installations
• Efficient thermal performance design
• Reliable commercial-grade operation

Specifications of CDi DriveCore 4|1200
