Ecler ARQIS SB12iBK Subwoofer – Black

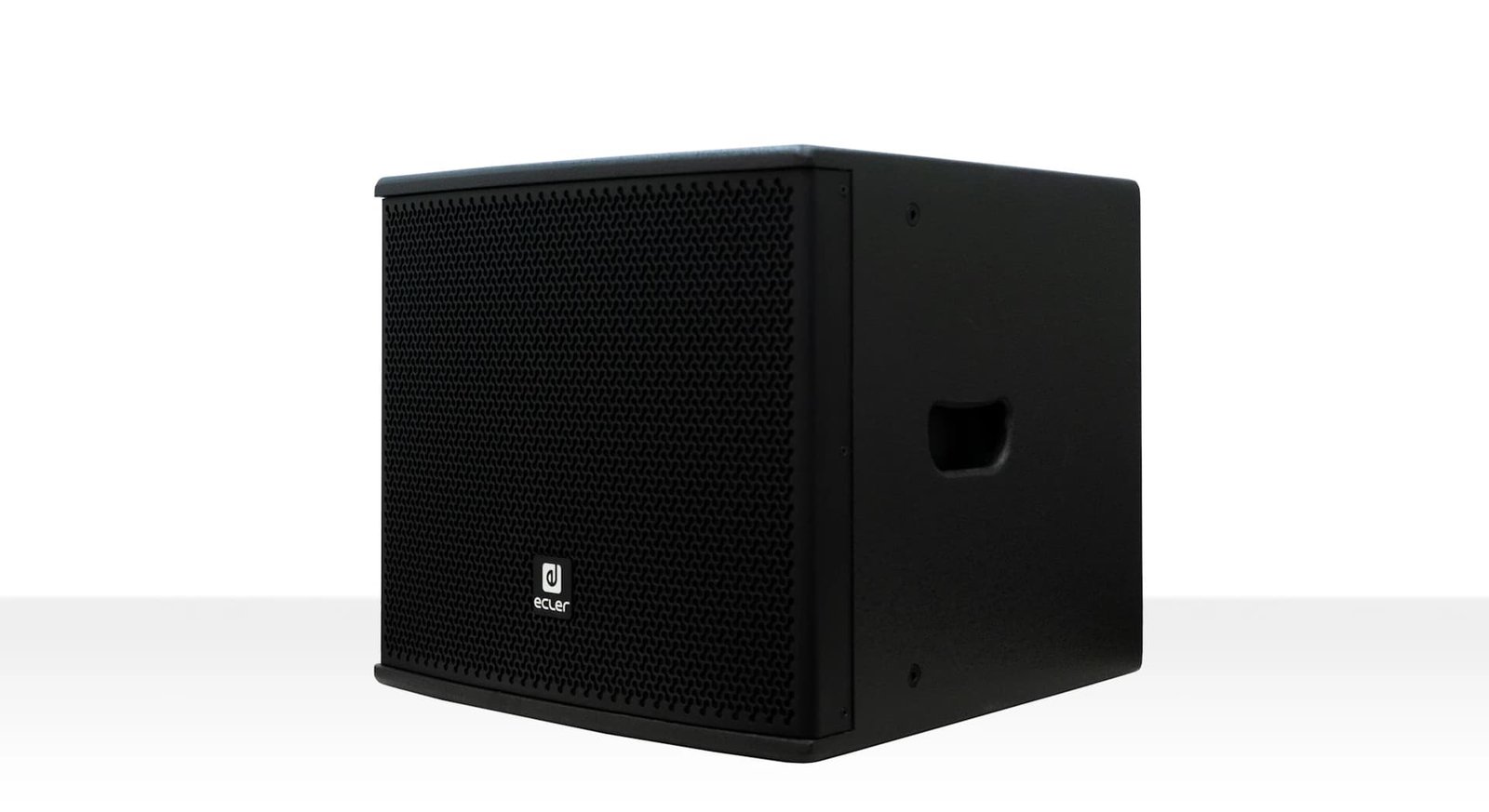

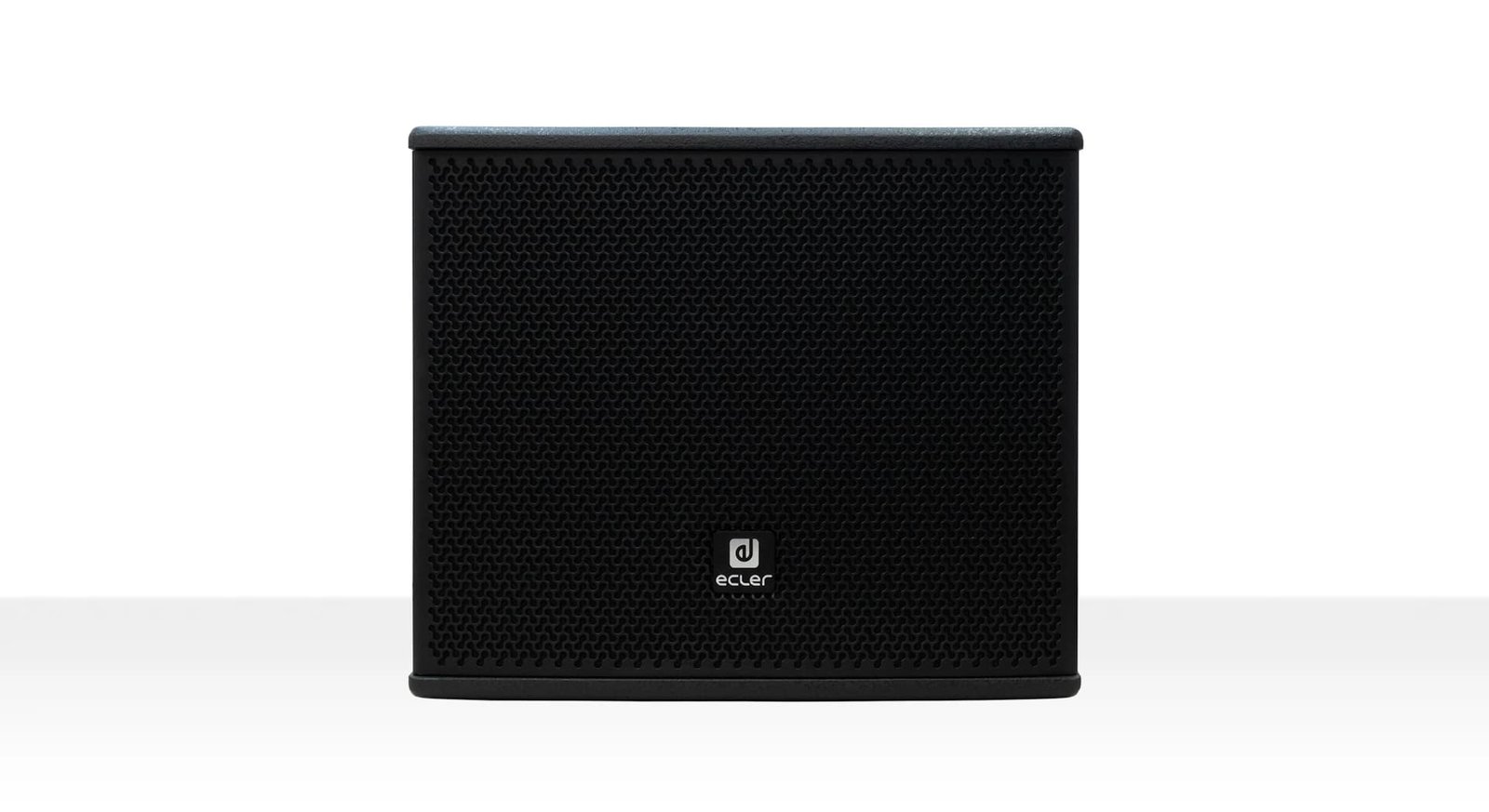

Ecler ARQISSB12i Black subwoofer

The Ecler ARQISSB12i is a wooden subwoofer reinforcement cabinet with a compact format, stylish aesthetics and long-term reliability, built around a 12 inch low frequency driver delivering 300W RMS power handling at 8 ohm. As part of the ARQISi series, it has been specifically engineered to fulfil permanent installation requirements where a balance between sound performance and architectural or interior design matching is essential.

Effective frequency range spans 44Hz to 4kHz, with a sensitivity of 95dB (1W/1m) and a maximum SPL of 120dB RMS, giving the ARQISSB12i the output needed to reinforce the low end in larger commercial, corporate and leisure environments. A recommended amplifier power of 600W ensures the subwoofer can be driven to its full potential without unnecessary headroom loss.

A double INPUT/STACK connector of Speakon type simplifies daisy-chaining multiple subwoofers or connecting to the amplifier feed, while a 35mm top-hat mount socket allows pole mount combinations with full range ARQIS loudspeakers such as the ARQIS110i or ARQIS112i. Twelve M8 cabinet flying points support suspension for overhead rigging in venues that require it.

Finished in black (RAL 9005), the ARQISSB12i suits retail, corporate, hotels and restaurants, education, sports and wellness, and leisure applications that need a subwoofer capable of blending into the architecture of the space while delivering substantial bass reinforcement.

Features

• 1-way wooden subwoofer cabinet

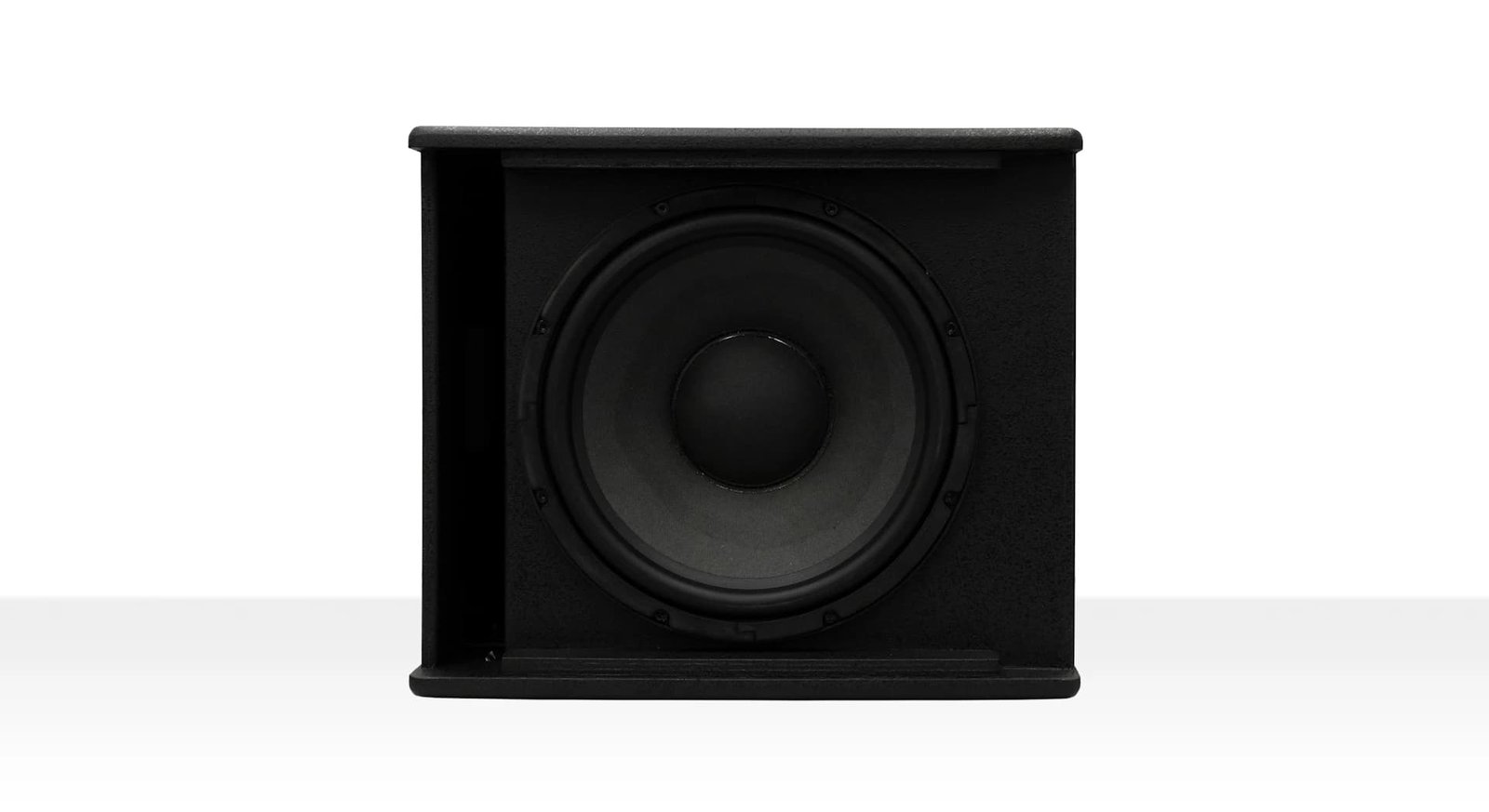

• 12 inch low frequency woofer
• 300W RMS / 1200W peak power handling
• Effective frequency range 44Hz-4kHz
• Sensitivity 95dB, max SPL 120dB RMS

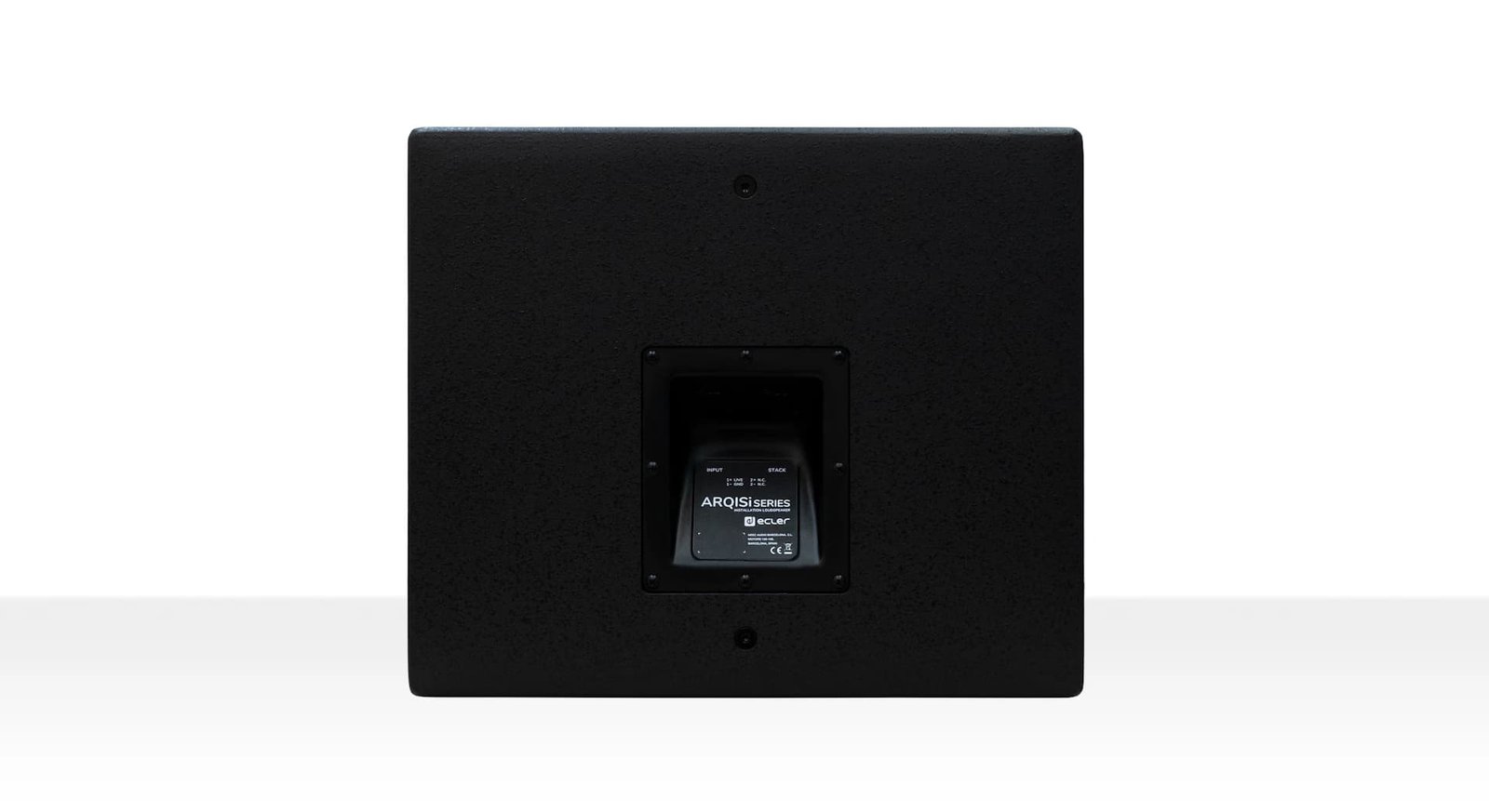

• Double INPUT/STACK Speakon connector
• 35mm top-hat mount socket for pole combinations
• 12 x M8 cabinet flying points
• Part of the ARQISi architectural loudspeaker series
• Black finish (RAL 9005)

Specifications
