Ecler CA120HZ Micro-Amplifier

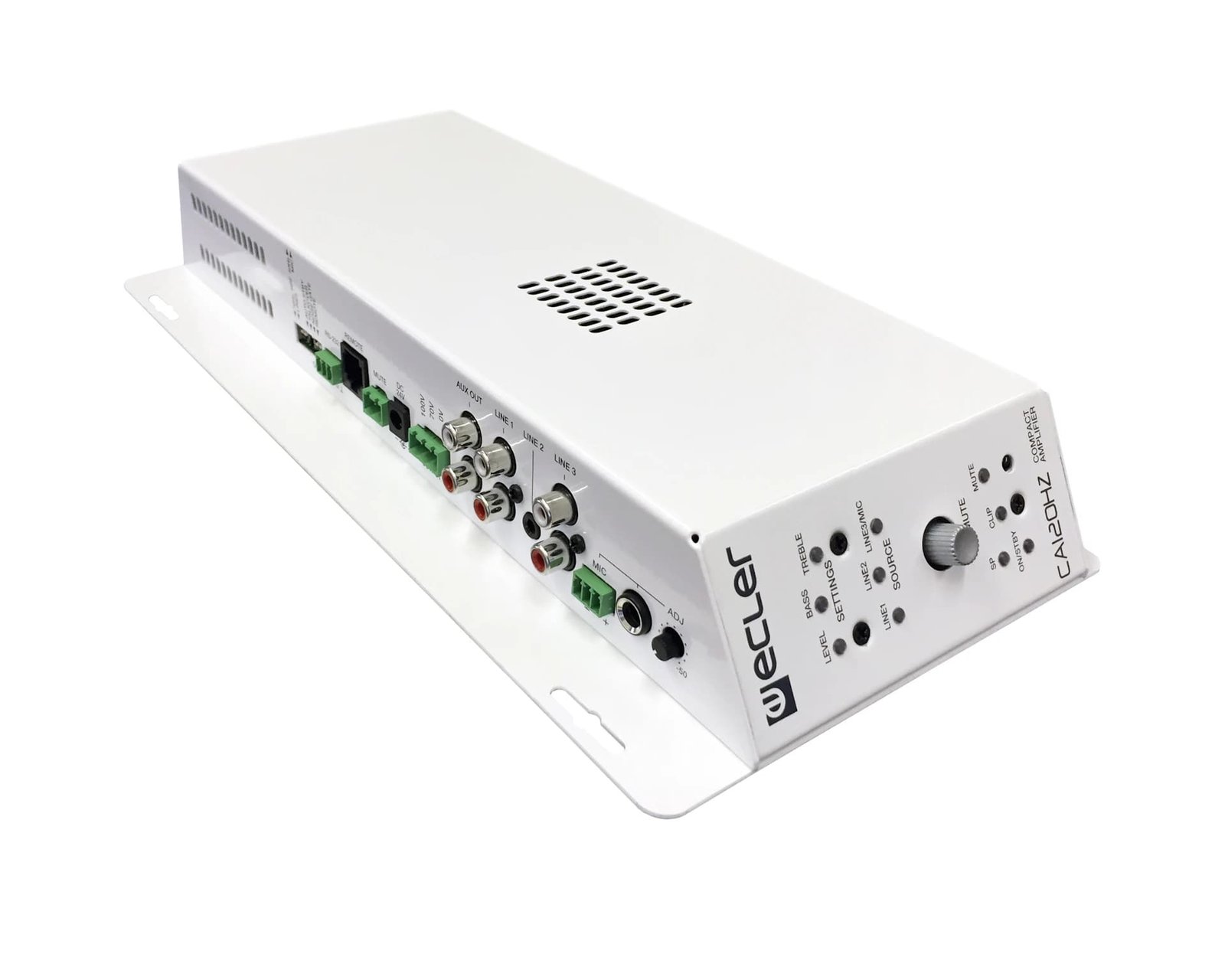

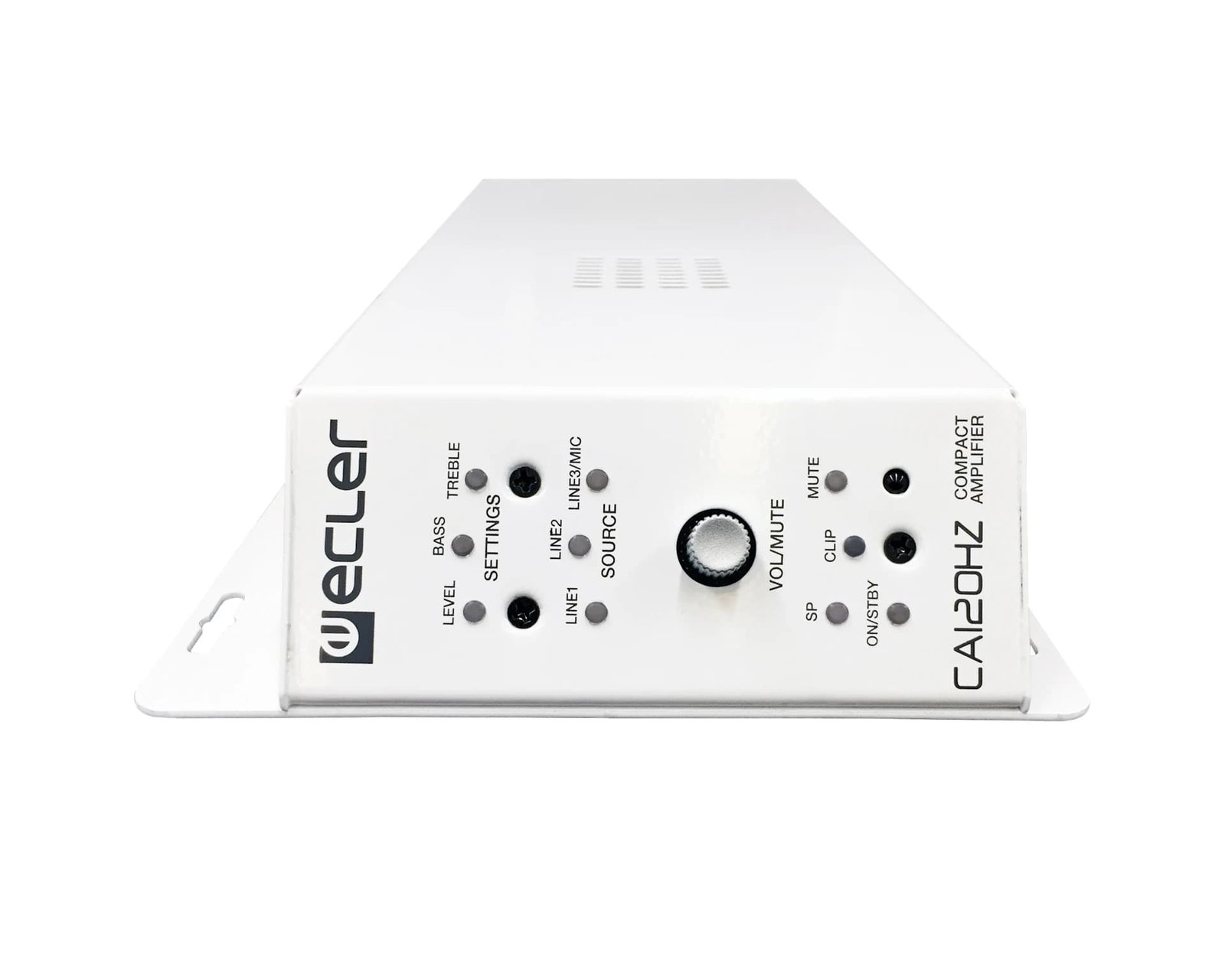

Ecler CA120HZ compact micro-amplifier

The Ecler CA120HZ is a compact micro-amplifier built in a tiny chassis, delivering 96W of high-impedance 70/100V line-level power for space-constrained audiovisual installations.

It includes a switchable balanced MIC / unbalanced LINE input with a high-quality microphone preamplifier, phantom power, noise gate, and a talkover function that gives priority over the rest of the connected inputs, useful for paging or announcement microphones.

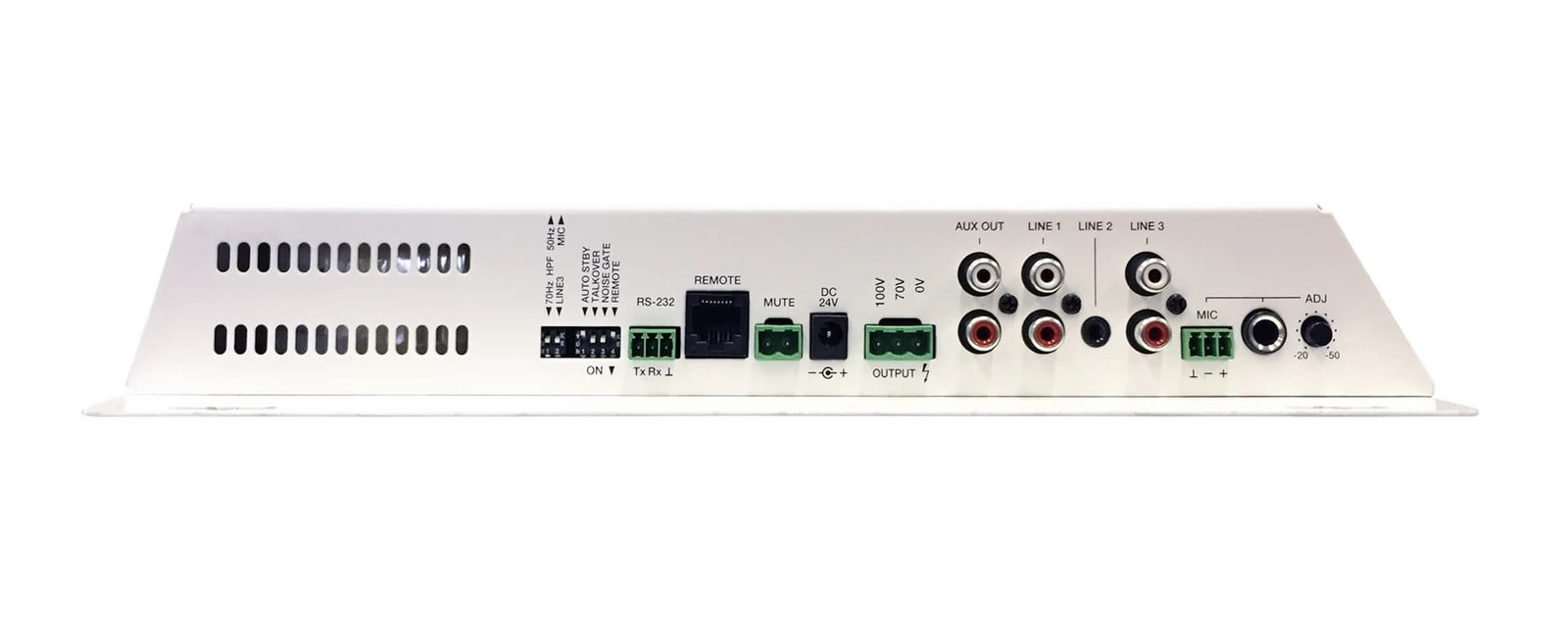

Under its tiny footprint, the CA120HZ packs an impressive set of remote control features: serial RS-232 port, IR receiver, and 0-10VDC remote port. This makes it an ideal solution for audiovisual applications requiring integration with external control devices, such as education classrooms, meeting rooms, multimedia presentations, and retail shops.

AUTO STANDBY function automatically puts the unit into low-power standby mode in the absence of an audio signal, and the amplifier is lightweight, silent, and high-performance thanks to its fan-free convection cooling design.

Features

• Compact micro-amplifier, 96W
• High-impedance 70/100V line output
• Switchable MIC/LINE input with phantom power
• Noise gate and talkover function
• Serial RS-232 port
• IR receiver
• 0-10VDC remote port
• AUTO STANDBY function
• Fan-free convection cooling

Specifications
