Ecler CA40 4Ω Stereo Compact Amplifier

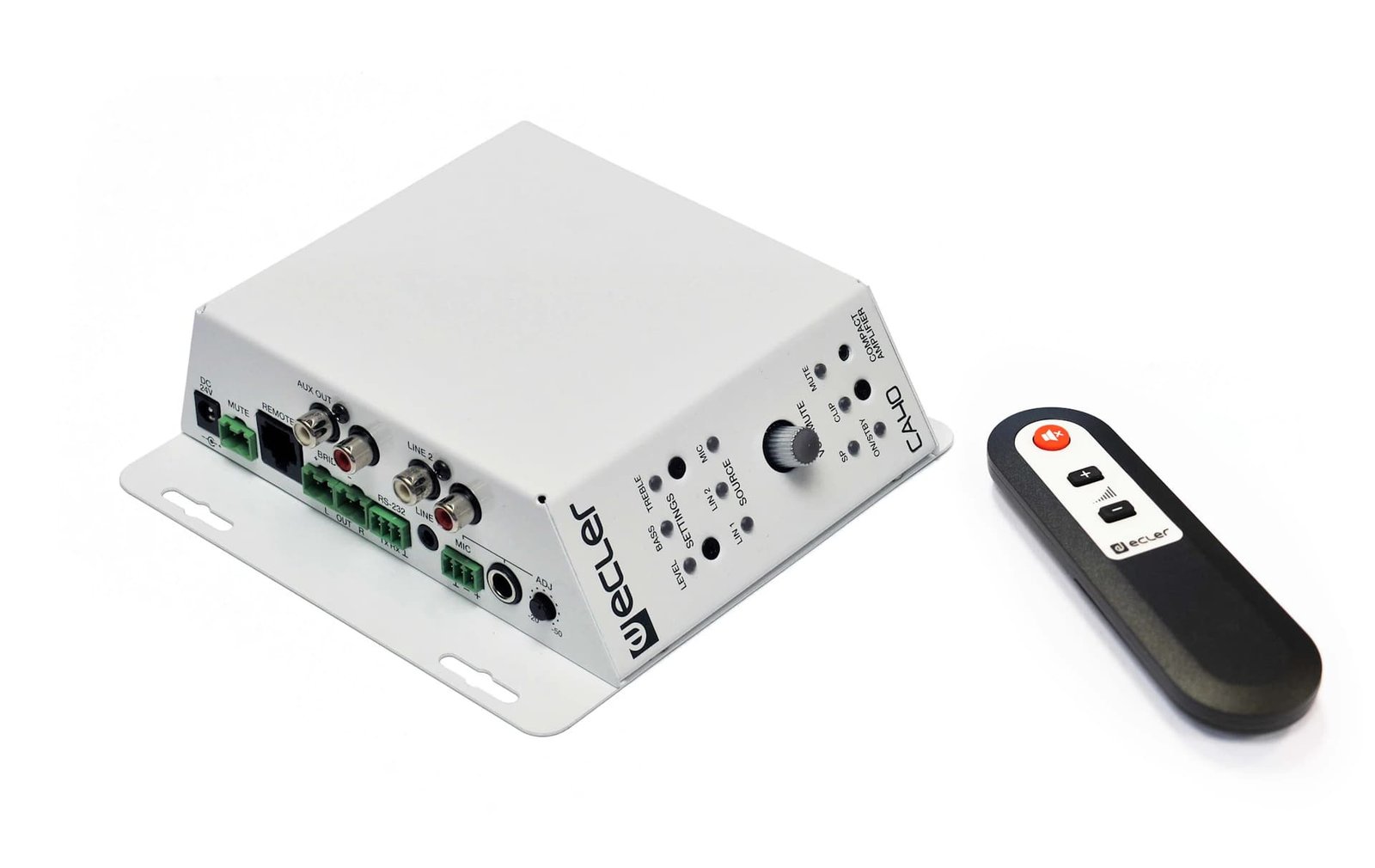

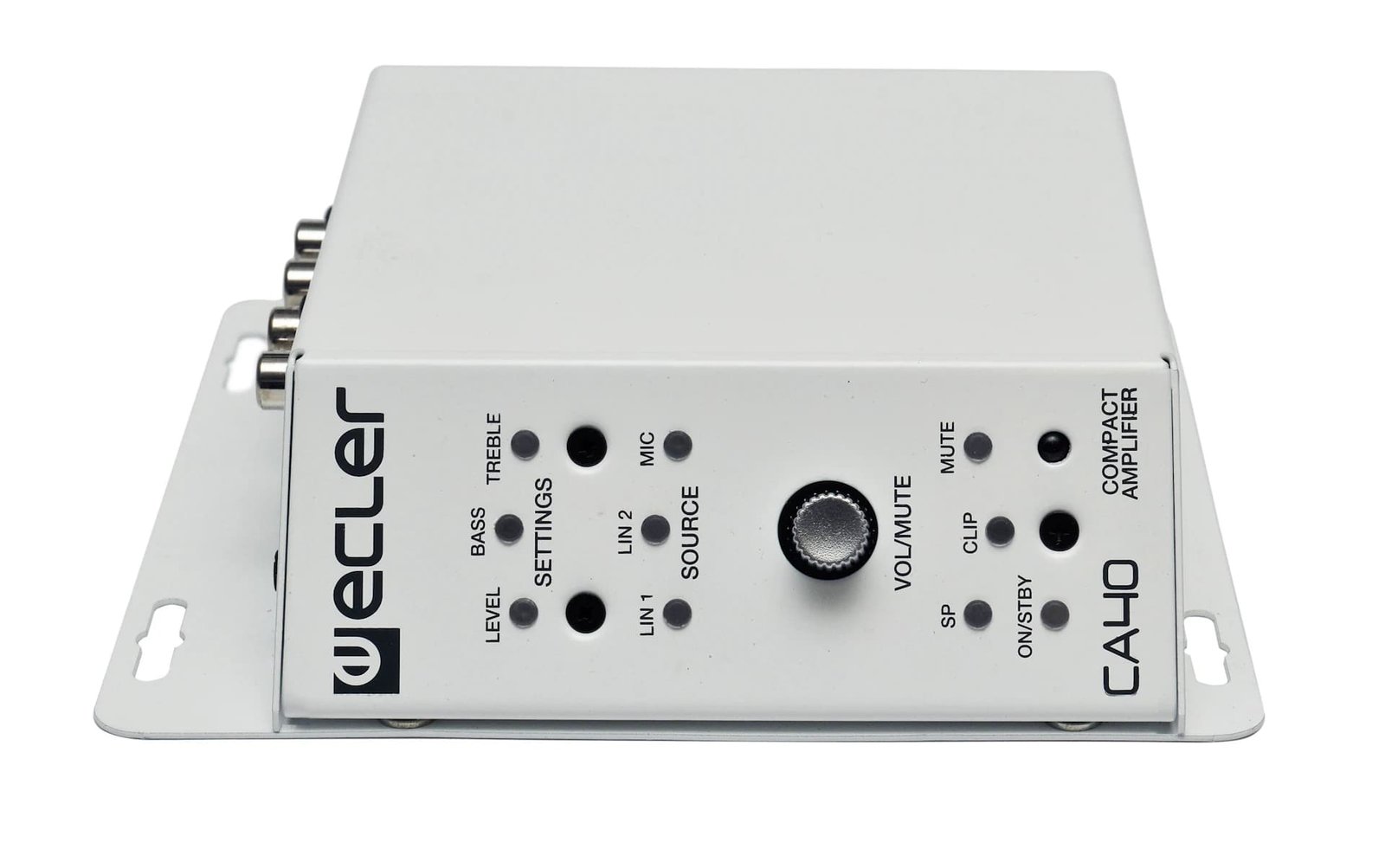

Ecler CA40 compact micro-amplifier

The Ecler CA40 is a compact micro-amplifier built in a tiny chassis, delivering 40W of low-impedance 4-ohm stereo power for space-constrained audiovisual installations.

It includes a switchable balanced MIC / unbalanced LINE input with a high-quality microphone preamplifier, phantom power, noise gate, and a talkover function that gives priority over the rest of the connected inputs, useful for paging or announcement microphones.

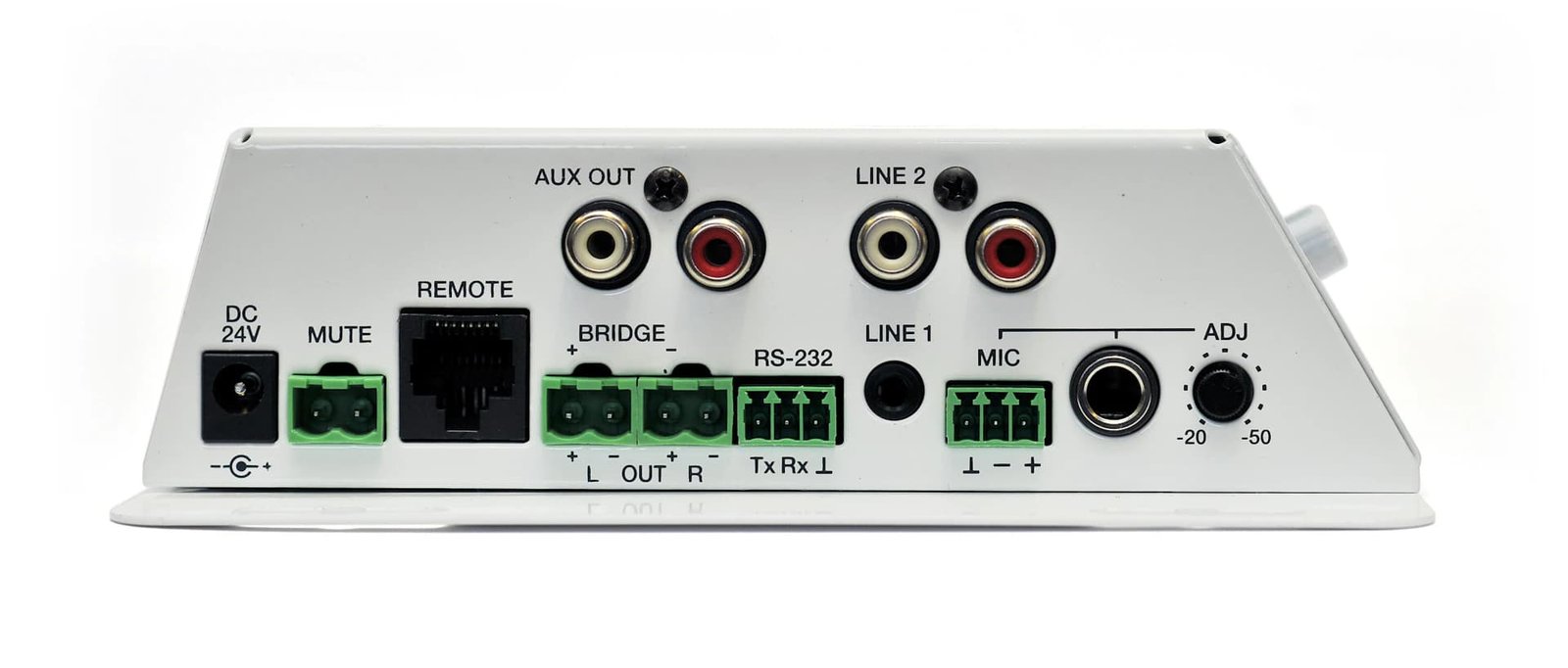

Under its tiny footprint, the CA40 packs an impressive set of remote control features: serial RS-232 port, IR receiver, and 0-10VDC remote port. This makes it an ideal solution for audiovisual applications requiring integration with external control devices, such as education classrooms, meeting rooms, multimedia presentations, and retail shops.

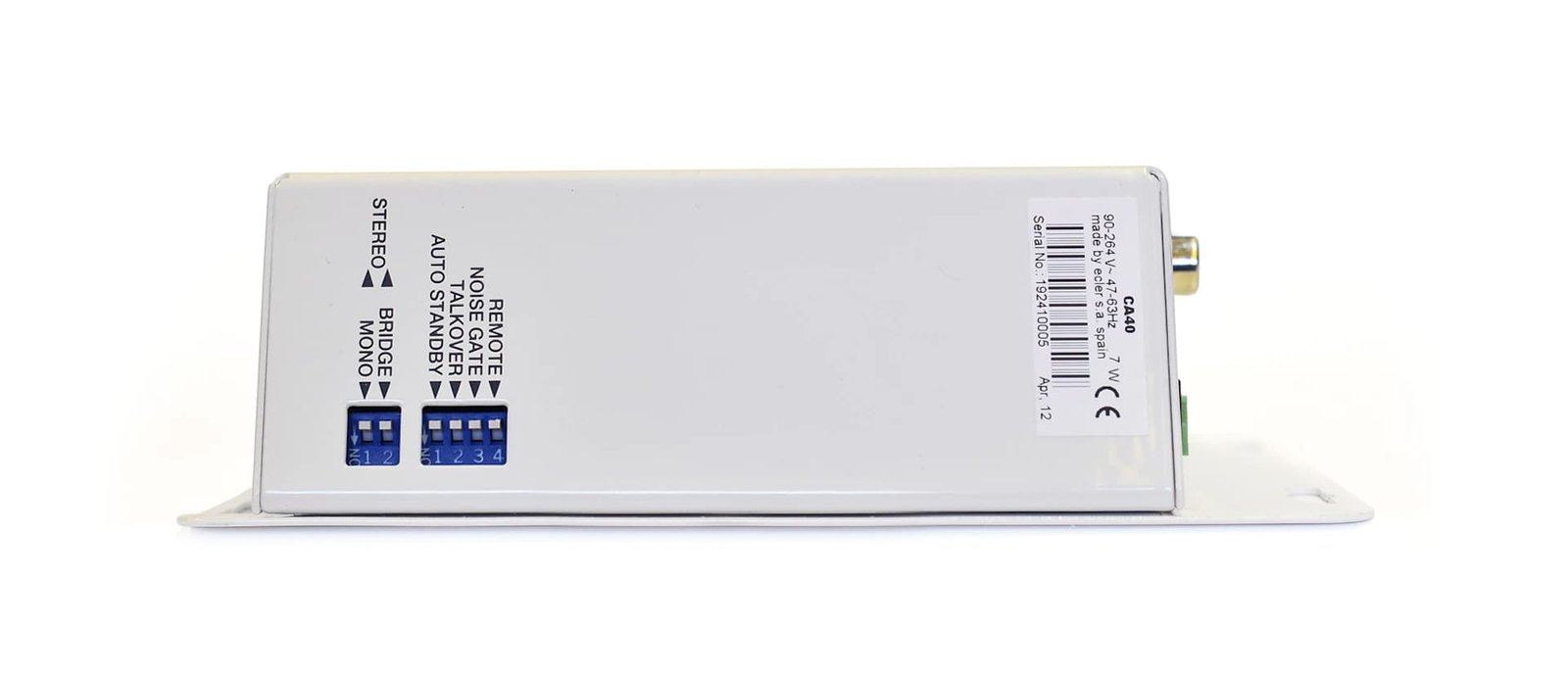

AUTO STANDBY function automatically puts the unit into low-power standby mode in the absence of an audio signal, and the amplifier is lightweight, silent, and high-performance thanks to its fan-free convection cooling design.

Features

• Compact micro-amplifier, 40W
• Low-impedance 4-ohm stereo output
• Switchable MIC/LINE input with phantom power
• Noise gate and talkover function
• Serial RS-232 port

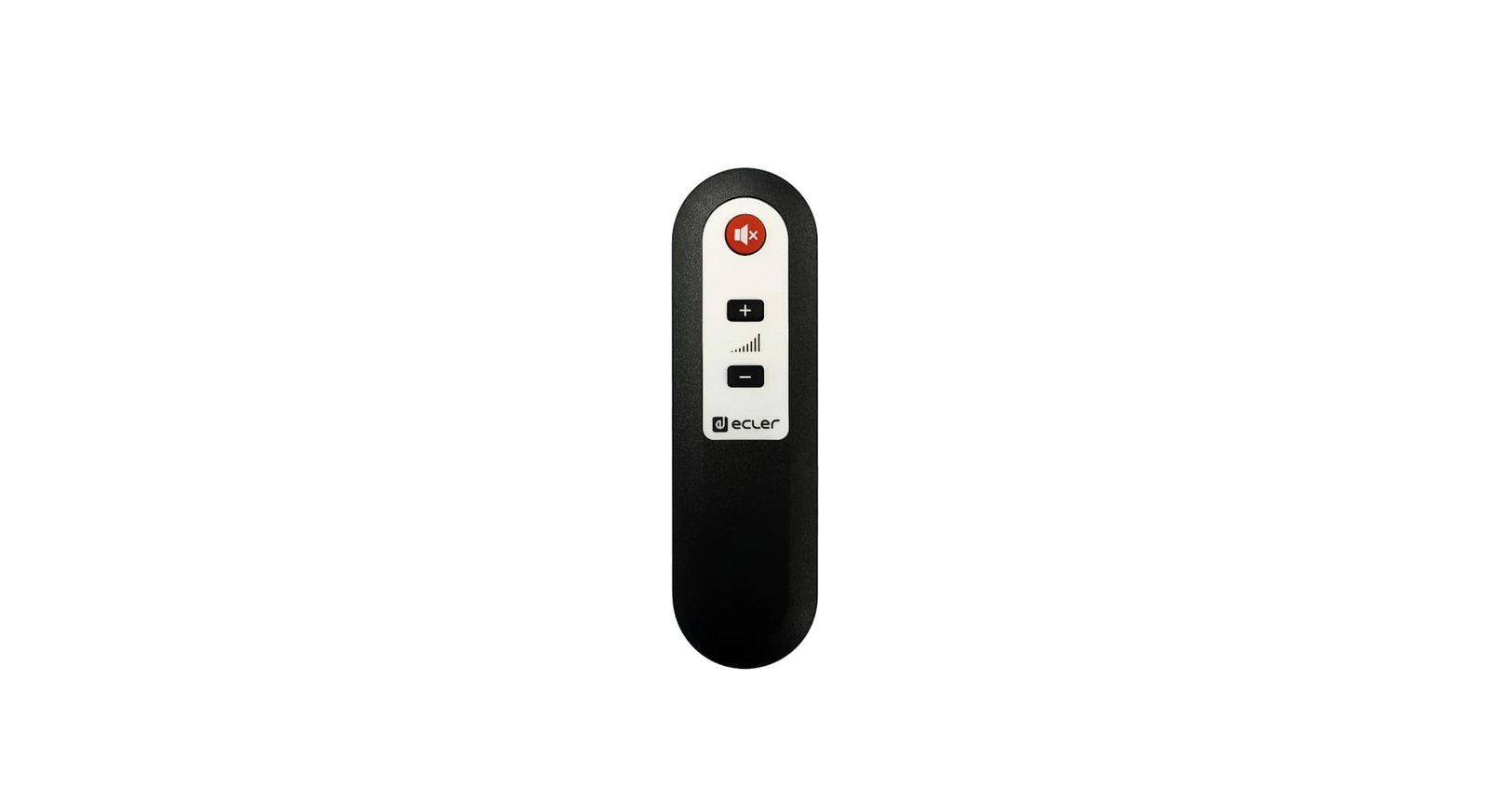

• IR receiver
• 0-10VDC remote port
• AUTO STANDBY function
• Fan-free convection cooling

Specifications
