Ecler CCORE WiSpeak Wireless Transmitter

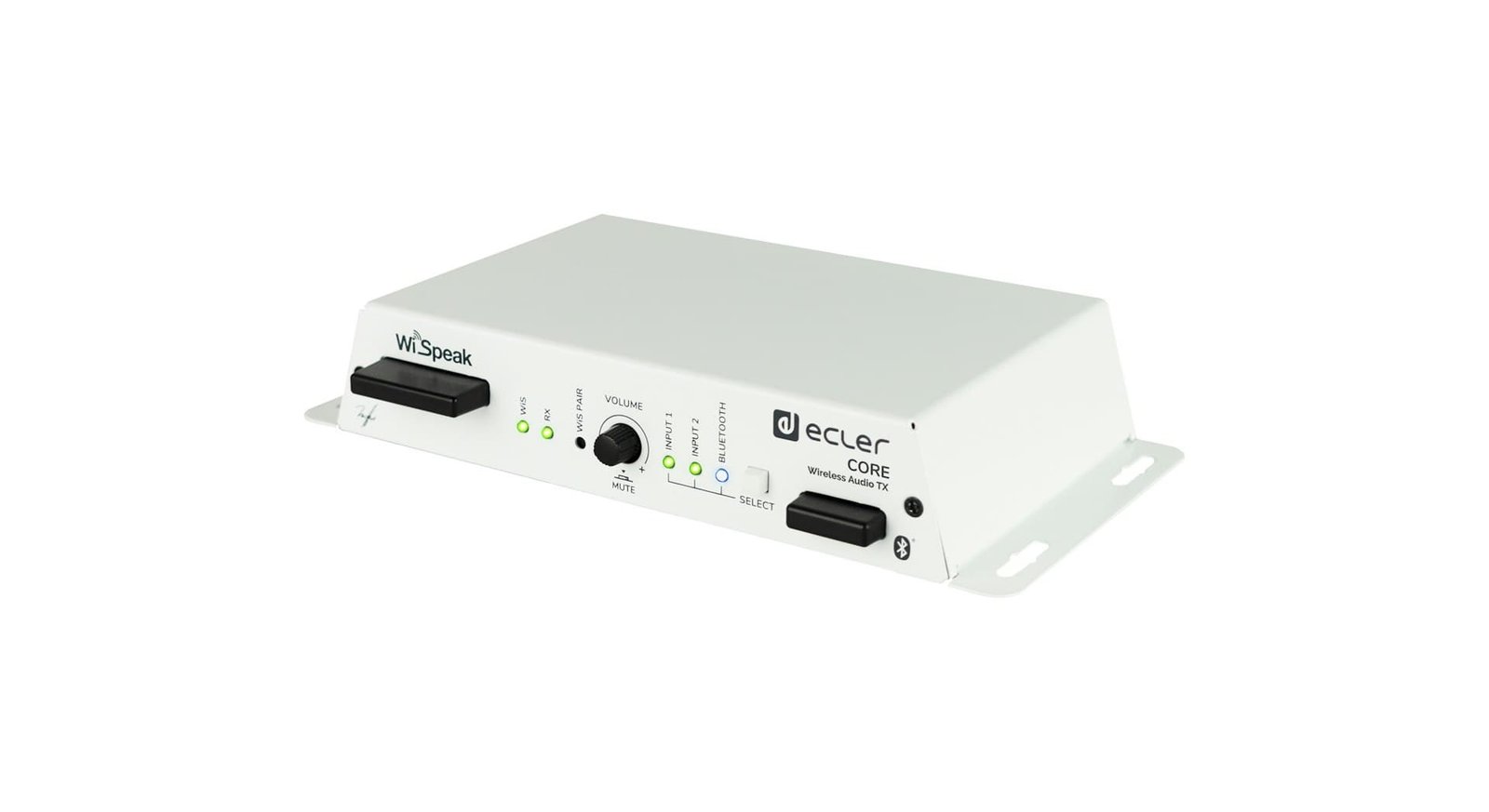

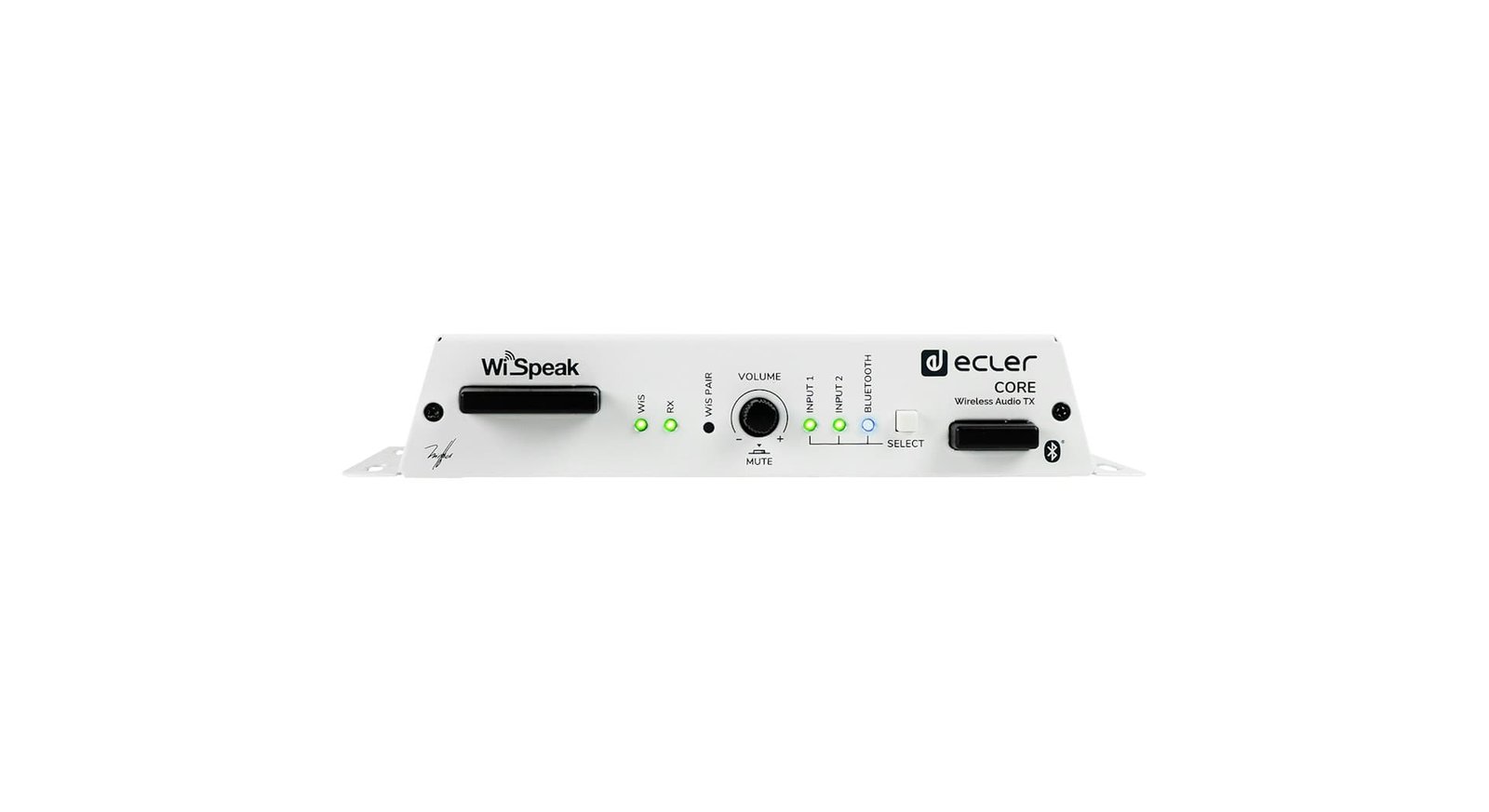

Ecler WiSpeak CORE wireless PRO audio transmitter

The Ecler WiSpeak CORE transmitter device communicates with all receiver devices to create a WiSpeak wireless network. In its role as the master unit, the CORE pairs and sends audio content to up to 24 receivers, whether TUBE, CUBE, or GLOBE loudspeakers, over a very stable 5.1-5.8GHz wireless network covering an area of up to 500 square meters.

The CORE can transmit over a distance of up to 12 meters without physical obstruction between the transmitter and its receivers, and individual configuration commands can be sent to each receiver when required, giving installers granular control over a multi-speaker wireless deployment.

It also manages the global configuration of the system: audio inputs in use, equalization, output levels, and other system-wide parameters, ensuring consistent sound across every paired speaker. Configuration is compatible with the WiSpeak grip app for Android and iOS, giving installers advanced setup and fine-tuning capability from a mobile device.

Powered by an external, universal power supply, the CORE is quick and easy to set up, and forms the essential hub of any WiSpeak wireless PRO audio installation, whether deployed in retail, hospitality, or corporate environments.

Features

• Master transmitter for WiSpeak wireless PRO audio system
• Pairs and sends audio to up to 24 receivers
• 5.1-5.8GHz stable wireless network
• Coverage up to 500 square meters
• Up to 12m transmission range without obstruction
• Individual receiver configuration support
• Compatible with WiSpeak grip app (Android/iOS)
• External universal power supply (100-240VAC)

Specifications
