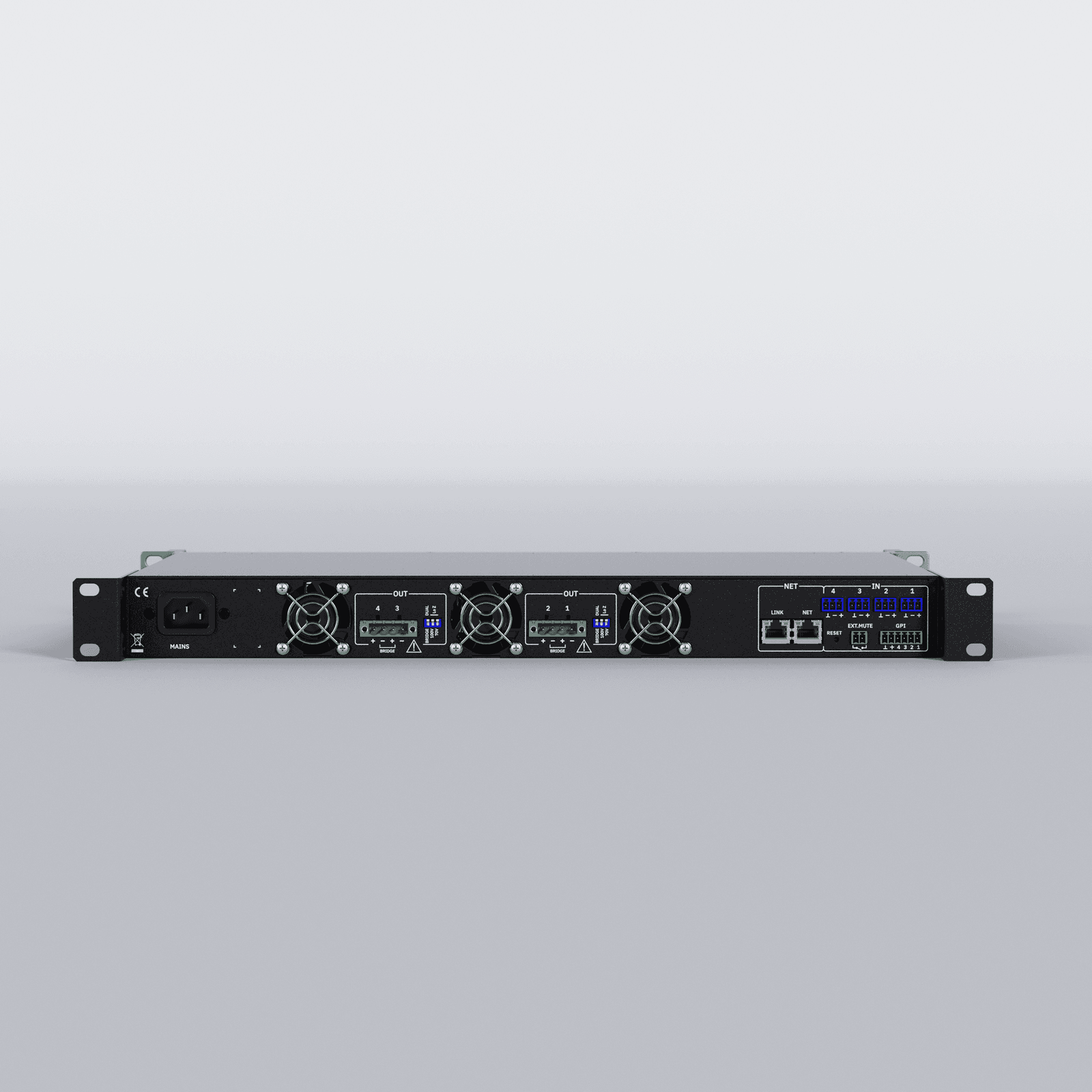

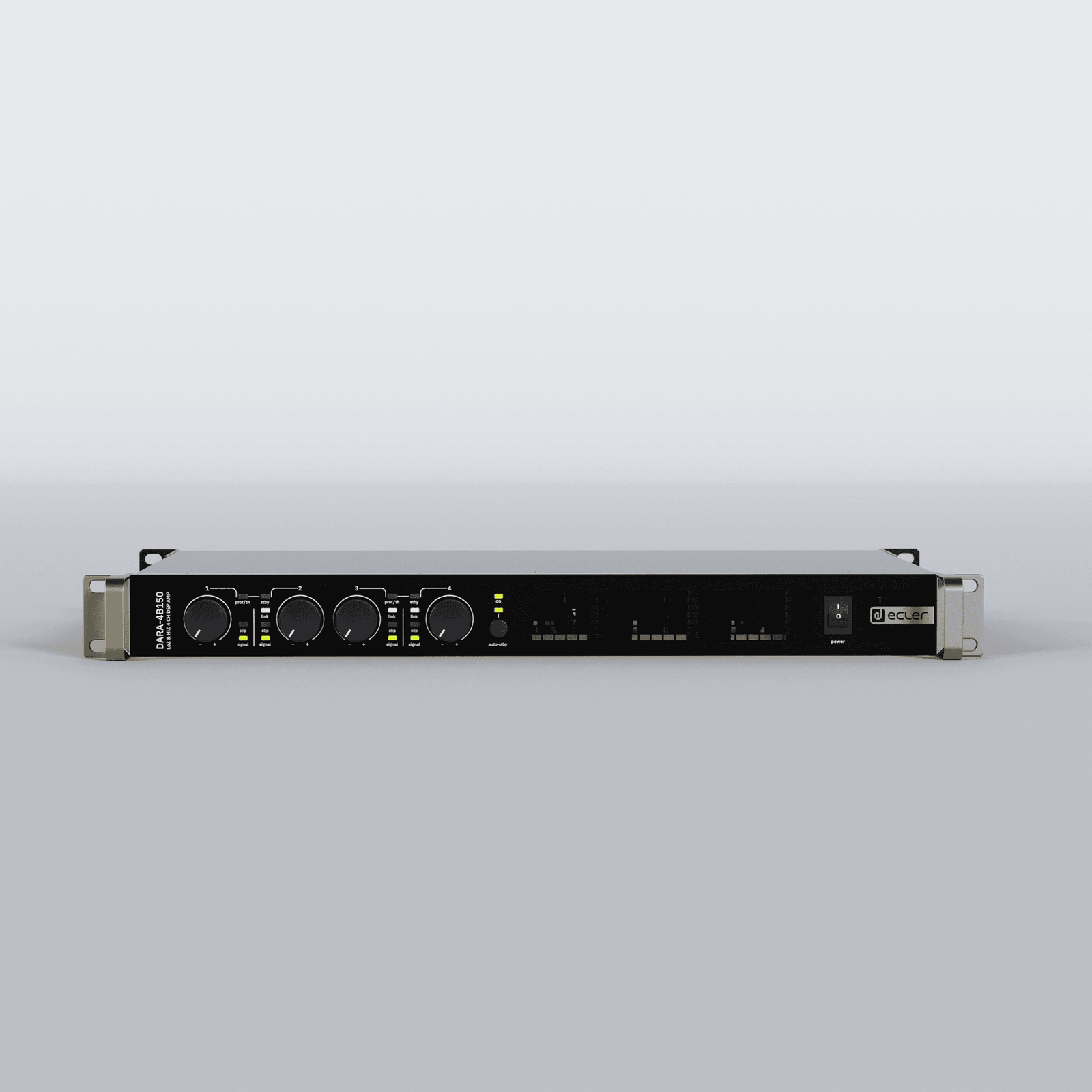

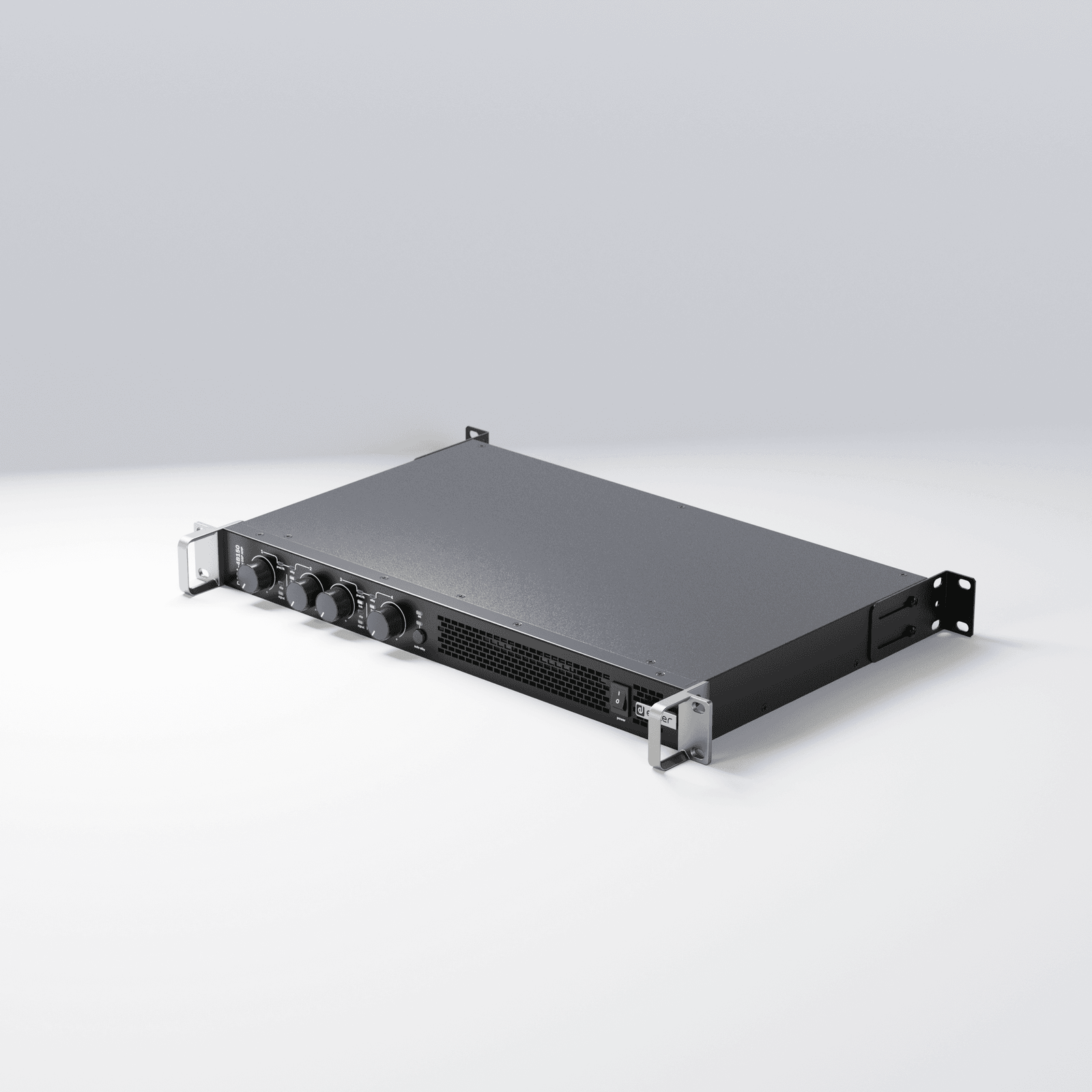

Ecler CDARA4B150 DARA-4B150 Network Amplifier

Ecler DARA-4B150 networkable amplifier

The Ecler DARA-4B150 is a high-performance network-enabled Class D power amplifier developed for professional audio installations requiring flexibility, efficiency, and dependable system control. It delivers up to 4 x 150 W RMS at 4 ohms, supporting low-impedance (2/4/8 ohm) and high-impedance (70V/100V) loudspeaker systems from a single unit.

Bridge mode allows channel pairs to be combined for higher power or higher impedance operation, giving flexibility to match the amplifier’s configuration to the specific loudspeaker load of each project. Integrated DSP, internal matrix routing, and Ecler loudspeaker EQ presets provide advanced audio management directly within the amplifier.

Dual Ethernet ports with an embedded switch allow the amplifier to be daisy-chained with other networked devices, simplifying cabling in multi-amplifier installations, and the unit is fully configurable and monitored through an embedded web application with compatibility for the Ecler PULSO Series of control panels.

Integrated protection systems include AC protection, DC protection, thermal protection, HF protection, short-circuit protection, and clip limiting, guaranteeing long-term reliability, while an Auto Standby function minimizes power consumption during periods of inactivity.

Features

• Networkable Class D power amplifier
• 4 channels x 150W RMS @ 4 ohms
• Low impedance (2/4/8 ohm) and high impedance (70V/100V) support
• Bridge mode, configurable by channel pairs
• Integrated DSP and internal matrix routing
• Ecler loudspeaker EQ presets
• Dual Ethernet ports with embedded switch
• Embedded web application configuration
• Ecler PULSO Series compatible
• AC, DC, thermal, HF, and short-circuit protection
• Clip limiting and Auto Standby function
