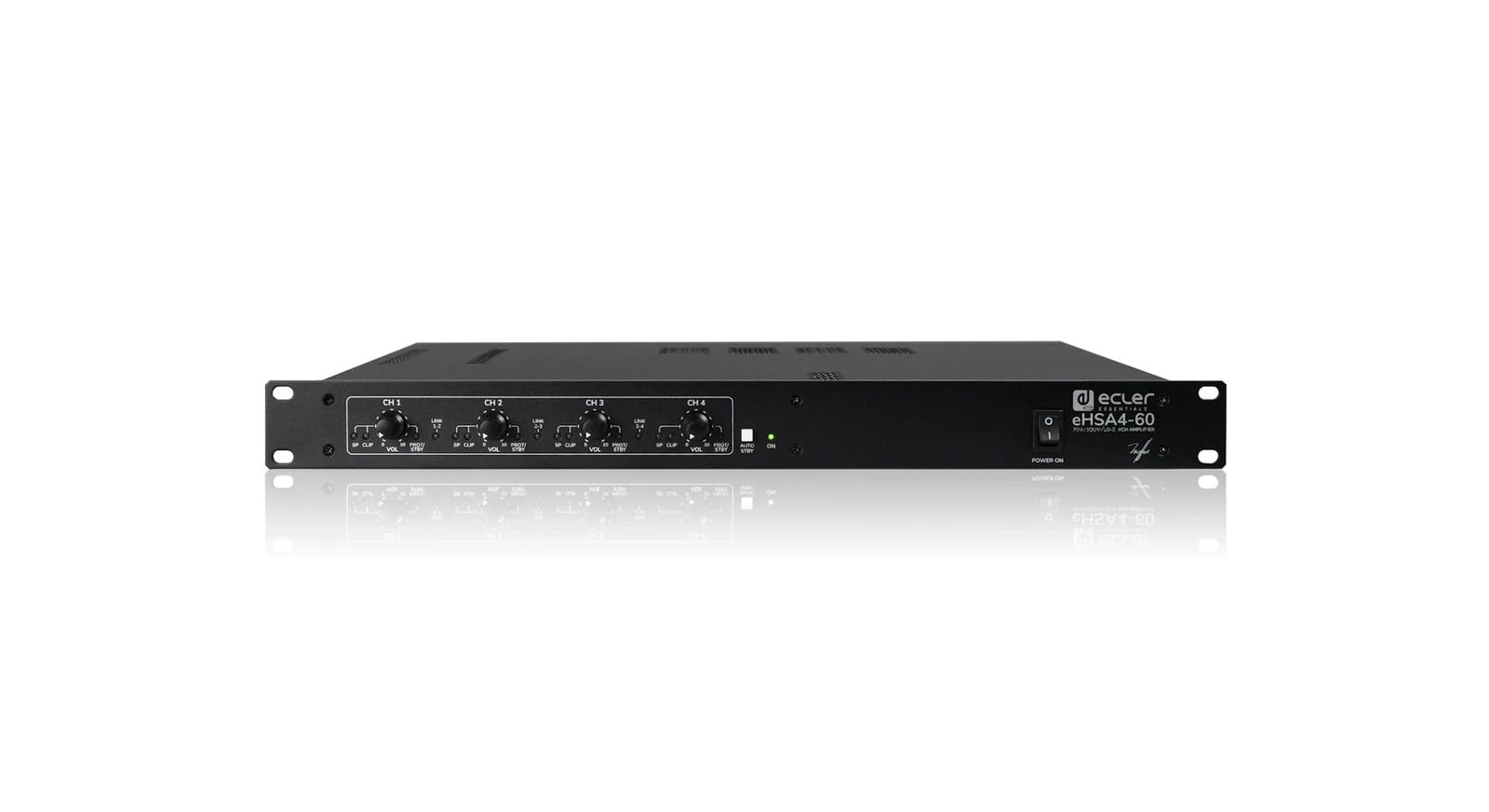

Ecler eHSA4-60 Multichannel Amplifier

Ecler eHSA4-60 high impedance amplifier

The Ecler eHSA4-60 is a 4x60W multichannel amplifier capable of working on both low impedance lines (4/8 ohm) and high impedance lines (70/100V), giving installers a single amplifier that adapts to whichever wiring standard a project requires.

Input channels can be linked in pairs via rear panel switches, so the same input signal can be easily distributed to several or all output channels, simplifying background music distribution across multiple zones from a single source.

All models in the series use Class D amplification, a very high-performance technology, combined with auto standby function and convection ventilation, occupying only 1 rack unit of height while remaining silent in operation.

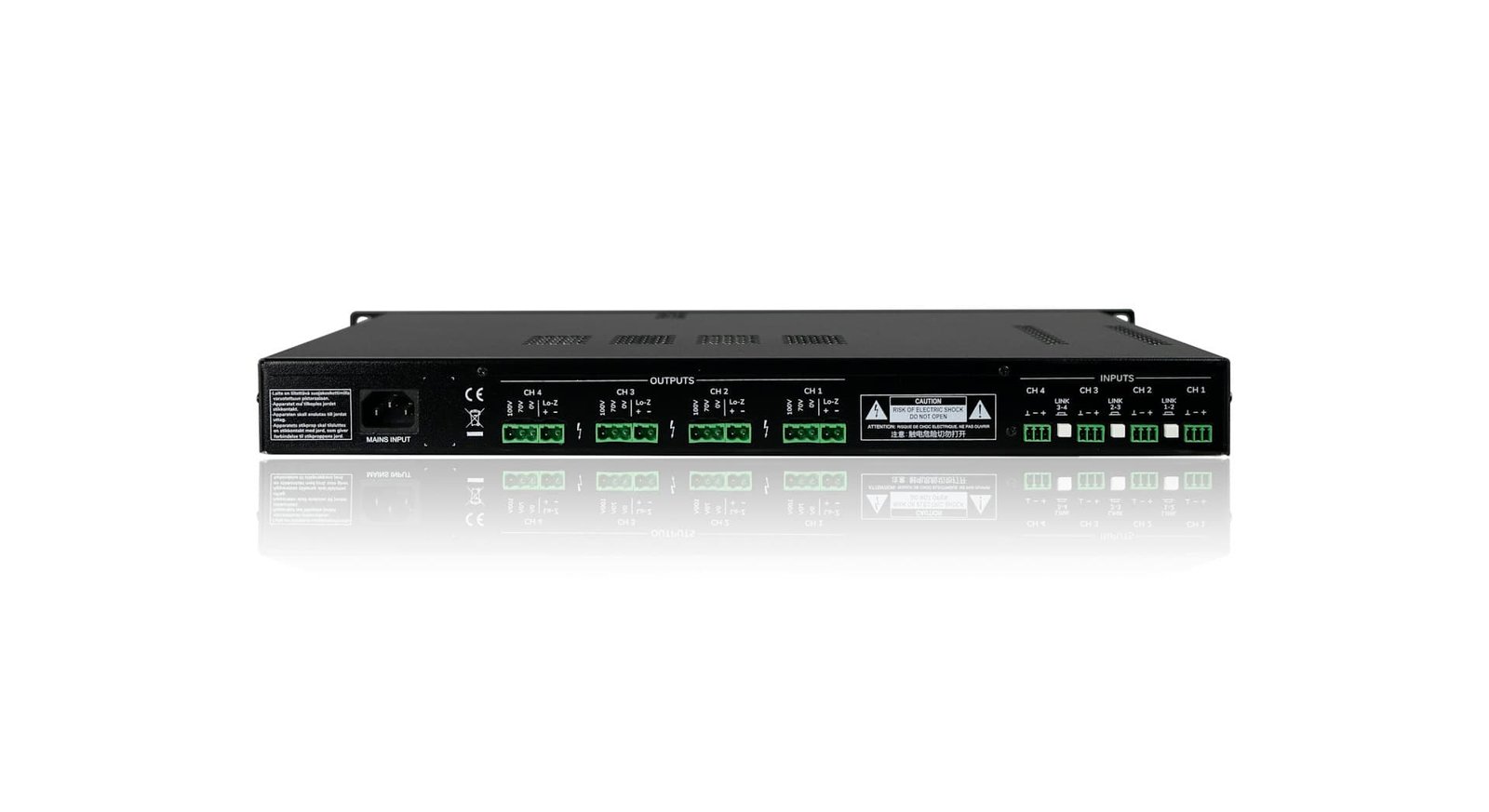

Balanced inputs and outputs are provided on Euroblock connectors, with an electronic limitation system to avoid signal saturation, thermal protection, and a protection system against overload built in as standard.

Features

• 4-channel x 60W multichannel amplifier
• Low impedance (4/8 ohm) and high impedance (70/100V) support
• Input channel linking via rear panel switches
• Class D amplification
• Auto standby function
• Convection ventilation, 1 rack unit height
• Balanced Euroblock inputs and outputs
• Electronic limitation, thermal, and overload protection
