Ecler eUC106 Spherical Design Pendant Speaker – White

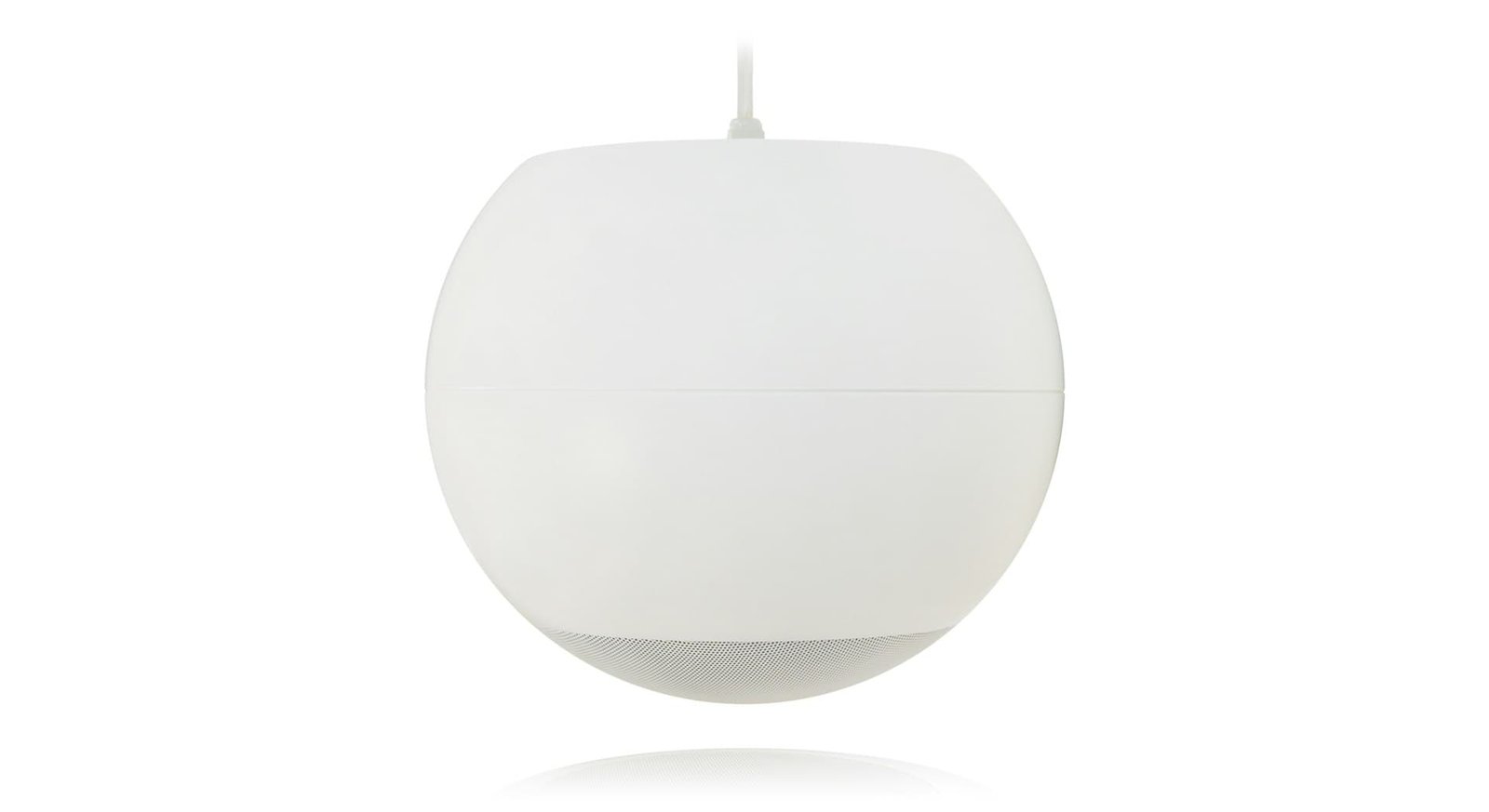

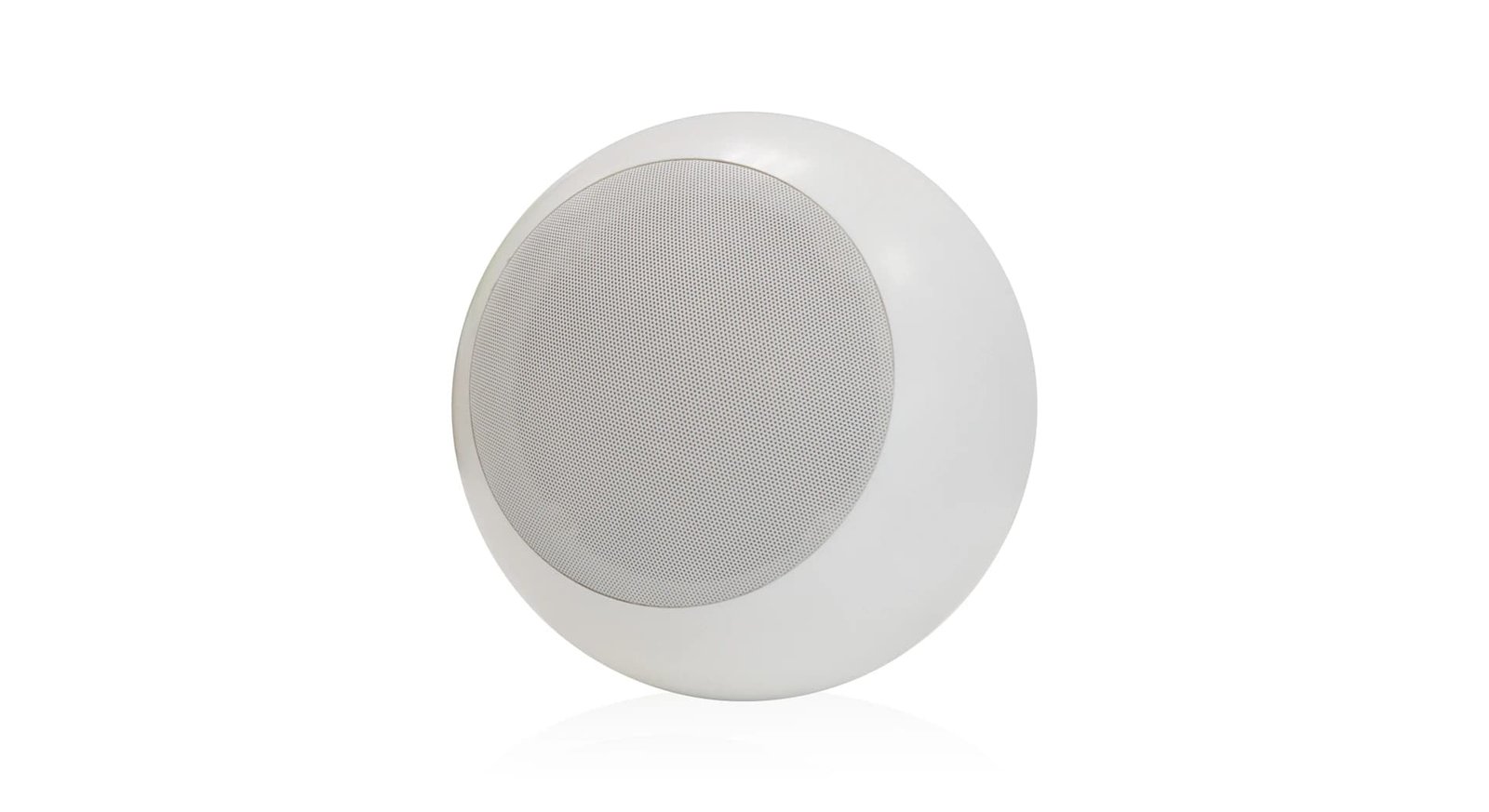

Ecler eUC106 spherical pendant loudspeaker

The Ecler eUC106 is a spherical pendant loudspeaker featuring a 6.5-inch woofer paired with a 1-inch tweeter, integrating a 70/100V line transformer for flexible distributed audio applications. Its distinctive spherical shape and pendant mounting style make it a striking visual and acoustic centrepiece for open ceiling spaces.

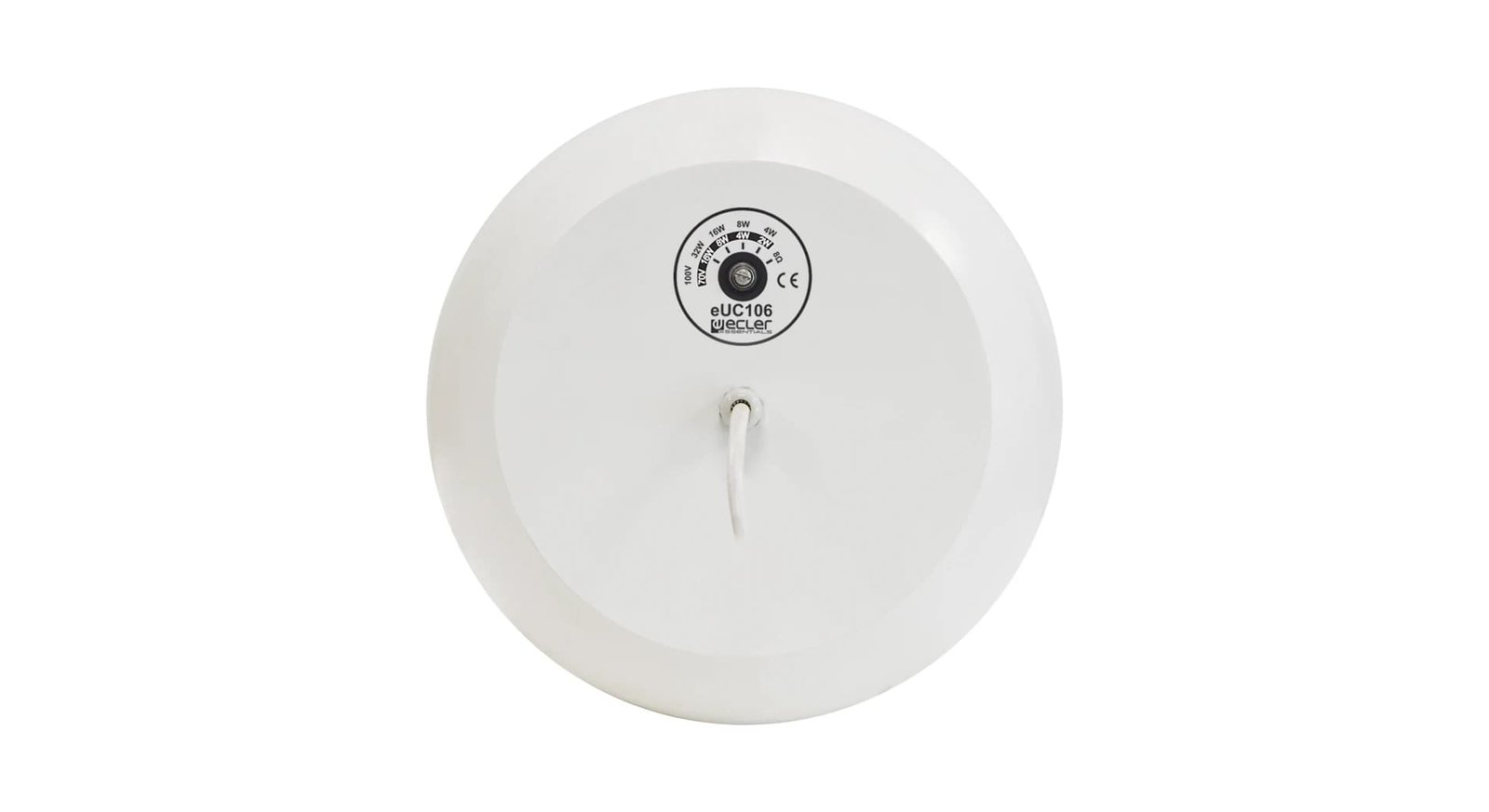

Delivering 40W RMS at 8 ohms, the eUC106 offers a transformer selector with 32, 16, 8 and 4W taps at 100V, or 16, 8, 4 and 2W taps at 70V, alongside a direct 8-ohm option, giving installers precise control over output level within a zoned sound system.

Connection is made through 3 meters of stripped cable, simplifying installation directly to an amplifier or matrix output without additional connectors. An effective frequency range of 74Hz to 20kHz with 90dB sensitivity provides balanced sound reproduction suited to background music and paging applications alike.

The loudspeaker is finished ready to be painted, allowing installers to match it to the aesthetic of the space it serves, and is available in white (RAL9003) or black (RAL9005). Suited to retail, corporate, leisure, and sports and wellness applications, the eUC106 combines striking design with dependable acoustic performance.

Features of eUC106

• 6.5-inch woofer with 1-inch tweeter, spherical design
• 40W RMS power handling @ 8Ω
• 70/100V transformer with 32/16/8/4W taps
• 70V taps: 16/8/4/2W
• 3m stripped cable connection
• Paintable finish for aesthetic matching
• EASE Win file available for system design
• Pendant mounting for open ceiling installations

Specifications of eUC106
