Ecler IW103 3″ Rectangular Design Ceiling Speaker

Ecler IW103 in-ceiling/in-wall loudspeaker

The Ecler IW103 is a 3-inch in-ceiling/in-wall installation loudspeaker featuring a rectangular and discreet design, making it well suited to corporate and residential buildings, commercial premises, leisure centres, health and sports centres, meeting and conference rooms, auditoriums, and museums.

It incorporates a careful selection of components in an easy-to-use design that makes installation swift, offering excellent sound reproduction in bass and treble thanks to its one-way system built around a full-range 3-inch transducer.

A high impedance transformer unit provides 15W and 30W power selections at 100V line level, giving installers flexibility to match the speaker’s output to the specific zone and amplifier configuration of a project. Spring-loaded input terminals simplify wiring during installation.

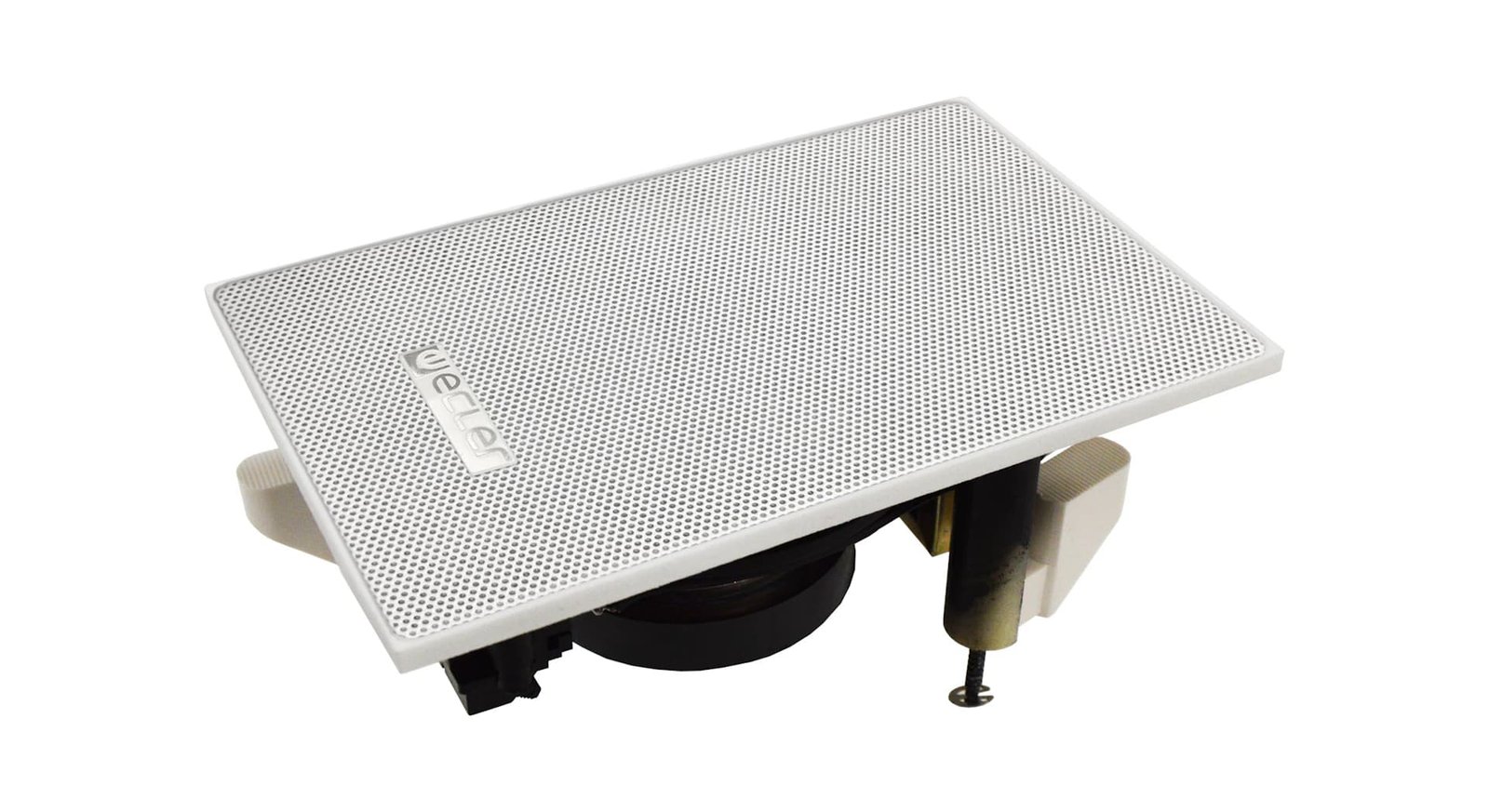

The IW103 includes a detachable protective grille and two rotating flanges for easy mounting in a cut wall or ceiling opening, and is finished in white to blend unobtrusively into most interior environments.

Features of IW103

• 3-inch in-ceiling/in-wall loudspeaker

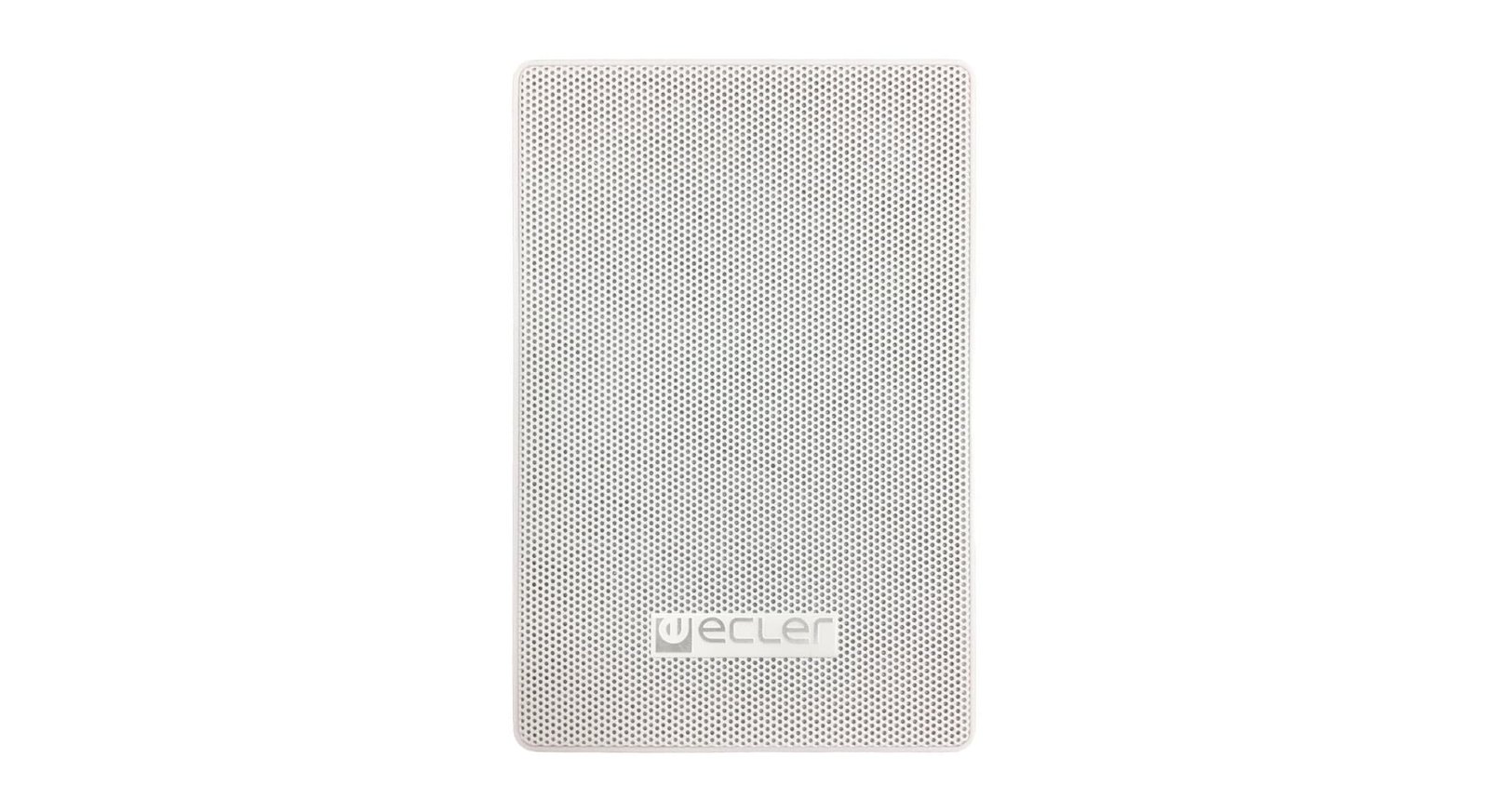

• Rectangular, discreet design
• High impedance transformer, 15W/30W @ 100V line

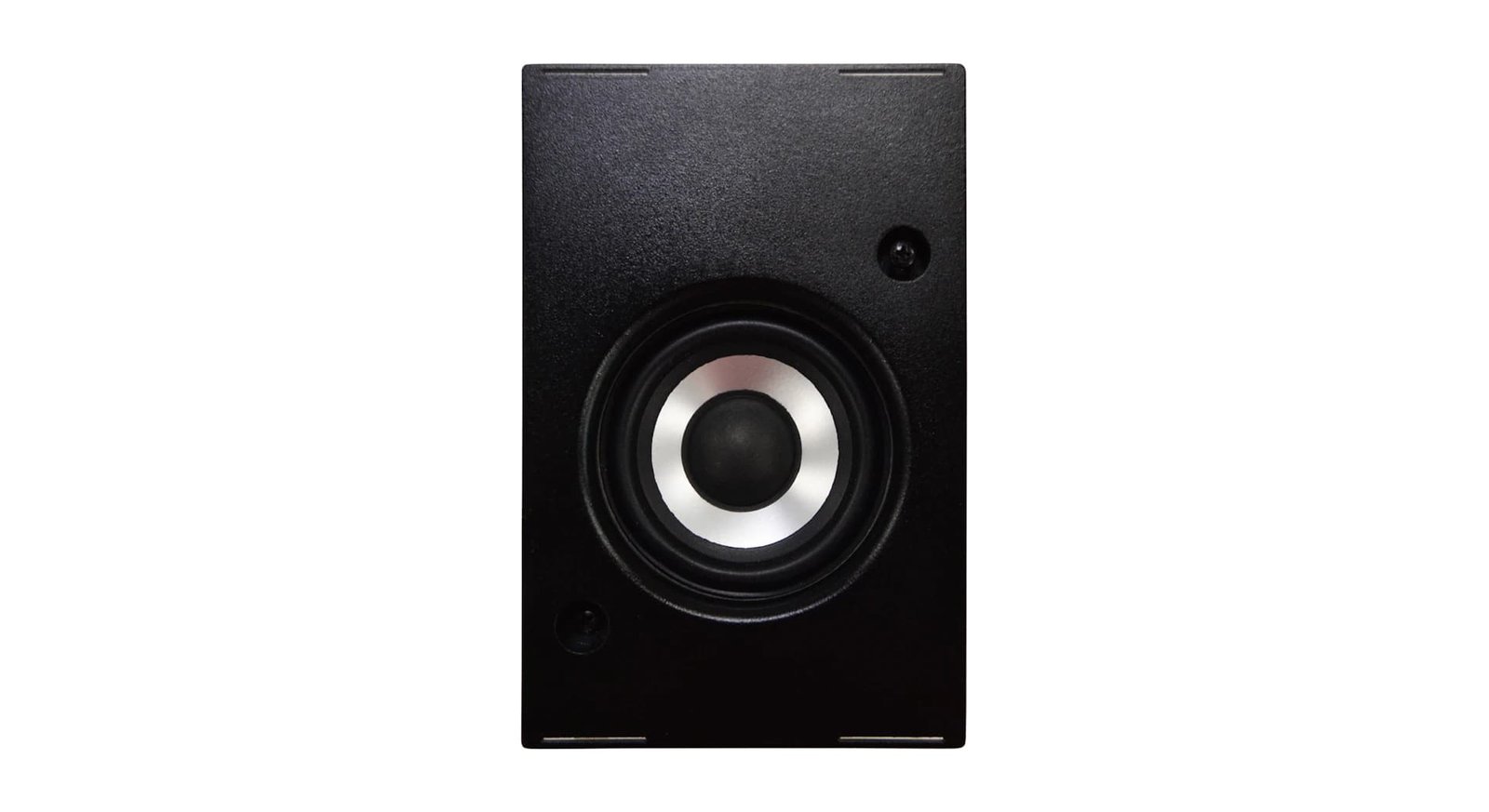

• One-way full-range 3-inch transducer
• Spring-loaded input terminals
• Detachable protective grille

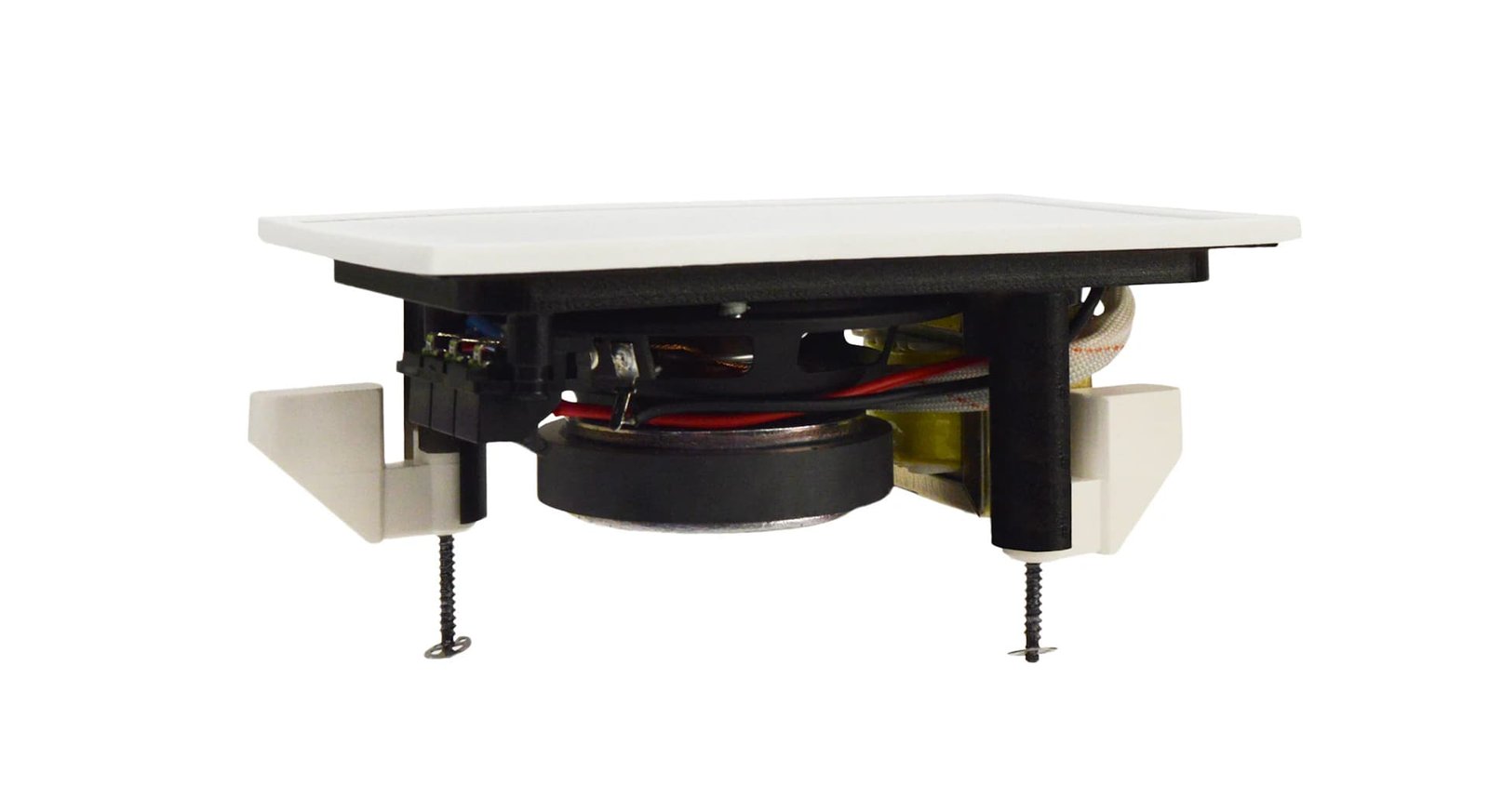

• 2 rotating flanges for easy installation
• White finish

Specifications of IW103
