Eversolo T10 Streaming Transport

Eversolo T10 streaming transport

The Eversolo T10 is the brand’s new flagship streaming transport, created to pursue class-leading achievements in clocking accuracy, power integrity and signal transmission. Unlike an all-in-one streamer, the T10 carries no onboard DAC; it is a dedicated digital source designed to feed a separate, external DAC with the cleanest possible signal.

At its core sits an ultra-low phase-noise OCXO crystal oscillator working alongside a PLL system to minimise clock fluctuations and reduce jitter, complemented by a dedicated 10MHz external master clock input supporting both 50Ω and 75Ω impedance for integration with high-precision clocking systems such as Eversolo’s upcoming C10. A custom O-type toroidal linear power supply, with physical partitioning and electromagnetic shielding around the display circuitry, keeps noise away from the critical digital signal path.

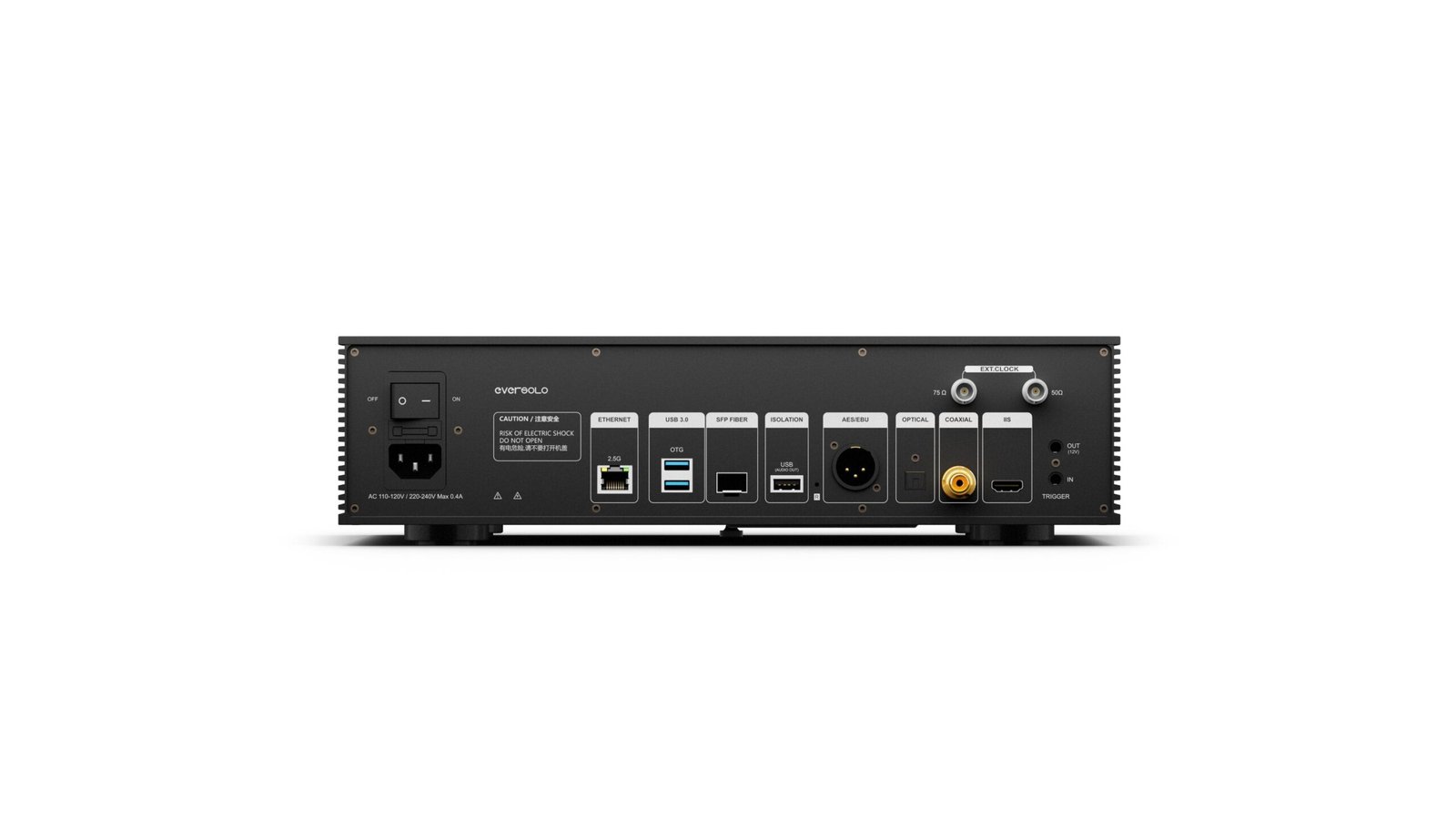

Digital outputs are comprehensive: I2S with eight selectable output modes and isolated USB-A support up to DSD512 and 32-bit/768kHz PCM, while AES/EBU, coaxial and TOSLINK outputs handle up to 24-bit/192kHz PCM and DoP64. Network connectivity steps up to 2.5GbE alongside Wi-Fi 6 and an SFP fibre port for electrically isolated networking, and two M.2 NVMe SSD slots support up to 16TB of local music storage.

An 8.6-inch touchscreen, larger than the previous T8 model, is powered by a 64-bit octa-core processor with 8GB of RAM, and a newly devised library engine can scan approximately 200,000 tracks within two hours. Streaming support covers TIDAL Connect, Spotify Connect Lossless, Qobuz Connect, and native app integration for Apple Music, Deezer, Amazon Music and more, all managed through the Eversolo Control app or a Bluetooth remote handset.

Features of T10

• Dedicated digital streaming transport, no onboard DAC
• Ultra-low phase-noise OCXO crystal oscillator with PLL
• 10MHz external master clock input (50Ω/75Ω)
• Custom O-type toroidal linear power supply
• I2S (8 output modes), isolated USB-A up to DSD512/768kHz PCM
• AES/EBU, coaxial, TOSLINK outputs up to 24-bit/192kHz, DoP64
• 2.5GbE Ethernet, Wi-Fi 6, SFP fibre network port
• Dual M.2 NVMe SSD slots, up to 16TB local storage
• 8.6-inch touchscreen display
• 64-bit octa-core processor, 8GB RAM
• TIDAL Connect, Spotify Connect Lossless, Qobuz Connect support

Specifications of T10
