JBL 8124 4-inch Full Range Open Back Ceiling Speaker
The JBL 8124 4-inch in-ceiling speaker in white delivers clear, high-fidelity sound with high sensitivity, easy installation, and efficient 70V/100V operation for cost-effective commercial audio applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 286.29 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

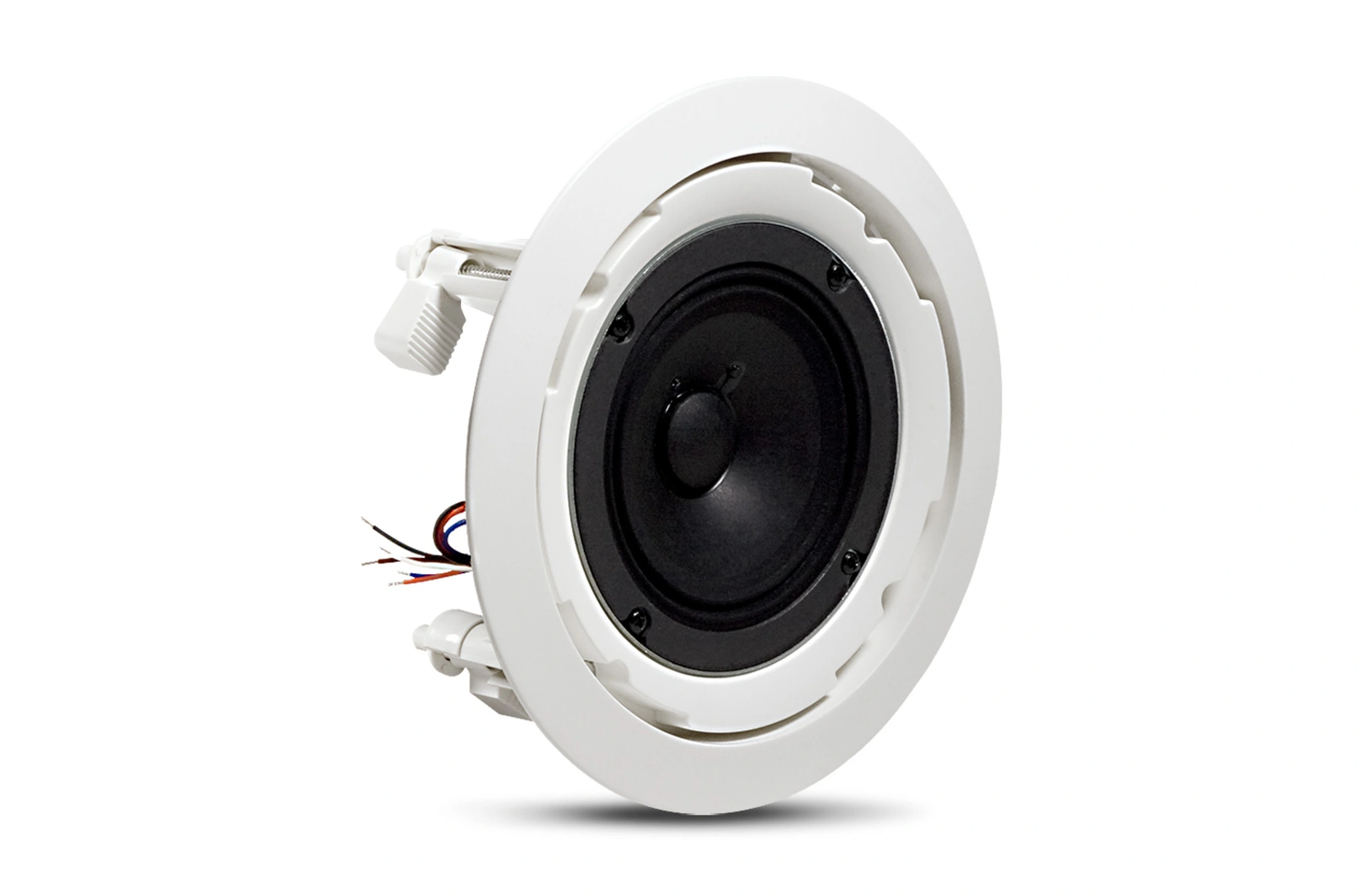

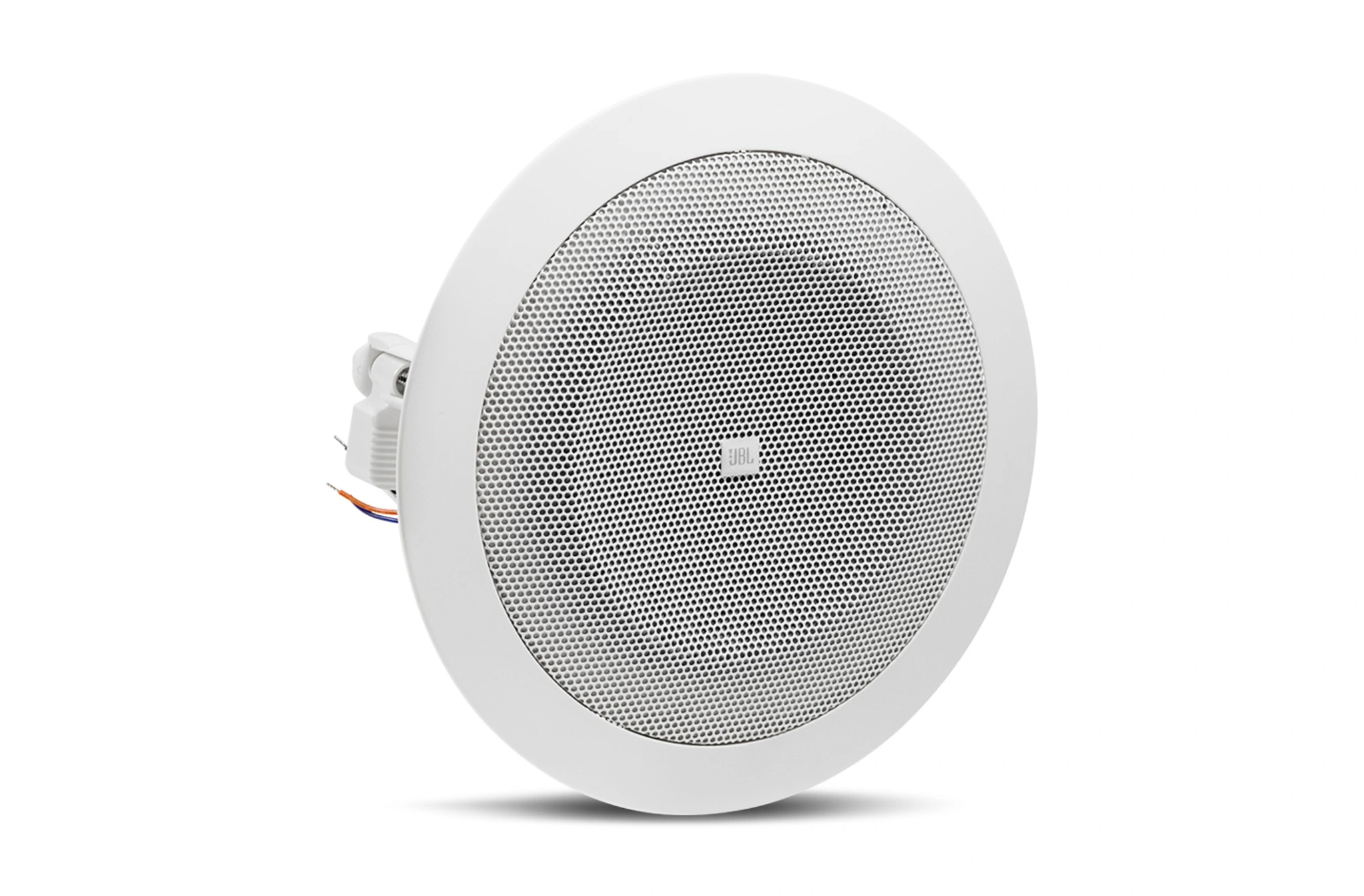

JBL 8124 4-Inch Full-Range In-Ceiling Loudspeaker White
The JBL 8124 is a compact, full-range in-ceiling loudspeaker designed to provide reliable and high-quality audio performance for commercial sound systems. Engineered for efficiency, it uses high-sensitivity drivers to produce strong sound output while requiring minimal amplifier power, making it an ideal solution for background music and paging applications.
This loudspeaker features a 4-inch full-range driver that delivers balanced audio clarity across a wide frequency range. Its open-back design simplifies installation and is suitable for applications where a backcan is not required. The integrated dog-ear mounting system allows for quick and secure retrofitting into existing ceiling cutouts, reducing installation time and effort.
The JBL 8124 supports 70V and 100V distributed audio systems through its built-in transformer with multiple power tap options, offering flexibility for various system designs. Finished in white, it blends seamlessly into modern ceiling environments while maintaining a clean and professional appearance. Origin of country China.
Features of 8124
Clear and accurate full-range sound reproduction
High sensitivity for efficient power usage
4-inch full-range driver design
Dog-ear mounting system for easy retrofit installation
Built-in 6W transformer for 70V and 100V systems
Wide 130° conical coverage pattern
Open-back construction for simplified installation
Supplied with sculpted white grille
Suitable for commercial background music and paging applications
Specifications of 8124
| Driver | 4 in (100 mm) full-range driver |
| Frequency Range | 60 Hz – 18 kHz |
| Sensitivity | 93 dB (1 kHz – 8 kHz) |
| Coverage Angle | 130° conical |
| Transformer Taps | 6 W, 3 W, 1.5 W (0.75 W at 70V only) |
| Input Connectors | Bare wire terminals |
| Maximum SPL (1 m) | 101 dB average (top 70V/100V tap) |
| Power Rating | As per selected transformer tap |
| Dimensions (Diameter x Depth) | 206 mm x 89 mm (8.1 in x 3.5 in) |
| Ceiling Cutout Size | 175 mm diameter (6.9 in) |
| Net Weight | 1.2 kg (2.5 lb) |
| Included Accessories | Sculpted grille |
| Optional Accessories | MTC-8124C C-ring, MTC-Rail tile rails |
| Baffle / Rim | Plastic |
| Backcan | Not included |
| Plenum Usage | Not intended for return air plenums |
| Color | White |
| Origin of Country | China |
