JBL AW295-LS 12″ 2-Way All Weather Loudspeaker with EN54-24 Certification – Gray
The JBL AW295-LS High Power 12-inch 2-Way All-Weather Loudspeaker in gray delivers 90° x 50° rotatable coverage, EN 54-24 life safety compliance, and reliable outdoor performance for permanent installations.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 26,226.00 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

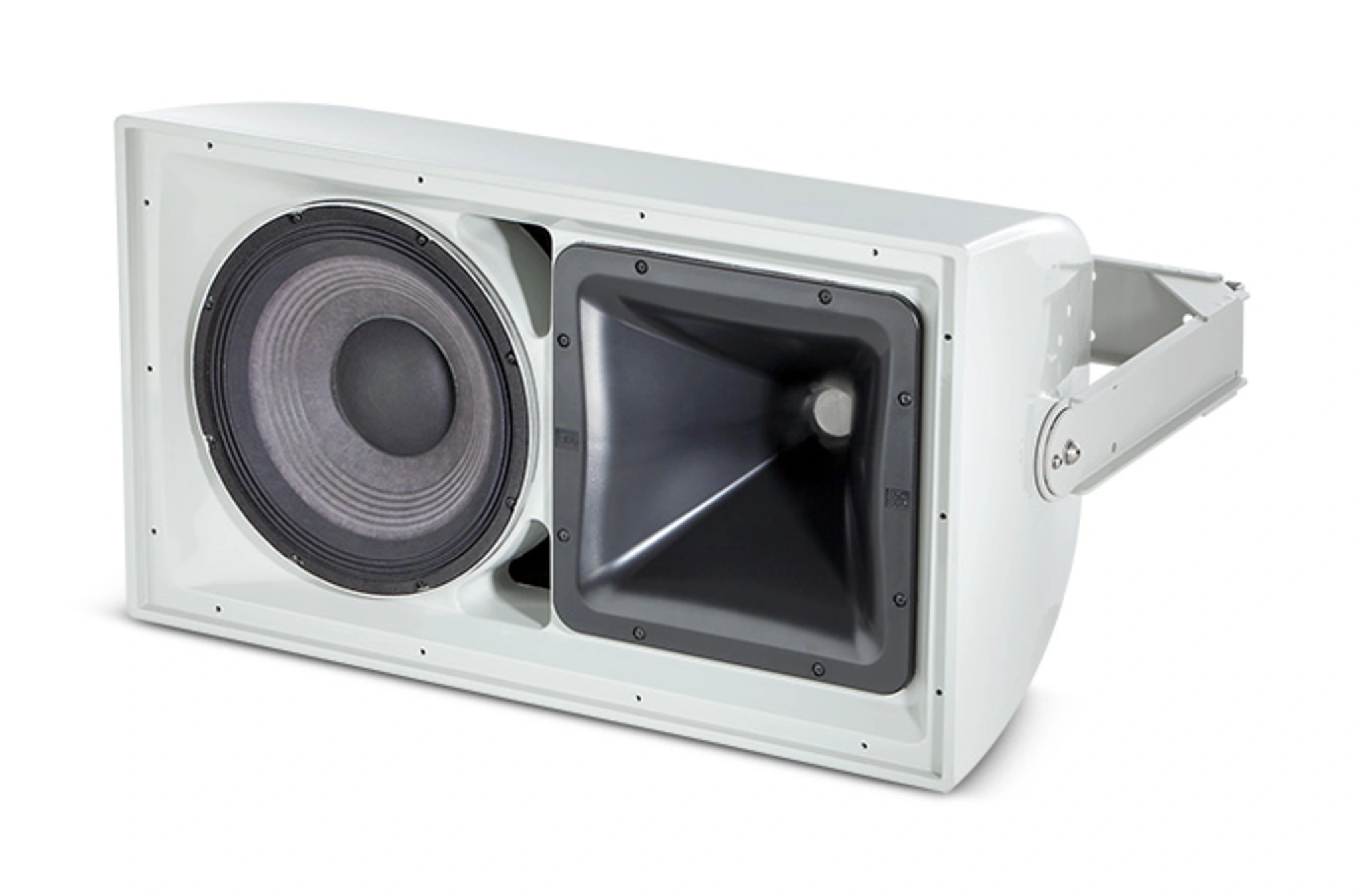

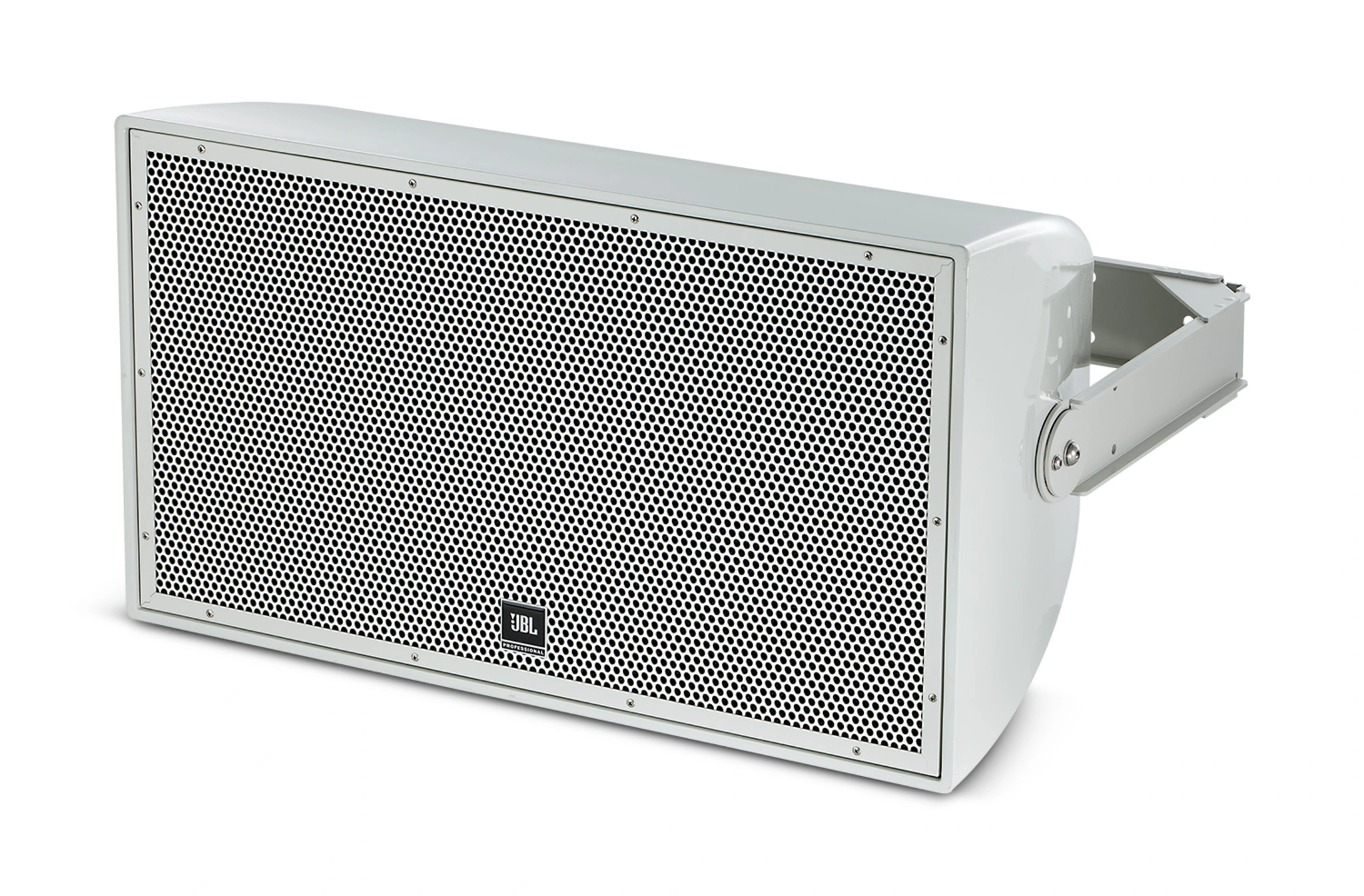

JBL AW295-LS High Power 12-inch 2-Way All-Weather Loudspeaker with Rotatable Horn Gray Finish
The JBL AW295-LS is a high-output 2-way full-range loudspeaker designed for life safety and emergency applications. Part of JBL’s AE Series, it delivers exceptional clarity, precise coverage, and weather-resistant durability, making it ideal for both indoor and outdoor installations in demanding environments.
This loudspeaker features the JBL 2262H 300 mm (12 in) Differential Drive® low-frequency driver with dual voice coil and dual magnetic gap, ensuring high efficiency, extended bass performance, and minimal distortion. The high frequencies are reproduced by the JBL 2432H compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil, offering clear, intelligible sound.
A large Progressive Transition™ waveguide provides precise 90° x 50° coverage, and its rotatable design allows the speaker to be mounted either vertically or horizontally. The enclosure is hand-laminated fiberglass with internal bracing for optimal low-frequency performance and finished in durable gray gelcoat.
The AW295-LS includes a 400 W 70/100V transformer and a U-type mounting bracket for easy installation on flat surfaces or in corners. Perfect for sports facilities, themed entertainment venues, outdoor centers, and water parks, the system is EN 54-24 compliant for life safety applications. Origin of country mexico.
Features of AW295-LS
High power 2-way full-range all-weather loudspeaker for life safety applications
EN 54-24 compliant
JBL 2262H 12-inch Differential Drive® low-frequency driver
JBL 2432H high-frequency compression driver
Progressive Transition™ waveguide with 90° x 50° coverage
Rotatable horn for vertical or horizontal mounting
Hand-laminated fiberglass enclosure with gray gelcoat finish
Integrated 400 W 70/100V transformer
Three-layer stainless steel grille with foam and mesh backing
U-type mounting bracket included
Designed for permanent indoor and outdoor life safety installations
Specifications of AW295-LS
| Frequency Range (-10 dB) | 74 Hz – 20 kHz |
| Frequency Response (±3 dB) | 106 Hz – 18 kHz |
| Coverage Pattern | 90° x 50°, rotatable waveguide |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Crossover Frequency | 1.3 kHz |
| System Power Rating | 400 W (1600 W peak), 100 hrs |
| Maximum SPL (1 m) | 125 dB-SPL cont avg (131 dB peak) |
| Maximum SPL (@ 4 m) | 111.92 dB |
| System Sensitivity (1 W @ 1 m) | 98 dB SPL |
| Sensitivity (1 W @ 4 m) | 85.9 dB SPL |
| Transformer Taps | 70V: 400 W, 200 W, 100 W; 100V: 400 W, 200 W |
| LF Driver | 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| Nominal LF Driver Impedance | 8 ohms |
| LF Sensitivity | 96 dB SPL, 1 W @ 1 m |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| HF Sensitivity | 113 dB SPL |
| Waveguide | PT-H95HF-1 |
| Enclosure | Hand-laminated fiberglass, gray gelcoat |
| Suspension Attachment | 2 x M10 for U-bracket, 2 x M6 for aiming stabilization, 1 x M10 rear safety point |
| Grille | Three-layer stainless steel grille with foam and mesh backing |
| Input Connector | CE-compliant covered barrier strip terminals |
| Environmental | IP55C per IEC529 |
| Dimensions (H x W x D) | 409 x 732 x 452 mm (16.1 x 28.8 x 17.8 in) |
| Net Weight (each) | 25.2 kg (55.5 lb) |
| Origin of Country | Mexico |
