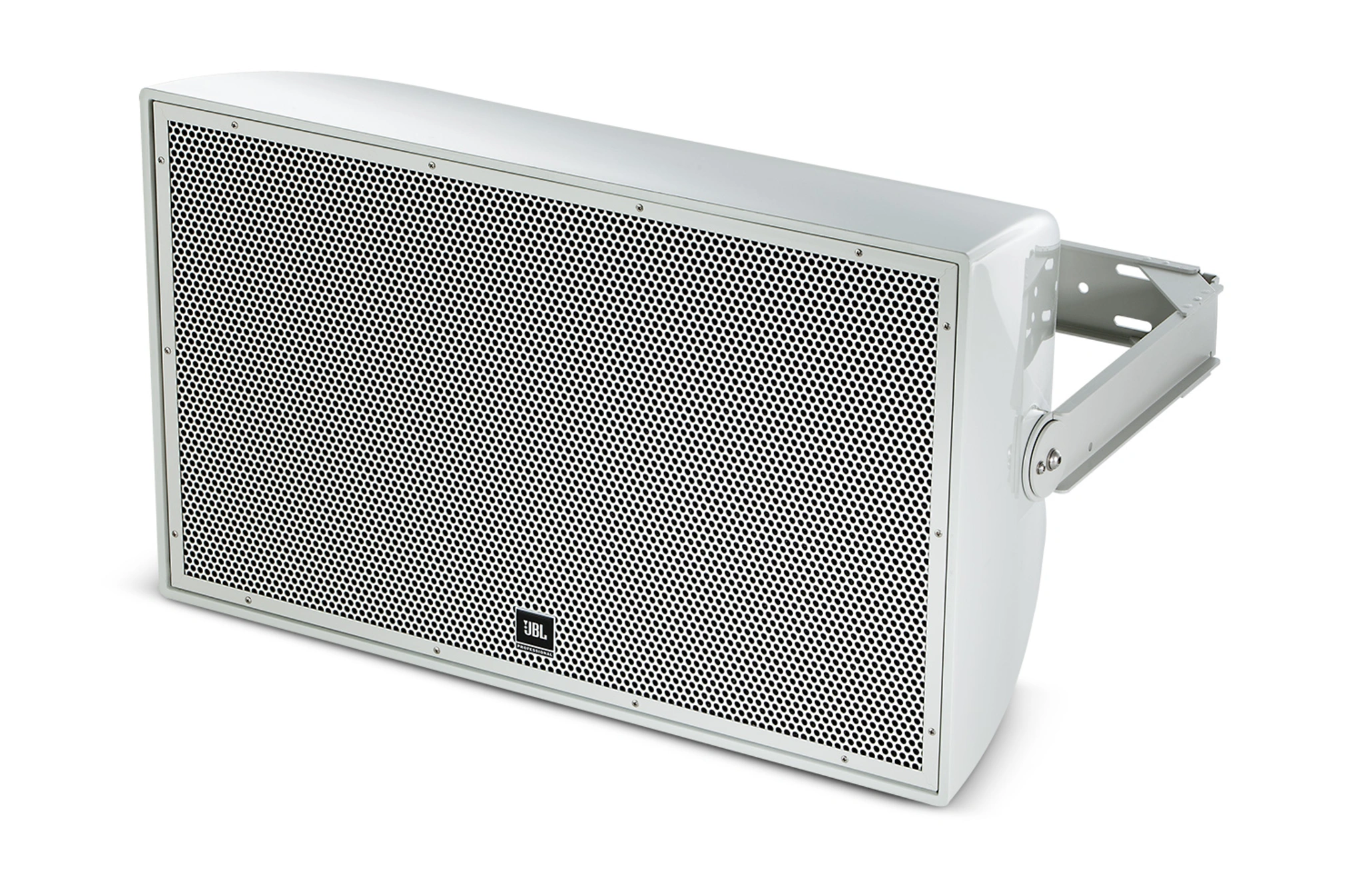

JBL AW526 High Output 15″ 2-way Full-Range 120 x 60 Loudspeaker – Gray

JBL AW526 High Power 15-inch 2-Way All-Weather Loudspeaker Gray Finish

The JBL AW526 is a high-output 2-way full-range loudspeaker designed for demanding environments requiring consistent, high-quality sound reproduction. Part of JBL’s AE Series, it combines weather-resistant construction with precision coverage, making it ideal for sports facilities, themed entertainment venues, outdoor centers, and water parks.

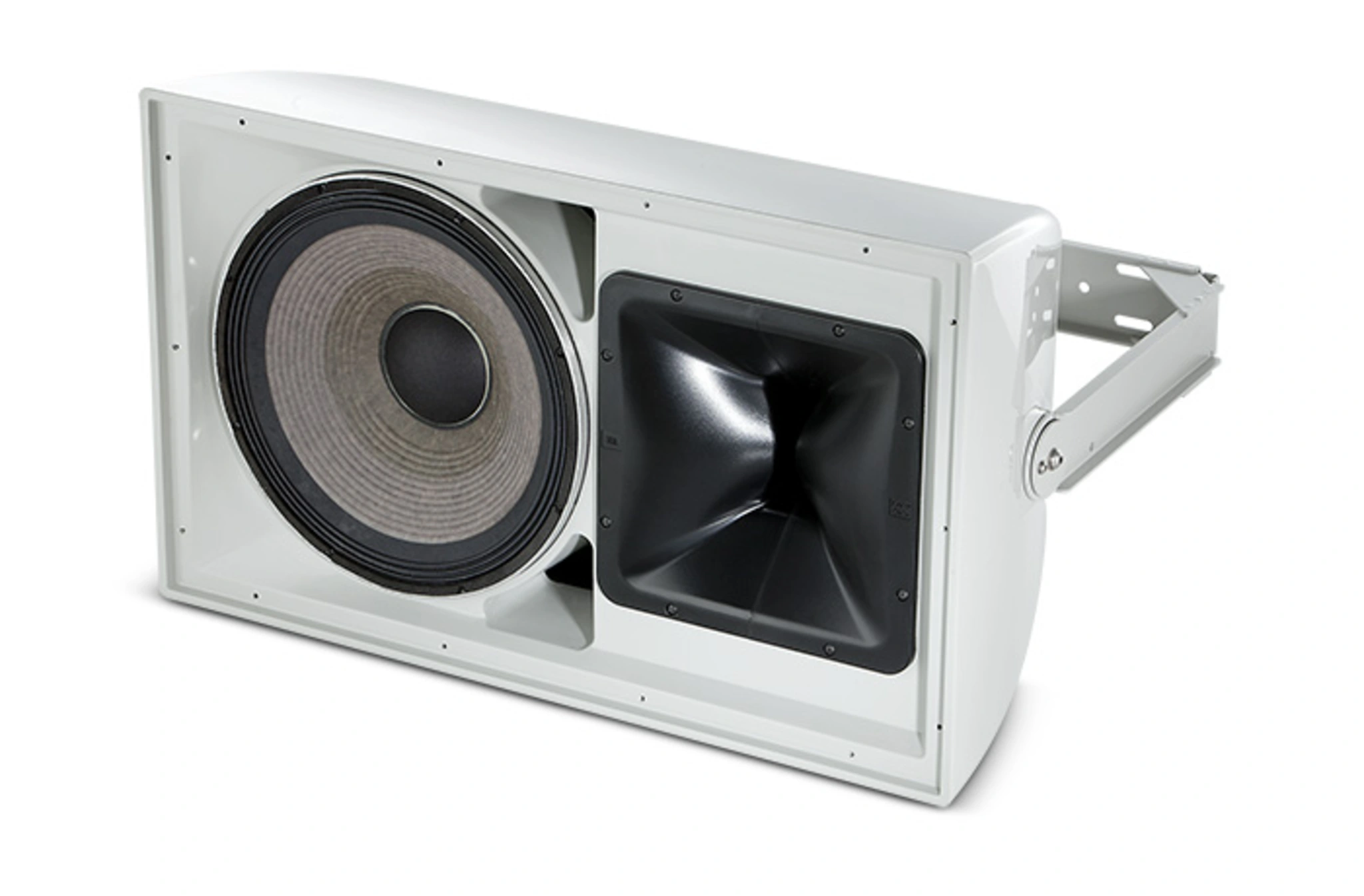

This system incorporates the JBL 2265H-1 380 mm (15 in) Differential Drive® low-frequency driver with dual voice coil and dual magnetic gap for extended bass response and superior efficiency. High frequencies are delivered by the JBL 2432H compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil, providing clear and intelligible output.

A large Progressive Transition™ waveguide offers precise 120° x 60° coverage, and its rotatable design allows vertical or horizontal mounting. The hand-laminated fiberglass enclosure, heavily braced for optimal low-frequency performance, is finished in durable gray gelcoat. The system includes a 400 W 70/100V transformer and a U-type mounting bracket for easy and secure installation.

This loudspeaker is suitable for challenging outdoor and indoor environments, combining high power, reliability, and versatility. Origin of country mexico.

Features of AW526

• Weather-resistant, all fiberglass enclosure

• 120° x 60° coverage

• 2265H-1 15-inch Differential Drive® low-frequency driver

• 2432H high-frequency compression driver

• Progressive Transition™ waveguide for accurate pattern control and low distortion

• Rotatable waveguide for vertical or horizontal orientation

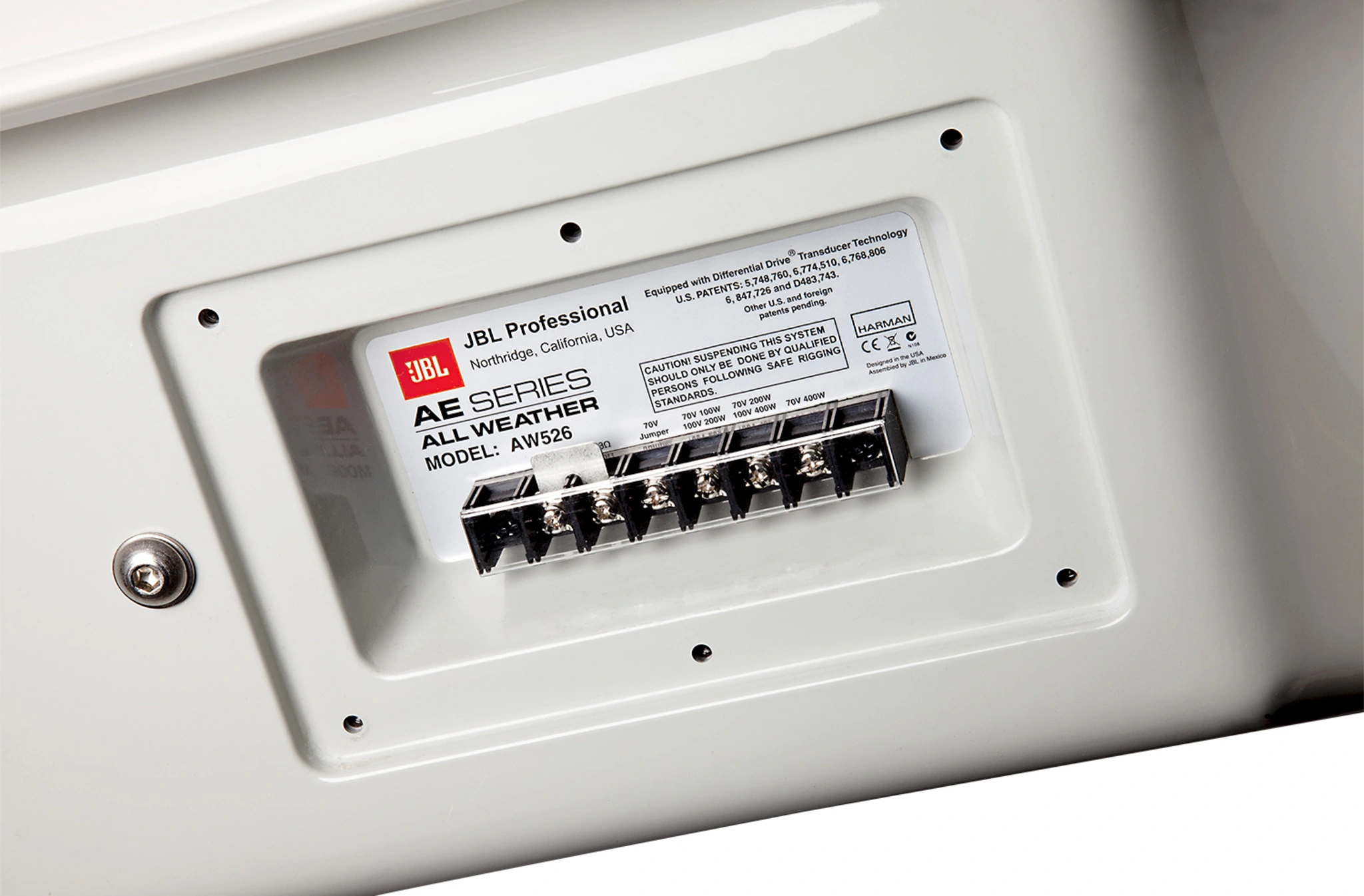

• 400 W, 70/100V transformer included

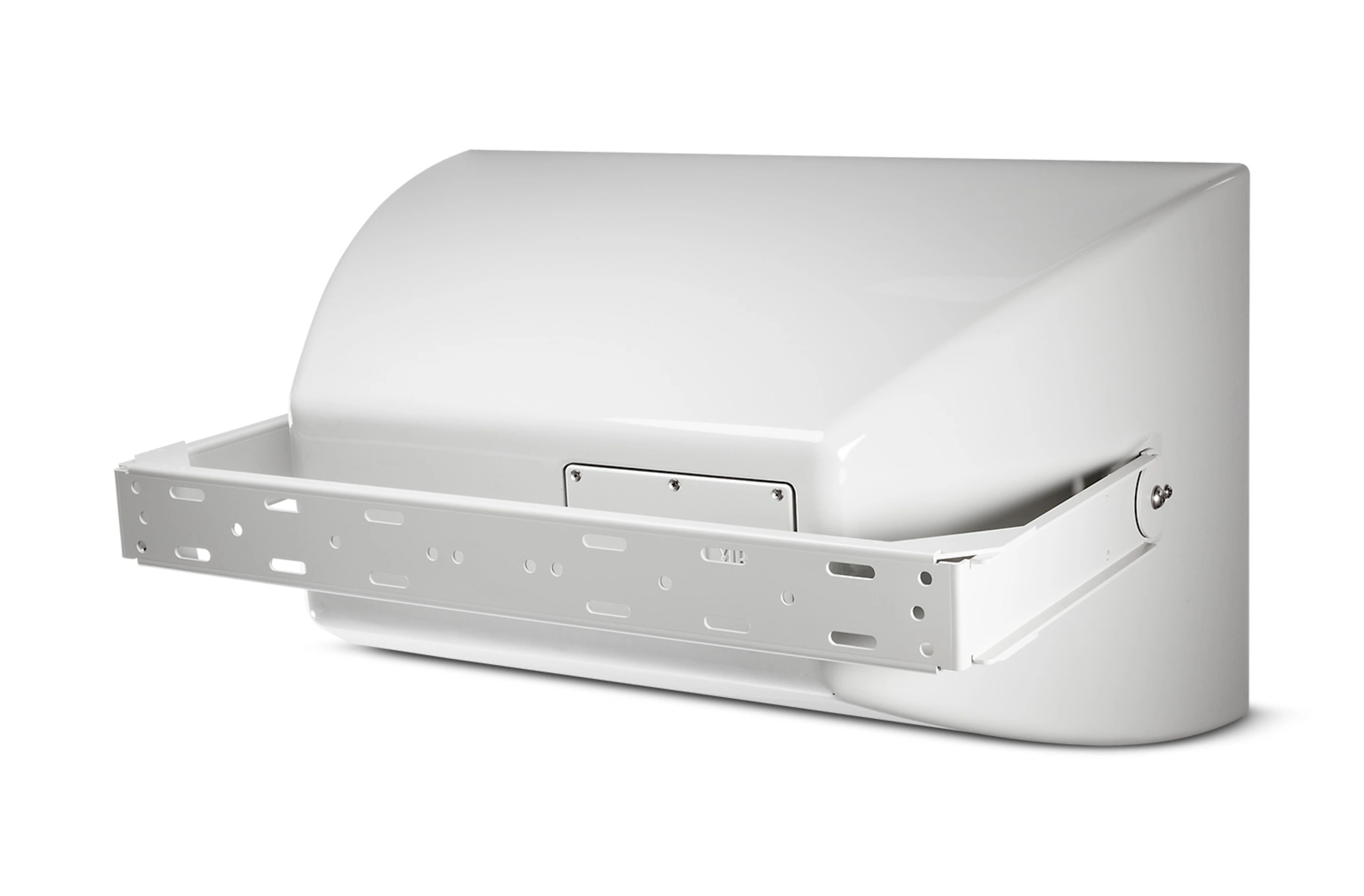

• U-type mounting bracket included

• Available in gray and black finish

• Ideal for permanent indoor and outdoor installations in challenging environments

Specifications of AW526
