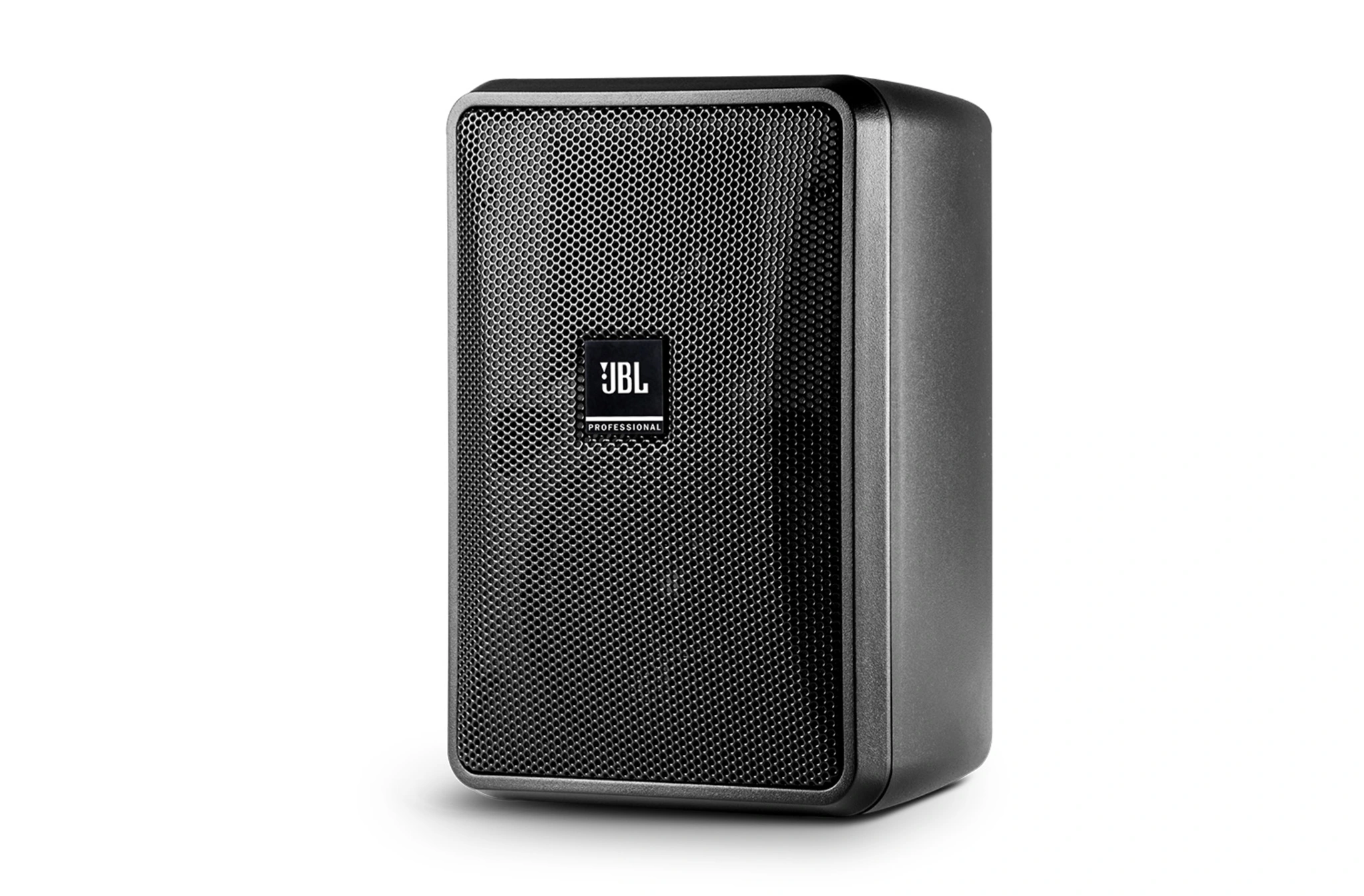

JBL Control 23-1L Ultra-Compact 8-Ohm Indoor/Outdoor Background/Foreground Speaker – Black
JBL Control 23-1L is a compact 3 indoor/outdoor speaker delivering clear, high-fidelity sound, consistent 100 coverage, and weather-resistant durability, ideal for foreground or background music in various spaces.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 1,050.76 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL Control 23-1L Ultra-Compact 8-Ohm Indoor/Outdoor Speaker
The JBL Control 23-1L Ultra-Compact 8-Ohm Indoor/Outdoor Speaker is a high-performance two-way speaker designed for exceptional audio clarity and versatility in a small, unobtrusive package. Part of the JBL Professional Control® Contractor series, this speaker is perfect for locations where premium sound is needed without taking up space or drawing attention.
Equipped with a 3-inch woven fiberglass cone woofer, the Control 23-1L reproduces precise low and midrange frequencies, while the 0.5-inch PEI diaphragm tweeter with fluid cooling delivers crisp, clear highs. It supports a broad frequency range of 70 Hz to 20 kHz, ensuring music and speech are delivered with accuracy and natural tone.
The speaker comes with integrated InvisiBall® mounting hardware for quick installation, with optional U-bracket and ceiling-mount adapters for flexible placement. Its rugged, weather-resistant enclosure and transducers provide long-lasting performance in demanding indoor or outdoor environments, featuring IP-44 splashproof rating and MilSpec 810 compliance for humidity, UV, and salt-spray resistance. The 100° horizontal and vertical coverage ensures uniform sound distribution throughout the listening area.
Ideal for retail stores, restaurants, gyms, theme parks, educational facilities, hospitality venues, cafes, and leisure areas, the Control 23-1L delivers high-fidelity sound, reliable performance, and a sleek, contemporary design for both foreground and background music applications.
Features of Control 23-1L
Ultra-compact design for indoor/outdoor use
3-inch woven fiberglass cone woofer
0.5-inch PEI diaphragm tweeter with fluid cooling
High-fidelity audio performance
100° H x 100° V wide coverage
50 W continuous, 100 W program power handling
Built-in 15 W 70V/100V multi-tap transformer
Sleek, modern appearance
Weather-resistant enclosure and drivers
Integrated InvisiBall® mounting system
Optional U-bracket and ceiling adapter
IP-44 splashproof rating
Meets MilSpec 810 standards for humidity, UV, and salt spray
8-ohm nominal impedance
Consistent sound dispersion
Specifications of Control 23-1L
| Frequency Range (-10 dB) | 70 Hz – 20 kHz |
| Frequency Response (±3 dB) | 95 Hz – 19 kHz |
| Power Rating | 50 W Continuous Pink Noise, 100 W Continuous Program, 200 W Peak |
| Maximum Input Voltage | 17.2 V RMS (2 hrs), 34.4 V Peak |
| Maximum SPL (1 m) | 103 dB Continuous Pink Noise, 109 dB Peak |
| Sensitivity | 86 dB, 1 W/1 m (average 100 Hz – 10 kHz) |
| Coverage Angle | 100° H x 100° V |
| Directivity Factor (Q) | 5.8 (averaged 1 kHz – 16 kHz) |
| Directivity Index (DI) | 7.2 dB (averaged 1 kHz – 16 kHz) |
| Impedance | 8 ohms |
| Crossover Type | 2nd order low-pass / 2nd order high-pass |
| Recommended Protective High-Pass | 70 Hz (24 dB/oct) |
| Drivers | LF: 76 mm woven fiberglass cone; HF: 13 mm PEI diaphragm tweeter |
| Enclosure | High-impact polystyrene (HIPS), UV-resistant paint |
| Grille | Zinc-plated steel with TGIC polyester powder coating |
| Mounting Hardware | InvisiBall™ wall system; optional U-bracket and ceiling adapter |
| Outdoor Capability | IP-44 splashproof; exceeds MilSpec 810 for humidity, UV, and salt spray |
| Input Connectors | Screw-down terminal strip, supports up to 12 AWG wire |
| Net Weight (each) | 1.6 kg |
| Shipping Weight (pair) | 3.5 kg; Master-pack (6 speakers) 11.0 kg |
| Included Accessories | InvisiBall™ wall system, 4 mm x 80 mm hex key |
| Optional Accessories | MTC-23UB-1 U-bracket, MTC-23WMG-1 WeatherMax grille, MTC-23CM ceiling adapter |
| Origin of Country | China |
