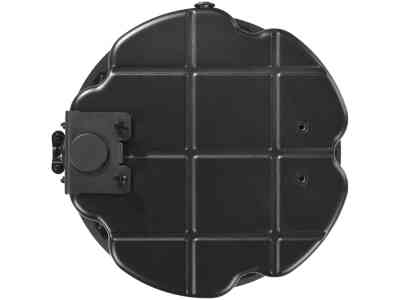

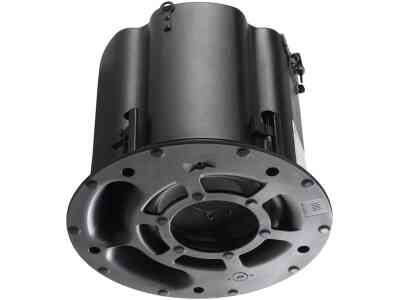

JBL Control 419CS/T 8″ Ceiling Subwoofer
The JBL Control 419CS/T is a ceiling subwoofer with an 8-inch woofer in a black enclosure and white paintable grille, delivering extended low-frequency bass for integration with Control 400 Series speakers, suitable for shallow plenum spaces and IP33 rated.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 2,035.88 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

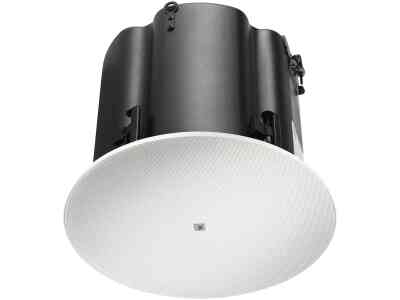

JBL Control 419CS/T 8″ Ceiling Subwoofer Black with White Grille
The JBL Control 419CS/T, part of the Control 400 Standard Coverage Series, is a high-performance ceiling subwoofer featuring an 8-inch (200 mm) woofer and integrated enclosure with two large, tapered ports, designed to deliver warm and smooth low-frequency bass. Ideal for installation in most ceiling plenum spaces, the Control 419CS/T extends the low-end response of Control 400 Series full-range speakers for enhanced audio performance. The included full-face white grille is paintable, while optional black and square grilles offer additional design flexibility. Origin of country China.
This subwoofer includes a built-in passive low-pass filter for simple integration with full-range models and a 70V/100V multi-tap transformer for distributed audio lines, in addition to 8-ohm direct input. Installation is made easy with redesigned terminal covers for top or side cable entry and a highly reliable captive dogear system that accommodates a wide range of ceiling thicknesses.
Features of Control 419CS/T
8-inch (200 mm) woofer with treated paper cone and high-performance magnet

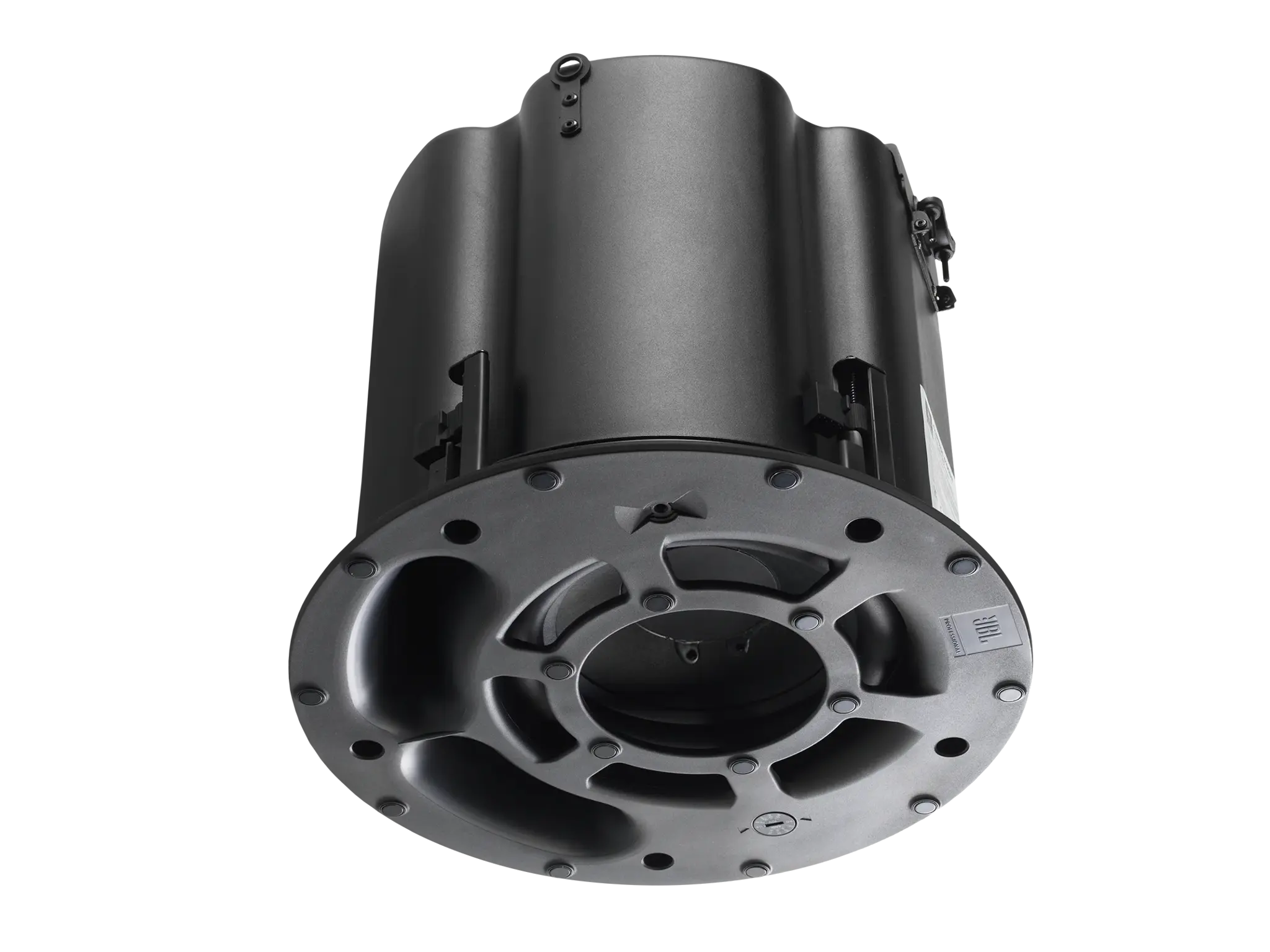

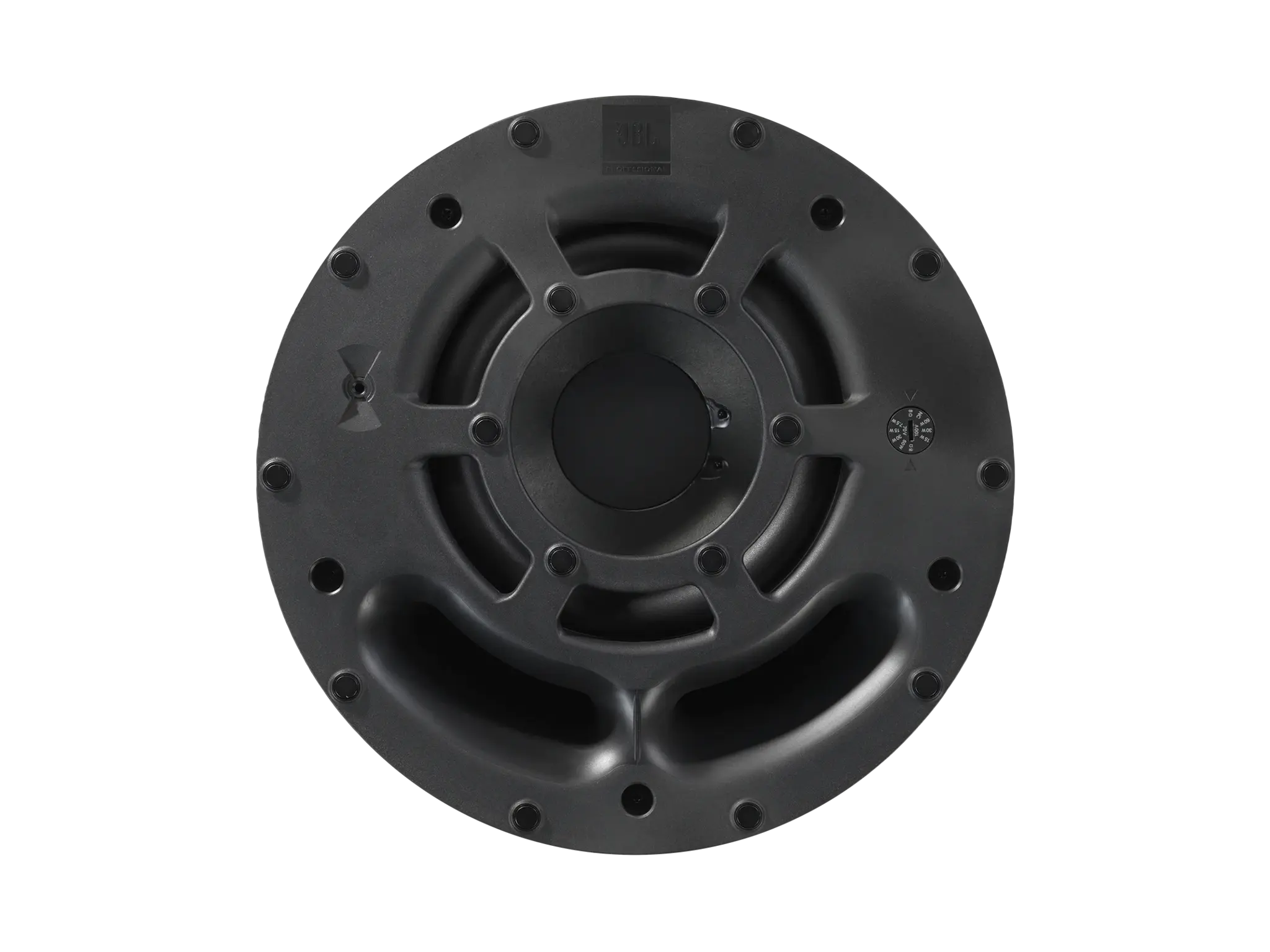

Integrated enclosure with dual tapered ports for smooth bass response
Built-in passive low-pass filter for seamless integration with full-range speakers
Built-in 70V/100V multi-tap transformer and 8-ohm direct input

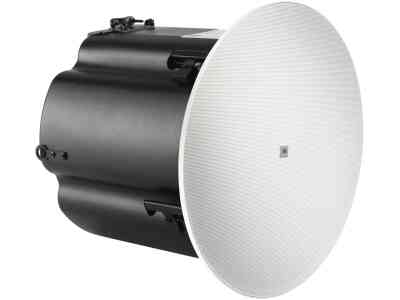

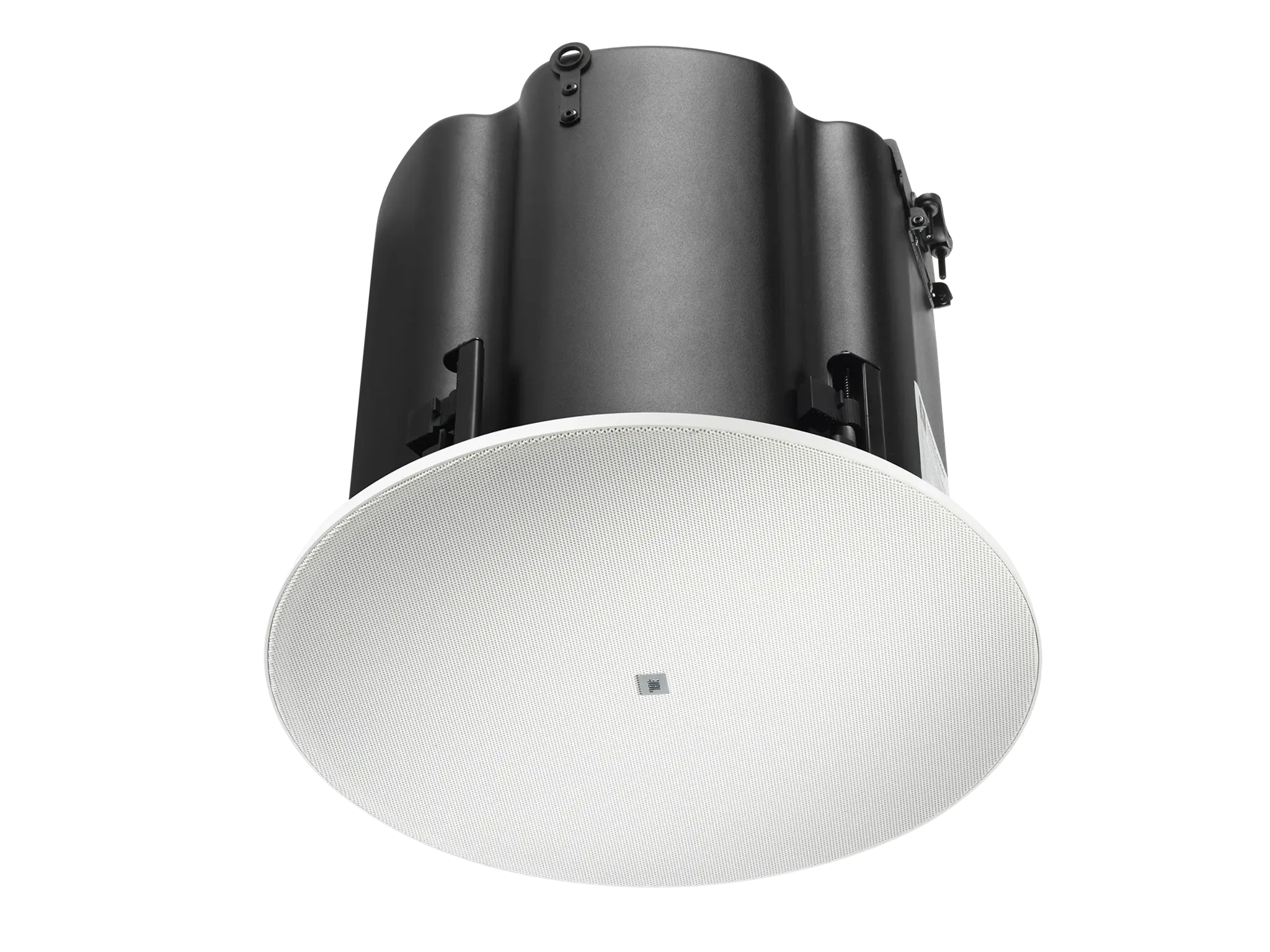

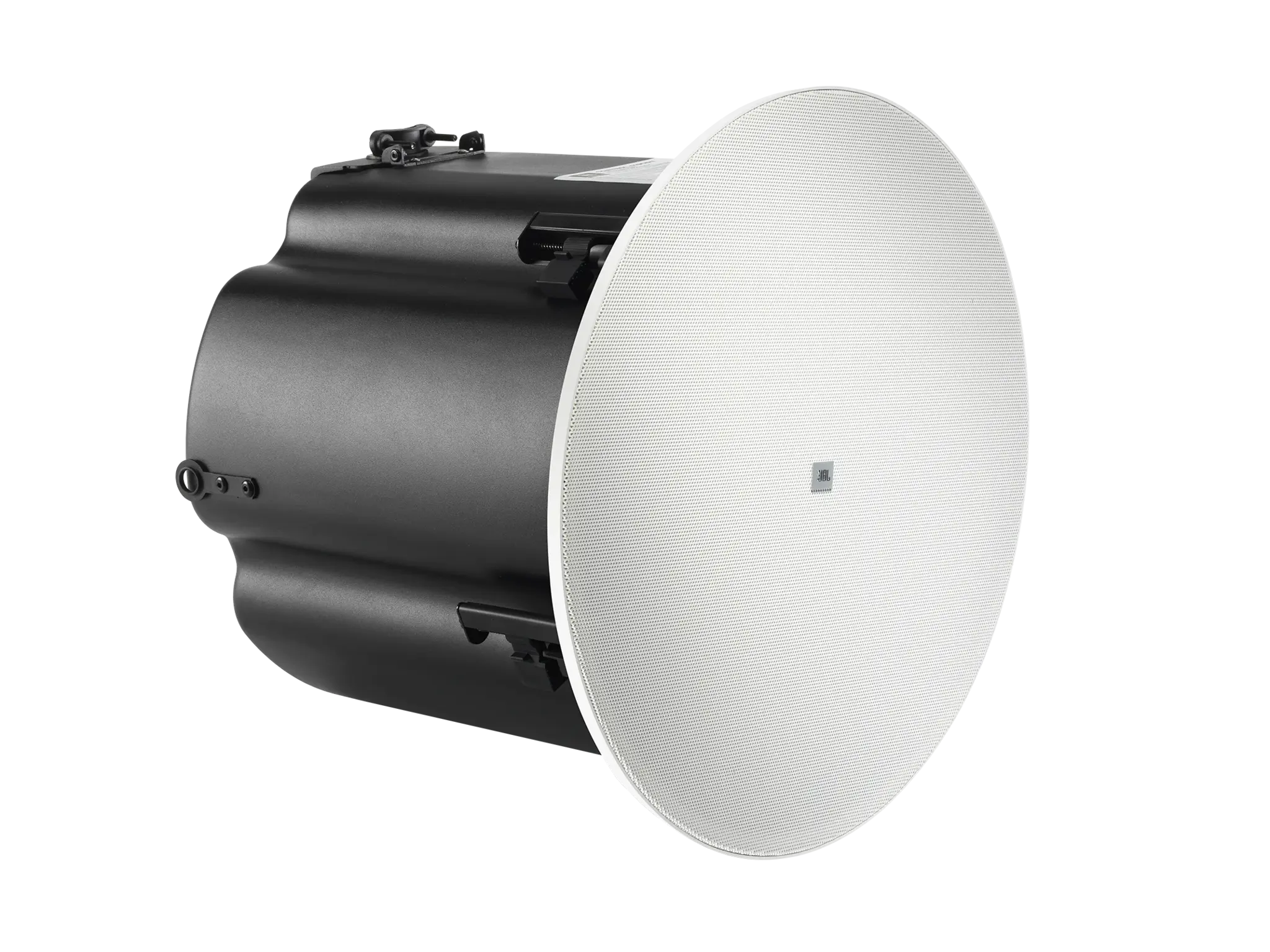

White full-face, paintable magnetic grille for modern interiors
Optional black and square magnetic accessory grilles available
Top and side cable entry options

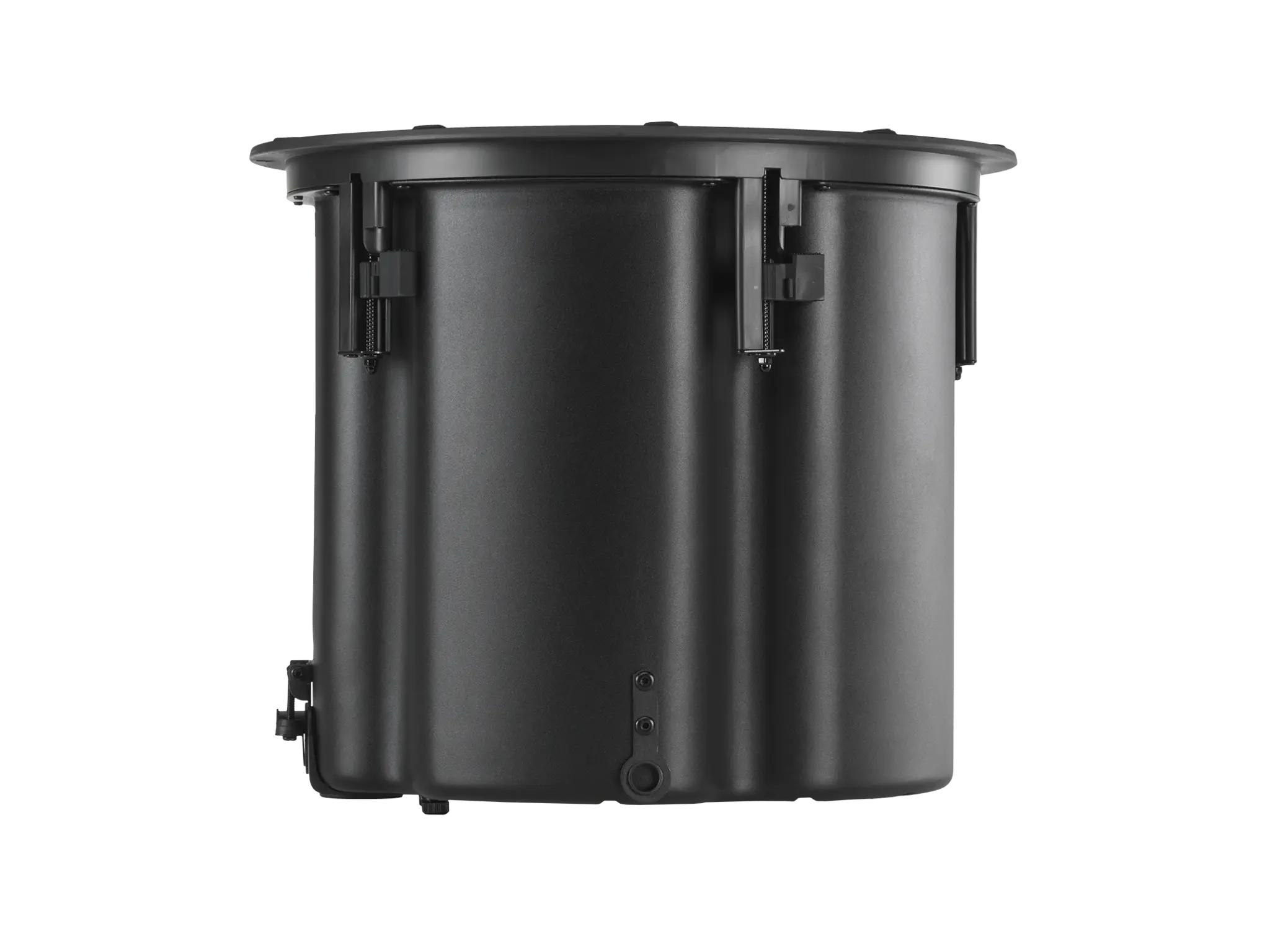

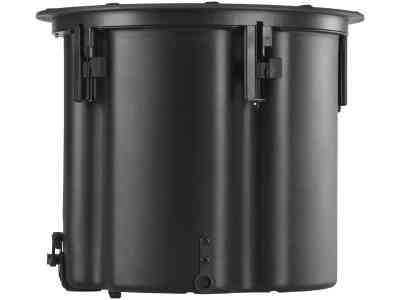

Robust captive dogear system for various ceiling thicknesses
IP33 rated for environmental protection
Specifications of Control 419CS/T
| Frequency Range (-10 dB) | 47 Hz – 320 Hz |
| Power Capacity | 160 W continuous (640 W Peak) IEC Pink Noise, 2 hrs; 80 W continuous (320 W Peak) IEC Pink Noise, 100 hrs |
| Sensitivity (1W @ 1m) | 90 dB |
| Coverage Angle | 180° conical |
| Maximum SPL (1 m) | 112 dB continuous, 118 dB peak |
| Nominal Impedance | 8Ω |
| Transformer Taps | 70 V: 60 W, 30 W, 15 W, 7.5 W; 100 V: 60 W, 30 W, 15 W |
| Drivers | 200 mm (8 in) woofer with treated paper cone and high-performance magnet |
| Ceiling Cutout Size | 308 mm (12.2 in) |
| Dimensions | 289 mm H x 346 mm diameter |
| Depth Above Ceiling | 280 mm (11 in) |
| Environmental Rating | IP33 per EN/IEC 60529 |
| Safety Agency Rating | UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205, S7232/UL1480A Listed |
| Optional Accessories | Black/white magnetic grilles, new construction & mud-ring brackets, tile rails |
| Color | Black enclosure with white (RAL9003) paintable grille |
| Net Weight | 8.8 kg (19.4 lbs) |
| Shipping Weight | 25.27 kg (55.7 lbs) per pair |
| Origin of Country | China |
