JBL CSS-15C-VA 5″ Ceiling Loudspeaker for EN54-24 Applications / EN 54-24 Compliant for Life Safety Applications
The JBL CSS-15C-VA Ceiling Loudspeaker delivers certified life-safety audio performance with clear intelligibility, EN54-24 compliance, and reliable full-range sound for emergency, evacuation, and public address systems.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 427.33 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

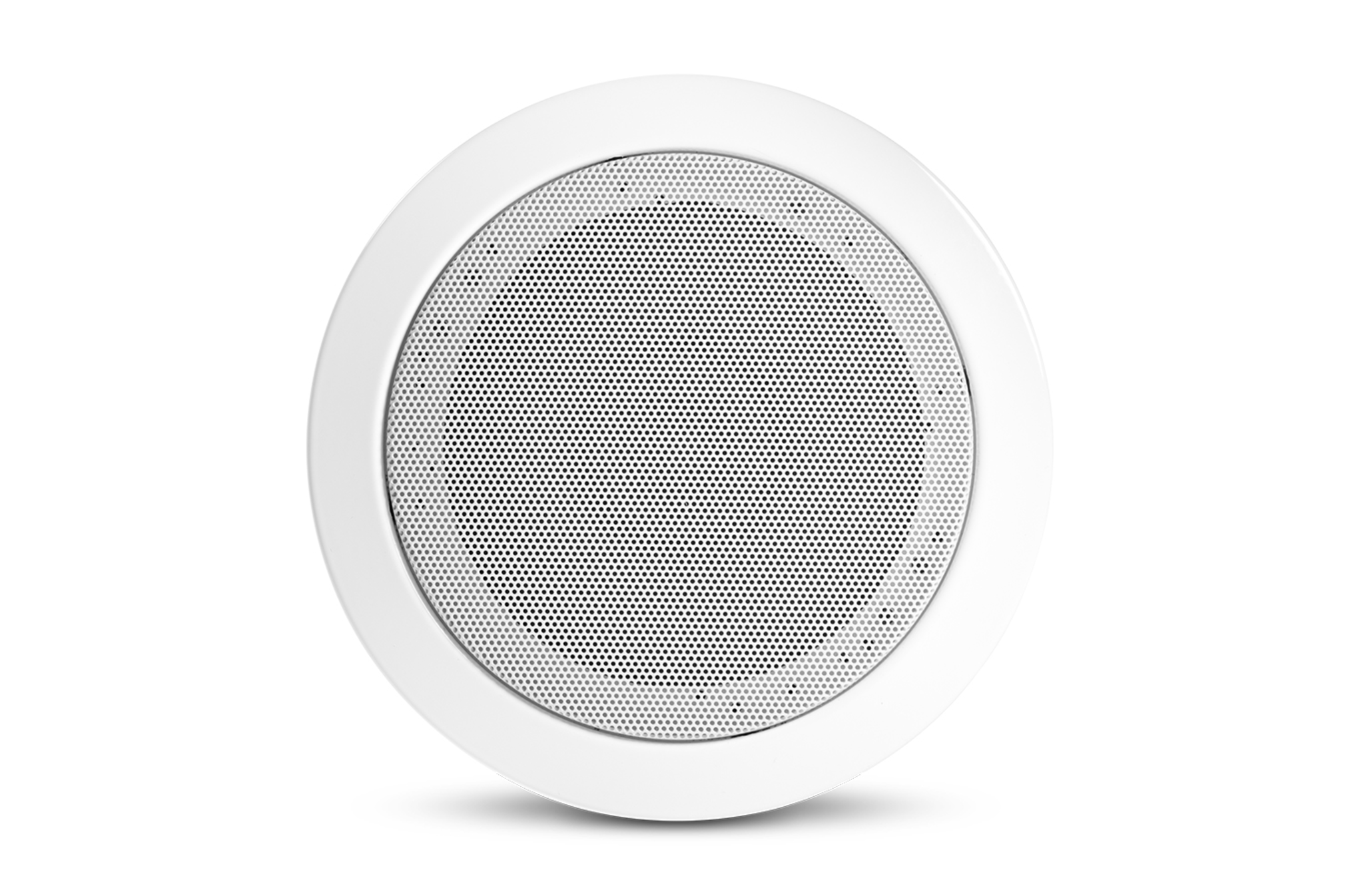

CSS-15C-VA 5 in. Ceiling Loudspeaker for EN54-24 Applications
The CSS-15C-VA 5 in. Ceiling Loudspeaker is a full-range, EN54-24 certified ceiling speaker engineered specifically for life-safety, evacuation, and public address applications requiring strict regulatory compliance. Designed around a 127 mm (5 inch) full-range dual-cone driver, this system is optimized to deliver clear, intelligible speech reproduction in emergency communication environments where reliability and clarity are critical.

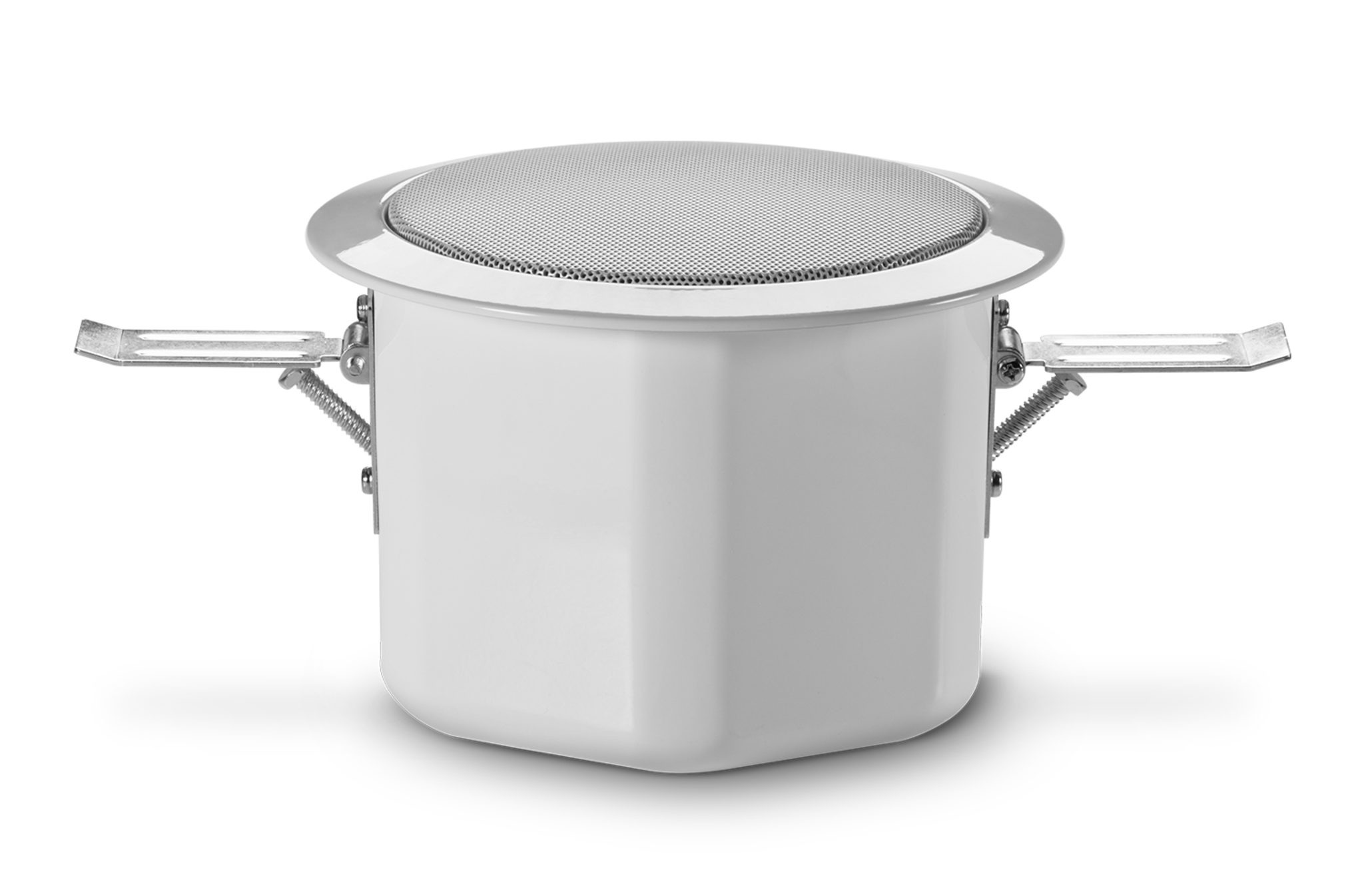

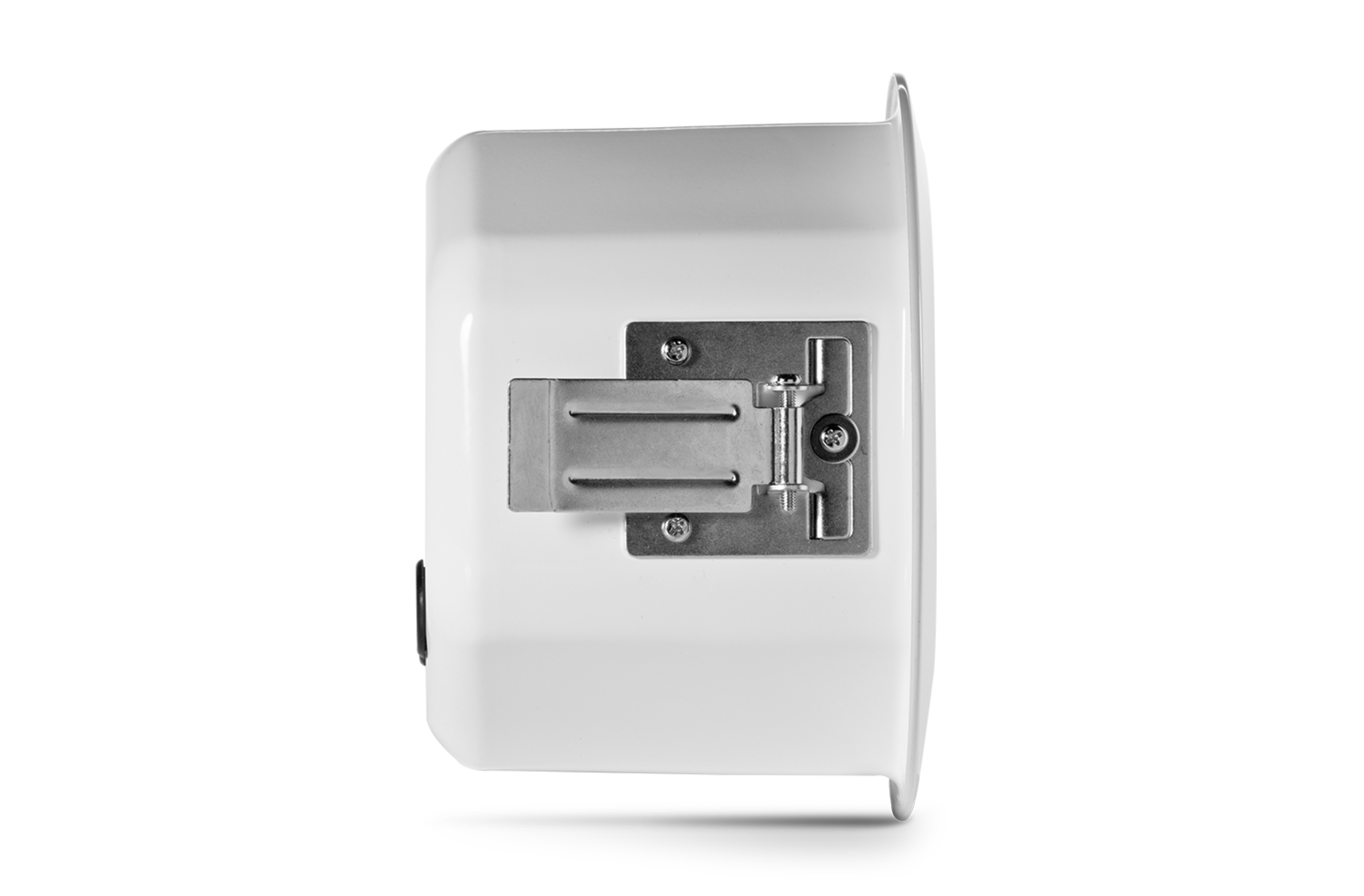

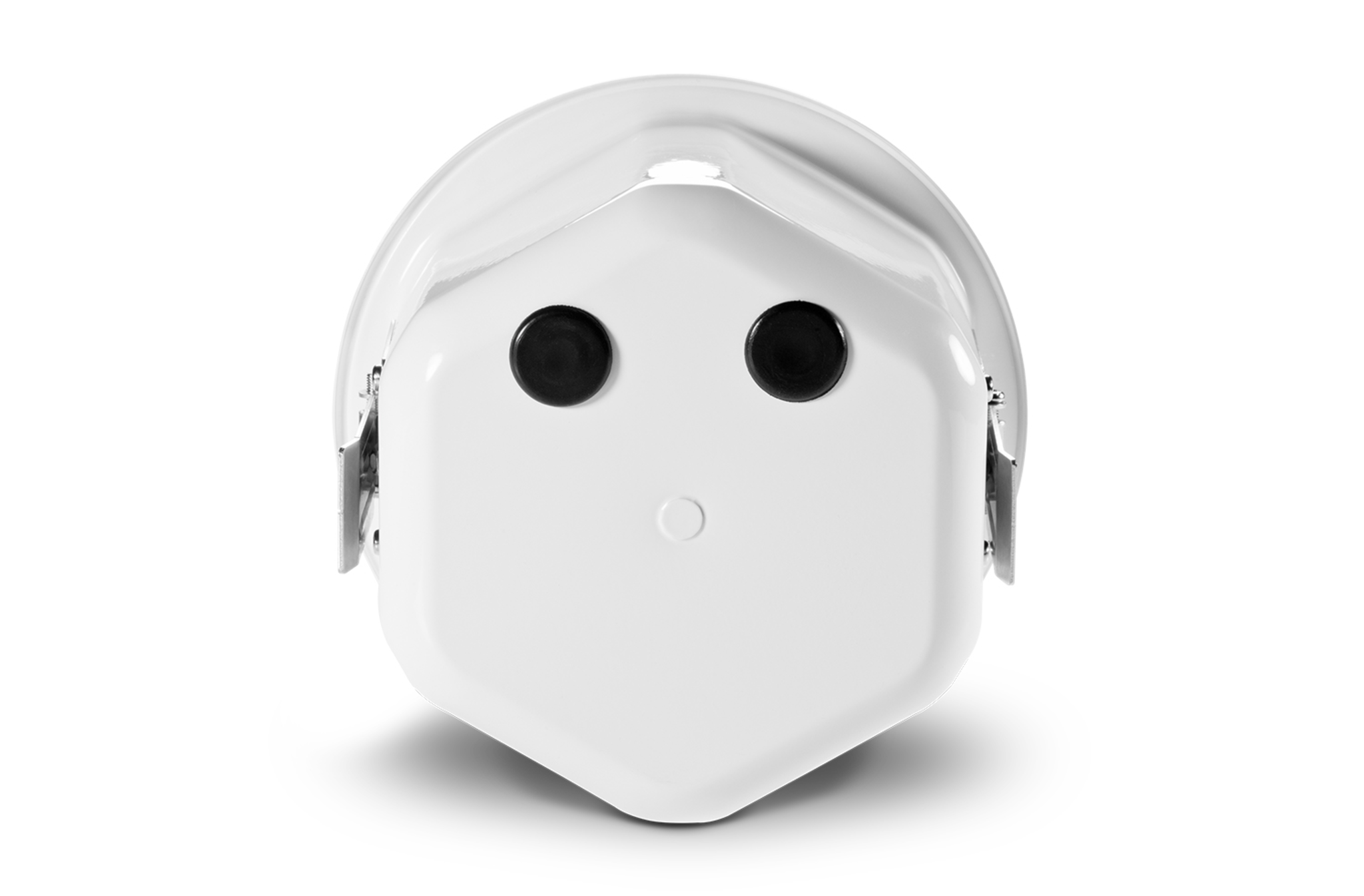

The speaker is torsion-mounted into an integrated metal fire dome backcan that supports easy blind-mount installation, providing both mechanical stability and fire protection. The CSS-15C-VA 5 in. Ceiling Loudspeaker is fully compliant with EN54-24 standards and BS5839-8 regulations, making it suitable for certified evacuation systems, fire alarm voice evacuation systems, and life-safety installations in commercial and public buildings.
Operating on 100V distributed speaker lines, the built-in multi-tap transformer offers selectable 6W, 3W, and 1.5W power settings, allowing flexible system design and precise sound level control across zones. The wide 120° conical coverage pattern ensures consistent audio dispersion, improving speech intelligibility across large areas while minimizing dead zones.
Constructed with a metal fire dome, metal baffle, and metal grille, the CSS-15C-VA 5 in. Ceiling Loudspeaker is built for durability, safety, and long-term reliability. Its ceramic terminal block with brass inserts ensures secure electrical connections, while thermal fuse protection adds an additional layer of operational safety. Designed for plenum use and harsh installation environments, the CSS-15C-VA 5 in. Ceiling Loudspeaker provides a certified, professional-grade solution for emergency communication systems where performance, compliance, and safety are mandatory.
Features of CSS-15C-VA 5 in.
EN54-24 certified life-safety loudspeaker
BS5839-8 compliant design
Full-range dual-cone driver system
Integrated metal fire dome backcan
Blind-mount ceiling installation
100V distributed line operation
Multi-tap transformer configuration
6W, 3W, and 1.5W power taps
Wide 120° conical coverage
High speech intelligibility performance
Thermal fuse protection
Ceramic terminal block connections
Metal grille and baffle construction
Plenum-rated design
Fire safety compliant materials
Emergency evacuation system ready
Specifications of CSS-15C-VA 5 in.
| Frequency Range (-10dB) | 180 Hz – 20 kHz |
| Power Capacity | 6 W (at 6W tap) |
| Rated Pink Noise Power | 6 W (at 6W tap) |
| Rated Voltage | 100V distributed speaker line |
| Sensitivity | 92 dB (300 Hz – 15 kHz) |
| EN54 Sensitivity (@4m) | 80 dB (6W tap, EN54-24 conditions) |
| Coverage Angle | 120° conical |
| Maximum SPL (1m) | 100 dB (6W tap @ 100V) |
| EN54 Max SPL (@4m) | 88 dB (6W tap @ 100V) |
| Nominal Impedance | 1667 Ω (6W), 3333 Ω (3W), 6667 Ω (1.5W) |
| Transformer Taps | 6W, 3W, 1.5W @ 100V |
| Fuse | Thermal fuse, 150°C, 2A @ 250VAC |
| Driver | 127 mm (5 in) dual-cone paper driver |
| Input Connectors | Ceramic block with brass inserts |
| Safety Certification | EN54-24, BS5839-8, CE, ROHS, IEC60849/EN60849 |
| IP Rating | IP-21 |
| Ambient Temperature Range | -10°C to +55°C |
| Materials | Metal fire dome, metal baffle, metal grille |
| Dimensions | 162 mm fire dome Ø, 183 mm baffle Ø, 129 mm total depth |
| Ceiling Cutout Size | 165 mm diameter |
| Ceiling Thickness Range | 0.5 mm – 23 mm |
| Net Weight | 1.5 kg |
| Shipping Weight | 1.9 kg |
| Color | White |
| Backcan | Formed steel, included |
| Baffle/Rim | Metal |
| Plenum Usage | Yes |
| Origin of Country | Taiwan |
