JBL INTONATO24FX Intonato 24, 24-Channel Monitor Management Tuning System
The Intonato 24 monitor management system delivers automated calibration, precision control, and advanced tuning for up to 24 speakers, supporting immersive audio production, professional monitoring, and high-accuracy studio environments.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 22,125.51 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

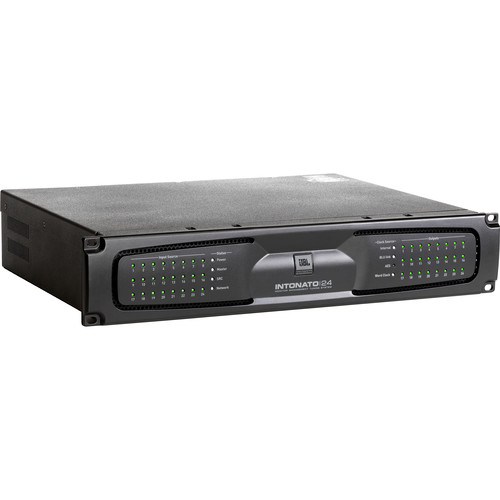

JBL Intonato 24 monitor management tuning system
The JBL Intonato 24 monitor management tuning system is a 2 RU rackmount, 24-channel automated calibration and control platform designed for professional monitoring environments. It provides precise calibration and management for up to 24 speakers configured in stereo, surround, or immersive audio formats, making it ideal for recording studios, post-production facilities, broadcast environments, and professional control rooms. The system is compatible with all professional studio monitors and works with both passive and powered speakers, while pairing seamlessly with JBL 7 Series studio monitors for immersive production applications.
The Intonato 24 features an automated speaker calibration process that compensates for speaker placement and room acoustics, delivering a neutral and accurate response at the mix position. Each speaker benefits from 12-band room EQ, delay, and level control, along with per-speaker 8-band user EQ for customized response curves such as X-Curve and screen-loss compensation. Advanced subwoofer integration enables precise bass management and LFE control, ensuring balanced low-frequency reproduction.
Built with 24 analog inputs and outputs, 24 AES/EBU inputs, and BLU link network connectivity, the system supports flexible routing and large-scale monitoring configurations. HARMAN BLU link allows digital networking with Crown power amplifiers, while software-based control and optional desktop hardware provide intuitive system operation. Designed for accuracy, scalability, and reliability, the JBL Intonato 24 delivers comprehensive monitor management, precision tuning, and immersive audio control for modern professional studios.
Features of Intonato 24
24-channel monitor management system
Automated speaker calibration
Immersive audio system support
Stereo, surround, and immersive configurations
Built-in DSP processing
32-bit internal processing
24 analog inputs and outputs
24 AES/EBU digital inputs
BLU link network audio integration
Dante support via optional BLUDAN interface
Per-speaker 12-band room EQ
Per-speaker 8-band user EQ
Variable crossover adjustment
Advanced subwoofer integration
Audio/video sync delay compensation
Individual speaker mute and solo control
Project preset storage and recall
Software-based system control
Desktop controller compatibility
Low-noise cooling system
Specifications of Intonato 24
| Product Type | Monitor management tuning system |
| Rack Height | 2 RU |
| Channel Capacity | Up to 24 speakers |
| Processing | 32-bit internal processing |
| A/D Conversion | 24-bit |
| D/A Conversion | 24-bit |
| Dynamic Range | AD: 114 dB A-weighted, DA: 115 dB A-weighted |
| Supported Sample Rates | 44.1, 48, 88.2, 96 kHz (32–192 kHz with SRC) |
| Frequency Response | 20 Hz – 20 kHz (+0 / -0.5 dB) |
| THD + N | 0.007% typical at +4 dBu, 1 kHz |
| Latency (AES to Analog, 96 kHz) | 2.15 ms |
| Latency (BLU Link I/O, 96 kHz) | 0.04 ms |
| Room Equalization | 12-band fully parametric EQ per speaker |
| User Equalization | 8-band fully parametric EQ per speaker |
| Speaker Delay | Up to 18 ms per output channel |
| A/V Sync Delay | Up to 150 ms |
| Inputs | 24 analog, 24 AES3, 24 BLU Link |
| Outputs | 24 analog outputs, 24 BLU Link outputs |
| Audio Connectors | 25-pin D-Sub, XLR |
| BLU Link Connectors | 2 x RJ45 |
| Word Clock Input | 44.1, 48, 88.2, 96 kHz |
| Maximum Output Level | +24 dBu balanced |
| Maximum Input Level | +28 dBu |
| Control Interface | Software control, optional desktop controller |
| Cooling | Low-noise fan |
| Dimensions | 3.5 x 13.8 x 19.0 in / 8.9 x 34.9 x 48.3 cm |
| Origin of Country | Mexico |
