JBL SRX835P/230 15-inch 3-Way Point-Source Powered Speaker
The JBL SRX835P 15-inch three-way powered speaker delivers 2000W peak output, premium transducers, Crown DriveCore amplification, advanced DSP control, and network integration for touring, installations, and demanding live sound applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 13,708.84 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

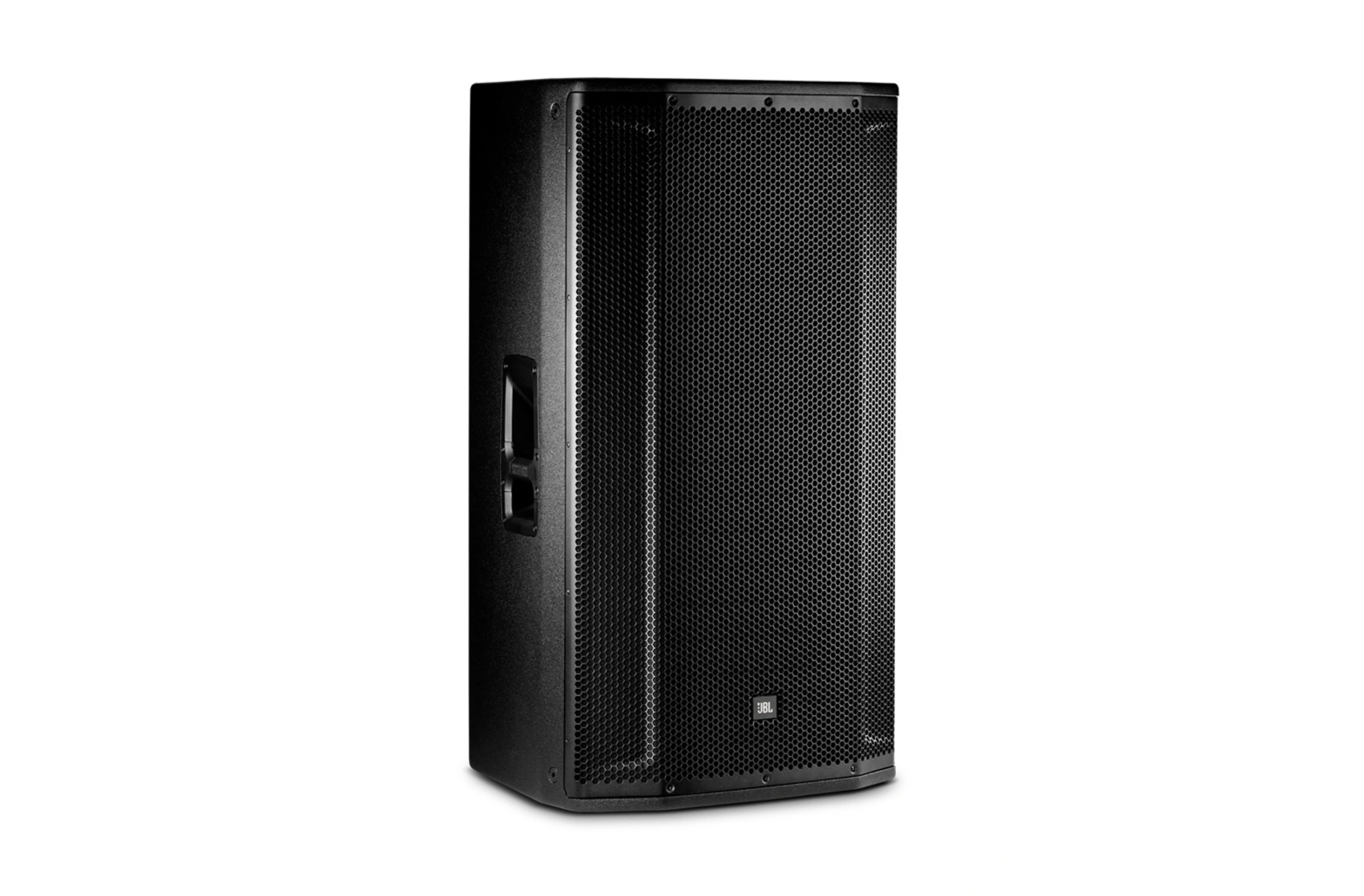

JBL SRX835P 15-inch 3-Way Point-Source Powered Speaker
The JBL SRX835P 15-inch 3-Way Point-Source Powered Speaker is engineered as part of the SRX800 Series high-performance powered loudspeaker systems, designed to meet the rigorous demands of touring, rental, live sound, and permanent installations. This self-powered 15-inch three-way bass-reflex system integrates legendary JBL transducers with proprietary 2000W Crown DriveCore amplification, delivering exceptional output, clarity, and headroom in a compact, all-in-one solution.

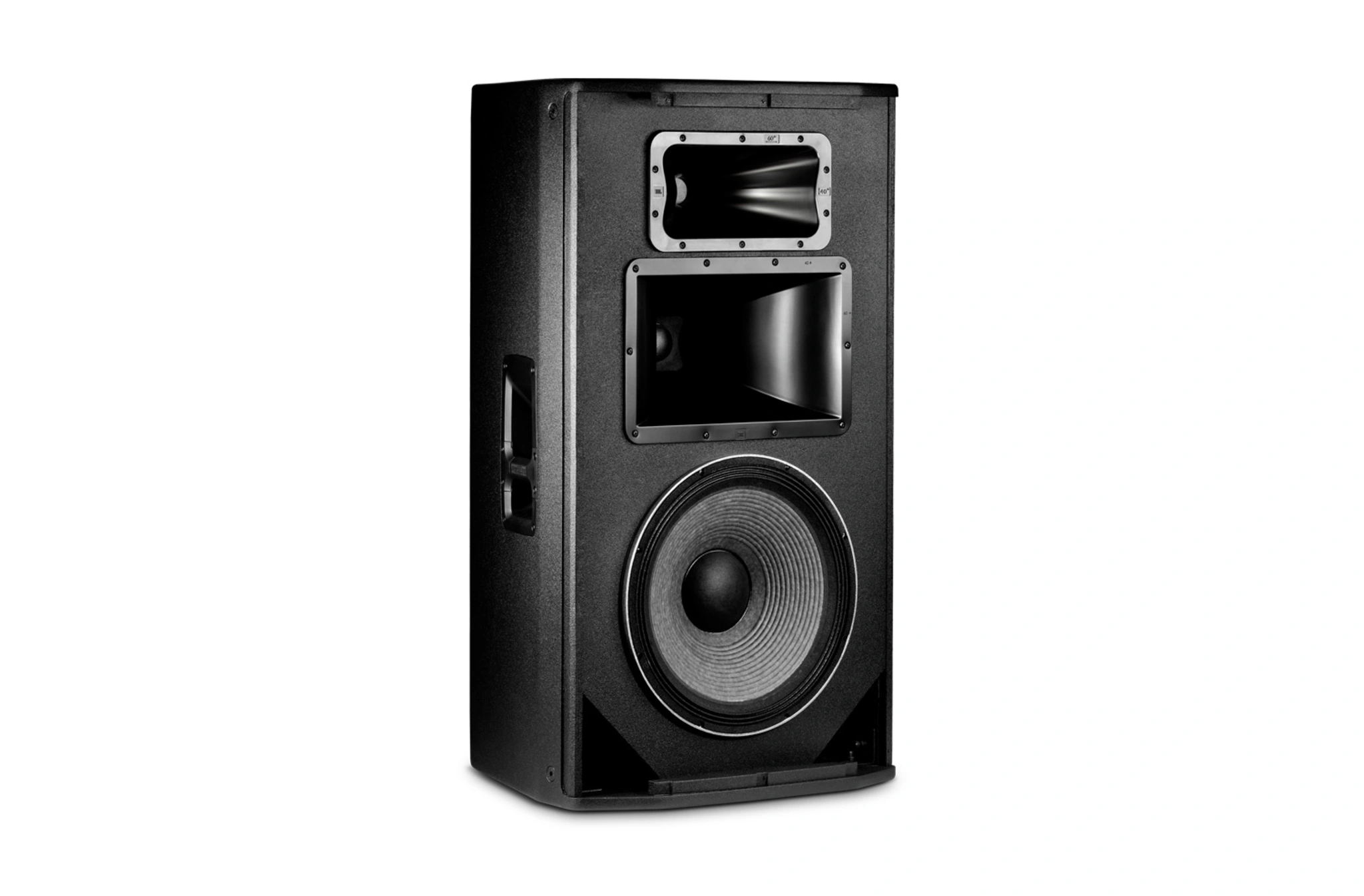

At its core, the SRX835P features JBL Differential Drive technology with a 15-inch 2275F low-frequency driver utilizing dual 3-inch voice coils for reduced weight, improved heat dissipation, higher power handling, and extended low-frequency response. The system also incorporates a 2107H mid-frequency driver and a 2432H neodymium compression driver, ensuring smooth, crystal-clear high-frequency performance with very low distortion.
A powerful onboard 400MHz Sharc DSP provides full user-configurable control, including 20 parametric EQs, up to 2 seconds of delay, signal generators, input mixing, amplifier monitoring, and 50 user presets. V5 JBL tunings enable compatibility with flagship Vertec and VTX touring systems, while an integrated LCD screen allows fast setup and configuration.
With HiQnet Network Integration, the SRX835P supports wired Ethercon control and wireless router capability, enabling system management via Audio Architect and mobile applications. Purpose-built construction includes 18 mm Finnish birch plywood, DuraFlex finish, ergonomic handles, M10 suspension points, and a 36 mm pole socket, ensuring durability and flexible deployment.
Features of SRX835P
Self-powered 15-inch three-way bass-reflex design
2000W peak Crown DriveCore Class D amplification
JBL Differential Drive low-frequency transducer
2432H neodymium compression driver
400MHz Sharc DSP processing
20 parametric EQ bands
Up to 2 seconds adjustable delay
50 user preset storage slots
V5 tunings for Vertec and VTX compatibility
HiQnet network integration support
Ethercon wired network control
Integrated LCD configuration display
60° x 40° coverage pattern
12 x M10 suspension points
36 mm pole socket mounting
18 mm Finnish birch plywood enclosure
Specifications of SRX835P
| System Type | Self powered 15-inch, three-way, bass-reflex |
| Maximum SPL (1m) | 137 dB |
| Frequency Range (-10 dB) | 33 Hz – 21 kHz |
| Frequency Response (±3 dB) | 41 Hz – 20 kHz |
| Coverage Pattern | 60° x 40° |
| Amplifier Design | Class D |
| Power Rating | 2000 W Peak |
| LF Driver | 1 x 2275F, 15-inch Differential Drive |
| MF Driver | 1 x 2107H |
| HF Driver | 1 x 2432H compression driver, 76 mm (3 in) voice coil |
| EQ | 20 parametric EQs, speaker delay, 50 presets |
| Inputs | Neutrik ¼” – XLR input; Neutrik XLR output |
| Outputs | 2 x XLR |
| Suspension / Mounting | Single 36 mm pole socket, 12 x M10 suspension points |
| Enclosure | 18 mm, 11-ply Finnish birch plywood; black DuraFlex finish |
| Dimensions (H x W x D) | 476 mm x 544 mm x 984 mm |
| Net Weight | 38.6 kg |
| Nominal Impedance | Not applicable (integrated amplification) |
| Origin of Country | Mexico |
