Monitor Audio Cinergy Sub15 Installation Speakers
The Monitor Audio Cinergy Sub15 delivers THX Certified low-frequency performance with a high-excursion 15-inch driver, flexible installation options, sealed cabinet design, and powerful cinematic bass reproduction for home theaters.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 16,170.00 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

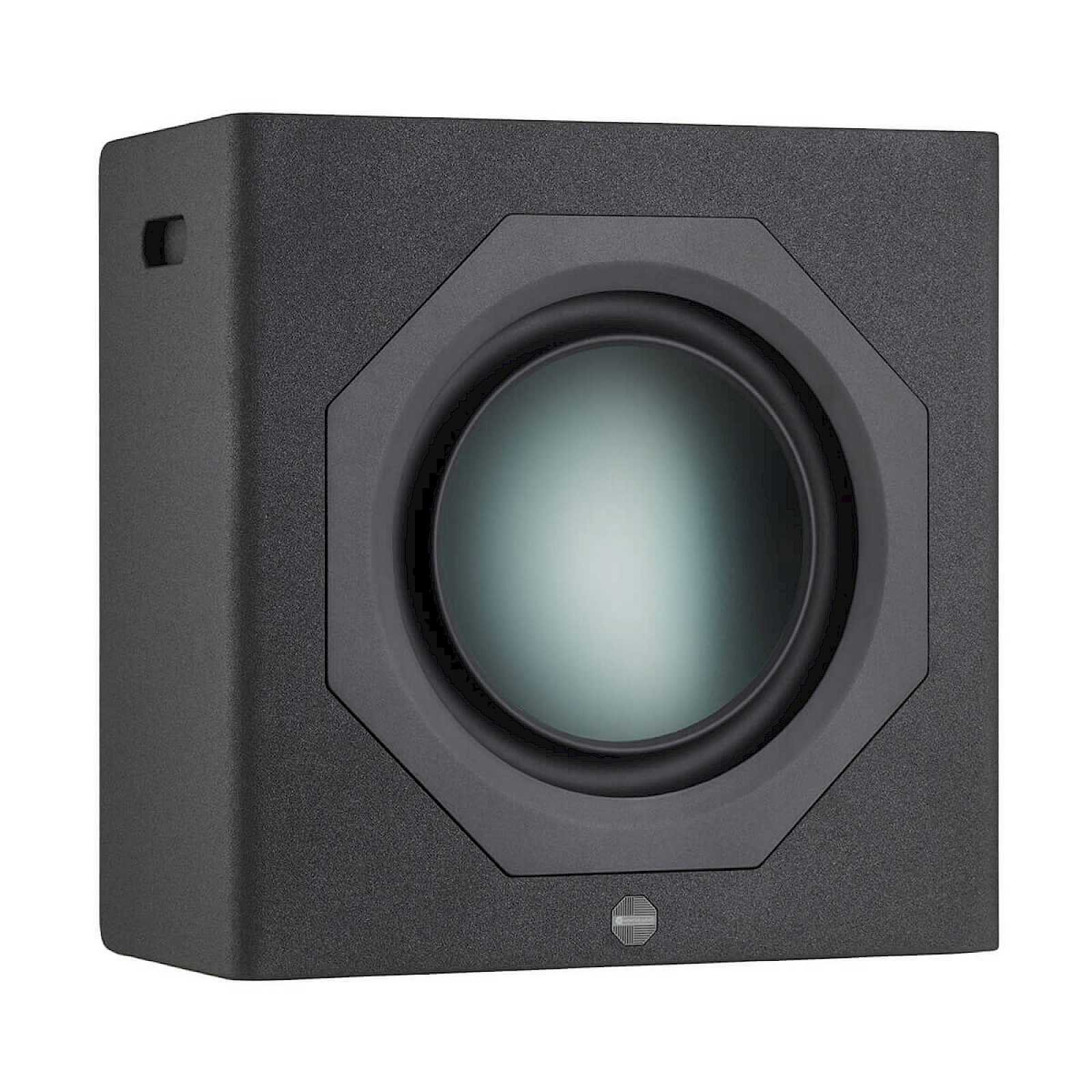

Monitor Audio Cinergy Sub15 subwoofer
The Monitor Audio Cinergy Sub15 is a high-performance architectural subwoofer engineered to deliver deep, controlled, and cinematic low-frequency performance for advanced home theater environments. Designed as part of the Cinergy cinema speaker series, the Sub15 offers exceptional installation flexibility, allowing it to be mounted in-wall, stacked within custom sound wall configurations, or used as a floorstanding subwoofer depending on system design requirements.
At the core of the Cinergy Sub15 is a powerful 15-inch ultra high-excursion C-CAM driver engineered for substantial bass output, high linearity, and precise low-frequency control. The sealed cabinet configuration enhances transient response and bass accuracy while supporting powerful low-frequency extension suitable for demanding cinematic playback applications. Designed to integrate seamlessly with Cinergy 300 loudspeakers, the Sub15 enables installers to create hidden sound wall systems capable of delivering immersive theater-grade audio performance rarely experienced in residential environments.
The subwoofer incorporates isolation feet that help minimize unwanted structural vibrations and resonance transfer, improving overall acoustic clarity and reducing interference with surrounding surfaces. Bracing and securing brackets further support stable integration within concealed sound wall installations and custom cinema construction.
To achieve certified THX Ultra performance, the Cinergy Sub15 is designed for use with Monitor Audio IA750-2 or IA750-4 installation amplifiers operating with the dedicated C Sub profile. This optimized amplification pairing ensures controlled bass management, accurate low-frequency reproduction, and maximum system performance. With high power handling, exceptional output capability, and flexible architectural integration, the Monitor Audio Cinergy Sub15 is engineered for premium home cinema systems demanding impactful and highly controlled bass reproduction.
Features of Cinergy Sub15
- THX Certified Ultra subwoofer system
- High-output architectural subwoofer design

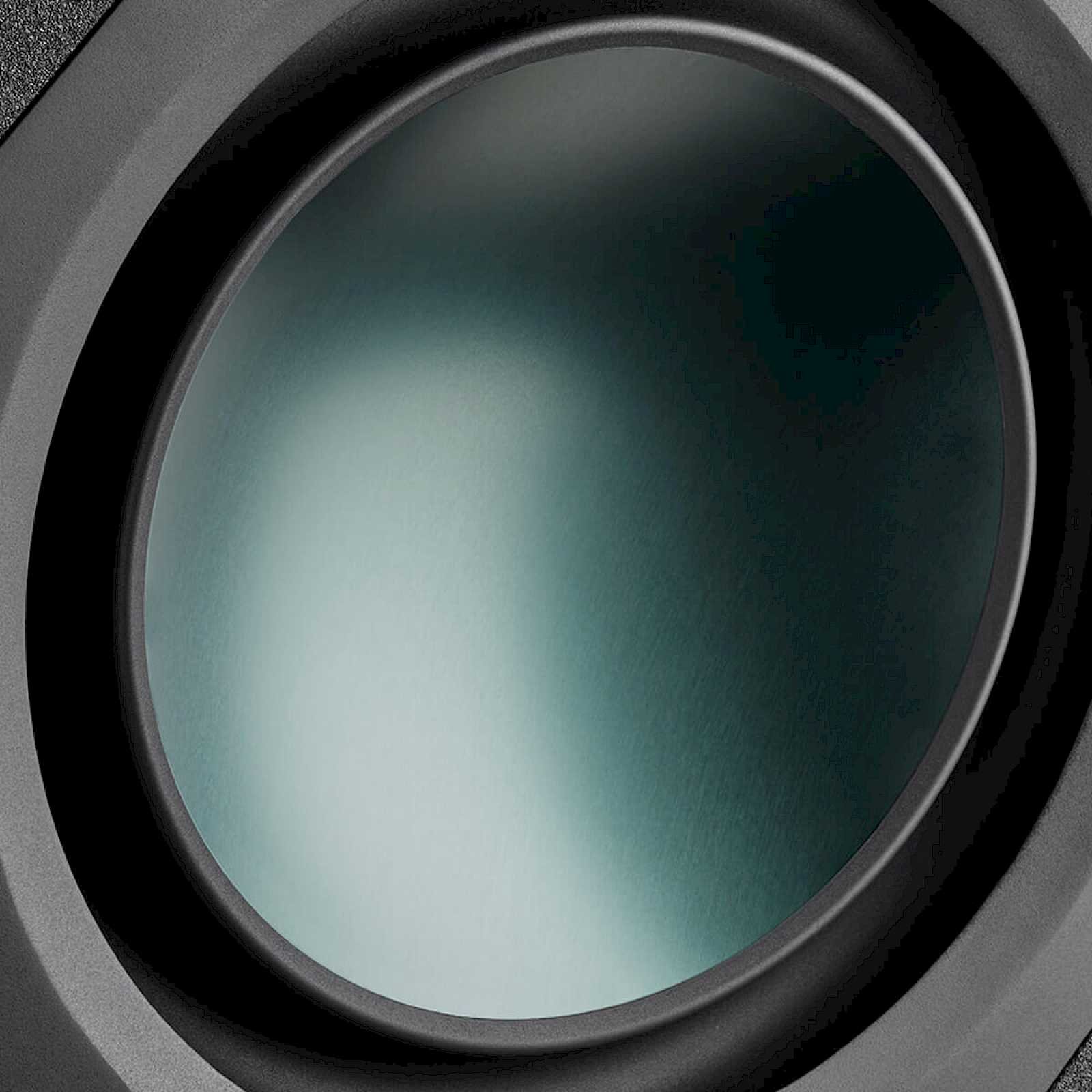

- 15-inch ultra high-excursion C-CAM driver
- Sealed cabinet bass configuration
- Deep cinematic low-frequency reproduction
- Flexible in-wall installation support
- Stackable sound wall configuration support
- Floorstanding installation capability
- Sized to match Cinergy 300 speakers
- Isolation feet for vibration reduction
- Reduced structural resonance transfer
- Bracing and securing bracket integration
- Optimized for hidden sound wall systems
- High linear bass performance
- Dedicated installation amplifier compatibility
- IA750-2 amplifier support
- IA750-4 amplifier support
- Optimized THX performance tuning
- Powerful low-frequency extension
- Custom cinema integration ready
Specifications of Cinergy Sub15
| THX Certification | THX Certified Ultra (with 2 x Cinergy Sub15 units) |
| System Format | N/A |
| Sensitivity (2.83 Vrms @ 1 M) | 86 dB @ 100 Hz |
| Maximum Linear SPL (@1m, free space) | Continuous 109 dB, Peak 120 dB |
| Power Handling (RMS) | Continuous 600 W, Peak 1500 W |
| Nominal Impedance | 4 Ohms |
| Minimum Impedance (20 Hz – 20 kHz) | 4 Ohms |
| Recommended Low Frequency Crossover Frequency | 40 – 100 Hz (Low Pass) |
| Recommended Amplifier Requirements | Must be used with IA750-2 / IA750-4 running C Sub Profile |
| Bass Alignment | Sealed |
| Port Tuning Frequency | N/A |
| LF Extension In-Wall With Port Bungs (-6dB) | N/A |
| LF Extension Free Space Without Port Bungs (-6dB) | 17 Hz |
| HF Extension (-6dB) | N/A |
| Drive Unit Complement | 1 x 15″ Ultra High Excursion C-CAM Driver |
| Cabinet Dimensions (H x W x D) | 540 x 540 x 280 mm |
| Maximum External Dimensions (H x W x D) | 567 x 540 x 280 mm |
| Weight | 38.5 kg |
| Installation Type | In-Wall / Stacked / Floorstanding |
| Cabinet Type | Sealed |
| Isolation Support | Isolation feet |
| Installation Support | Bracing and securing brackets |
