Monitor Audio CP-WT140LCR In-Wall Speaker

Monitor Audio CP-WT140-LCR in-wall speaker

The Monitor Audio CP-WT140-LCR is a high-performance in-wall loudspeaker engineered for both home theater and stereo music applications. Designed as a versatile LCR (Left, Center, Right) speaker, it can be installed vertically or horizontally, making it suitable for front-channel, center-channel, and surround-channel duties within a custom audio system.

The speaker utilizes a refined two-way driver configuration featuring a 1-inch pivoting C-CAM gold dome tweeter and dual 4-inch MMP II (Metal Matrix Polymer) bass/midrange drivers. This combination delivers detailed high-frequency reproduction, clear vocal presentation, and balanced low-frequency performance. The dual-driver arrangement provides a larger radiating surface area than a conventional single-driver design, resulting in improved output capability and enhanced sonic impact.

Monitor Audio’s C-CAM tweeter technology employs a ceramic-coated aluminum/magnesium alloy diaphragm that combines low mass with exceptional rigidity. This design helps reduce distortion while extending high-frequency response well beyond the audible range for greater detail and accuracy. The pivoting tweeter allows installers to direct sound toward the primary listening position, improving imaging and overall listening performance.

The MMP II bass drivers feature a Metal Matrix Polymer cone structure designed for excellent rigidity and responsiveness. Their optimized construction enhances midrange clarity and bass control while maintaining low distortion levels. A high-frequency adjustment switch enables fine-tuning of treble output to suit room acoustics and listener preferences.

The CP-WT140-LCR incorporates a sealed enclosure design that protects internal components from dust and debris while ensuring consistent acoustic performance. Combined with the trimless magnetic grille and patented Tri-Grip mounting system, the speaker offers both seamless architectural integration and reliable installation for demanding custom audio environments.

Features of CP-WT140-LCR

• Versatile LCR speaker configuration
• Suitable for left, center, or right channels
• Supports surround channel applications
• Vertical or horizontal installation
• Two-way driver architecture
• 1-inch pivoting C-CAM gold dome tweeter
• Dual 4-inch MMP II bass drivers
• Wide high-frequency extension
• Detailed and accurate sound reproduction
• Enhanced vocal intelligibility
• Low-distortion driver technology
• Adjustable tweeter output control
• Boundary compensation support
• Sealed enclosure construction
• Dust-resistant internal design

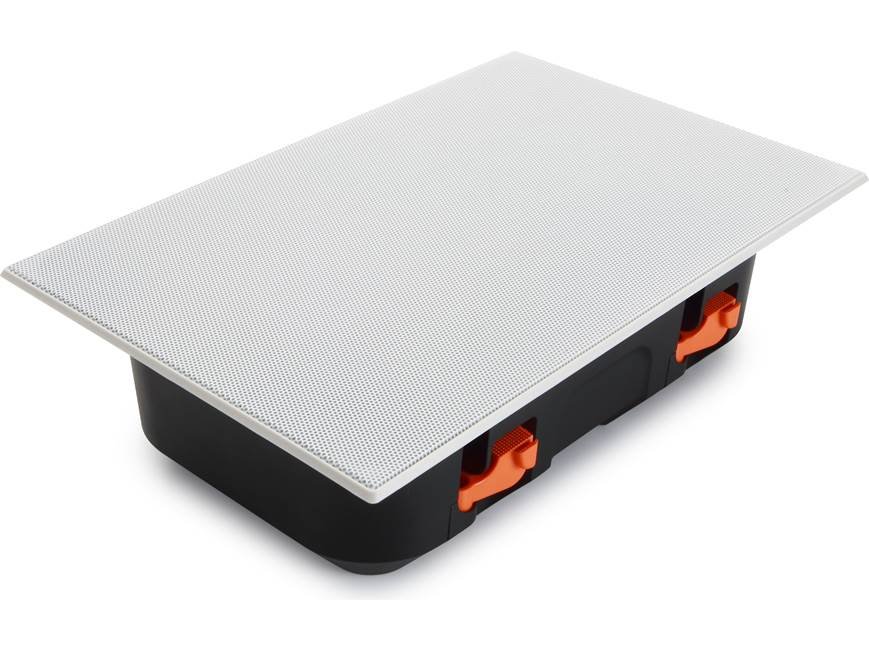

• Trimless magnetic steel grille
• Paintable grille and bezel
• Tri-Grip mounting system
• Secure in-wall installation

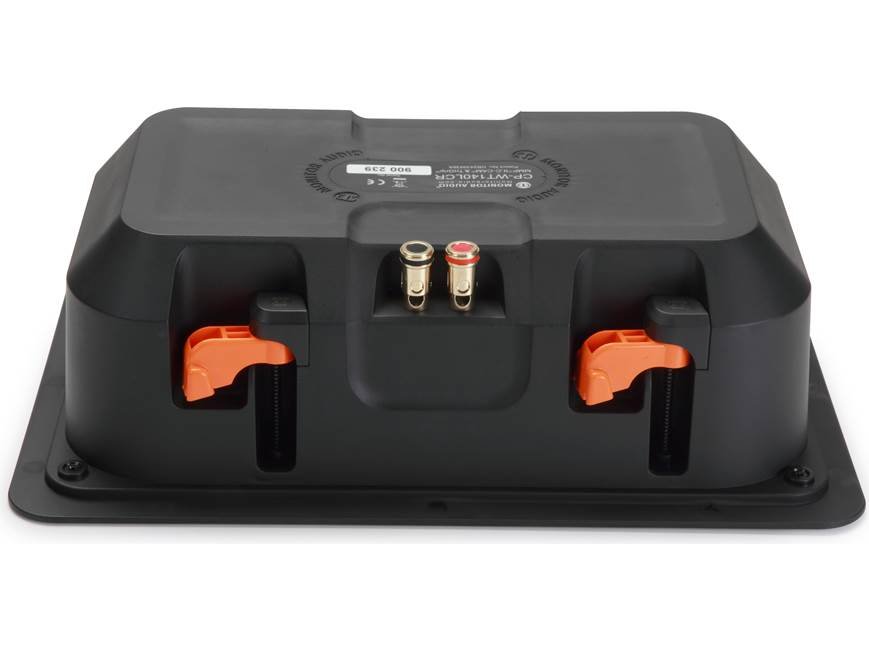

• Spring-post speaker terminals
• Compatible with custom home theaters
• Ideal for stereo audio systems

Specifications of CP-WT140-LCR
