Monitor Audio SoundFrame 2 On-Wall Speaker

Monitor Audio SoundFrame 2 on-wall speaker

The Monitor Audio SoundFrame 2 is a sophisticated on-wall loudspeaker designed to integrate seamlessly with modern televisions, projection screens, and contemporary interiors. Its elongated form factor and slim cabinet depth create a visually discreet appearance while providing the acoustic performance expected from a premium full-range speaker system. Suitable for horizontal or vertical installation, the SoundFrame 2 offers flexibility for a variety of home entertainment and audio installations.

Engineered with a true three-way driver configuration, the SoundFrame 2 delivers detailed, balanced sound across a wide frequency range. The speaker incorporates a 6.5-inch C-CAM bass driver with RST technology, a 4-inch IDC midrange driver, and a dual concentric 1-inch C-CAM Gold Dome tweeter. This advanced driver arrangement provides accurate vocal reproduction, dynamic bass response, and detailed high-frequency performance for both music and movie soundtracks.

A pivoting IDC module allows sound dispersion to be optimized according to room layout and listening position. The integrated high-frequency attenuation control of ±3 dB enables further adjustment to suit room acoustics and personal listening preferences. Combined with the sealed cabinet design, these technologies help maintain clarity, precision, and consistent tonal balance.

The SoundFrame 2 features an ultra-slim 87 mm cabinet depth, preserving room aesthetics while delivering impactful audio performance. Available in high-gloss white or black lacquer finishes, the speaker can also be customized with specified colors or printed images to complement interior décor. Designed for quick and straightforward installation, the SoundFrame 2 functions effectively as a standalone speaker or as part of a larger music or home theater system. By combining advanced acoustic engineering with elegant architectural styling, the SoundFrame 2 offers a refined solution for premium entertainment environments.

Features of SoundFrame 2

• True three-way full-range speaker system
• On-wall architectural speaker design
• 6.5-inch C-CAM bass driver
• RST cone technology for enhanced rigidity
• 4-inch IDC midrange driver
• Dual concentric 1-inch C-CAM Gold Dome tweeter
• Pivoting IDC module for directional control
• Wideband audio reproduction
• Detailed music and movie playback
• Adjustable high-frequency attenuation ±3 dB
• High-frequency switch for room optimization
• Sealed cabinet acoustic design
• Ultra-slim 87 mm cabinet profile

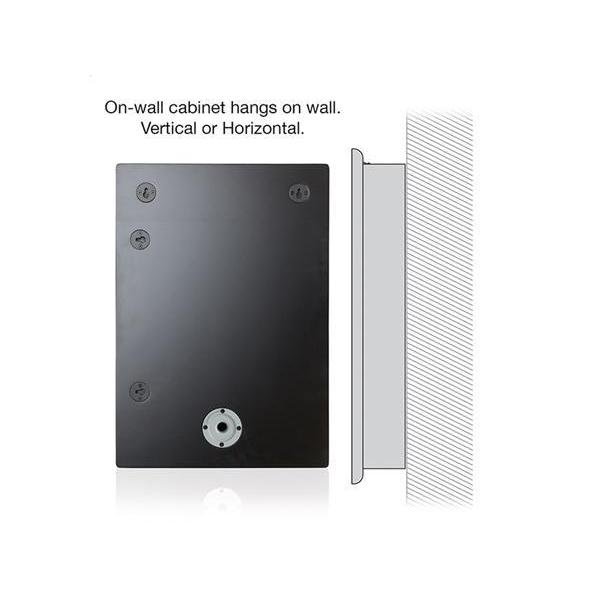

• Horizontal or vertical installation flexibility
• Suitable for home theater applications
• Compatible with music systems
• High-gloss white finish option
• High-gloss black lacquer finish option
• Custom color and image frame options
• Quick and easy installation system

Specifications of SoundFrame 2
