Monitor Audio WSS230 Super-slim in-Wall Speaker

Monitor Audio WSS230 super-slim in-wall loudspeaker

The Monitor Audio WSS230 is a high-performance super-slim in-wall loudspeaker designed for installations where space constraints and high-fidelity audio reproduction are equally important. Positioned above the WSS130, it offers improved sonic accuracy and greater detail retrieval, making it ideal for critical music listening and premium architectural audio systems.

This model features a 1-inch C-CAM Gold Dome tweeter paired with three 3-inch MMP II cone bass-mid drivers. The use of C-CAM metal cone technology enhances stiffness while maintaining low mass, resulting in improved transient response, reduced distortion, and greater sonic precision. The Gold Dome tweeter delivers smooth, extended high-frequency performance with excellent dispersion characteristics, ensuring clarity and detail across a wide listening area.

The WSS230’s super-slim profile allows it to be installed in challenging construction environments, including walls with restricted depth such as 2-inch stud bays or areas obstructed by ducting, pipework, or cabling. It can also be mounted in both portrait and landscape orientations, making it suitable for stereo or L-C-R configurations around displays and home theatre systems.

A key design focus is installation flexibility and durability. The Tri-Grip II mounting system ensures secure and stable fitting, while gold-plated sprung push terminals provide reliable electrical connectivity. The paintable, trim-less grille allows seamless visual integration into interior spaces, maintaining a discreet architectural appearance without compromising acoustic performance. The inclusion of a protective design structure ensures the drivers remain safeguarded during installation and construction phases.

With a frequency response extending from 75 Hz to 30 kHz, high sensitivity, and efficient power handling, the WSS230 delivers dynamic, detailed, and balanced sound reproduction suitable for both music and home cinema applications in demanding architectural environments.

Features of WSS230

• Super-slim in-wall architectural loudspeaker design
• 1-inch C-CAM Gold Dome tweeter
• 3 x 3-inch MMP II bass-mid drivers
• High-precision C-CAM metal cone technology
• Enhanced sonic clarity and detail reproduction
• Wide frequency response for music and film
• Portrait and landscape installation support
• Suitable for L-C-R home theatre configurations
• Slim profile for shallow wall installations
• Compatible with 2-inch stud bay construction
• Tri-Grip II secure mounting system
• Gold-plated sprung push terminals

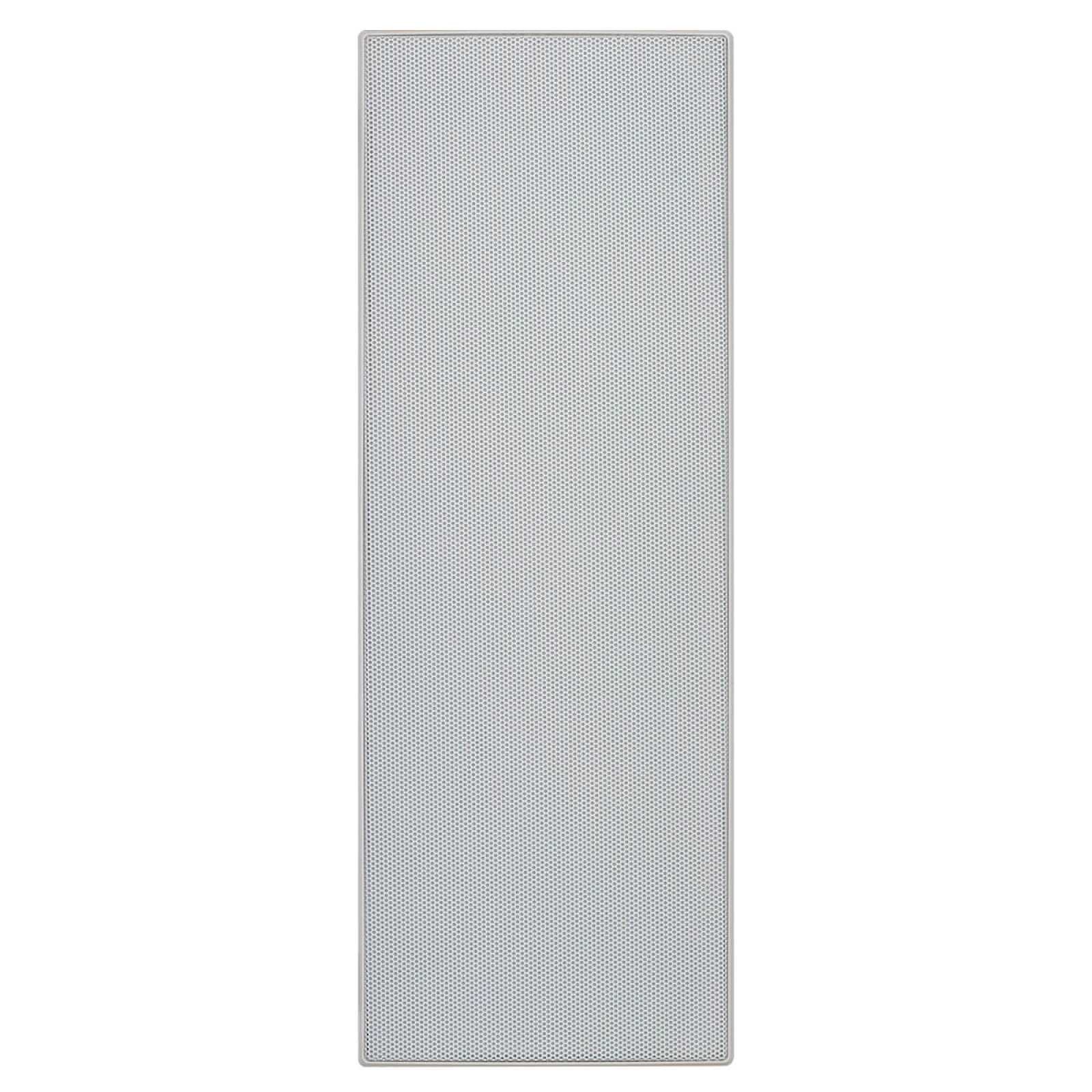

• Paintable trim-less magnetic grille
• Discreet low-profile architectural integration
• Protective installation design structure
• WB3 pre-construction bracket compatibility

Specifications of WSS230
