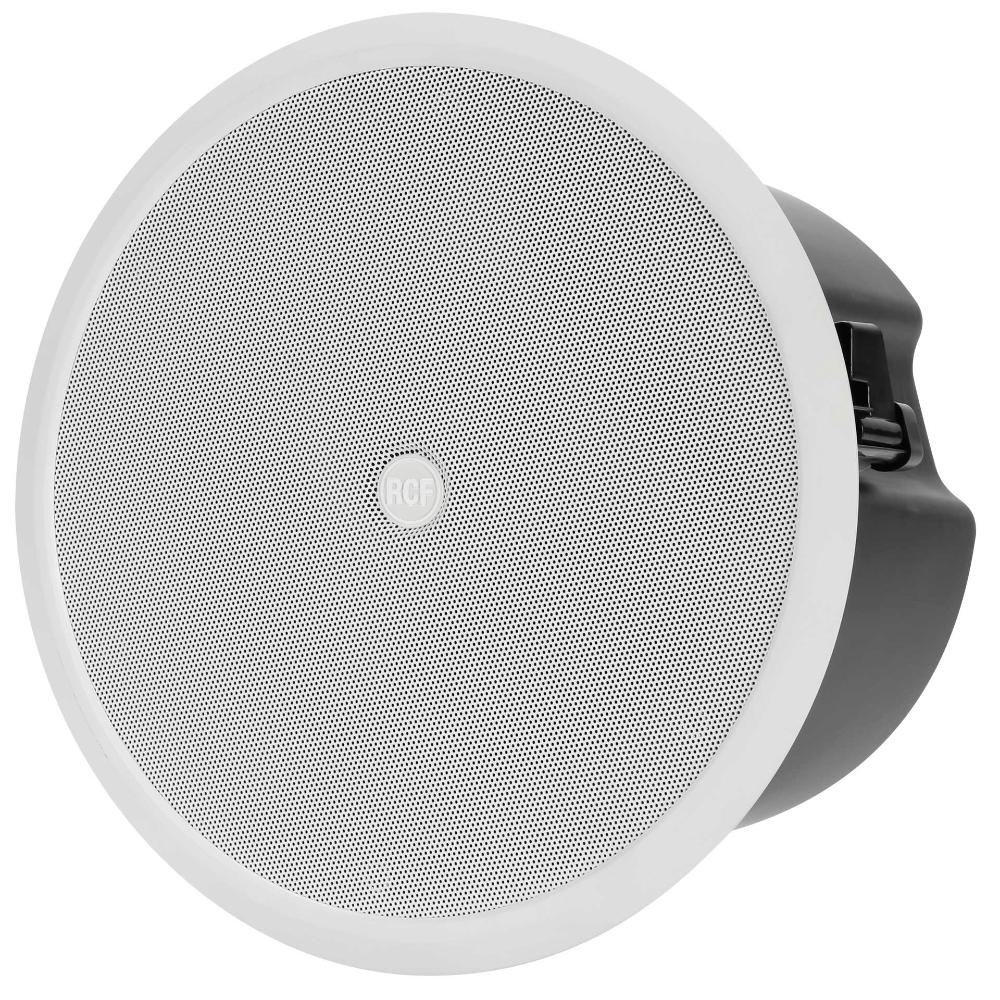

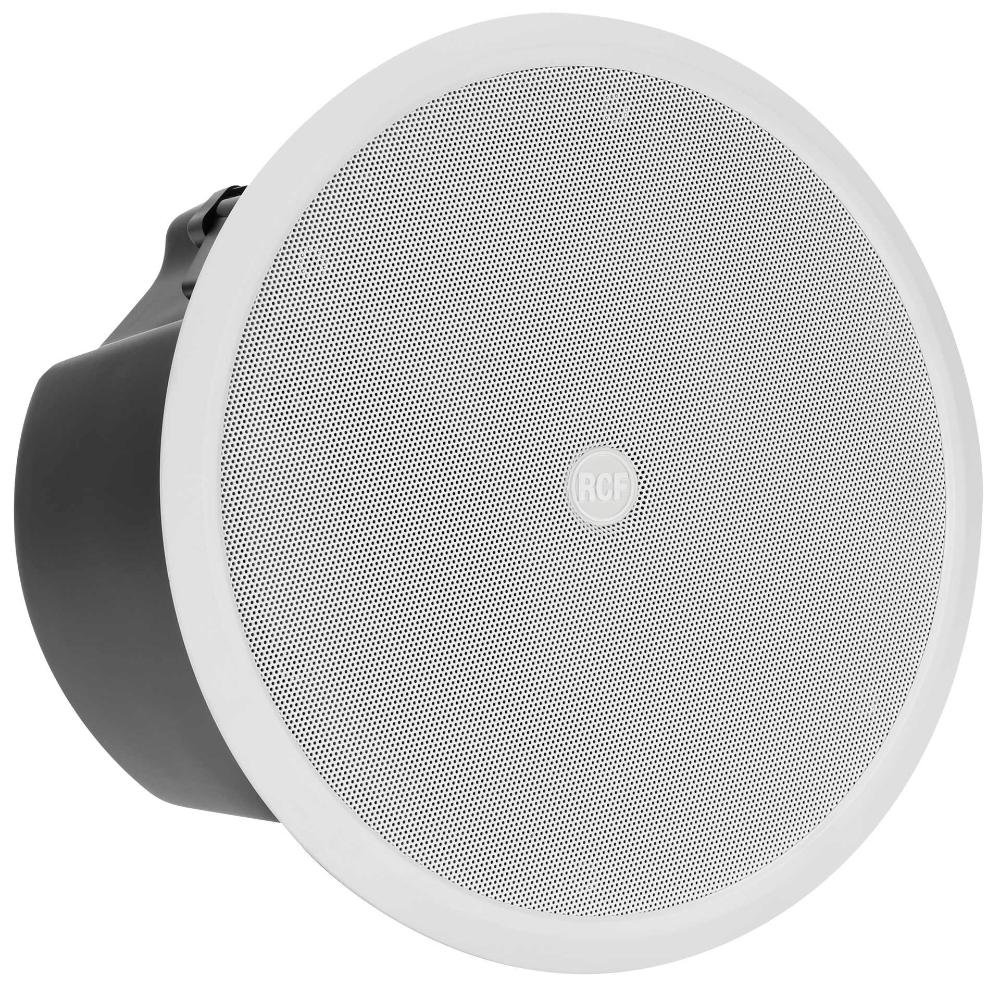

RCF CMR-S 60T Ceiling Subwoofer

RCF CMR-S 60T ceiling subwoofer

The RCF CMR-S 60T is a professional in-ceiling subwoofer designed to enhance low-frequency performance in commercial and architectural sound systems. It is engineered to provide deep, controlled bass reinforcement while maintaining a discreet ceiling-mounted appearance suitable for retail spaces, restaurants, hotels, corporate environments, and entertainment venues.

Equipped with a 6.5-inch high-power woofer with a 1.5-inch voice coil, the CMR-S 60T delivers accurate and powerful low-frequency reproduction. With a frequency response ranging from 45 Hz to 250 Hz and a maximum sound pressure level of 109 dB, it ensures strong bass impact while maintaining clarity and control in distributed audio systems.

The subwoofer provides 180° omnidirectional coverage, allowing even bass distribution throughout the listening space. This makes it an ideal complement to full-range ceiling or wall-mounted speakers in multi-zone audio installations, improving overall system depth and sonic balance.

Designed for ease of installation, the unit features a self-extinguishing ABS enclosure with a metal backcan for safety and durability. The magnetic steel grille allows quick access to the rear-mounted power selector, enabling simple adjustment of transformer settings. A 4-pole Euroblock connector ensures secure and reliable wiring for both input and parallel link output, supporting flexible system integration.

The integrated 70V/100V line transformer provides five selectable power levels, making it adaptable to different installation requirements. With its combination of compact design, high output performance, and seamless integration, the RCF CMR-S 60T is an effective solution for professional ceiling subwoofer applications.

Features of CMR-S 60T

• 80 W RMS continuous power handling
• 109 dB maximum sound pressure level
• Wide 45 Hz – 250 Hz frequency response
• 180° omnidirectional bass coverage
• 6.5-inch high-power woofer driver
• 1.5-inch voice coil design
• Dedicated ceiling subwoofer configuration
• Strong low-frequency reproduction performance
• Integrated 70V/100V line transformer
• 5 selectable power tap settings
• Euroblock 4-pole connection system
• Self-extinguishing ABS enclosure body
• Durable metal backcan construction
• Magnetic steel front grille design
• Quick-access power selector switch
• Compact flush ceiling installation design
• Easy integration with full-range systems
• Designed for distributed audio enhancement

Specifications of CMR-S 60T
