RCF HBR60709 SUB 808-AS Horizontal Bracket

RCF HBR60709 SUB 808-AS Horizontal Bracket

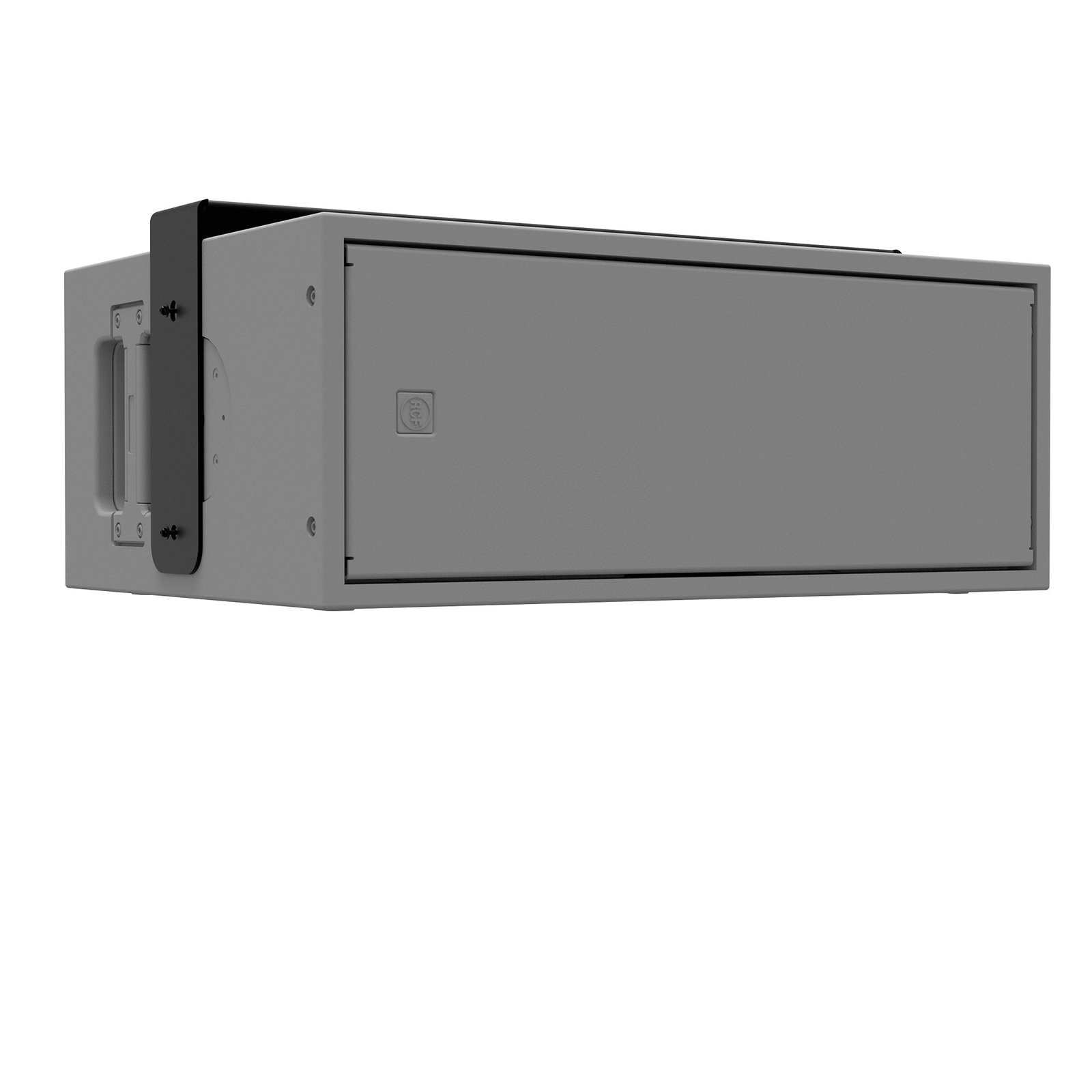

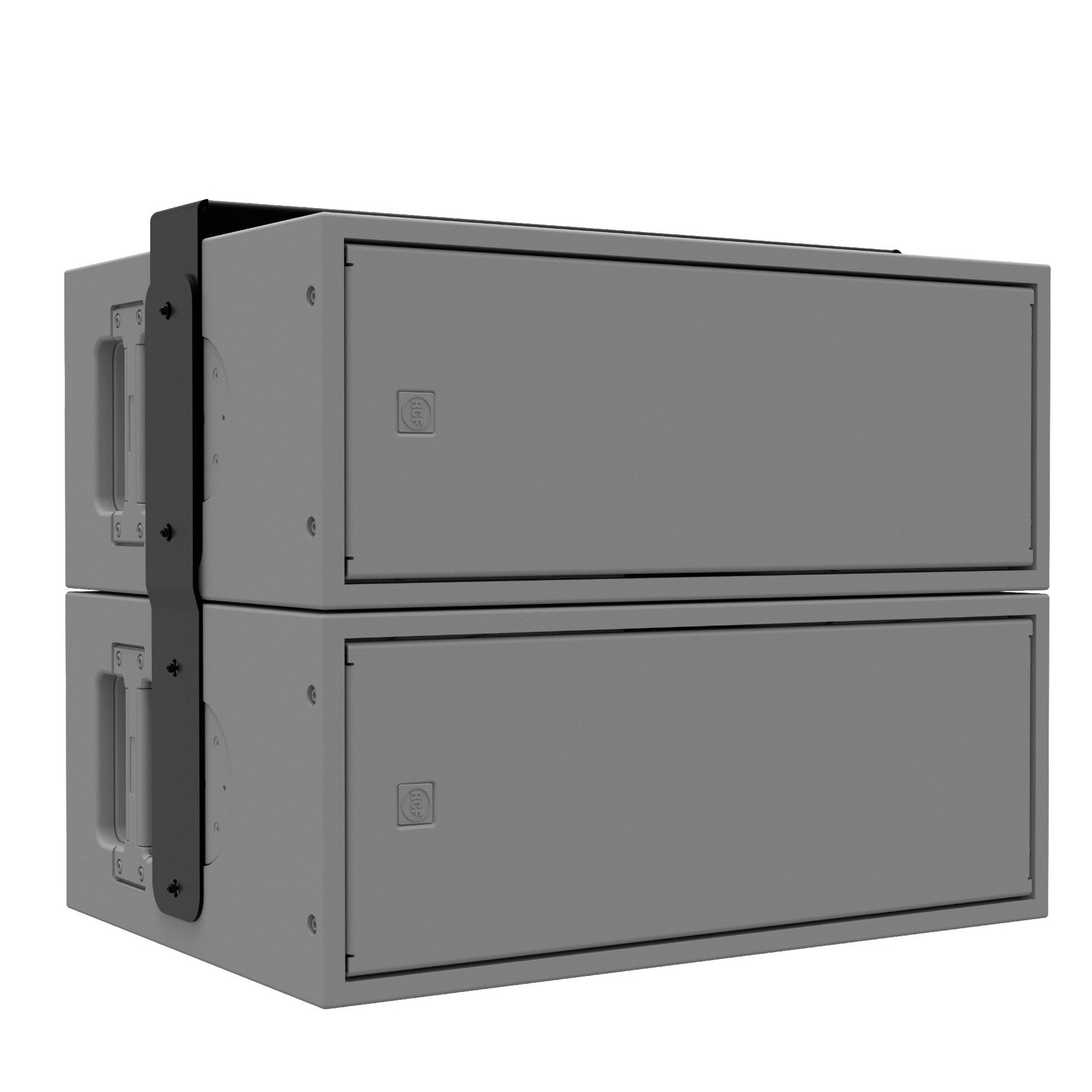

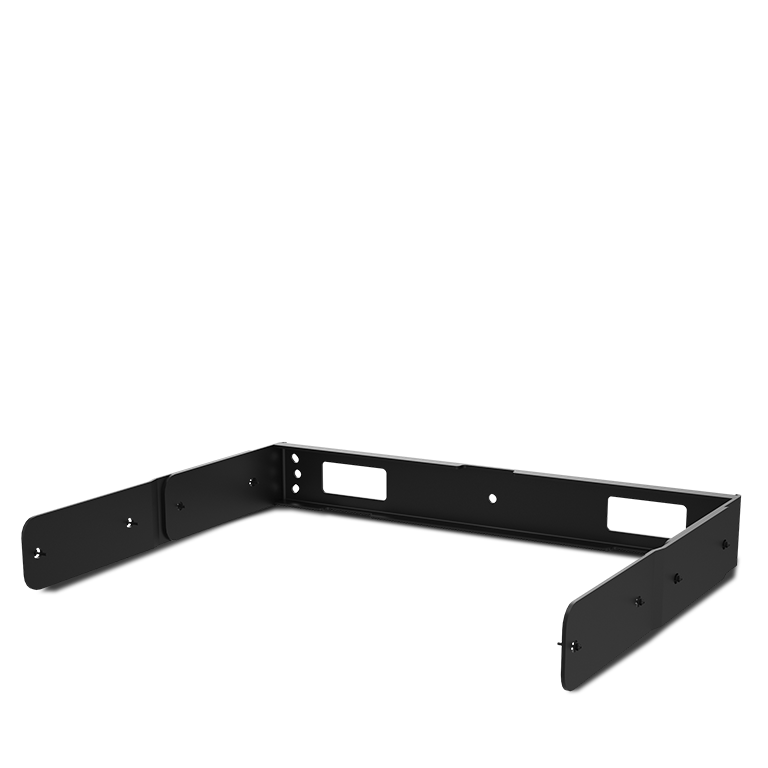

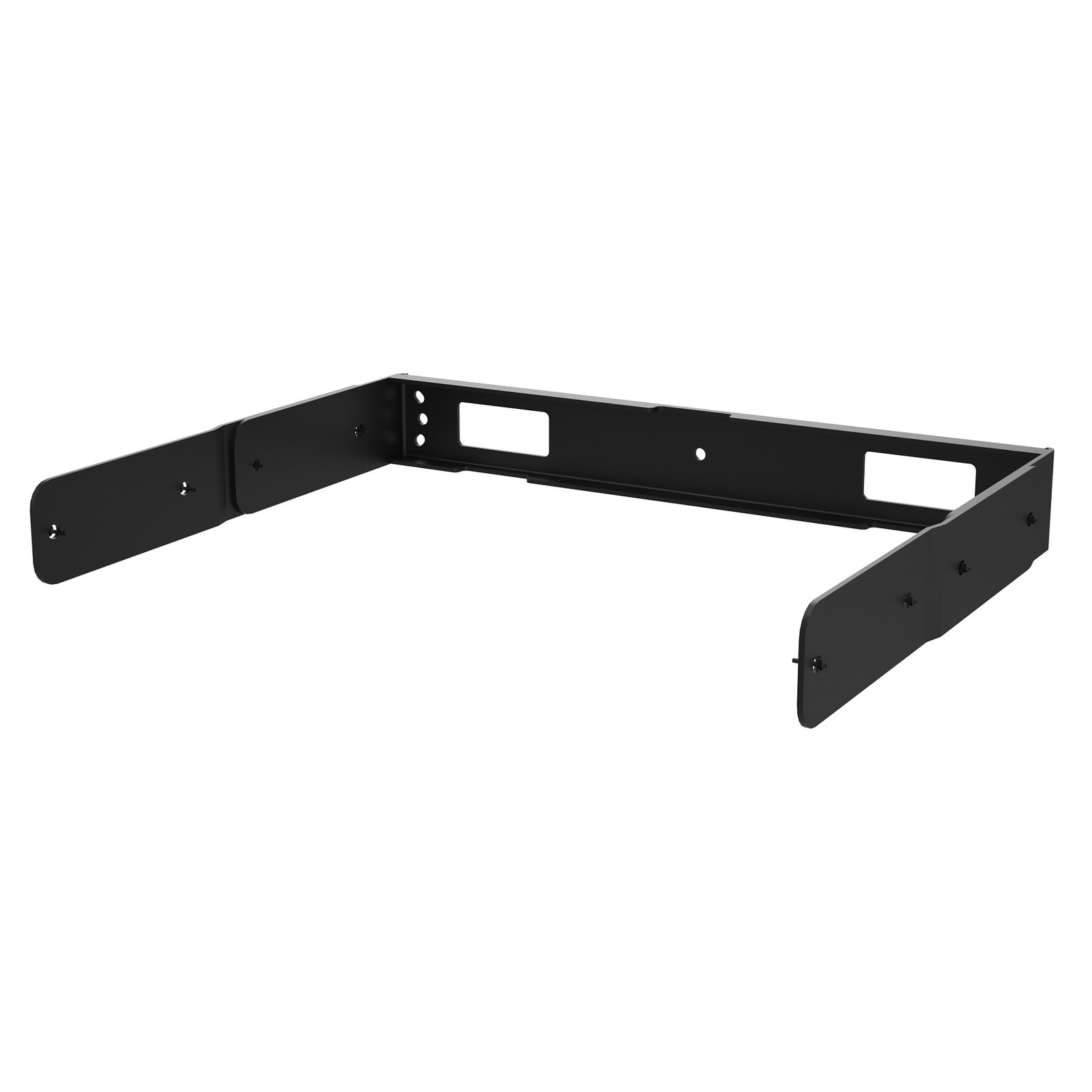

The RCF HBR60709 is a horizontal mounting bracket for one or two SUB 808-AS subwoofers. Its reinforced steel construction supports the manufacturer-specified wall-mounted and under-ceiling configurations. A black scratch-resistant finish coordinates with the subwoofer enclosure. The bracket weighs 5.5 kg and provides the dedicated mounting interface needed to arrange the selected cabinets horizontally within an installed sound system.

The accessory material is steel. The specified finish is black. Its stated accessory weight is 5.5 kg. The physical dimensions are 250 mm, 611 mm, 80 mm for height, width and depth respectively. The packaged dimensions are 90 mm, 340 mm, 670 mm for height, width and depth respectively.

A dedicated mounting accessory makes cabinet position part of the installation design. Speaker direction, bracket orientation and the available mounting space should be considered together, since these determine how the system fits into the room. Matching the bracket to the named cabinet keeps the mounting interface consistent with the specified arrangement.

For a fixed installation, plan the listening area first, then select the supported orientation and allow practical clearance around the enclosure. Connection points should remain accessible for assembly and inspection. Keeping the exact bracket model with its associated cabinet also helps when equipment is moved, reinstalled or assigned to another room.

The mounting hardware serves a mechanical role within the system, so cabinet alignment should be planned alongside cable routing and the supporting structure. Use the configuration described for the compatible loudspeaker, and check the complete installation instructions before fitting the assembly. This approach keeps placement decisions tied to the intended equipment.

Features of HBR60709

• Engineered for high-load stability in both wall-mounted and under-ceiling horizontal configurations.
• Constructed from reinforced steel to safely support the combined weight of up to two units.

Specifications of HBR60709
