RCF HDL 30-A 2,200W Dual 10″ 2-Way Line Array Speaker – Black

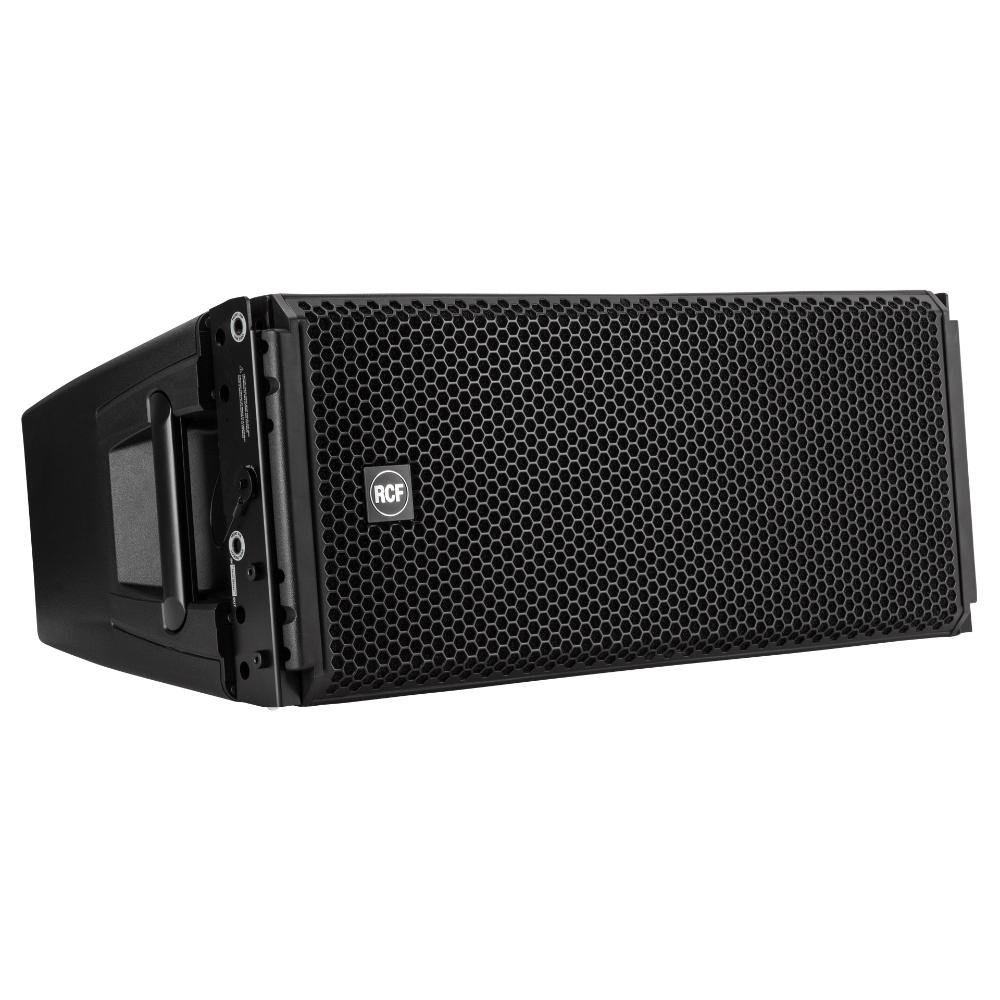

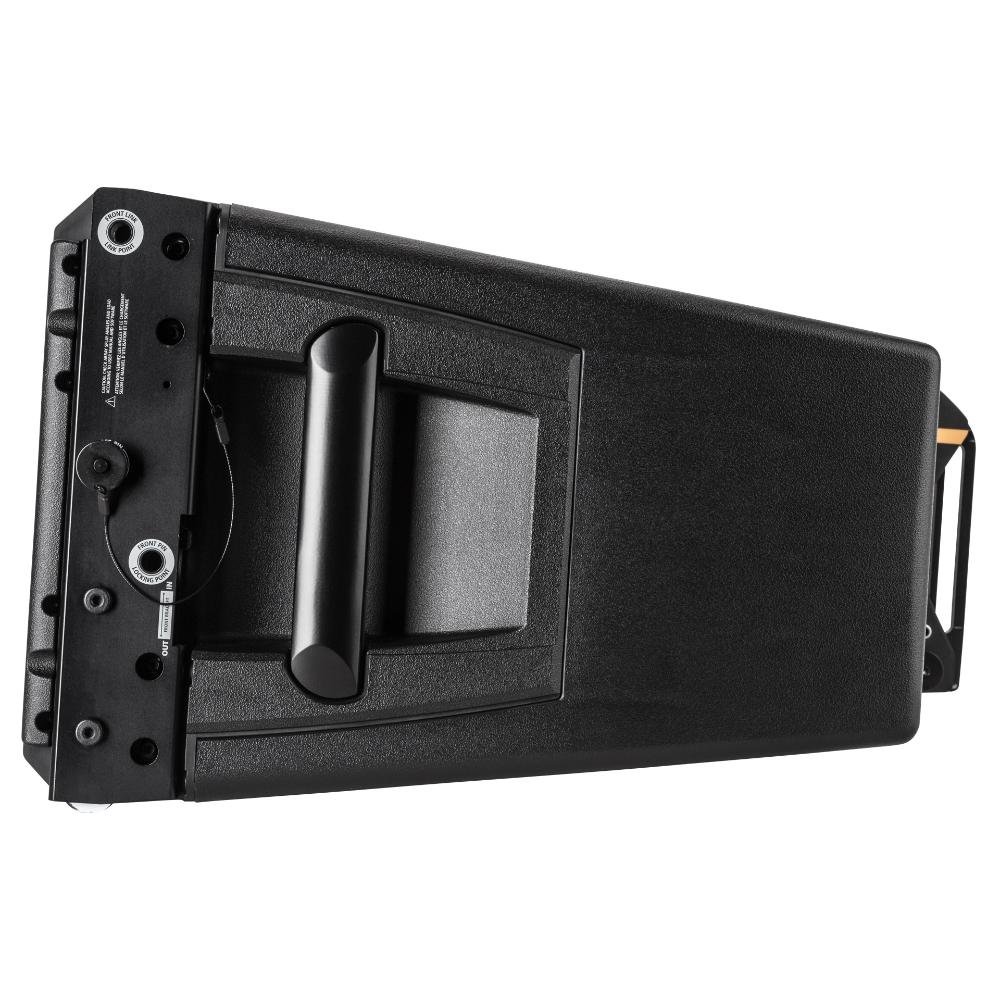

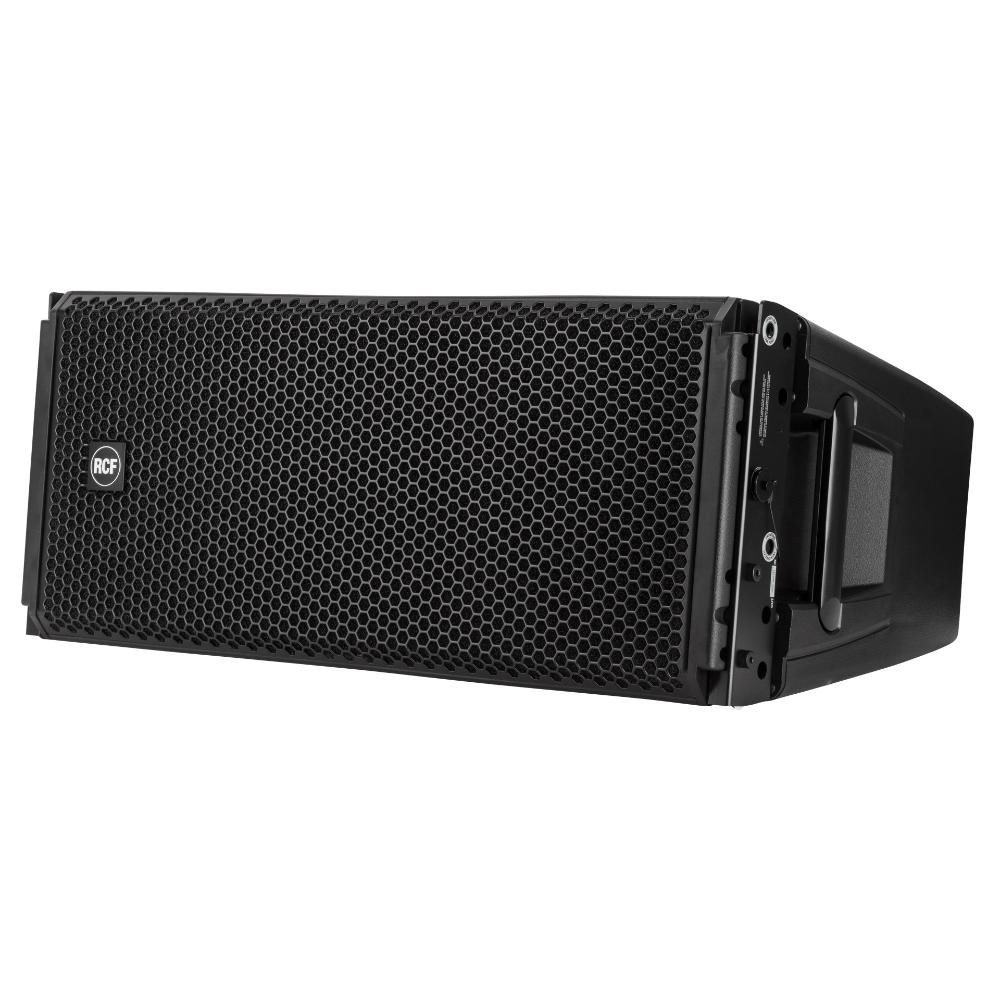

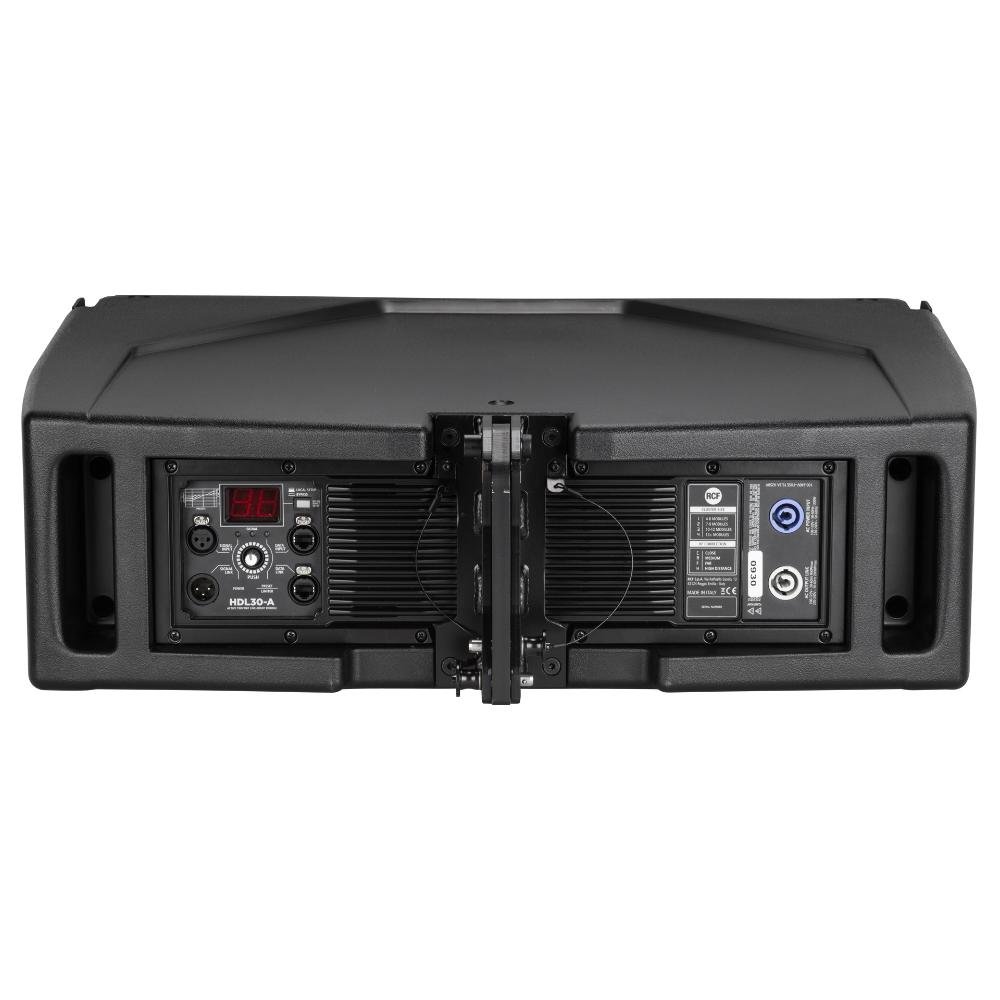

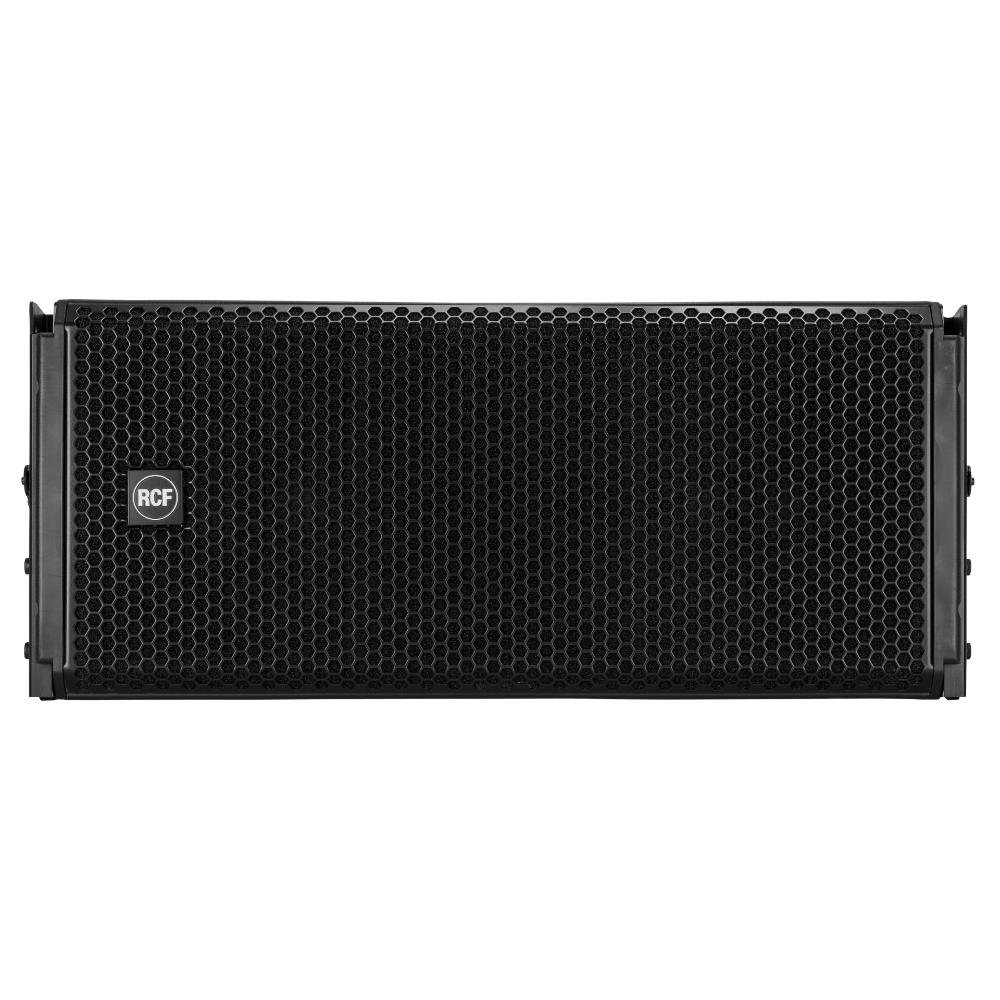

RCF HDL 30-A active two-way line array module

The RCF HDL 30-A active two-way line array module is a compact and powerful touring solution designed for medium to large-scale indoor and outdoor events. Engineered with advanced acoustic technology, it features dual 10-inch neodymium woofers and a high-performance 1.4-inch titanium compression driver with a 4-inch voice coil, delivering exceptional clarity, dynamic response, and detailed high-frequency reproduction. The system achieves a maximum sound pressure level of 137 dB, supported by a built-in 2200W peak Class-D amplifier, ensuring efficient power delivery and consistent audio performance.

The custom-designed 4PATH waveguide provides precise 100° x 15° coverage, ensuring uniform sound distribution and linear high-frequency response. With a crossover point at 680 Hz, the system maintains accurate phase coherence and seamless frequency transition. The integrated 48 kHz, 32-bit DSP processing enhances system performance through advanced filtering, protection, and tuning capabilities, while FiRPHASE technology ensures transparent sound, improved imaging, and minimal latency.

RDNet networked control allows real-time monitoring and system management, enabling engineers to optimize performance across complex array configurations. The lightweight composite polypropylene cabinet features a robust and innovative rigging system, allowing flexible array setups with precise angle adjustments. Designed for ease of transport and installation, the HDL 30-A combines high output, advanced control, and efficient design, making it a reliable choice for professional sound reinforcement systems.

Features of HDL 30-A

• 2200W peak Class-D amplification
• Bi-amped two-way system design
• 137 dB maximum sound pressure level
• 48 kHz, 32-bit DSP processing
• RDNet network control and monitoring
• FiRPHASE digital filtering technology
• 1.4-inch titanium compression driver
• 4.0-inch voice coil high-frequency driver
• Dual 10-inch neodymium woofers
• 680 Hz optimized crossover point
• 100° x 15° waveguide dispersion
• Time-coherent waveguide design
• Lightweight composite cabinet construction
• Flexible rigging with precise angle adjustment
• High-efficiency Class-D amplifier design
• Low distortion and fast transient response
• Thermal and RMS protection systems
• XLR and Ethercon connectivity

Specifications of HDL 30-A
