RCF MX 3500/4 500W 4-Zone Voice Alarm Master Amplifier
RCF MX 3500/4 combines 500 W total amplification and 4-zone control with digital processing, monitored emergency messages and integrated audio playback, providing a dedicated master unit for compatible professional voice alarm installations.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 23,314.20 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
RCF MX 3500/4 500W 4-Zone Voice Alarm Master
The RCF MX 3500/4 is an amplified master unit for the DXT 3000 voice alarm system, providing 500 W of total power and 4 independently controlled zones. It is designed for small and medium installations that need coordinated emergency announcements and background audio within a defined voice alarm architecture.
The integrated Class D amplification platform works with onboard digital signal processing to optimize environmental equalization and speech intelligibility. A spare-amplifier facility supports the planned system configuration. Emergency messages are held on a monitored SD card, while the front-panel audio source provides additional programme playback for everyday operation.
The unit is certified to EN 54-16, and its internal power supply is certified to EN 54-4. The complete installation combines the master unit with suitable loudspeaker lines, emergency controls and the required backup-power arrangement. Configuration and connection methods should follow the instructions for the exact master-unit version and its intended system.
The enclosure supports wall or rack installation and can accommodate suitable backup batteries inside the cabinet. This combines the main control electronics and provision for backup power in a compact arrangement. Battery capacity and the connected loudspeaker load should be planned around the requirements of the complete installation.
Compatible microphone consoles include BM 3804, BM 3804FM and ME 3801, with BE 3806 extensions available for zone controls. The unit measures 620 mm high, 430 mm wide and 230 mm deep. Its white enclosure provides the physical format for the selected 4-zone system configuration. The selected assembly should account for the dimensions of the accessory and the position of the supported equipment. Use the documented attachment sequence when establishing the final relationship between the connected components.
Features of MX 3500/4
- 500 W total power
- Up to 4 zones controlled
- DSP platform on-board
- Certified EN 54-16 and EN 54-4
- Emergency messages on monitored SD card
- Spare power amplifier facility

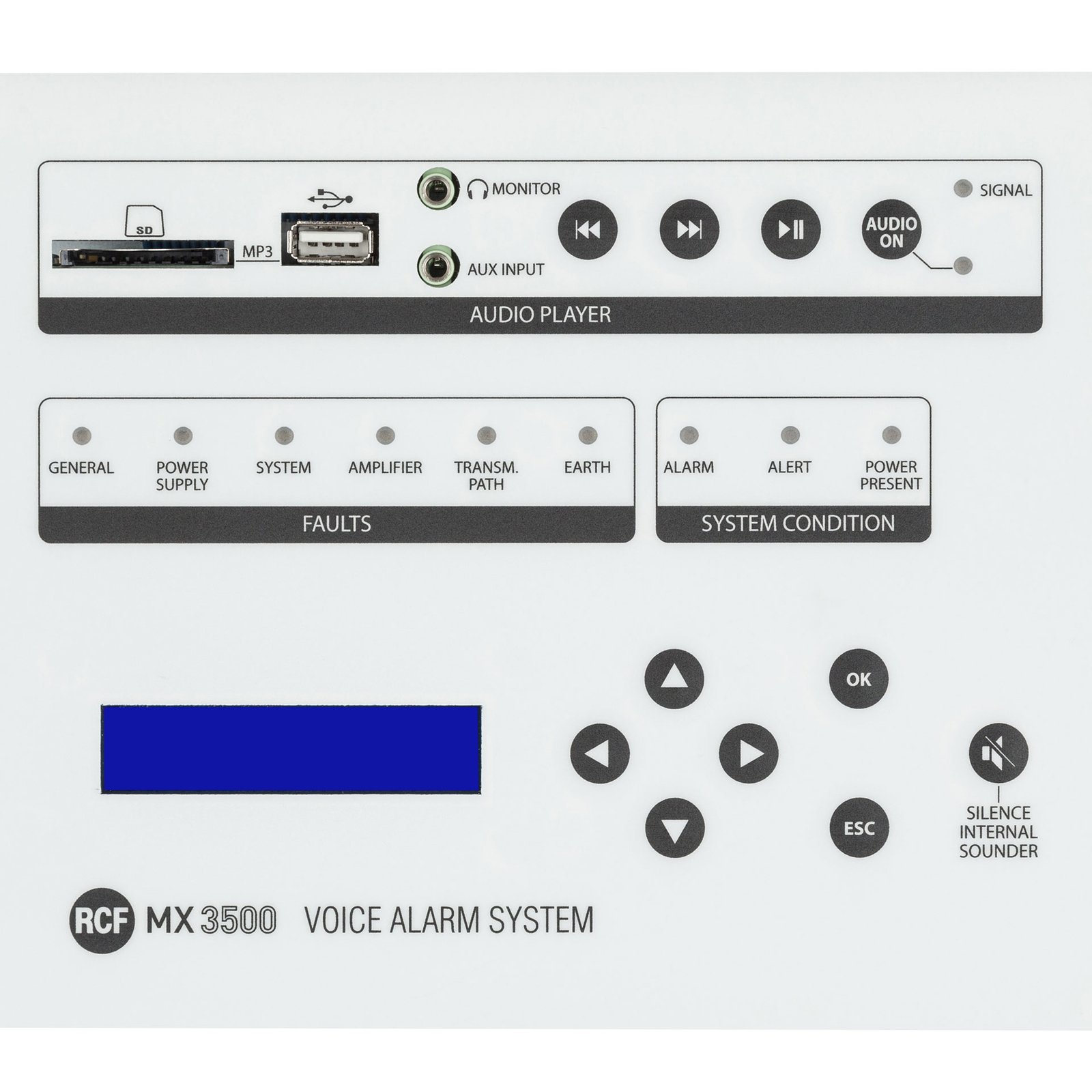

- Integrated audio source on front panel
- Wall mount or rack mount installation
Specifications of MX 3500/4
| Product Type | Amplified voice alarm master unit |
| Brand | RCF |
| Model | MX 3500/4 |
| Manufacturer Part Number | 12100010 |
| Number of zones managed | 4 |
| Built-in power amplifier | Yes |
| Spare amplifier automatic change-over | Yes |
| Max number of consoles | 4 |
| Number of console buses | 1 |
| Number of simultaneous emergency audio channels | 1 |
| Max number of units connectable | 8 |
| Communication bus | Serial |
| Connection Cables | FTP CAT 5 |
| Integrated pre-recorded emergency messages | Yes |
| Amplifier Class | D+ |
| Number of channels | 4 |
| Output power @ 100 V (W) | 500 W RMS |
| A/B speakers line | Yes |
| Frequency Response (-3dB) | 80 Hz – 16 kHz |
| Signal/noise rate (”A” weighted) | >98 dB |
| Distortion (THD+N) @ 1 kHz nominal power | <0.3 % |
| Total number of inputs | 3 |
| Balanced | 3 |
| Mono | 3 |
| Line inputs | 2 |
| Line connectors | Euroblock, JACK |
| VOX | Yes |
| Paging inputs | 1 |
| Paging connectors | Euroblock |
| Paging command | Serial |
| Paging emergency | Yes |
| General Purpose Inputs (GPI) | 6 |
| Monitored GPI | 6 |
| Photo-coupled GPI | 6 |
| Signal output number | 1 |
| Signal output connectors | JACK |
| Power output lines | 4 |
| Power output connectors | Euroblock |
| General Purpose Outputs (GPO) | 6 |
| DSP | Yes |
| Tone controls | Yes |
| High-pass filter | 20 Hz – 500 Hz |
| Configuration | DIP switch, Front panel |
| Chime tone | Yes |
| Cooling | Convection |
| Short circuit | Yes |
| Thermal | Yes |
| DC | Yes |
| Fuses | Yes |
| VHF (Very High Frequencies) | Yes |
| USB pen drives | Yes |
| SD card | Yes |
| Voltage selection | Internal |
| DC power | Yes |
| DC power value | 48 V |
| Power consumption (MAX) | 700 W |
| IP protection grade | IP 30 |
| EN54-16 certified | Yes |
| EN54-4 certified | Yes |
| CPR number | 0068-CPR-007/2015 |
| Cabinet/Case Material | Metal |
| Color | White |
| Rack mounting | 19″, 14U |
| Height | 620 mm / 24.41 inches |
| Width | 430 mm / 16.93 inches |
| Depth | 230 mm / 9.06 inches |
| Weight | 20.7 kg / 45.64 lbs |
