RCF QL-PIN D9.6 L26.9 4X Quick Back Lock Pin Kit

RCF QL-PIN D9.6 L26.9 4X Quick Back Lock Pin Kit

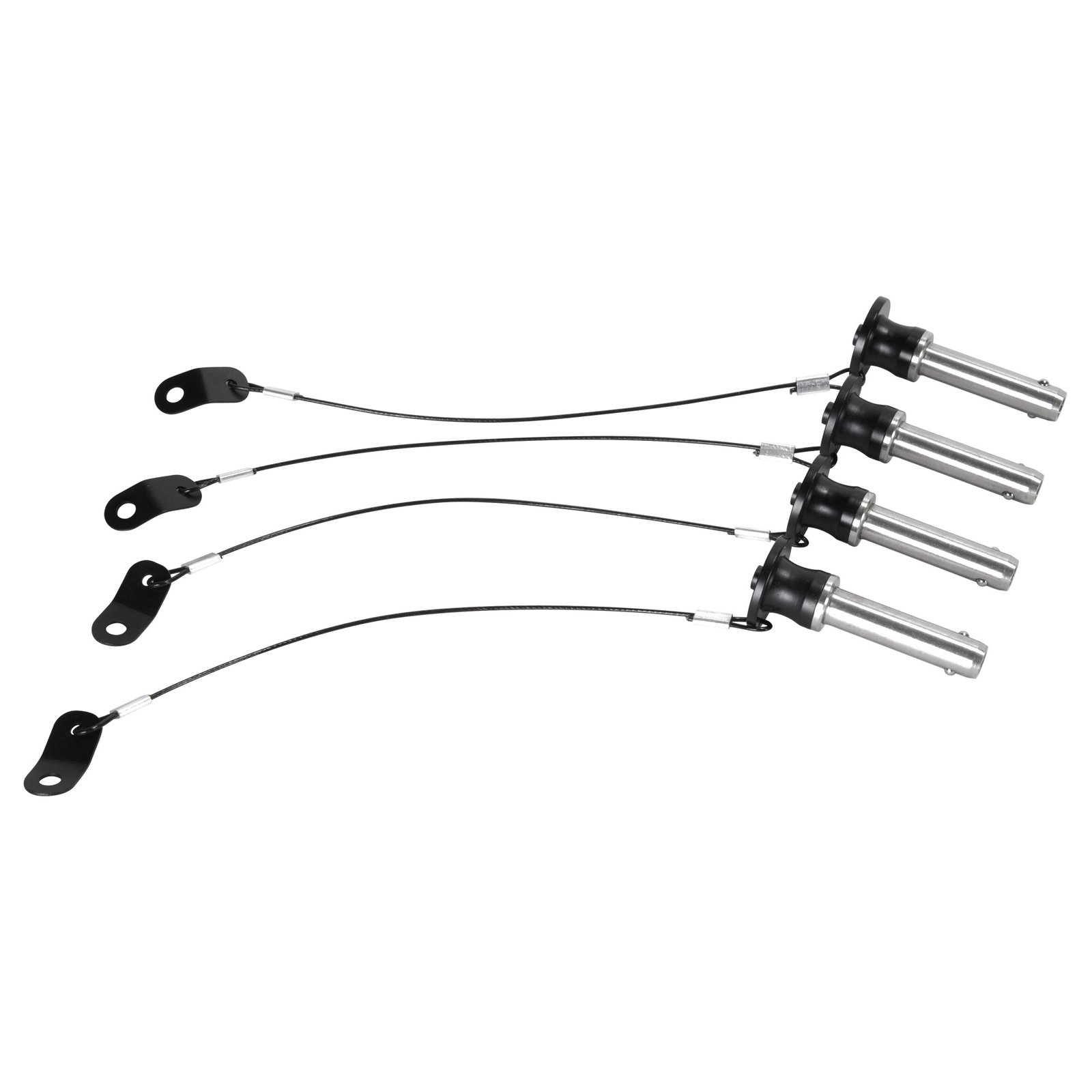

The RCF QL-PIN D9.6 L26.9 4X is a set of four quick back-lock pins for HDL 20-A and HDL 18-AS array systems. Steel construction and the model-specific dimensions suit the original connection arrangement. The complete kit weighs 0.18 kg. This is the original accessory identified by part number 13360220; RCF now archives it and identifies QL-PIN 009 as its replacement.

The accessory material is steel. Its stated accessory weight is 0.18 kg. The packaged dimensions are 20 mm, 145 mm, 125 mm for height, width and depth respectively. The packaged weight is 0.19 kg. Keep the part number with the pin kit so that future equipment preparation uses the same specified connection hardware.

Rigging pins must be matched to their specified connection position and compatible product. Diameter and length are part of that selection, so a pin should be chosen by its exact model rather than by appearance alone. Keep matching pins together as an identified set when organizing rigging hardware for an event.

Before fitting a pin, establish the equipment model and the connection position described in the applicable pin table or system instructions. This helps keep similar-looking accessories associated with the correct mechanical interface. The pin performs a locking function within a larger assembly, so the surrounding brackets and connection components also need to match the intended arrangement.

Retain the required set with its system hardware during packing and preparation. When equipment is reused, inspect the pin and associated fittings as part of the normal assembly routine. Accurate model identification helps distinguish this kit from other RCF pins with different dimensions or permitted positions.

Features of QL-PIN D9.6 L26.9 4X

• Four-piece quick back-lock pin kit
• For HDL 20-A and HDL 18-AS
• Steel construction

Specifications of QL-PIN D9.6 L26.9 4X
