RCF S 12 Passive 10″ Bass Reflex Subwoofer

RCF S 12 Compact Subwoofer System

The RCF S 12 is a professional-grade compact subwoofer designed to deliver powerful and controlled low-frequency performance in installation environments where both compact size and strong bass impact are required. It is well suited for applications such as clubs, bars, restaurants, retail environments, theatres, and AV presentation spaces.

The system features a high-performance 12-inch woofer equipped with a 2.5-inch voice coil, engineered using advanced RCF transducer technology. This driver provides fast, accurate, and low-distortion bass reproduction, ensuring clear and impactful low-end response even under demanding operating conditions. The subwoofer extends down to 40 Hz, delivering deep bass output typically associated with larger systems.

With a maximum SPL of 125 dB and 400W RMS power handling, the S 12 offers high efficiency and strong acoustic output while maintaining a compact and installation-friendly design. It is optimized to provide consistent bass reinforcement for both background and foreground audio applications.

The enclosure is constructed from high-quality plywood, ensuring durability and acoustic rigidity. A steel front grille with protective cloth provides internal protection while maintaining sound transparency. The system includes M10 suspension points for flying installation and an M20 pole mount for flexible deployment options. Euroblock connectors ensure secure and reliable input and parallel link connections, making system integration simple and efficient. The RCF S 12 is a versatile subwoofer designed to deliver professional bass performance in compact installations.

Features of S 12

• 400W RMS power handling capacity
• Maximum SPL output up to 125 dB
• Frequency response from 40 Hz to 200 Hz

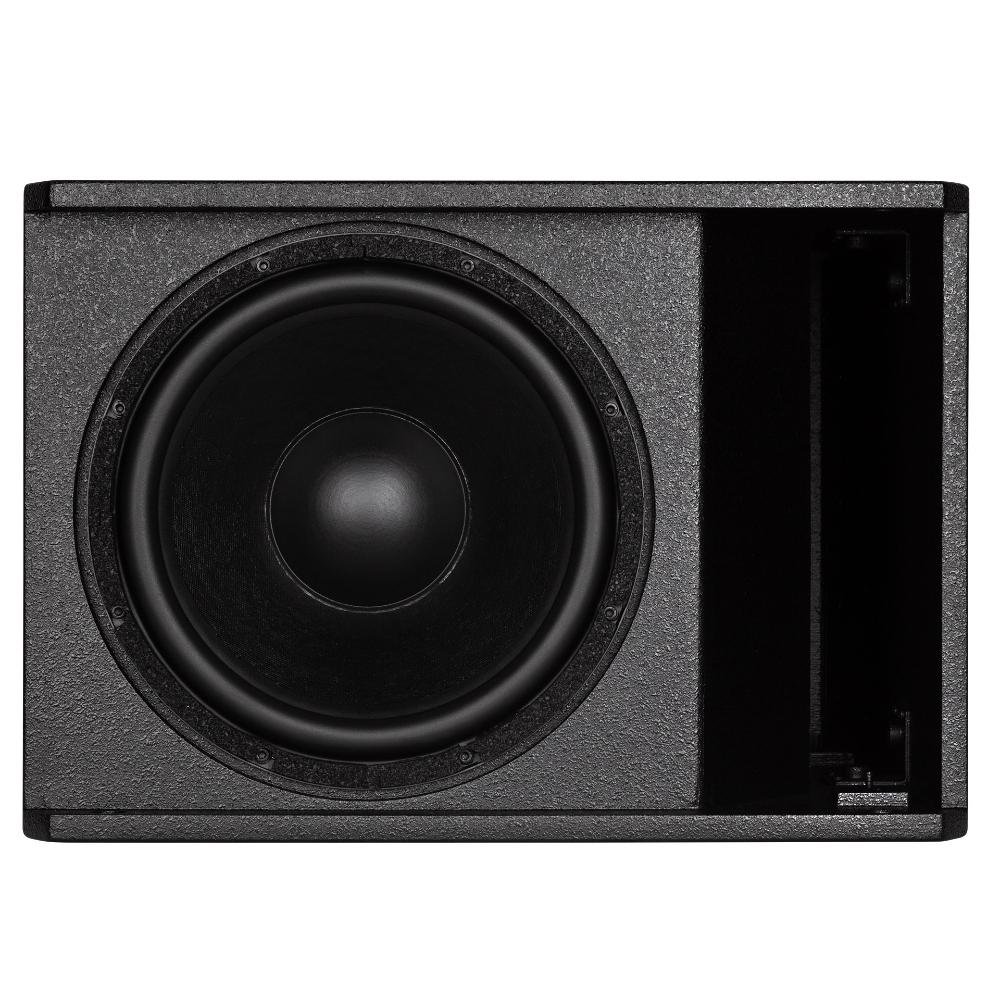

• 12-inch high-power woofer
• 2.5-inch voice coil driver design
• Compact high-efficiency subwoofer system
• Deep and controlled low-frequency response
• Durable plywood cabinet construction

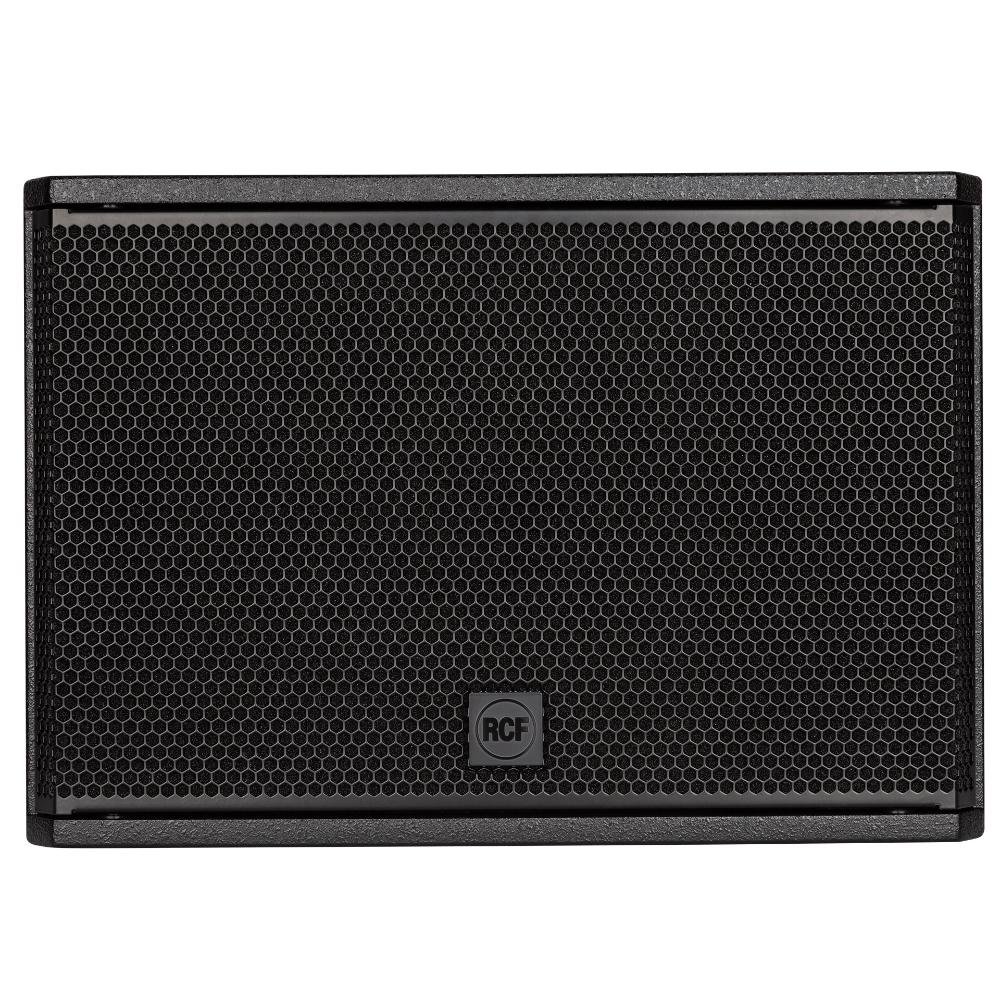

• Steel grille with protective cloth covering
• M20 pole mount on top section
• 12 × M10 suspension rigging points
• Single-unit flyable installation support

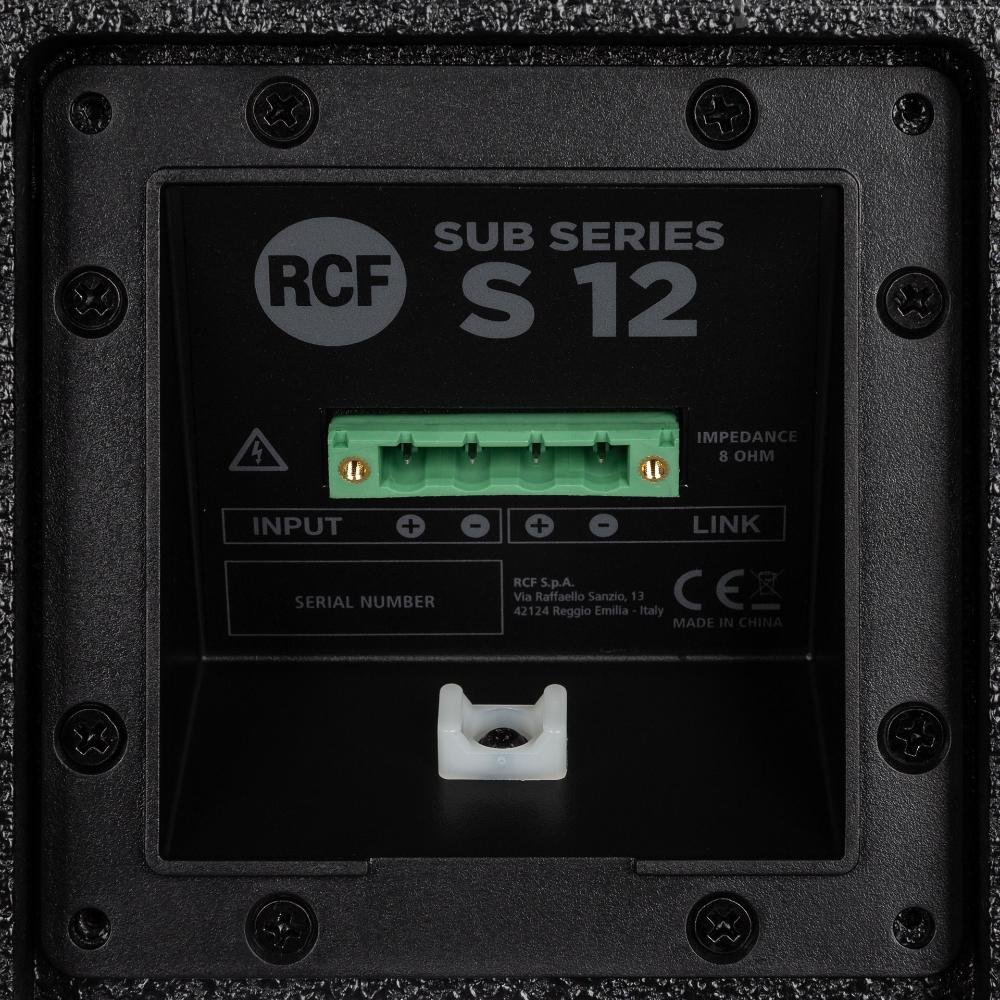

• Euroblock input and parallel link connectors
• Suitable for clubs, theatres, and venues
• Designed for background and foreground audio

Specifications of S 12
