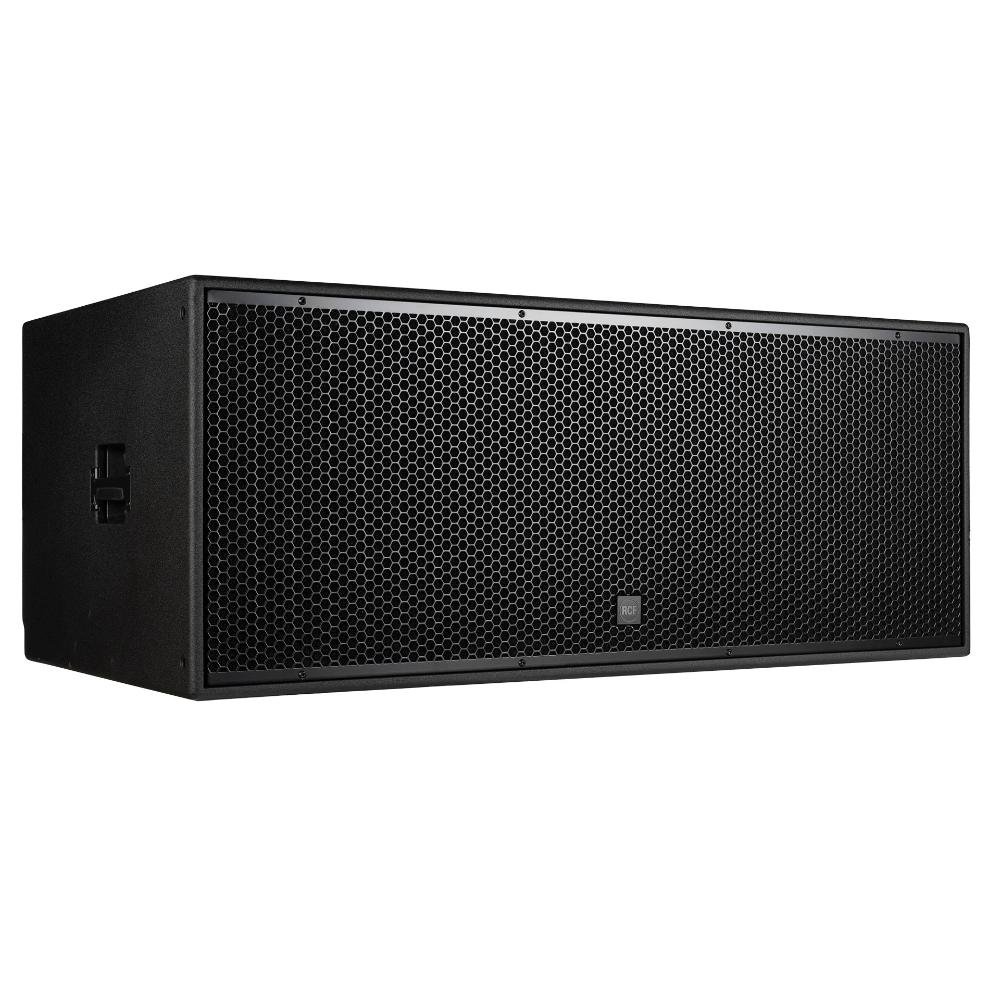

RCF S 29 Passive 3000W Dual 19″ Subwoofer

RCF S 29 WP subwoofer

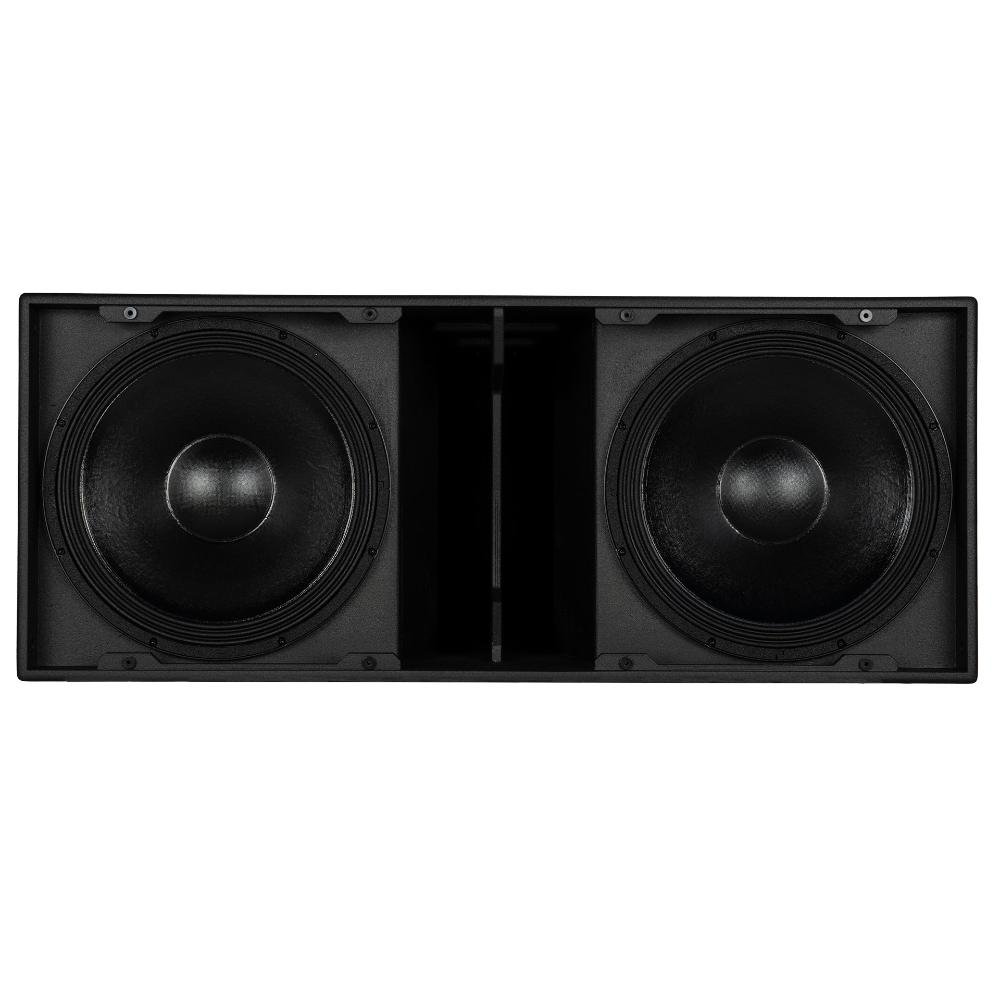

The RCF S 29 WP subwoofer is engineered for high-power outdoor audio applications, delivering exceptional low-frequency performance with reliability in demanding environmental conditions. Featuring a dual 19-inch HyperVented neodymium woofer configuration, each driver is equipped with a 4-inch voice coil and advanced Inside/Outside Coil Technology, ensuring efficient heat dissipation, reduced power compression, and consistent output during prolonged high-power use.

With a continuous power handling capacity of 3000W and peak capability reaching 12000W, the system can achieve a maximum sound pressure level of 143 dB. Its bass-reflex design enables efficient acoustic performance with a frequency response extending down to 25 Hz, producing deep, powerful, and controlled bass suitable for outdoor venues, large-scale events, and fixed installations.

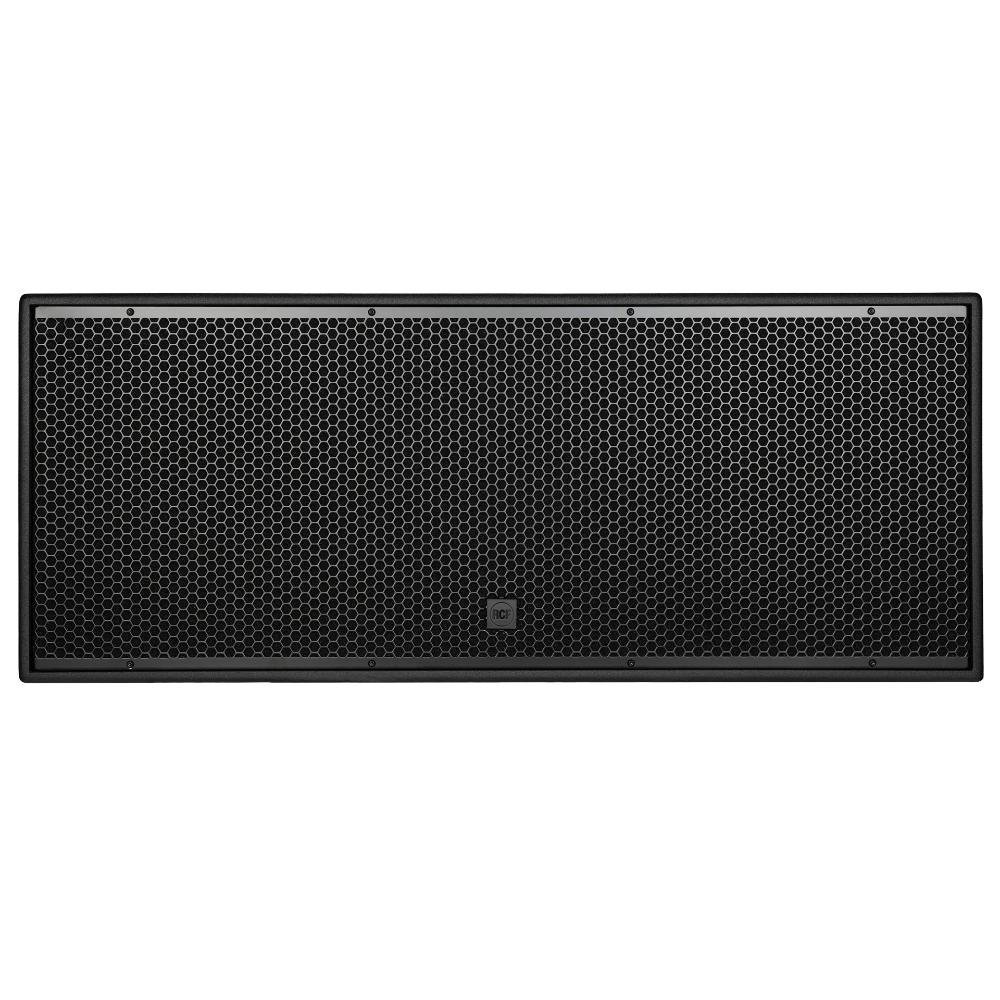

The enclosure is constructed from high-quality multi-ply plywood and finished with a durable polyurea coating, providing excellent resistance to moisture, corrosion, and mechanical stress. The steel front grille integrates water-repellent acoustic fabric to protect internal components while maintaining sound transparency, ensuring dependable performance in outdoor environments.

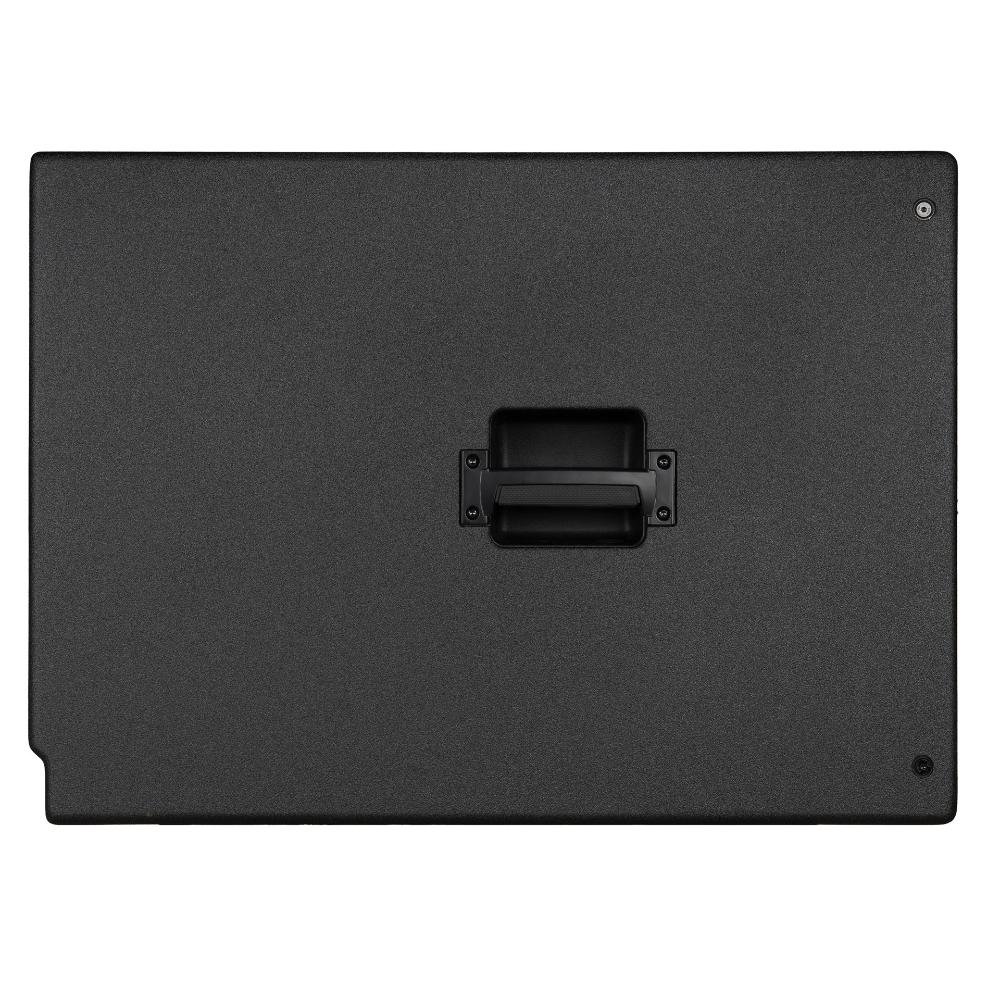

For secure and weatherproof connectivity, the subwoofer is equipped with IP67-rated Amphenol eco|mate connectors for both input and output. An integrated M20 pole mount allows for satellite speaker mounting, while side handles enable convenient handling and positioning. The cabinet supports ground stacking and cardioid array configurations, improving directional control and reducing rear output. The RCF S 29 WP subwoofer combines advanced transducer technology, extreme SPL capability, and rugged weather-resistant construction for professional outdoor low-frequency reinforcement.

Features of S 29 WP

• 3000W continuous power handling
• 12000W peak power capacity
• 143 dB maximum SPL output
• Extended response down to 25 Hz
• Dual 19-inch HyperVented neodymium woofers
• 4-inch voice coil design
• Advanced transducer technology
• Bass-reflex enclosure configuration
• Weather-resistant construction
• Multi-ply plywood cabinet design
• Durable polyurea coating finish
• Steel grille with water-repellent protection
• IP67-rated Amphenol eco|mate connectors
• Secure input and output connectivity
• Integrated M20 pole mount
• Side handles for transport
• Cardioid array configuration support

Specifications of S 29 WP
