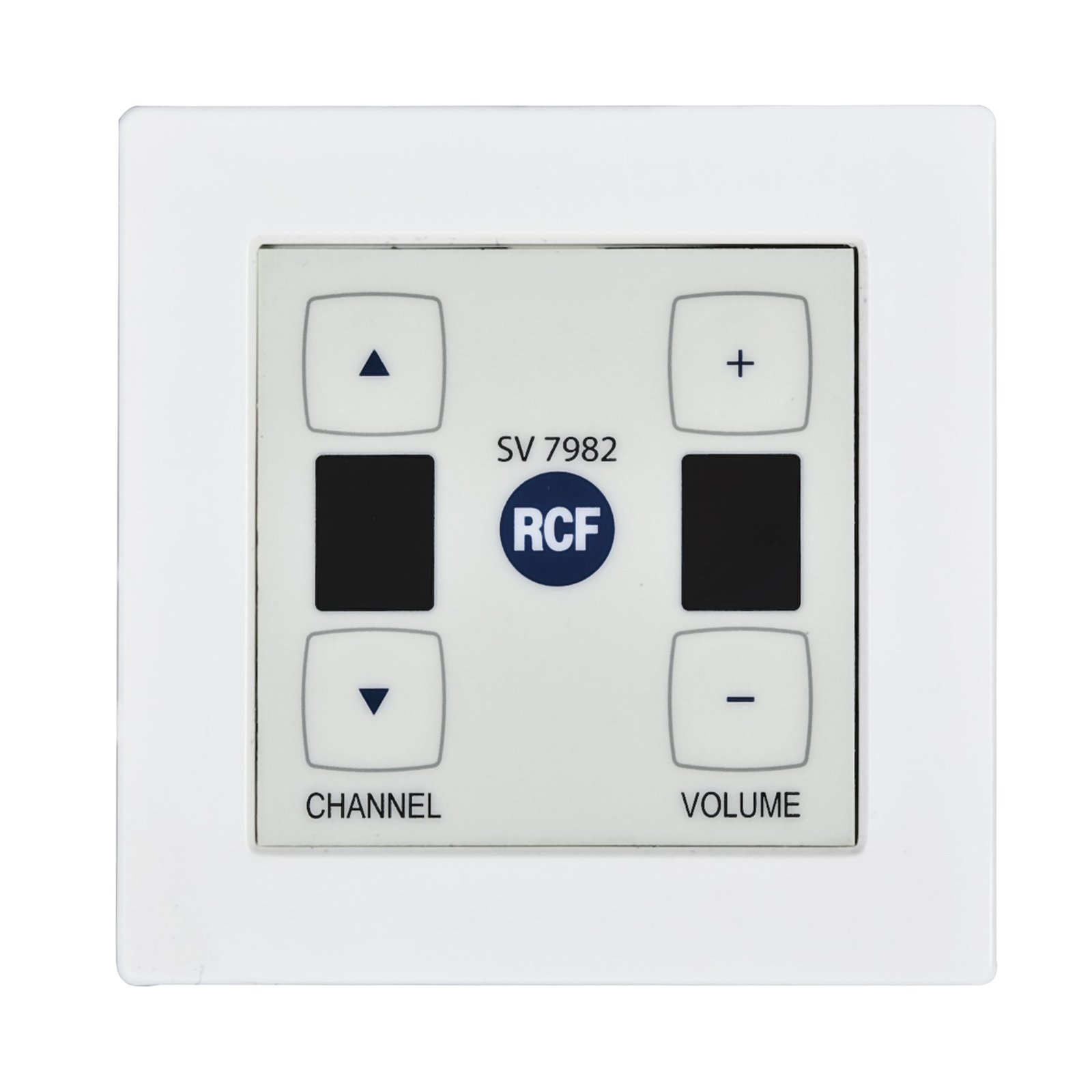

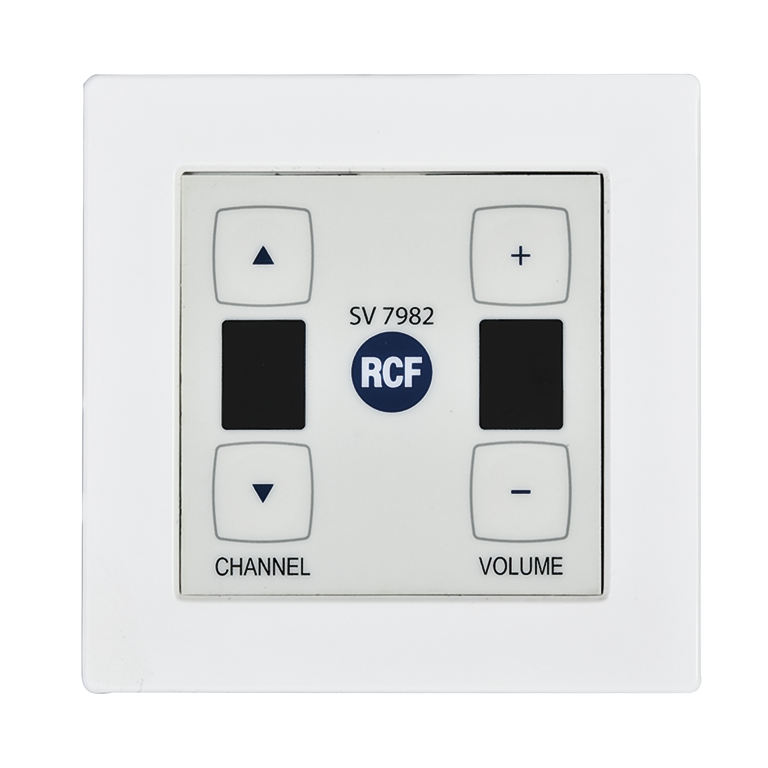

RCF SV 7982 Wall-Mount Audio Remote Control
The RCF SV 7982 is a dedicated Wall remote controller for compatible installed audio equipment. This wall-mounted remote provides local control of a zone group within a compatible DXT 7000 system. It adjusts the group volume and selects the programme source, placing everyday audio control near the area where the sound is used.
Connection is made to a local or system bus using FTP CAT5 or CAT6 cabling. DIP-switch configuration establishes the required control arrangement. The source-selection and level functions allow a defined zone group to be managed within the configured system without requiring routine access to the central master unit.
The specified weight is 0.1 kg. The stated finish is white. The housing material is plastic. These physical characteristics establish the componentÂ’s format within the installation and help determine its position relative to the other system equipment and cable paths.
The component has a defined function within the supported audio system, with its operating role determined by the compatible master unit, console or rack arrangement. Planning the connections and physical placement together helps maintain the relationship between the local device and the rest of the installation throughout configuration and operation.
Use the installation instructions for the exact component and the equipment with which it is connected. The available space, connection routes and access to the relevant controls or mounting points should be considered as one arrangement. This keeps the system layout consistent with the specified application and supports a clear, organized installation. The selected assembly should account for the dimensions of the accessory and the position of the supported equipment. Use the documented attachment sequence when establishing the final relationship between the connected components.
Features of SV 7982
- Zone group control
- Level control
- Program Selector
- CAT5 and CAT6 compatible
Specifications of SV 7982
| Product Type | Wall remote controller |
| Brand | RCF |
| Model | SV 7982 |
| Manufacturer Part Number | 17170140 |
| Functions: | Channel selection Volume adjustment |
| Configuration: | DIP switch |
| Cable: | FTP CAT5 / CAT6 |
| Works with: | DXT 7000 |
| Cabinet/Case Material | Plastic |
| Hardware | Wall mount box |
| Color | White |
| Weight | 0.1 kg / 0.22 lbs |
