Soundcraft EFX8 Analog Mixer (EU)

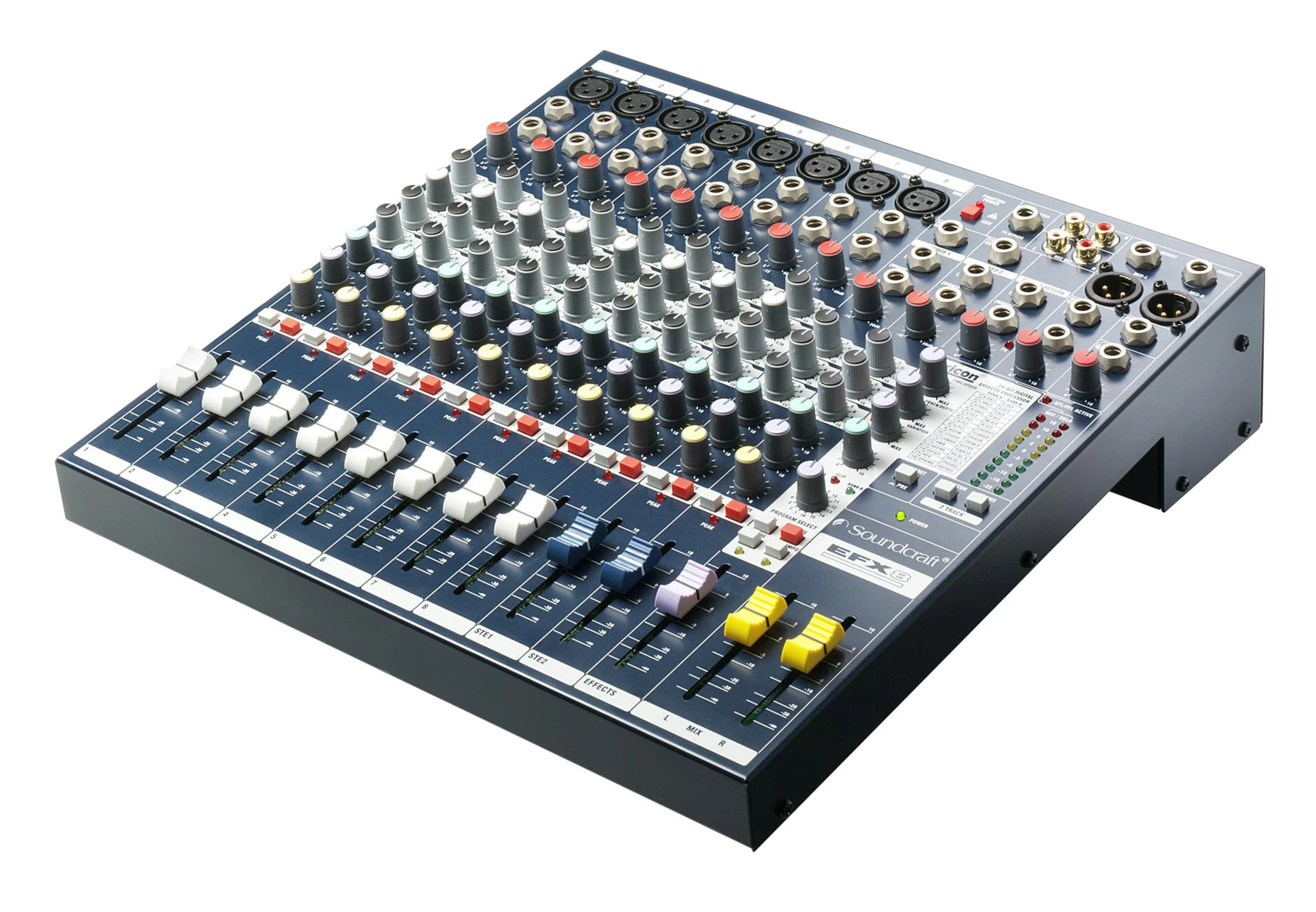

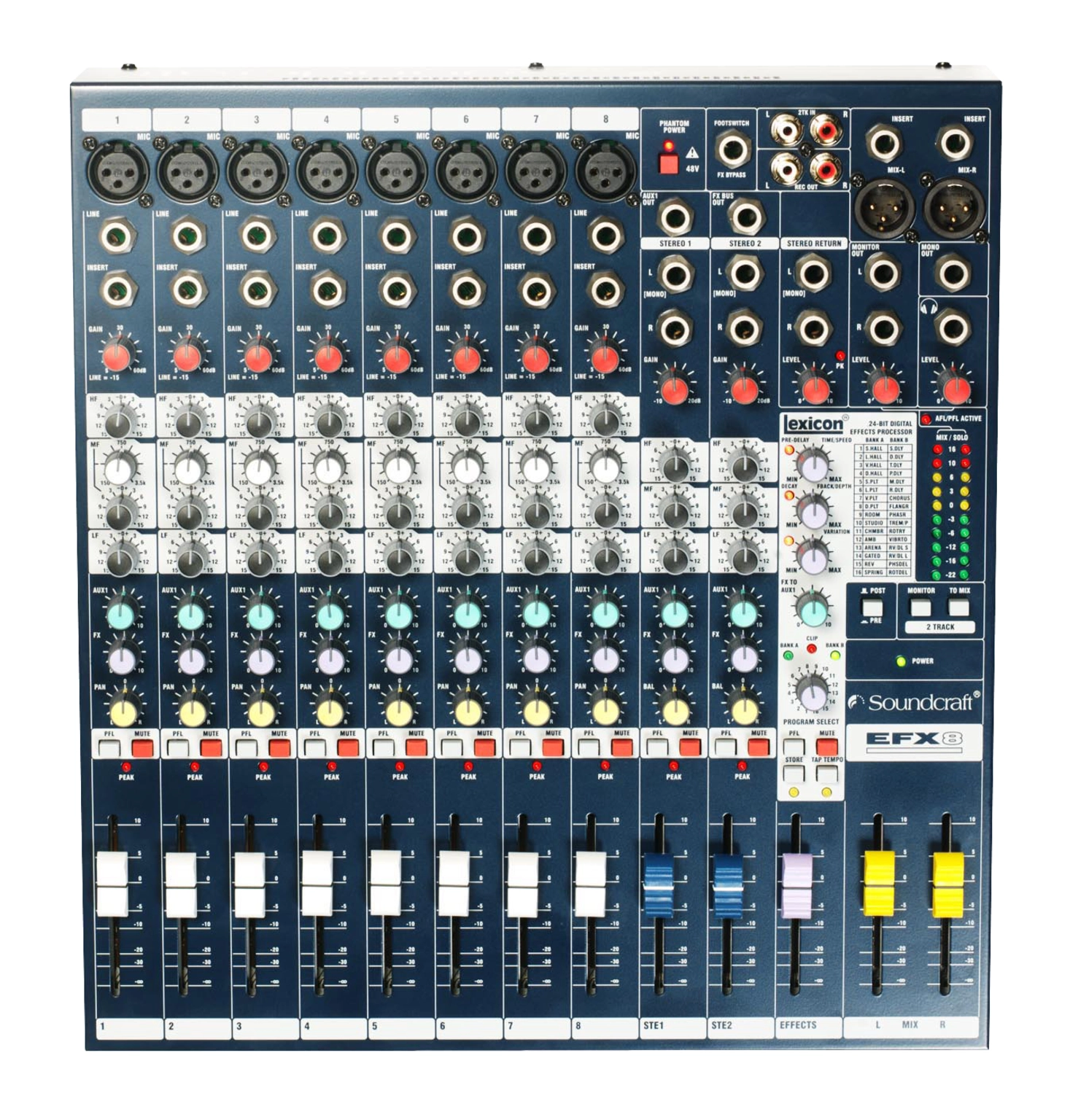

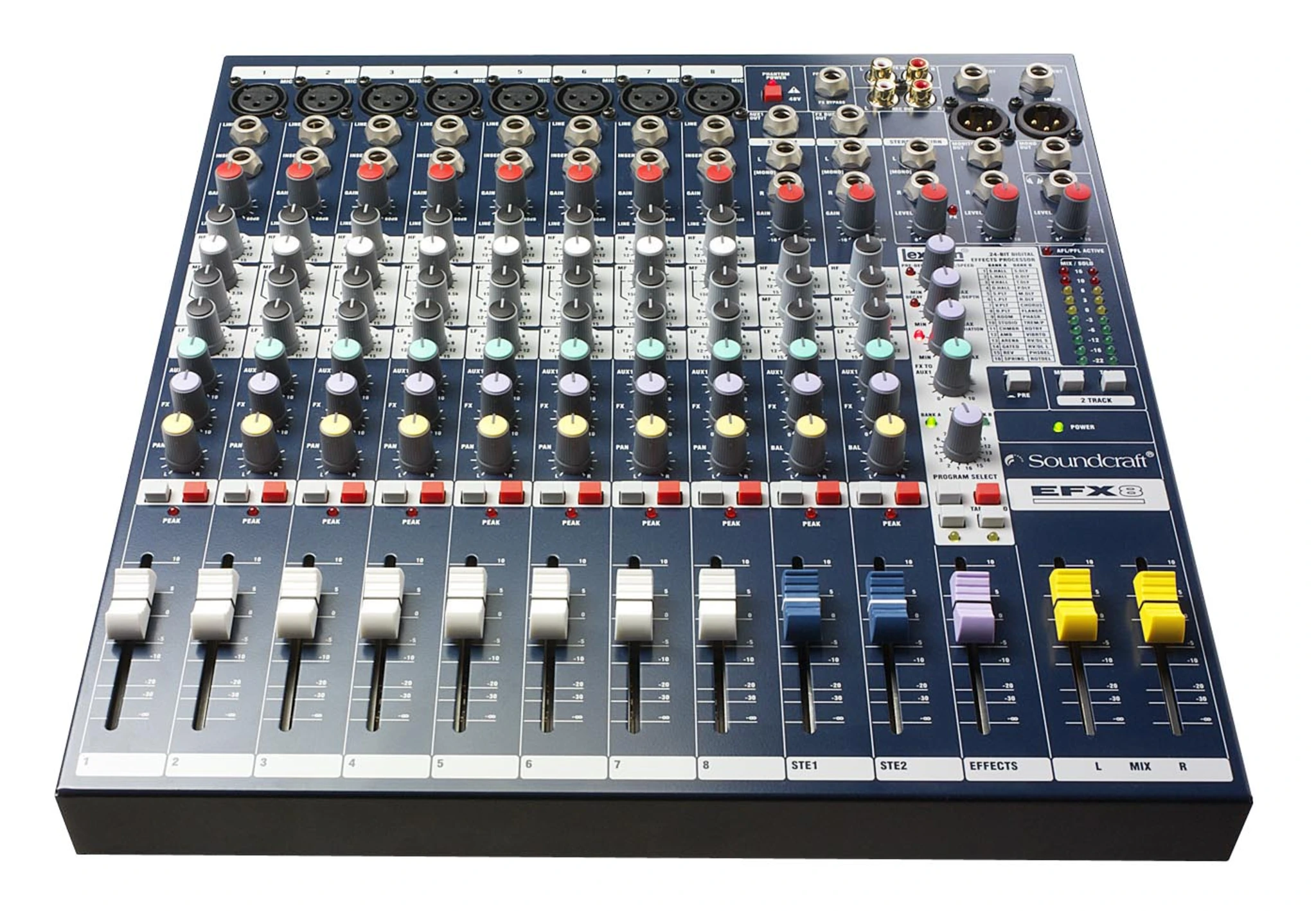

Soundcraft EFX8 Analog Effects Mixer

The Soundcraft EFX8 Analog Effects Mixer is a compact professional mixing console that combines the trusted performance of the Soundcraft EPM series with an integrated 24-bit Lexicon digital effects processor. Designed for musicians, live venues, recording studios, houses of worship, theatres, and commercial audio installations, the EFX8 delivers high-quality analog sound alongside premium onboard effects in an affordable and easy-to-use package. Its intuitive control surface allows users to create professional mixes while maintaining a streamlined workflow.

At the core of the EFX8 are Soundcraft’s acclaimed GB30 microphone preamps, developed by Graham Blyth to provide transparent audio reproduction with exceptional clarity and dynamic performance. Complementing the analog circuitry is the built-in AudioDNA processor, the same technology used in respected Lexicon and DigiTech processing equipment. This integrated effects engine provides 32 studio-quality effects, including professional reverb, delay, and modulation processing, allowing users to enhance vocals and instruments without requiring external processors.

The dedicated effects section includes tap tempo functionality, three adjustable effect parameters, user preset storage, an effects clip indicator, and a mute function for flexible control during live performances or recording sessions. Each input channel includes a dedicated effects send, while the configurable auxiliary bus provides additional routing flexibility for monitors or external equipment.

The EFX8 also incorporates comprehensive mixing features including three-band equalization with sweepable mid-frequency control on mono channels, three-band EQ on stereo channels, TRS insert points, RCA playback and recording connections, ten-segment LED output metering, solo monitoring, headphone output, and durable XLR and 1/4-inch connectors. With its compact rack-mountable design and professional feature set, the Soundcraft EFX8 Analog Effects Mixer provides dependable performance for a wide range of audio production environments.

Features of EFX8

• Professional 8-channel analog effects mixer
• Built-in 24-bit Lexicon effects processor
• AudioDNA digital signal processing
• 32 onboard effects presets
• Studio-quality reverb and delay effects
• Tap tempo control
• User effects preset storage
• Three adjustable effects parameters
• Dedicated FX send on every channel
• One configurable auxiliary bus
• Soundcraft GB30 microphone preamps
• Three-band EQ on mono channels
• Sweepable mid-frequency equalizer
• Three-band EQ on stereo channels
• TRS insert connections on mono inputs
• XLR microphone input connectors
• 1/4-inch metal jack sockets
• RCA stereo playback inputs
• RCA record outputs
• Ten-segment LED output metering
• Solo monitoring system
• Headphone output
• Effects clip LED
• Effects mute function
• Custom karaoke preset
• Rack-mountable design
• Suitable for live sound and recording

Specifications of EFX8
