SVS Prime Elevation Surround Speakers Pair – Piano Gloss

SVS Prime Elevation Atmos add-on speaker

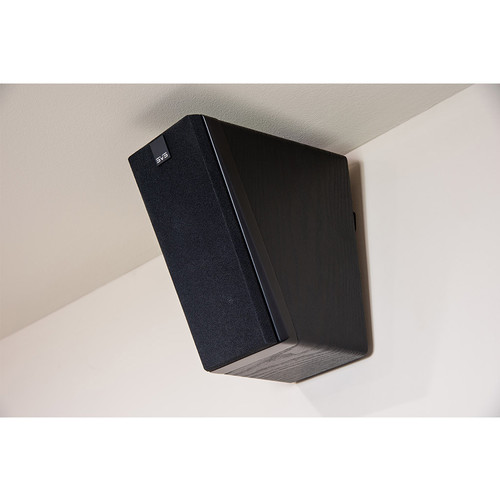

SVS Prime Elevation Atmos add-on speaker is engineered to deliver accurate, direct-radiating height effects for immersive object-based surround sound formats. Designed with an angled front baffle, the speaker enables wall-mounted placement near the ceiling, eliminating the need for ceiling-bounce reflection used by traditional up-firing speakers. This allows consistent height-channel performance in rooms where ceiling installation or in-ceiling speakers are not practical.

The system integrates a 1-inch aluminum dome tweeter and a 4.5-inch polypropylene cone woofer, delivering balanced high-frequency clarity, controlled midrange response, and dynamic low-frequency performance. The tweeter features an FEA-optimized diffuser for enhanced transparency and refined detail, while the mid-woofer uses an aluminum shorting ring, vented voice coil former, and cast ABS-fiberglass composite basket to reduce distortion, improve thermal transfer, and maintain precision alignment.

The reinforced, acoustically inert MDF cabinet minimizes resonance and vibration, ensuring clean sound reproduction across the frequency spectrum. A SoundMatch crossover network precisely blends tweeter and woofer output for accurate tonal balance and smooth frequency transitions.

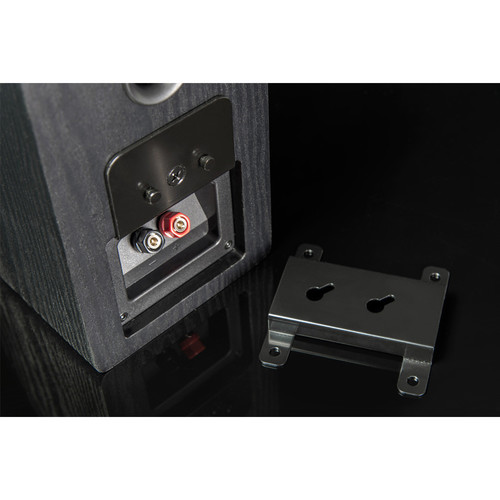

The included multi-angle wall bracket allows four mounting orientations, enabling up-firing, down-firing, side-firing, or rear-firing configurations. This versatility supports use as height channels, surround speakers, or alternative left, center, and right channel placements when standard positioning is not possible.

The design supports Dolby Atmos, DTS:X, and Auro-3D formats, making it suitable for modern home theater environments requiring flexible placement and direct sound radiation. This product follows the origin of country China standard as required.

Features of Prime Elevation

• Angled front baffle for direct-radiating height effects

• Multi-angle wall bracket with four mounting orientations

• Dolby Atmos, DTS:X, and Auro-3D compatibility

• 2-way speaker architecture

• 1″ aluminum dome tweeter with FEA diffuser

• 4.5″ polypropylene cone mid-woofer

• SoundMatch crossover for balanced frequency response

• Reinforced MDF acoustically inert cabinet

• Bass-reflex enclosure design

• Multi-position mounting flexibility

• Low-distortion driver components

• Adjustable magnetic grille logo

Specifications of Prime Elevation
