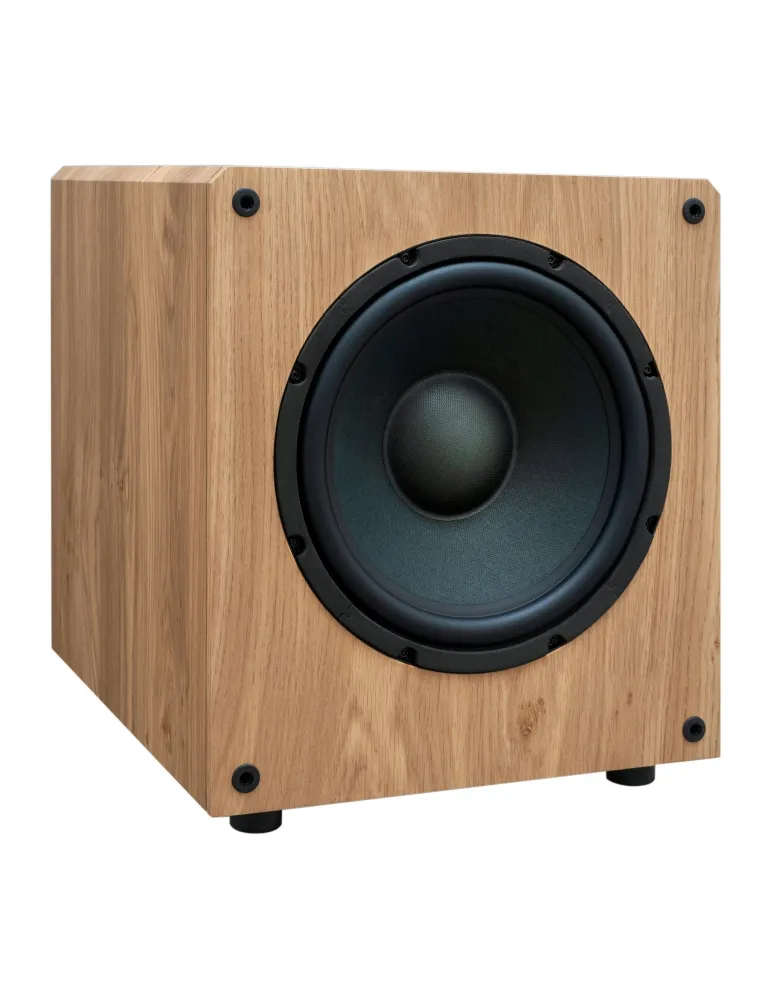

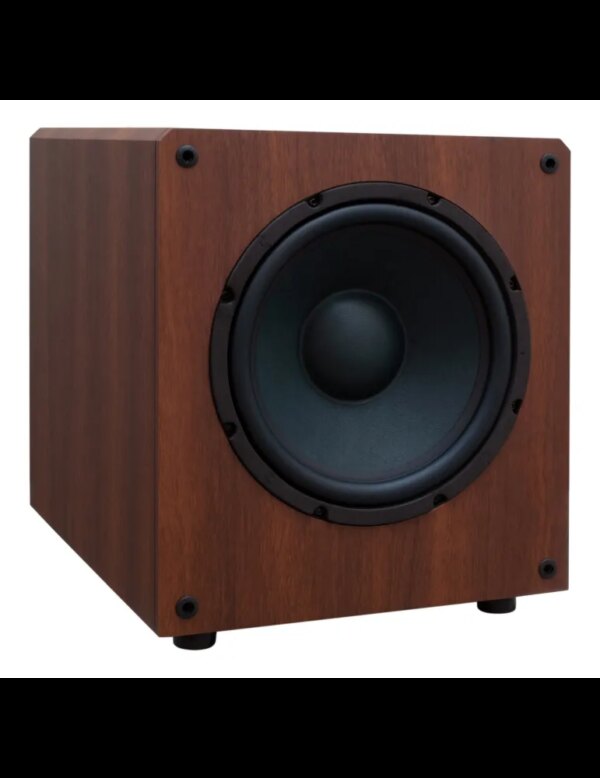

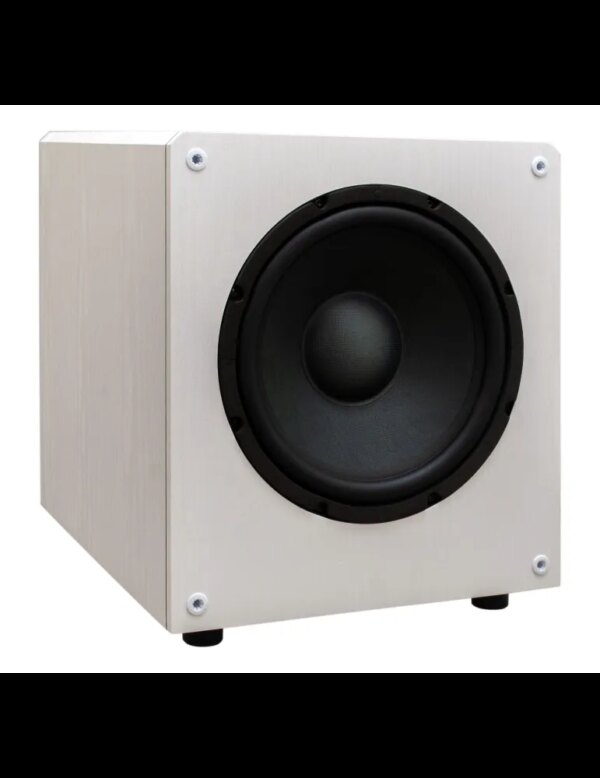

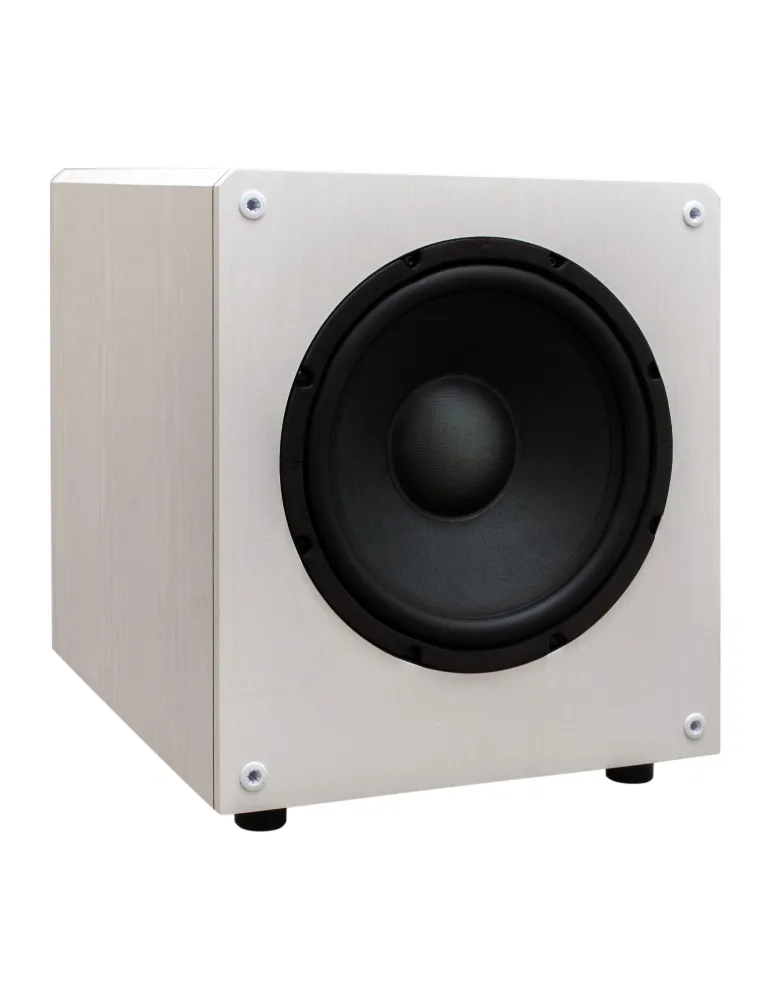

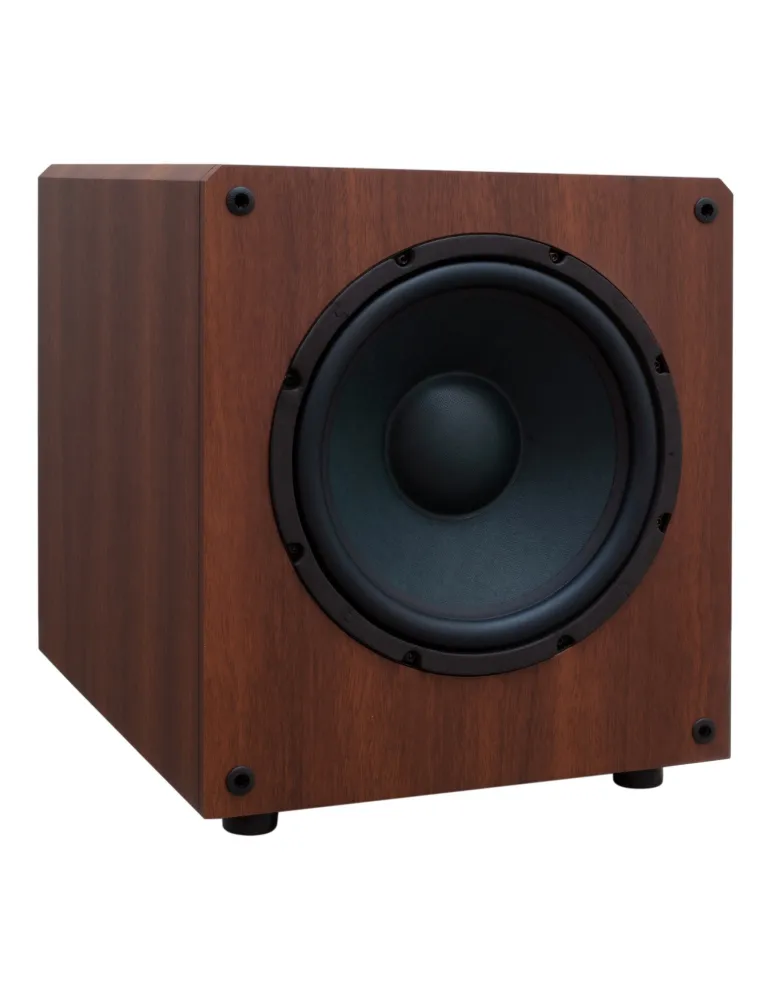

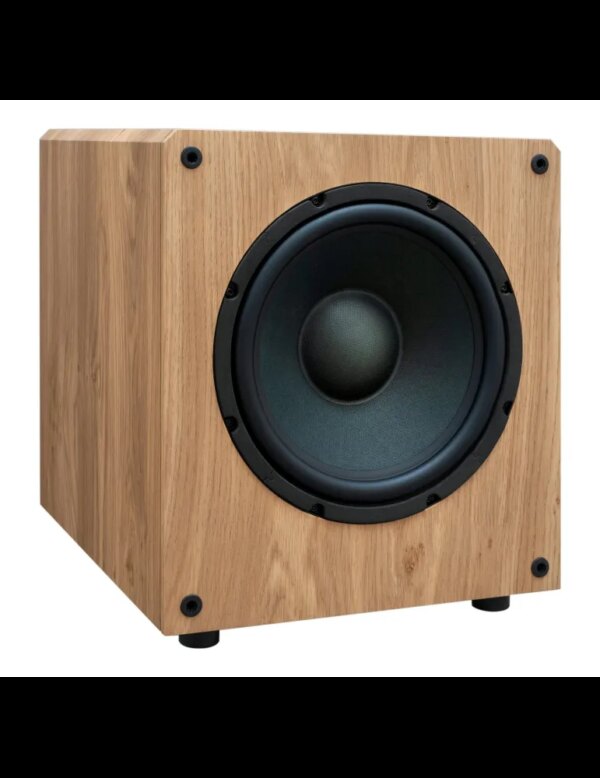

TAGA TSW-90 v.4 Subwoofer 10″ 95W – Oak/Walnut/White

The TAGA Harmony TSW-90 v.4 Subwoofer in Oak, Walnut, or White finish is a compact 10″ active subwoofer designed to deliver deep, clean bass with precision and control for home theater and stereo systems. This fourth-generation model features a redesigned high-current Class AB amplifier with 95W RMS output (260W peak), offering improved efficiency, faster transient response, and lower distortion. The 255mm paper cone woofer is housed in a TLIE (Taga Low Interference Enclosure) cabinet made from thick MDF panels, internally braced and acoustically damped to eliminate unwanted resonances and standing waves. A rear slotted bassreflex port enhances airflow and extends low-frequency output with minimal turbulence. The v.4 version includes upgraded capacitors, a modified woofer motor structure, and a detachable IEC power inlet for enhanced stability and audiophile cable compatibility. With auto on/off, phase control, and compact footprint, the TSW-90 v.4 delivers room-filling bass with clarity and punch—ideal for audiophiles, movie lovers, and space-conscious setups.

APPLICATIONS

• Compact active subwoofer for home theater, stereo, and hi-fi audio systems
• Perfect for deep bass in movies, music, gaming, and live concert playback
• Ideal for audiophiles, bass lovers, and immersive entertainment setups
• Compatible with AV receivers, stereo amps, and preamp outputs
• 10″ paper cone woofer delivers tight, punchy, and extended low-end
• 95W Class AB amplifier ensures high efficiency and fast response
• Rear slotted bassreflex port boosts bass without distortion
• Oak, Walnut, or White finish complements modern and classic interiors
• IEC power inlet allows upgrade to premium audiophile power cables
• Auto On/Off function saves energy and simplifies operation

FEATURES

• 10″ (255mm) paper cone woofer with rubber surround and oversized Φ120 ferrite magnet
• Built-in 95W RMS Class AB amplifier with 260W dynamic peak
• Redesigned amplifier and power board with upgraded capacitors
• TSAC metal chassis with anti-oxidation surface treatment
• Integrated clipping limiter for safe operation at high volumes
• Rear slotted bassreflex port for extended low-frequency response
• TLIE cabinet: MDF with internal bracing and acoustic damping
• Adjustable crossover frequency: 35Hz – 150Hz
• Phase control: 0° / 180° for optimal bass alignment
• Auto On/Off function for energy-efficient operation
• IEC C14 power inlet with removable Schuko-IEC C13 power cord
• Oak / Walnut / White vinyl finish with natural wood texture
• Solid isolation feet for vibration control and floor decoupling
• TAGA Harmony logo badge on front panel
