Wiim Amp Ultra Streaming Amplifier with Premium ESS ES9039Q2M DAC & Dual TI TPA3255 Amps – Grey

WiiM Amp Ultra AMP003

WiiM Amp Ultra AMP003 is a powerful next-generation streaming amplifier engineered for audiophiles and home theater enthusiasts seeking uncompromising sound quality with modern smart connectivity. Designed with a sleek anodized unibody aluminum chassis, WiiM Amp Ultra AMP003 blends elegance with performance while reflecting the origin of country mexico in its specification standards.

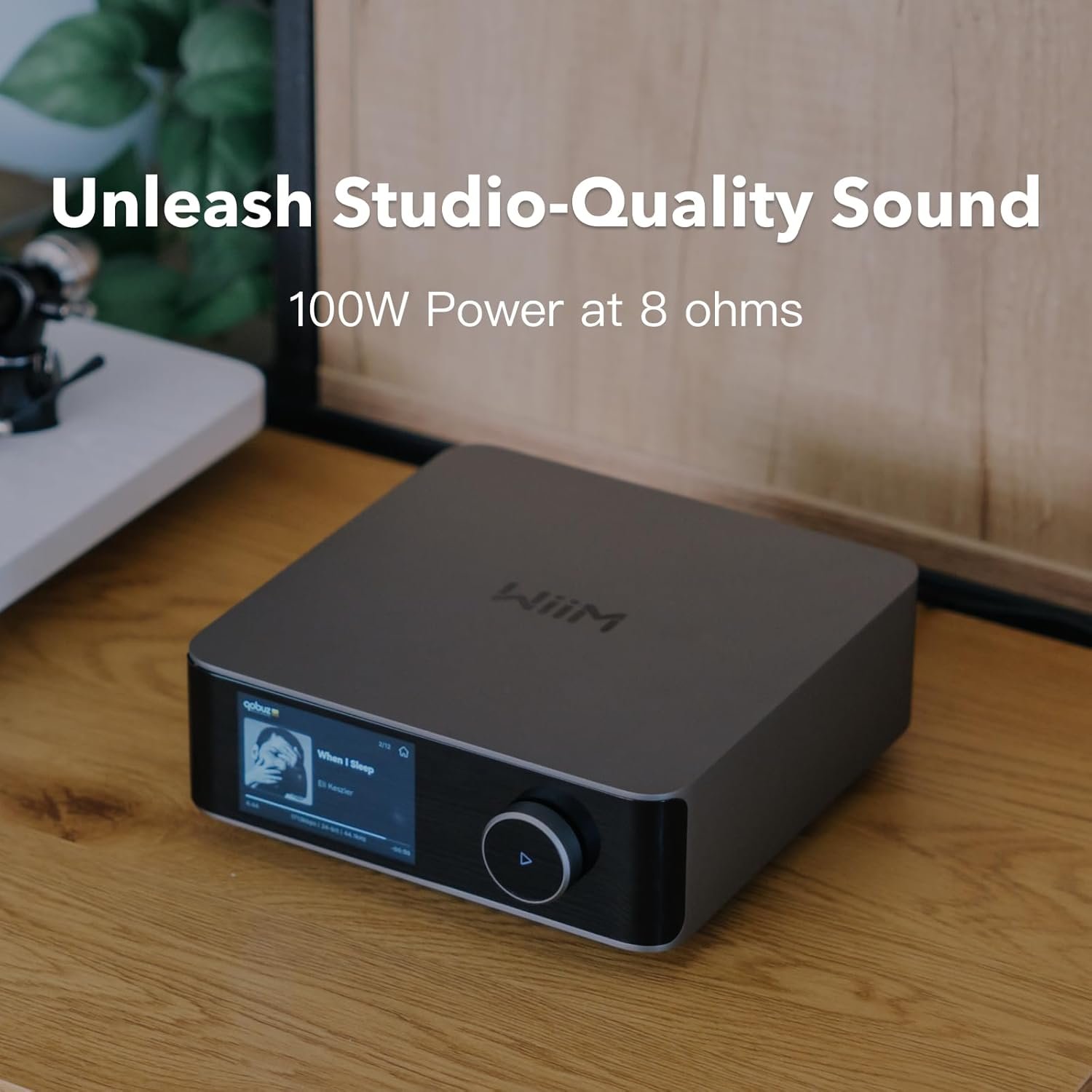

Delivering 100W per channel at 8Ω and 200W per channel at 4Ω with ultra-low 0.0005% THD+N, WiiM Amp Ultra AMP003 ensures clean, dynamic, and distortion-free sound reproduction. At its core, it features the ESS ES9039Q2M SABRE DAC, dual TI TPA3255 Class-D amplifiers, and six TI OPA1612 op-amps, enhanced by advanced Post-Filter Feedback (PFFB) technology for load-independent, consistent audio clarity.

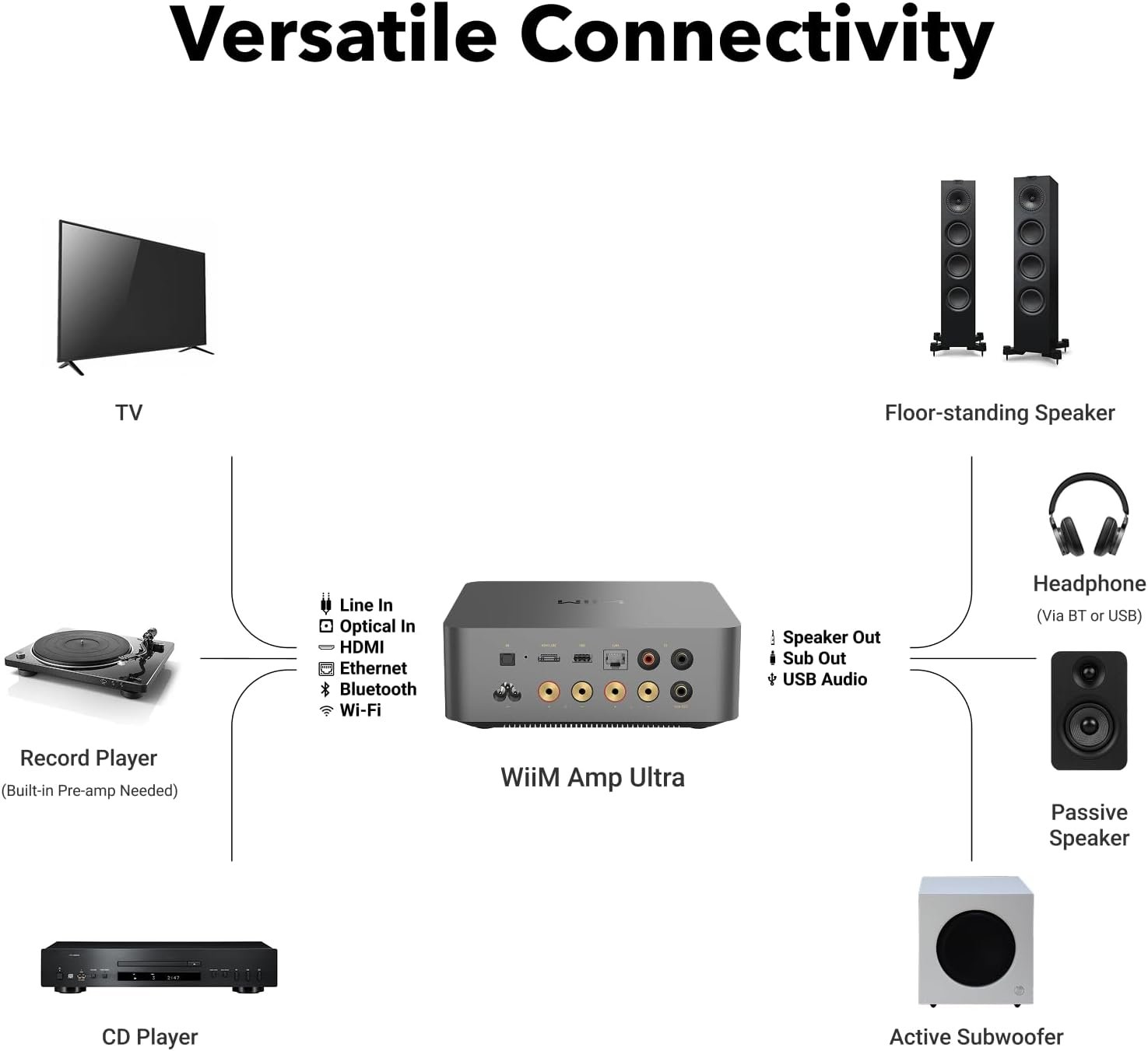

The integrated 3.5-inch glass-covered capacitive touchscreen provides intuitive control over playback, sources, and album artwork. With Wi-Fi 6, Bluetooth 5.3, HDMI ARC, optical input, and RCA connectivity, WiiM Amp Ultra AMP003 seamlessly integrates with TVs, turntables, streaming services, and smart home systems. Built-in RoomFit room correction automatically calibrates audio output to match your listening environment.

Supporting high-resolution streaming up to 24-bit/192kHz, multi-room playback, and voice assistant control, WiiM Amp Ultra AMP003 delivers precision, power, and versatility in a compact form factor designed for modern audio systems.

Features of WiiM Amp Ultra AMP003

• 100W per channel at 8Ω with ultra-low -106 dB THD+N performance

• ESS ES9039Q2M SABRE DAC for detailed, high-fidelity audio conversion

• Dual TI TPA3255 Class-D amplifiers with advanced PFFB technology

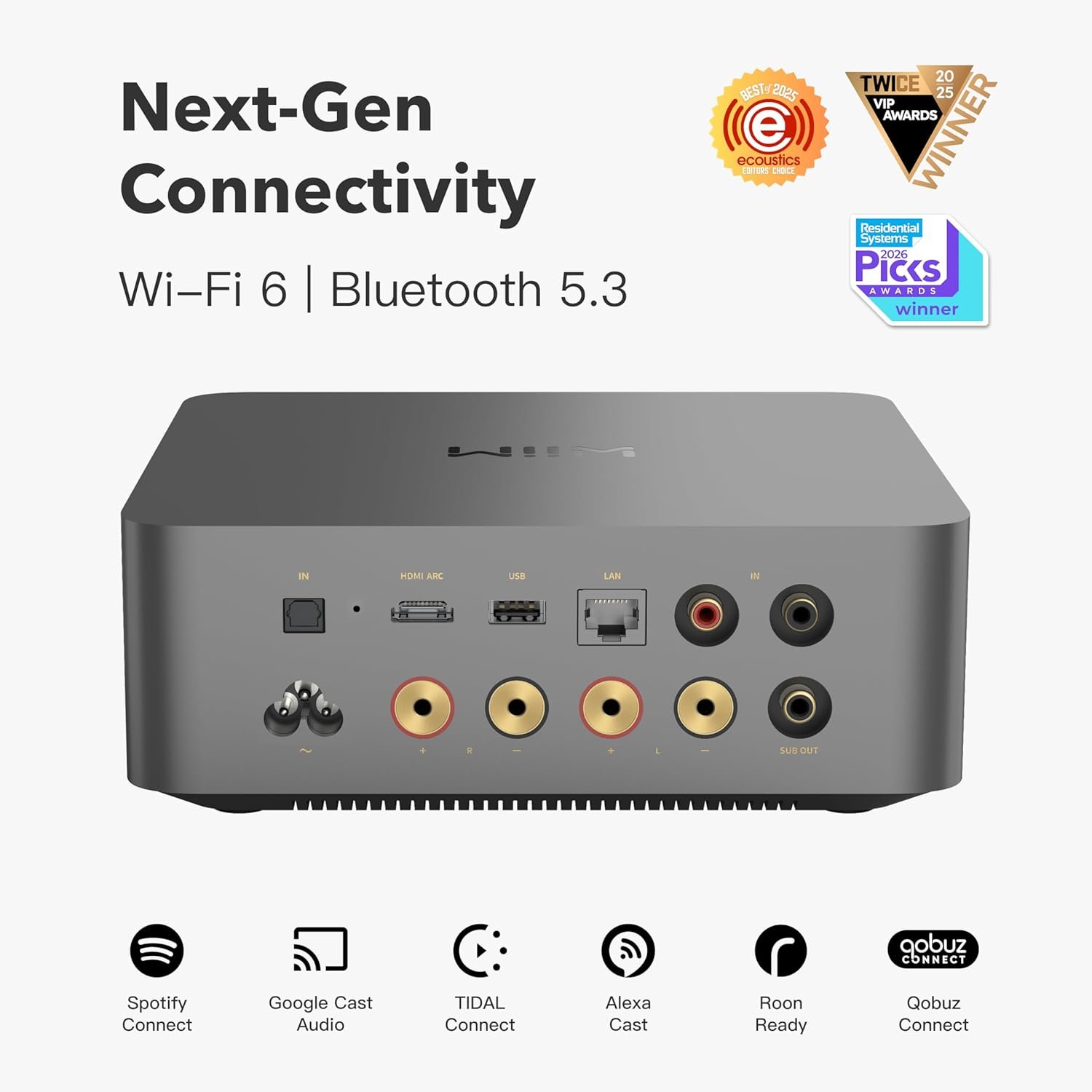

• Wi-Fi 6 and Bluetooth 5.3 with transmitter and receiver support

• HDMI ARC, Optical (192kHz/24-bit), and RCA stereo inputs

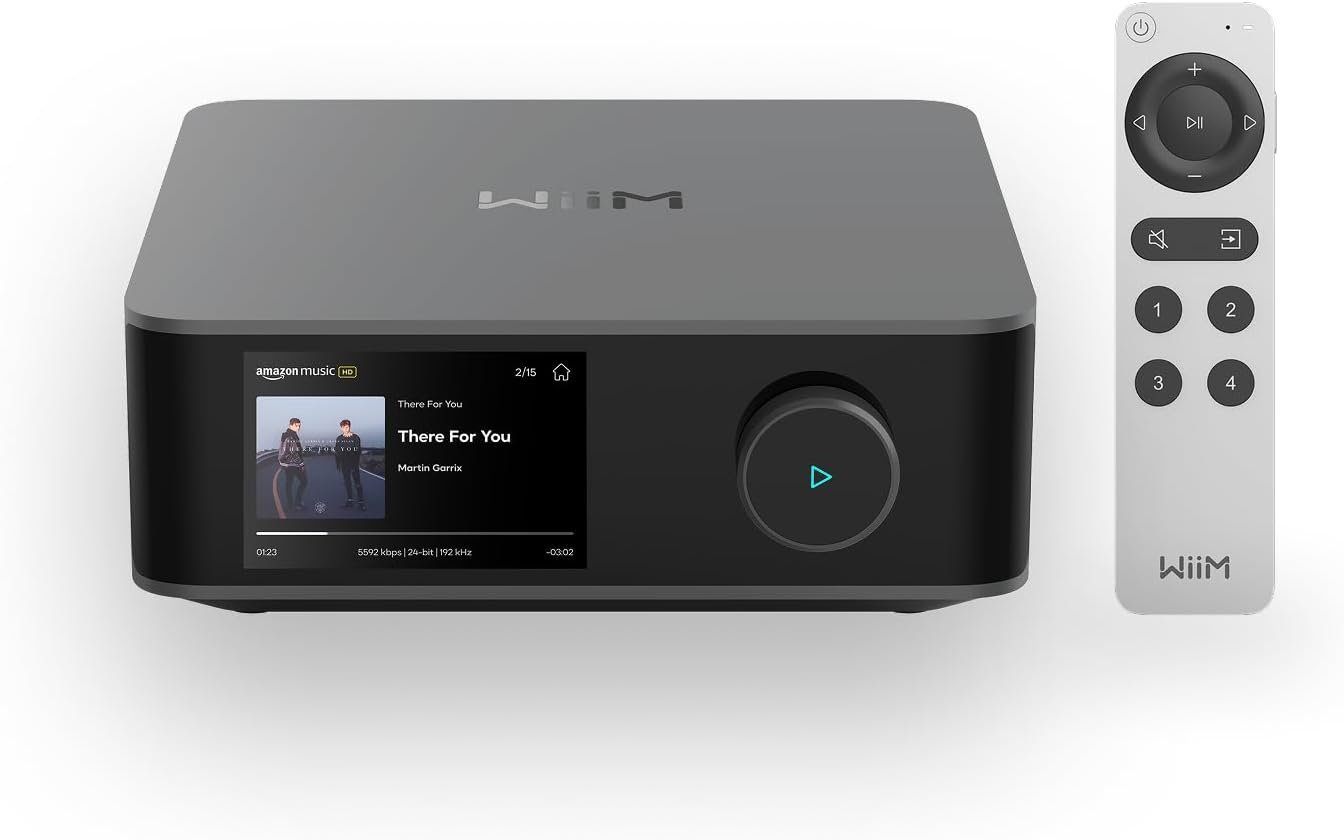

• 3.5-inch glass-covered capacitive touchscreen display

• Built-in RoomFit room correction for optimized sound calibration

• Multi-room streaming with Google Cast, Spotify Connect, TIDAL Connect, Qobuz Connect, DLNA, and Roon Ready

• Gold-plated binding posts supporting banana plugs or bare wire

• Passive silent cooling with copper heat pipe and aluminum heatsink

• Ethernet RJ45 port for stable wired connectivity

• Note: Not compatible with AirPlay

Specifications of WiiM Amp Ultra AMP003
