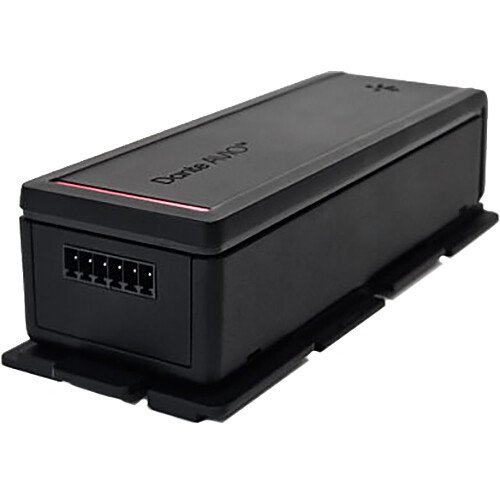

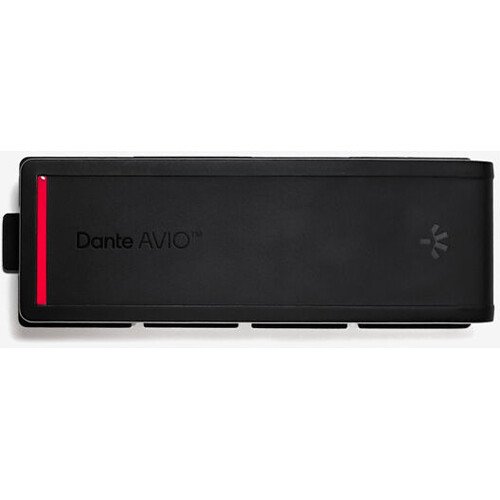

Audinate Dante AVIO Install 2-Channel Analog Output Adapter
The Audinate Dante AVIO Install 2-Channel Analog Output Adapter is designed for fixed AV installations that require two channels of Dante audio to be converted into balanced analog line-level output. It provides a practical interface for connecting Dante networks to amplifiers, powered speakers, DSP processors, mixers, and other analog equipment. Its installation-focused design uses Euroblock wiring and supports organized mounting through the Dante AVIO ClickGrid system.
The adapter uses a 6-pin Euroblock terminal with a 3.5 mm pitch for secure installed connections. It supports selectable analog output levels of +4 dBu, 0 dBu, 0 dBV, and -10 dBV and provides a 20 Hz to 20 kHz frequency response. Sampling rates of 44.1, 48, 88.2, and 96 kHz, together with 16-, 24-, and 32-bit PCM support, allow the interface to fit a variety of Dante system configurations.

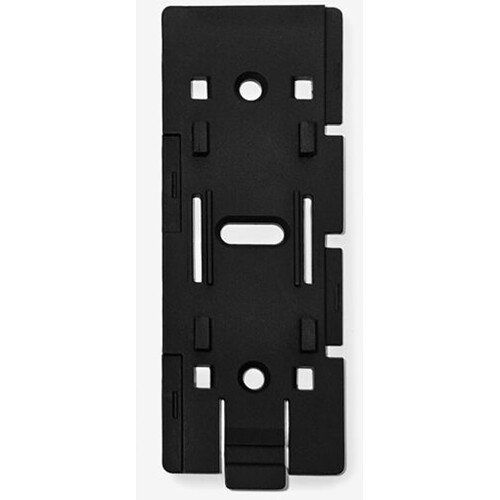

Dante Audio over IP networking is carried through the network connection, while Class 1 802.3af Power over Ethernet provides power without a separate local supply. Dante device latency can be configured at 1, 2, or 5 ms using Dante Controller. The installation architecture also supports structured mounting, with a bracket included for practical placement in fixed systems.
With power consumption below 2 watts and operation from -10 to +45°C, the adapter is suitable for conference rooms, corporate AV, education, hospitality, houses of worship, and distributed sound systems. Its combination of Dante networking, Euroblock output wiring, flexible audio formats, PoE operation, and ClickGrid mounting makes it useful when reliable analog outputs are required in permanent installations.
Features of AVIO-A-2OUT-EB
- 2-channel Dante-to-analog output
- 6-pin Euroblock output terminal
- ClickGrid mounting compatibility
- Mounting bracket included
- Selectable analog output levels
- 44.1–96 kHz sample-rate support
- 16-, 24-, and 32-bit PCM
- Class 1 802.3af PoE powered
- 1, 2, or 5 ms Dante latency
- Designed for fixed AV installations
Specifications of AVIO-A-2OUT-EB
| Audio Channels | 2-channel analog output |
| Connector | 6-pin Euroblock terminal, 3.5 mm pitch |
| Maximum Signal Level | +4 dBu / 0 dBu / 0 dBV / -10 dBV |
| Frequency Response | 20 Hz – 20 kHz (±0.2 dB) |
| Output Impedance | 150 kOhm balanced; 75 kOhm unbalanced |
| Sample Rates | 44.1, 48, 88.2, 96 kHz |
| Bit Depth | 16, 24, 32-bit PCM |
| Dante Latency | 1, 2, or 5 ms |
| Power | Class 1 802.3af PoE |
| Power Consumption | <2 W |
| Operating Temperature | -10 to +45°C |
| Mounting | ClickGrid system; mounting bracket included |
