Audinate Dante AVIO 1-Channel Analog Input Adapter
Dante AVIO 1-channel analog input adapter connects balanced line-level sources to Dante networks, offering configurable input levels, PoE power, broad sampling support, low latency, and reliable digital audio transport.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 942.90 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
Audinate Dante AVIO 1-Channel Analog Input Adapter

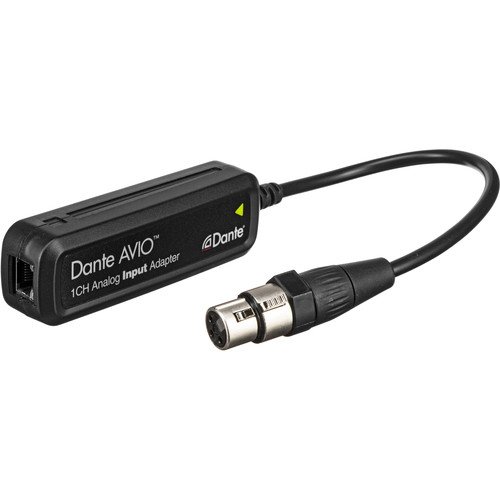

The Audinate Dante AVIO 1-Channel Analog Input Adapter provides a practical bridge between conventional analog audio equipment and Dante audio networks. Its single balanced line-level input is intended for sources such as mixers, wireless microphone receivers, instruments, processors, and other analog devices that need to feed a networked audio system. The compact adapter helps extend existing equipment into Dante installations without requiring additional network audio hardware at the source.
The analog input accepts selectable signal levels through Dante Controller, supporting +24 dBu, +4 dBu, 0 dBu, 0 dBV, and -10 dBV configurations. This flexibility allows the input to accommodate different professional and consumer line-level sources. A 20 Hz to 20 kHz frequency response, greater than 100 dB dynamic range, and low total harmonic distortion support accurate signal conversion for installed and production environments.
Network communication is handled through RJ45 connectivity, with Dante Audio over IP and AES67 RTP transport. The adapter is powered by Class 1 802.3af Power over Ethernet, allowing audio networking and power to be delivered through the network infrastructure. Dante device latency can be configured to 1, 2, or 5 ms using Dante Controller, supporting different routing and synchronization requirements.
The adapter supports 44.1, 48, and 96 kHz sampling rates with 16-, 24-, and 32-bit audio. These capabilities make the one-channel AVIO input suitable for distributed audio, conferencing, live production, education, hospitality, and other systems where an individual analog source needs reliable access to a Dante network.
Features of ADP-DAI-AU-1X0
- 1-channel analog input to Dante
- Balanced line-level source connection
- Selectable input signal levels
- 20 Hz–20 kHz frequency response
- Greater than 100 dB dynamic range
- RJ45 Dante network interface
- Class 1 802.3af PoE power
- Configurable 1, 2, or 5 ms latency
- Dante Audio over IP and AES67 RTP
- Supports sampling rates up to 96 kHz
Specifications of ADP-DAI-AU-1X0
| Audio Channels | 1 input |
| Maximum Input Level | +24 dBu / +4 dBu / 0 dBu / 0 dBV / -10 dBV |
| Frequency Response | 20 Hz – 20 kHz (±0.5 dB) |
| Input Impedance | 20 kOhm balanced; 10 kOhm unbalanced |
| Dynamic Range | >100 dB |
| Signal-to-Noise Ratio | >100 dB |
| THD | <0.01% at +4 dBu |
| Connector | RJ45 and XLR-F |
| Power | Class 1 802.3af PoE |
| Sample Rates | 44.1, 48, 96 kHz |
| Bit Depth | 16, 24, 32 bit |
| Dante Latency | 1, 2, or 5 ms |
| Network Transport | Dante Audio over IP, AES67 RTP |
