Bose ArenaMatch AMAPLONG Array Plates Long Kit – Pair

Bose ArenaMatch AMAPLONG array plates long kit

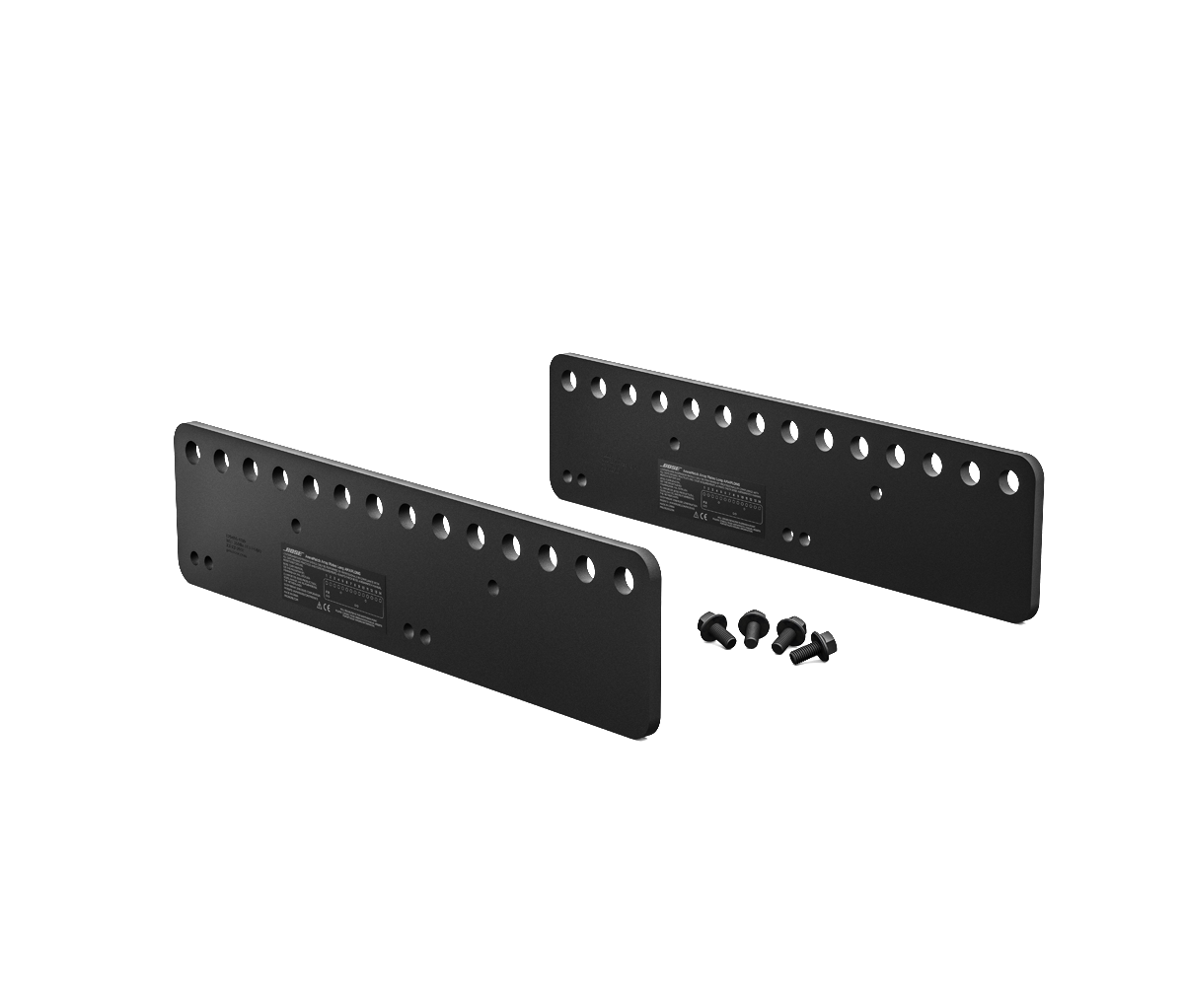

The Bose ArenaMatch AMAPLONG is a pair of long metal array plates designed exclusively for use with ArenaMatch DeltaQ array loudspeaker modules, specifically the AM10, AM20 and AM40. As the top attachment point of a flown array, the array plates secure the uppermost loudspeaker module to building structures such as walls, ceilings, trusses or steelwork, giving installers a certified, engineered rigging solution rather than an improvised mounting method.

Each kit ships in pairs and includes all fasteners required for installation, specifically four M12 x 30mm screws with plastic washers, so the plates can be fitted directly to the module’s threaded inserts without sourcing separate hardware. The long format of the AMAPLONG, at 603mm wide, extends attachment points further out from the module than the shorter AMAPSHRT kit, giving riggers more flexibility when aligning the array with the building’s available structural attachment points.

Rated for a working load limit of 350 lb (160 kg) on each side at a single point, the AMAPLONG is engineered to safely support the demands of ArenaMatch array installations in stadiums, arenas and large outdoor venues, where reliability and safety margins are critical. Bose recommends confirming safe working load limits for a specific array configuration, pitch angle and connection point using approved array design software before installation.

Finished in black to blend into rigging and truss environments, the AMAPLONG is a precision rigging accessory intended purely for professional installation use, giving system integrators a certified way to fly ArenaMatch arrays safely in permanent and semi-permanent large-venue sound reinforcement systems.

Features

• Long array plate rigging kit, sold in pairs
• Secures top module of an ArenaMatch array
• For use with AM10, AM20 and AM40 modules only
• Working Load Limit: 350 lb (160 kg) per side, single point
• Includes 4x M12 x 30mm screws with plastic washers
• Installation guide included
• 603mm width for extended attachment flexibility
• Black finish
