Bose Panaray MA12 Modular Vertical Line-Array Speaker – Black

Bose Professional Panaray MA12 Modular Line Array Loudspeaker Black

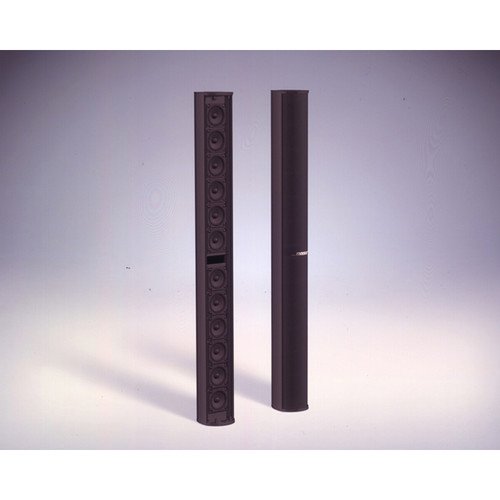

The Bose Professional Panaray MA12 black is a modular mid/high line-array loudspeaker designed for applications requiring broad horizontal coverage with controlled vertical dispersion and flexible array configuration. Twelve 2.25-inch drivers are arranged vertically to produce a coherent column source. The 145° horizontal coverage supports wide audience areas, while the nominal 20° vertical pattern helps concentrate energy where it is needed and can reduce unwanted reflections in suitable installations. The modular cabinet is designed to be combined with additional MA12 modules, allowing integrators to create larger arrays and adjust vertical pattern control for the venue. Optional brackets support different mounting and stacking arrangements depending on system requirements. The enclosure uses durable materials suited to fixed installation applications, and the 8-ohm impedance and 150 W power handling provide compatibility with appropriate professional amplification. The black finish can be selected to coordinate with architectural or production requirements while maintaining the same acoustic platform. The platform is intended to provide predictable performance and straightforward integration when matched with compatible system components. Correct installation, loudspeaker matching, and system configuration help maintain the intended acoustic performance across the coverage area. Its practical combination of connectivity, processing, and installation features supports consistent operation in appropriately designed commercial sound systems. The platform is intended to provide predictable performance and straightforward integration when matched with compatible system components. Correct installation, loudspeaker matching, and system configuration help maintain the intended acoustic performance across the coverage area. Its practical combination of connectivity, processing, and installation features supports consistent operation in appropriately designed commercial sound systems.

Features of MA12

• Twelve 2.25-inch drivers
• 145° horizontal coverage
• 20° nominal vertical coverage
• Modular line-array configuration
• 8 Ω nominal impedance
• 150 W power handling
• Optional mounting brackets
• Wide-area speech reinforcement
• Suitable for music and voice
• Professional fixed-installation design

Specifications of MA12
