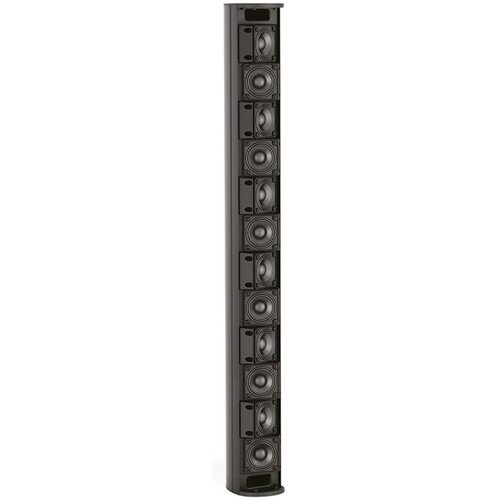

Bose Panaray MA12EX Modular Vertical Line-Array Speaker – Black

Bose Professional Panaray MA12EX Modular Line Array Loudspeaker Black

The Bose Professional Panaray MA12EX black is a modular full-range line-array loudspeaker designed for installations requiring high output, broad horizontal coverage, and controlled vertical dispersion in indoor or outdoor environments. Its twelve 2.25-inch weather-resistant drivers provide a 58 Hz to 16 kHz operating range, allowing the module to reproduce speech and light music without relying on a separate low-frequency enclosure for every application. The articulated array configuration provides 160° horizontal and 20° nominal vertical coverage for a single module. The MA12EX can be stacked into larger arrays to increase vertical pattern control and extend throw while reducing unwanted floor and ceiling reflections. The 8-ohm load and 150 W continuous power rating provide a straightforward interface to compatible professional amplifiers. An IPX5-rated enclosure uses aluminum and steel construction with a powder-coated finish, supporting outdoor deployment in appropriate installations. Six M6 threaded inserts provide mounting flexibility, while the black finish offers an architectural option for venues such as transportation facilities, recreation spaces, hospitality areas, auditoriums, and commercial outdoor environments. The platform is intended to provide predictable performance and straightforward integration when matched with compatible system components. Correct installation, loudspeaker matching, and system configuration help maintain the intended acoustic performance across the coverage area. Its practical combination of connectivity, processing, and installation features supports consistent operation in appropriately designed commercial sound systems. The platform is intended to provide predictable performance and straightforward integration when matched with compatible system components. Correct installation, loudspeaker matching, and system configuration help maintain the intended acoustic performance across the coverage area.

Features of MA12EX

• Twelve weather-resistant 2.25-inch drivers
• 58 Hz–16 kHz response
• 160° horizontal coverage
• 20° nominal vertical coverage
• 112 dB continuous maximum SPL
• 118 dB peak maximum SPL
• 8 Ω nominal impedance
• 150 W continuous / 600 W peak
• IPX5 outdoor protection
• Modular array mounting

Specifications of MA12EX
