Bose ShowMatch SMAF Array Frame

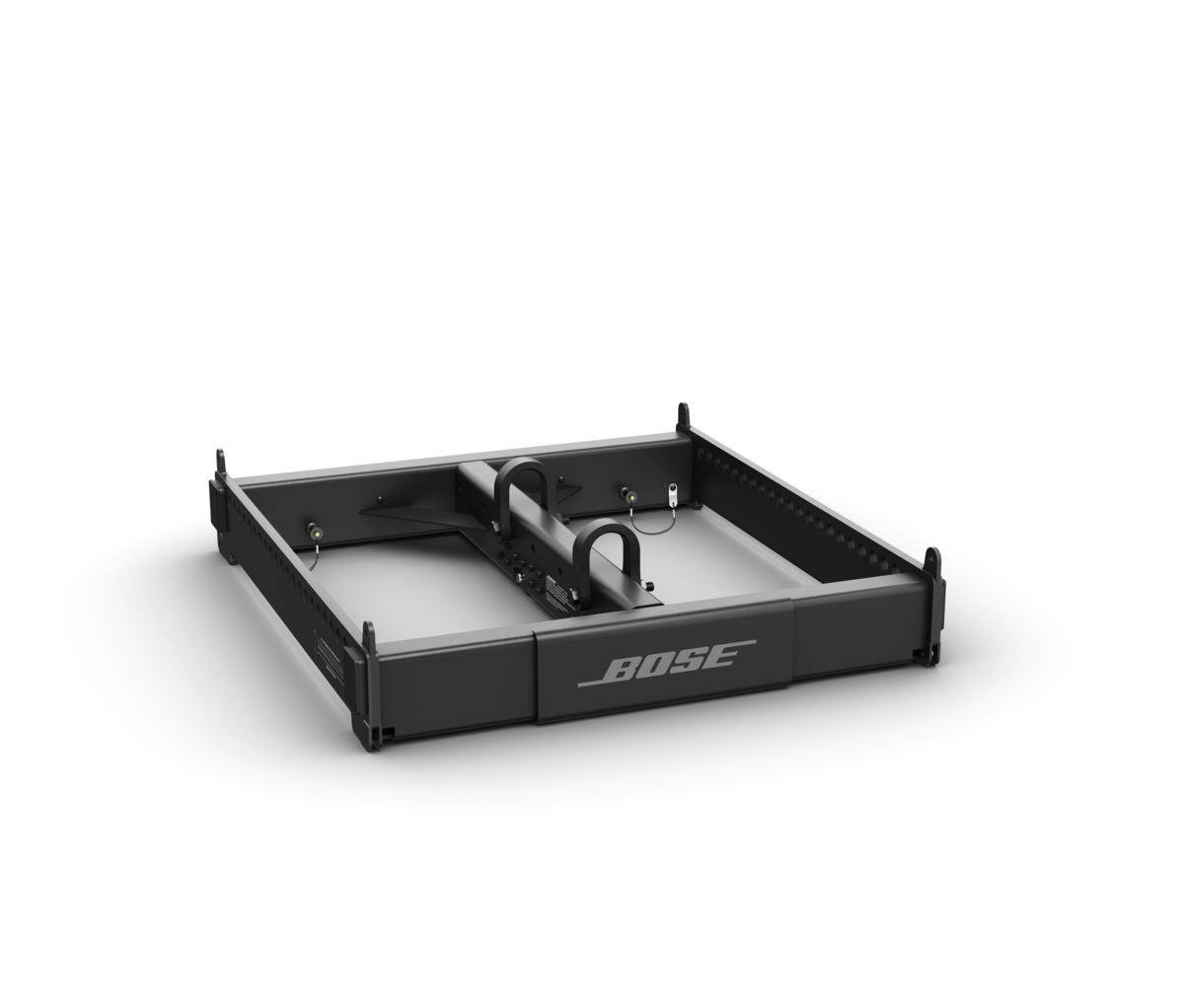

Bose SMAF ShowMatch array frame

The Bose SMAF (ShowMatch Array Frame) is a rigging accessory built to support the assembly of ShowMatch DeltaQ array loudspeaker modules into a coherent flown array. As the structural core of a ShowMatch rigging system, the SMAF gives touring engineers and installers a certified way to stack, angle and suspend multiple array modules safely above an audience.

The SMAF works alongside other ShowMatch rigging accessories, including the SMPULL array pullback bracket, the SMAFMP array frame multipoint bracket, and the SMAFT T-Bar array frame, giving system designers a modular rigging toolkit that can be configured for different array sizes, venue shapes and rigging point locations. This flexibility is essential for ShowMatch’s DeltaQ technology, which relies on precise angling between modules to deliver consistent coverage.

Designed for professional touring and fixed installation use, the SMAF is built to the safety and load standards expected of flown loudspeaker rigging in theatres, arenas, and auditoriums, where reliability under suspended load is non-negotiable. Bose recommends verifying safe working load limits for any specific array configuration using approved array design software before installation.

As part of the wider ShowMatch ecosystem, the SMAF supports the DeltaQ system’s ability to vary directivity module by module, reducing overall array weight and cost while maintaining outstanding vocal clarity across large venues, making it an essential rigging component for any ShowMatch-based flown array system.

Features

• ShowMatch DeltaQ array rigging frame
• Structural core for flying ShowMatch modules
• Works with SMPULL, SMAFMP and SMAFT rigging accessories
• Modular configuration for different array sizes
• Built to professional touring and installation safety standards
• Supports DeltaQ variable directivity array design
• Suited to theatres, arenas and auditoriums

Specifications
