Bose ShowMatch SMAFMP Array Frame Bracket

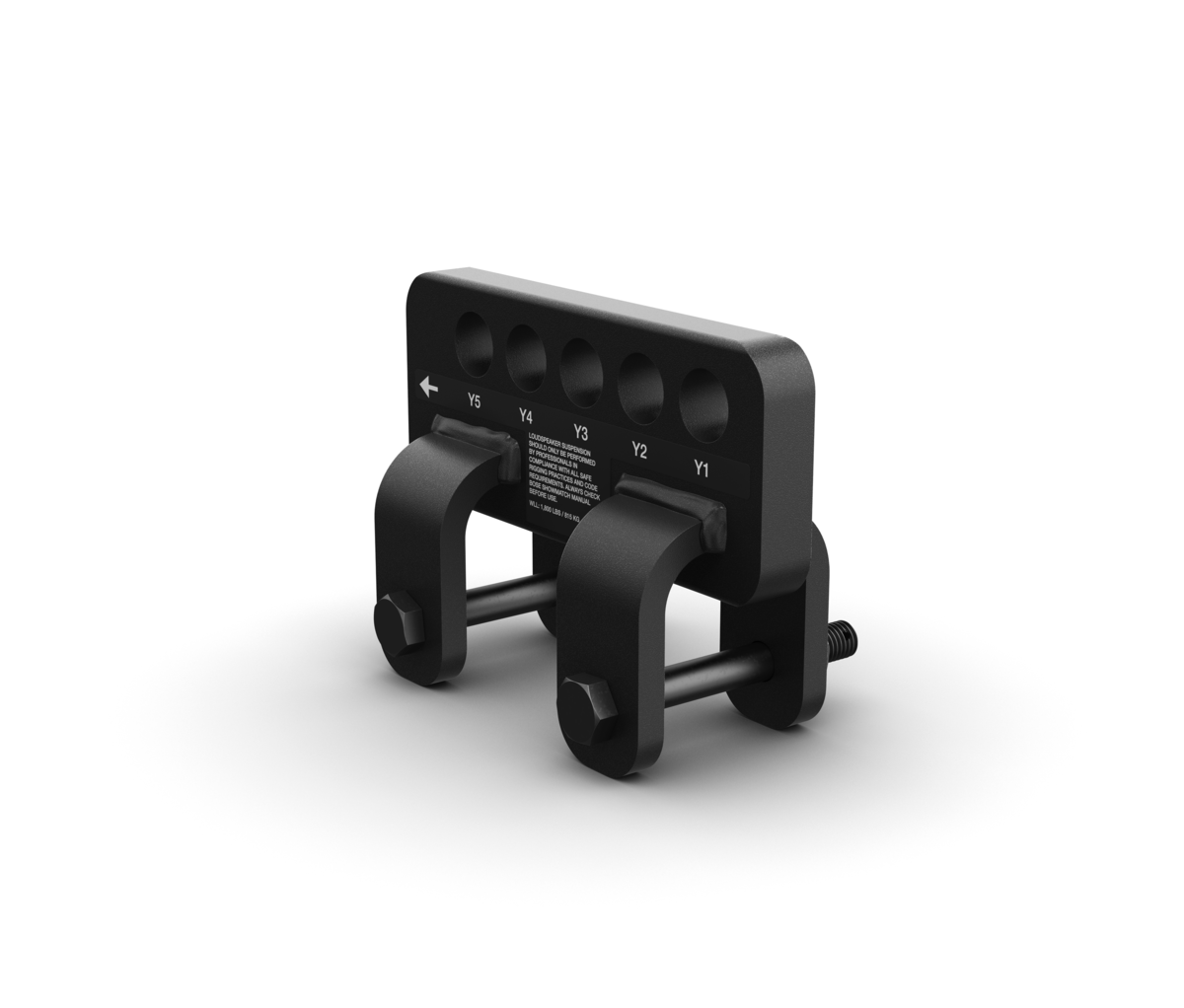

Bose SMAFMP ShowMatch array frame multipoint bracket

The Bose SMAFMP (ShowMatch Array Frame Multipoint Bracket) is a rigging accessory designed to expand the number of usable rigging points along the center rail of a ShowMatch SMAF Array Frame or SMAFT T-Bar Array Frame. Where the standard frame offers 7 rigging positions, fitting the SMAFMP increases this to up to 45 possible points, giving riggers substantially more flexibility when the venue’s structural attachment points don’t line up conveniently with the default frame spacing.

This expanded rigging flexibility is particularly valuable in touring and one-off event installations, where the exact position of trussing, beams or other structural elements varies from venue to venue. Rather than compromising on array position or angle, riggers can use the SMAFMP to fine-tune the exact suspension point along the frame’s center rail.

As part of the broader ShowMatch rigging ecosystem, the SMAFMP works alongside the SMAF and SMAFT array frames, the SMPULL pullback bracket, and other accessories to give system designers full control over how a ShowMatch DeltaQ array is assembled, angled and suspended for any given venue.

Built to the safety standards required for flown loudspeaker rigging, the SMAFMP is intended purely for professional installation and touring use. Bose recommends verifying safe working load limits for a specific array configuration using approved array design software before installation.

Features

• ShowMatch array frame multipoint rigging bracket
• Expands rigging points from 7 to up to 45 along center rail
• Compatible with SMAF Array Frame and SMAFT T-Bar Array Frame
• Increases flexibility for venue-specific rigging positions
• Works alongside SMPULL and other ShowMatch rigging accessories
• Built for professional touring and fixed installation use
