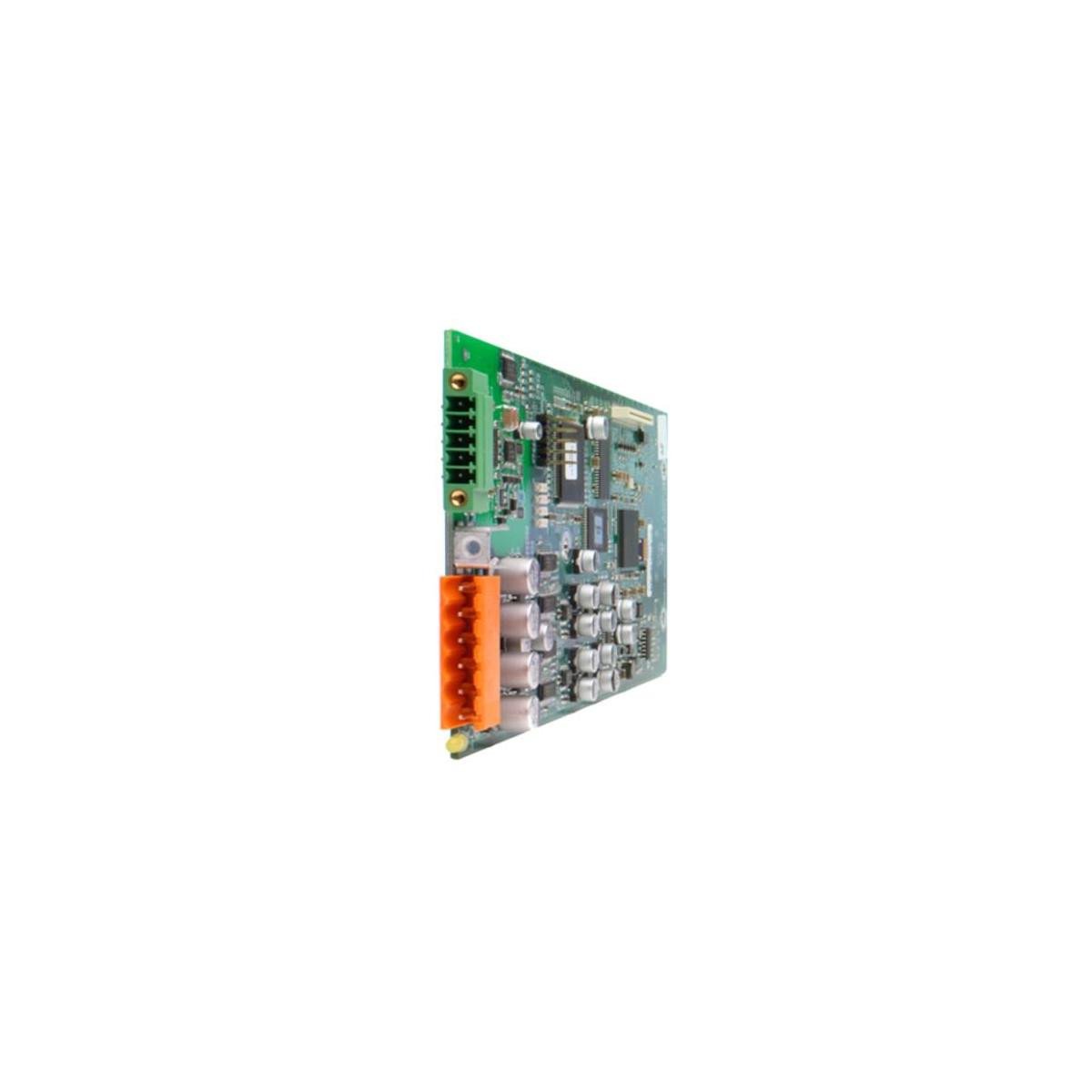

BSS Soundweb London Telephone Hybrid Card

BSS Soundweb London Telephone Hybrid Card telephone hybrid card

The Soundweb London Telephone Hybrid Card is designed to populate any of the four card slots on Soundweb London chassis such as the BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16, giving system integrators a modular way to configure the exact I/O mix required for a given installation.

The Telephone Hybrid Card enables Soundweb London devices to interface directly with an analog telephone line, providing 2-to-4 wire conversion so that the far-end caller’s audio can be routed into the local sound system while local microphone audio is sent back down the line, without howl-round or excessive near-end audio bleed.

The card is commonly used in conferencing, courtroom, and broadcast applications where telephone callers need to be integrated into a room’s live sound system. Combined with the Soundweb London AEC processing found on compatible chassis, the Telephone Hybrid Card supports clear two-way communication between in-room participants and remote telephone callers.

Each Telephone Hybrid Card card provides four channels of analog telephone line interfacing, keeping a consistent channel density across the Soundweb London card range so that chassis I/O can be planned and budgeted predictably. Cards are hot-swappable within a properly powered-down chassis and are secured with captive screws for reliable long-term operation in installed sound environments.

By using field-configurable cards rather than fixed I/O, the Telephone Hybrid Card allows a single Soundweb London chassis to be adapted over the lifetime of an installation as requirements change, protecting the integrator’s investment in the core processing hardware while still allowing the physical I/O to evolve alongside the project.

Features of Telephone Hybrid Card

• 4-channel telephone hybrid card for Soundweb London chassis
• Populates any of the four card slots on compatible chassis
• Compatible with BLU-800, BLU-320, BLU-160, BLU-120, BLU-80, BLU-32, BLU-16
• Analog telephone line (POTS) interface card
• 2-to-4 wire hybrid conversion
• Designed for conferencing and courtroom applications
• Works alongside Soundweb London AEC processing
• Reduces near-end audio bleed on the return path
• Hot-swappable within a powered-down chassis
• Captive screw retention for reliable connection
• Field-upgradable I/O configuration
• Consistent 4-channel density across the card range

Specifications of Telephone Hybrid Card
