BSS Soundweb London Digital Output Card

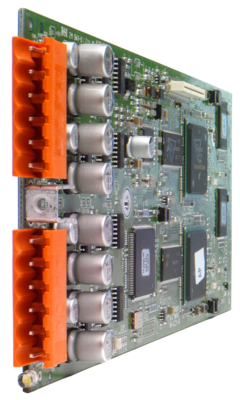

BSS Soundweb London Digital Output Card digital output card

The Soundweb London Digital Output Card is designed to populate any of the four card slots on Soundweb London chassis such as the BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16, giving system integrators a modular way to configure the exact I/O mix required for a given installation.

The Digital Output Card enables Soundweb London devices to transmit AES/EBU and S/PDIF digital audio signals to external digital equipment such as recorders, broadcast systems, and other digital audio processors, keeping signal transfer in the digital domain to avoid unnecessary conversion stages.

The card features two Combicon connectors: the first carries stereo AES/EBU audio across channels 1 and 2, with a second stereo pair on channels 3 and 4, while the second connector provides the equivalent channels on S/PDIF, giving flexibility to match the digital format required by connected downstream equipment.

Each Digital Output Card card provides four channels of aes/ebu and s/pdif outputs, keeping a consistent channel density across the Soundweb London card range so that chassis I/O can be planned and budgeted predictably. Cards are hot-swappable within a properly powered-down chassis and are secured with captive screws for reliable long-term operation in installed sound environments.

By using field-configurable cards rather than fixed I/O, the Digital Output Card allows a single Soundweb London chassis to be adapted over the lifetime of an installation as requirements change, protecting the integrator’s investment in the core processing hardware while still allowing the physical I/O to evolve alongside the project.

Features of Digital Output Card

• 4-channel digital output card for Soundweb London chassis
• Populates any of the four card slots on compatible chassis
• Compatible with BLU-800, BLU-320, BLU-160, BLU-120, BLU-80, BLU-32, BLU-16
• 4 channels of digital audio output
• AES/EBU output on dedicated Combicon connector
• S/PDIF output on dedicated Combicon connector
• Two stereo pairs per connector (channels 1-2 and 3-4)
• Maintains digital signal path to external equipment
• Hot-swappable within a powered-down chassis
• Captive screw retention for reliable connection
• Field-upgradable I/O configuration
• Consistent 4-channel density across the card range

Specifications of Digital Output Card
