Crown Audio DCi 4|600DA 4-channel Power Amplifier

Crown DCi 4|600DA

The Crown DCi 4|600DA DriveCore Install DA Series amplifier is a professional networked audio power amplifier designed for medium to large-scale installed sound systems requiring Dante or AES67 digital audio transport. Built on Crown’s high-efficiency DriveCore technology, it delivers consistent audio performance with reduced power consumption and minimal heat generation. With four channels delivering 600W per channel at 4 ohms, it provides a strong balance between power, channel density, and installation flexibility for commercial and professional environments.

The amplifier supports redundant Dante and AES67 network audio connectivity through primary and secondary ports, ensuring reliable and uninterrupted digital signal transmission. It operates at both 48 kHz and 96 kHz sample rates and supports analog-to-network audio routing with pre- and post-processing capability. The integrated DSP engine offers advanced audio control, including input and output EQ, crossover, delay, matrix routing, and LevelMAX limiting, enabling precise tuning and protection of connected loudspeakers across complex distributed systems.

Designed for critical and high-performance installations, the DCi 4|600DA includes continuous load monitoring, sweep load analysis, and pilot tone verification to ensure system integrity and early fault detection. It supports multiple priority input levels (high, medium, and low) with configurable delays and processing options for intelligent audio management. Full compatibility with HiQnet Audio Architect allows remote configuration, monitoring, and control over standard TCP/IP networks, providing centralized system management.

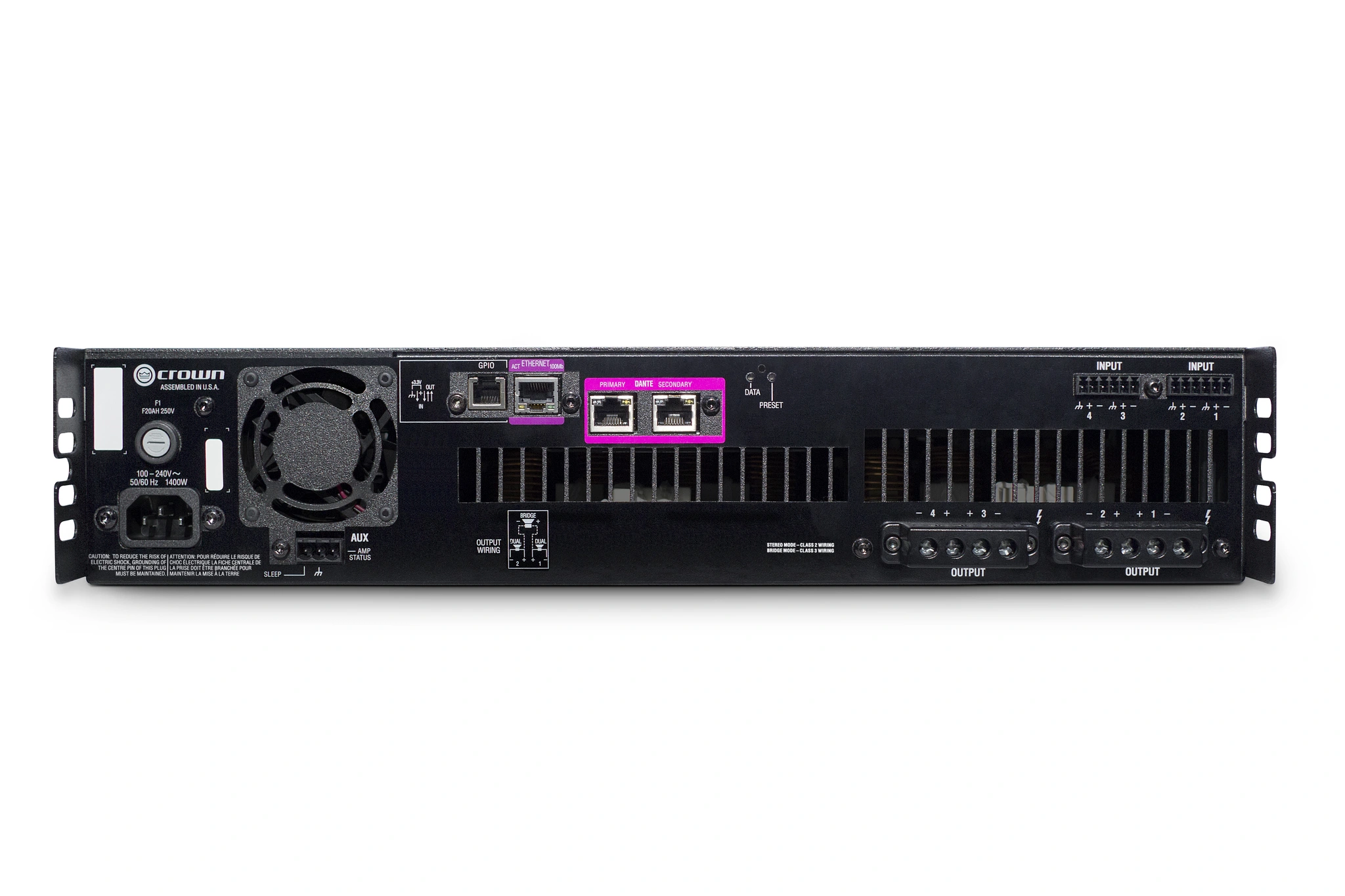

Additional features include programmable GPIO ports for external system integration, auxiliary control ports, removable air filters for easy maintenance, and front-panel LED indicators for real-time system status monitoring. With its combination of networked audio flexibility, robust DSP control, and efficient DriveCore amplification, the Crown DCi 4|600DA is a reliable solution for scalable professional audio installations.

Features of DCi 4|600DA

• Dante™ and AES67 network audio integration
• Redundant primary and secondary network ports
• Four-channel 600W per channel output design
• High-efficiency DriveCore amplification platform
• Advanced DSP with full system processing tools
• Input/output EQ, crossover, and delay control
• Matrix routing for flexible audio distribution
• LevelMAX limiter for speaker protection
• HiQnet Audio Architect remote control support
• Continuous and sweep load monitoring system
• Pilot tone detection for fault verification
• GPIO programmable control and automation ports
• Support for 2Ω–16Ω, 70V, and 100V speaker loads
• Front-to-back efficient cooling system
• AES67 compatibility for networked audio systems
• Multi-priority input signal management

Specifications of DCi 4|600DA
